About Madiz

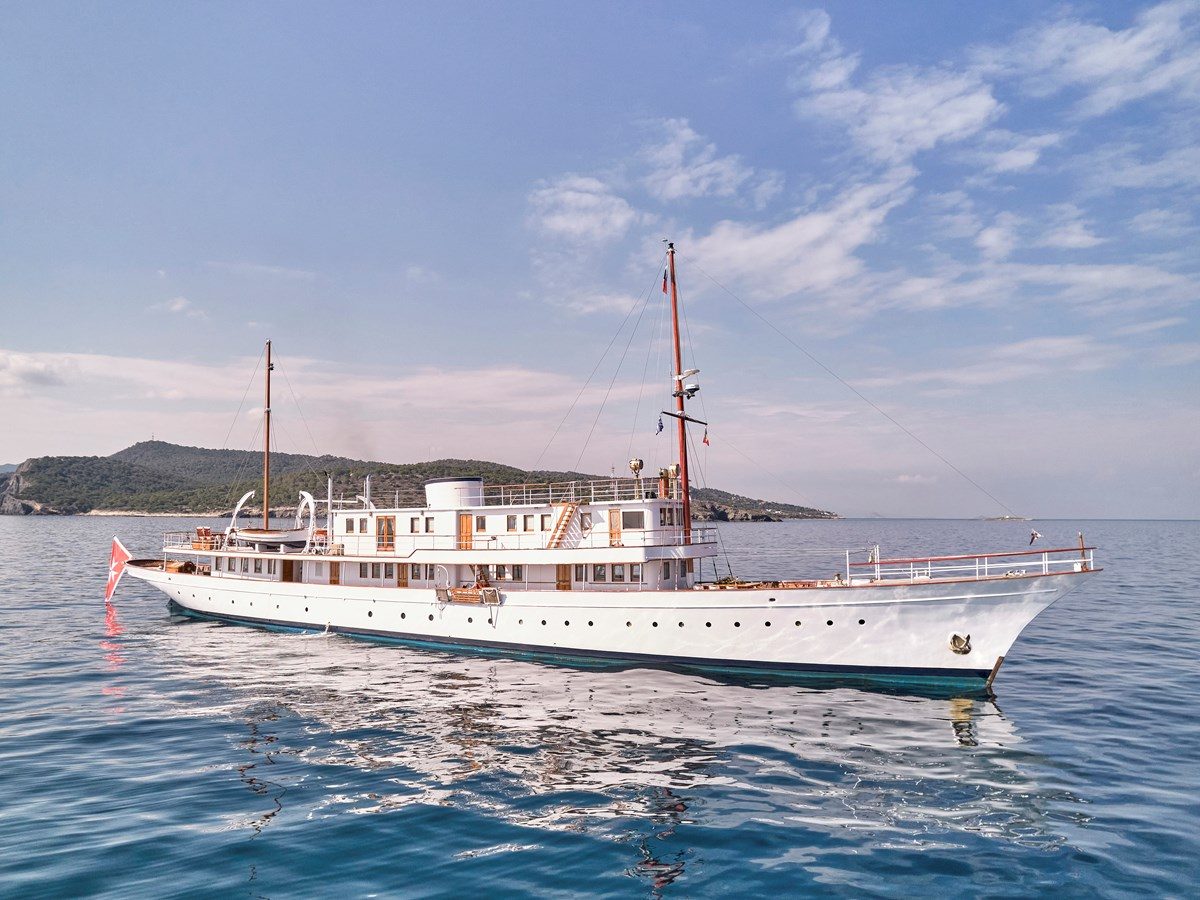

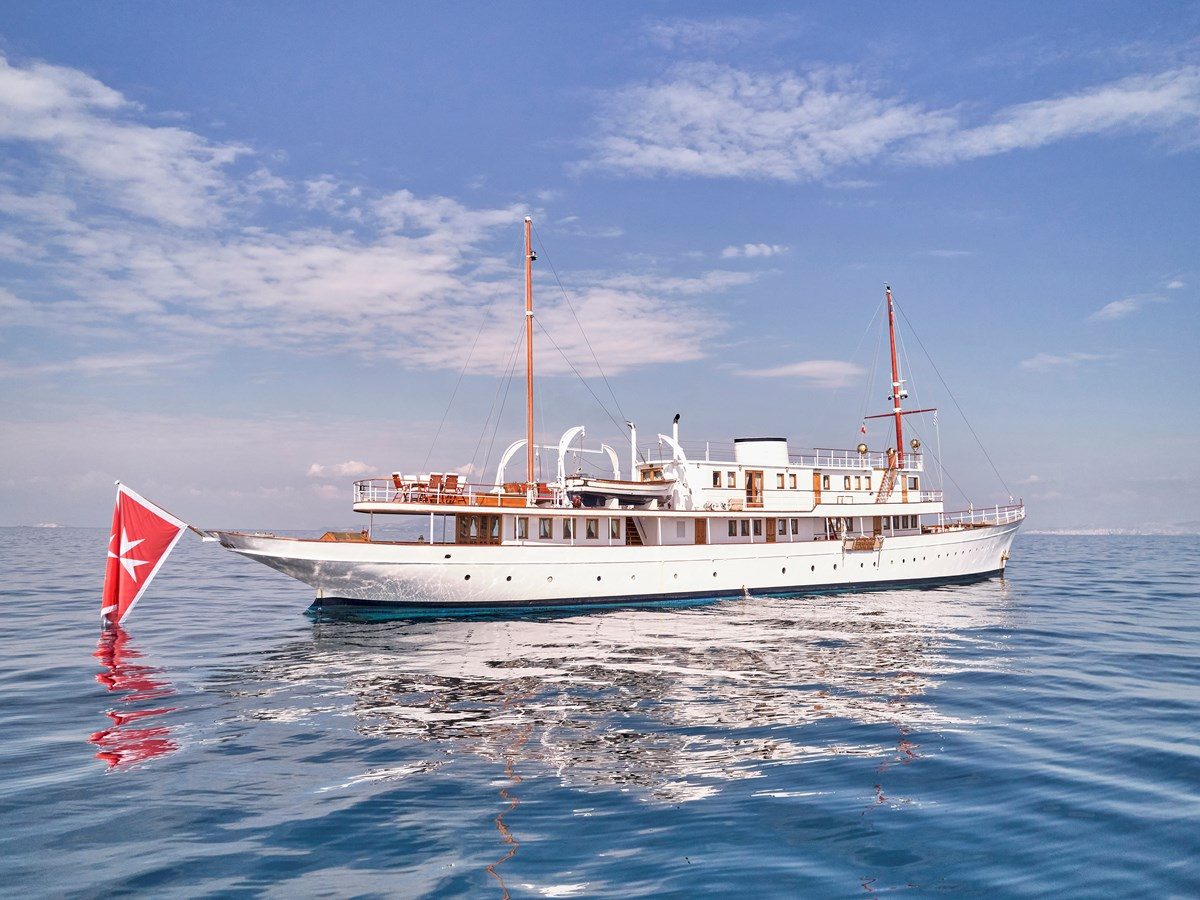

Madiz is one of a few yachts to have survived from the early 20th century, and arguably there is no other yacht of this size, age, and original standing remaining. She was built in 1902 by Ailsa Shipbuilding in Troon, Scotland, and is the largest classic motor yacht currently listed for sale. Madiz can also claim the title of the oldest vessel in operation to have Lloyd’s classification. Originally commissioned by James Coates Jnr, from his friend and now legendary yacht designer G L. Watson, Madiz was intended as something of a mothership or support boat to Coates’ sizable schooner-rigged sailing yacht. Madiz served in the Royal Navy in both world wars, hosted the British Royal Family, Frank Sinatra and the Rat Pack before passing into the ownership of Costas Keletsekis who in 2003 brought her back to Lloyds 100A1 class. In 2010, Madiz found her current owners and has since been meticulously maintained as a classic yachting icon. The 120-year-old steel-hulled motor yacht, now powered by two Mercedes 250Hp engines, accommodates 14 guests in seven cabins and operates with a crew of 10. The vessel is complemented by a 6m Riva Superflorida tender and a 6m classic launch. Madiz is located in Perama, Athens, where she is available for viewings by prior appointment.
- 55.4 m181′ 9″Length
- 1902Year
- 7Guest cabins
- 2 × MERCEDESEngines500 hp, 3,300 h
- 2,750 nmRange10 kn cruise
- 6.86 m22′ 6″Beam
Specifications
Madiz at a glance
Dimensions
- Length
- 55.4 m181′ 9″
- Beam
- 6.86 m22′ 6″
- Draught
- 3.99 m13′ 1″
- Gross tonnage
- 359
Accommodation
- Guest cabins
- 7
Build
- Year
- 1902
- Hull
- Mono Hull · steel
Performance
- Engines
- 2 × MERCEDES Maybach
- Total power
- 372.8 kW · 500 hp
- Engine hours
- 3,300 h
- Max speed
- 11 kn
- Cruising speed
- 10 kn
- Range
- 2,750 nm
- Fuel capacity
- 50,000 l
- Water capacity
- 40,000 l
Construction
- Steel Hull and Superstructure
Main Characteristics
General
- Built by Ailsa Shipbuilding, Troon
- Year 1902
- Length 55.40m (200′)
- Beam 6.86m (22′ 6″)
- Draft 3.99m (13′ 1″)
- Classification Lloyds 100A1 +LMC
- Flag Malta
- Gross tonnage 359 t
- Net tonnage 107 t
- Naval Architect G.L. Watson & Co.
Capacities
- Speed 10/11 knots (approx)
- Range 2750 nm @ 10 Knots
- Fuel capacity 50,000 Litres (13,209 US Gallons)
- Water capacity 40,000 Litres (10,567 US Gallons)
- Black water capacity 3,900 Litres (1,030 US Gallons)
- Grey water capacity 3,900 Litres (1,030 US Gallons)
- Fuel consumption 170 L/h @ 10 knots

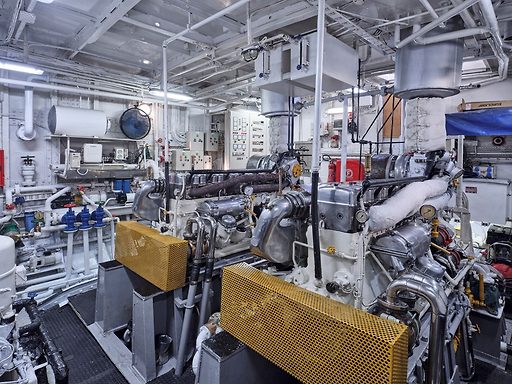

Machinery
- Engines 2 MERCEDES 250 HP
- Engine model Maybach
- Engine hours
- Port 3300hrs (1-Nov-2008)
- Starboard 3300hrs (1-Nov-2008)
- 3300hrs/engine since rebuild in 2008
- Fully overhauled in 2006 during Lloyd's special survey.
- Fuel Diesel
- Propulsion Prop Shaft
- Gearboxes Reintjes, ratio 5.88:1, (approx 200-250 RPM at propeller)
- Steering Original mechanism (converted from steam to electrical)
- Generators
- 1x 105 KVA Deutz (2004) 0 hrs since W6 in 2024
- 1x 100 KVA ONAN (2012) 13700 hrs
- Electricity
- 380 volts, 50 cycles
- 220 volts, 50 cycles - via 2 transformers
- Shore power 380 volts
- Batteries
- 4 x 220 amp/hrs main engines
- 2 x 220 amp/hrs generators
- 4 x 220 amp/hrs emergency lights and night operation
- Air Conditioning New
Other machinery
- Sewage System Triton 408 (4,080 litres/day)
- Seafari watermaker
Accommodation
- "Owner's" suite
- Large stateroom with seating area, situated on the upper deck, featuring 2 sets of double window doors opening onto the deck.
- "President" Suite
- Full beam master stateroom with double bed and large seating area. Situated amidships for most comfortable motion.
- "Lord's" suite
- Large stateroom with seating area, one of the original staterooms, with part of the original mahogany panelling. Situated in the forward lower accommodations.
- "Lady's" Suite
- Large stateroom with seating area, the other one of the original staterooms, with part of the original mahogany panelling. Situated in the forward lower accommodations.
- "Athenian" Suite
- Large stateroom, partly original, with seating area, situated in the forward part of the ship, featuring a large central skylight.
- "Ambassador" suite
- Airy stateroom on the upper deck, featuring double window doors that open onto the deck.

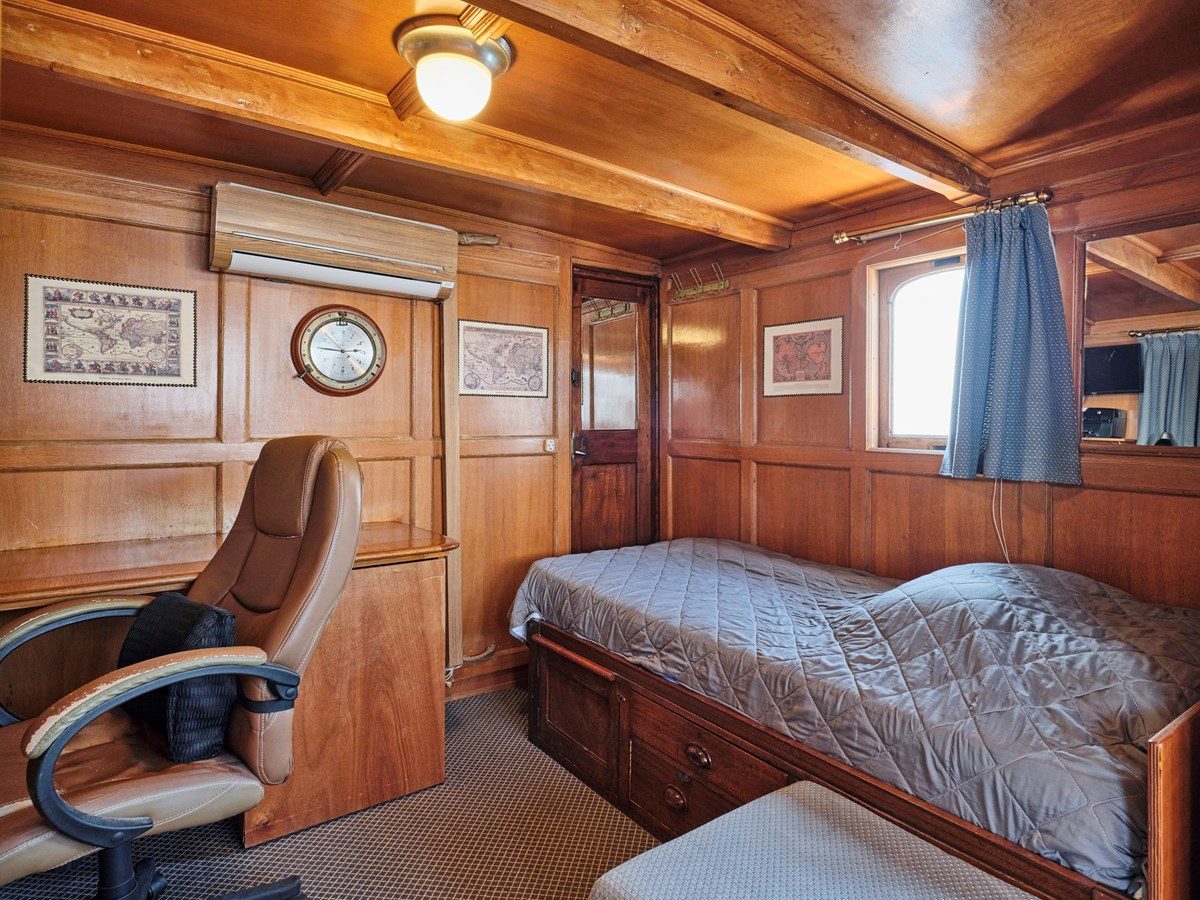

- 1 x smaller stateroom, with 2 single beds and bathroom en suite facilities, useful for guests, children or accompanying personnel. This is also one of the original rooms.
- All bathrooms have showers, basins and toilets and vanity unit.
- Crew Quarters
- *Upper deck *
- Captain's cabin with bathroom en suite, situated aft of the bridge.
- *Lower deck *
- 1 x Double cabin with bathroom en suite
- 1 x Single cabin with bathroom en suite
- 3 x Double bunk cabins
- 2 x Common bathrooms
- Crew Galley
- Crew mess with seating for 6
Communication equipment
- VHF GMDSS FURUNO
- Inmarsat NIL

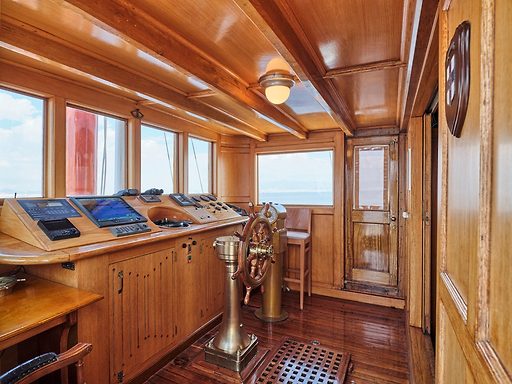

Navigation equipment
- Radar/Plotter Furuno Navnet
- Echo sounder Furuno LS 6100
- Satellite Compass/GPS Furuno SC-502
- Magnetic Compass
- AIS EM Track A200
Deck Equipment
- Windlass Oiginal windlass (converted from steam to electric drive)
- Anchors 2x400 kg with 5 shackles on each chain
Safety & security equipment
- Liferafts 2 x 12 people
- Fire fighting 6 x Fire line points with hoses.
- Full complement of fire extinguishers as per fire plan.
- 2x fireman's outfits with breathing apparatus & spare air bottles
- EEBD devices 4 pieces
- Fire detection system for main deck, engine & crew area
Refit history
- Reclassified by Lloyd's in 2003 & 2007
- Special survey completed in 2007
- *Madiz *underwent a major refit under the Owner's careful and strict supervision in Perama, Greece that included a 17 month dry dock period.
- The main works done are as follows
- Steel works
- Replacement of approximately 50 tons of plating (internally and externally) with 8 mm and 10 mm steel, including bulkheads, tanks and the majority of frames below the waterline in forward and aft areas. Some areas were completely rebuilt.
- Diesel tanks extended and rebuilt
- New water tanks
- New black and grey water tanks
- All tanks were pressure tested under Lloyd's supervision
- Plans
- A full new set of plans was drawn up and approved by Lloyd's
- Machinery
- Almost all piping replaced
- New sewage treatment plant installed
- All pumps either renewed or overhauled
- The majority of electrical wiring replaced
- New main electrical switchboard and 220 transformer
- New main engine control panels
- New generator added
- Emergency lighting and alarms renewed
- Lignum vitae bearings renewed
- Main engines - major overhaul
- Shaft bearings re-metalled
- Intermediate shafts, tail shafts and propellers tested
- Main engines and shafting system re-aligned
- Air conditioning system was rebuilt
- Rudder mechanism rebuilt
- Interior
- New (President) stateroom built
- Forward (Athenian) stateroom extended
- Existing wood panelling removed, underlying plating cleaned and painted, woodwork repaired or refurbished.
- Most electrical wiring replaced

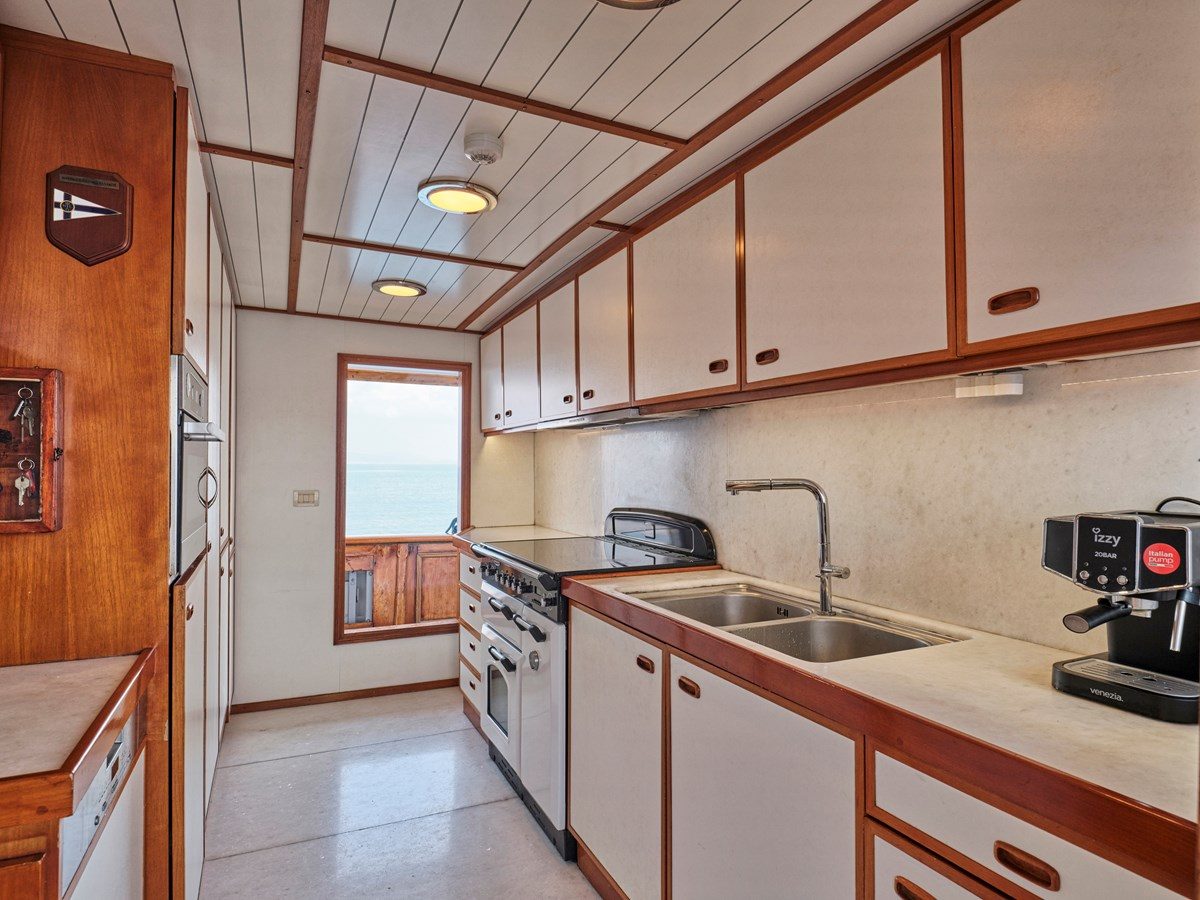

- New galley installed in 2010
- Deck
- Replacement of teak decks on foredeck, aft deck & all of the upper deck
- Refurbishment of all existing panelling and deck fittings
- Anchor windlass entirely rebuilt
- Complete re-paint of all exterior surfaces in 2023
