About Mizu

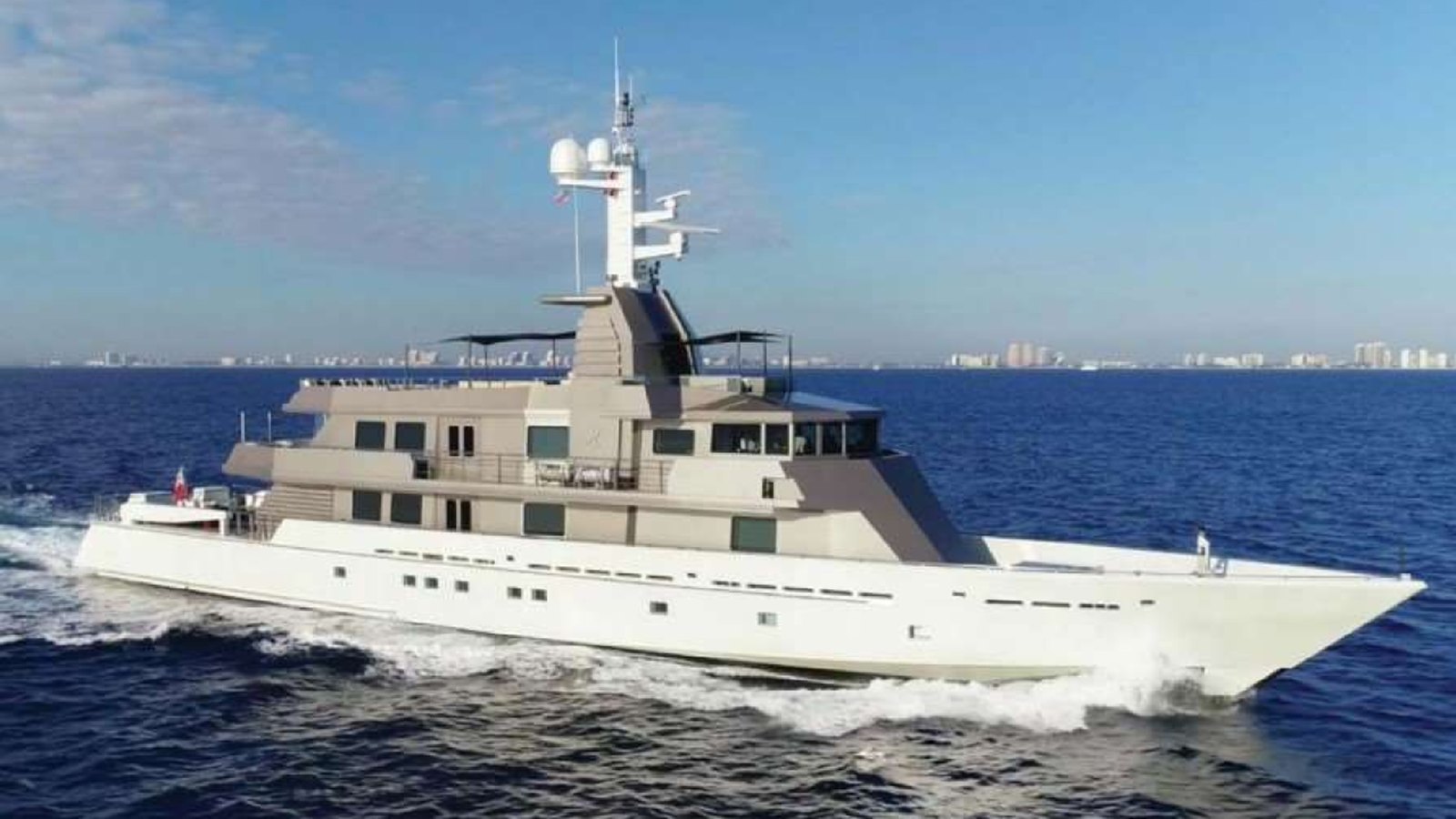

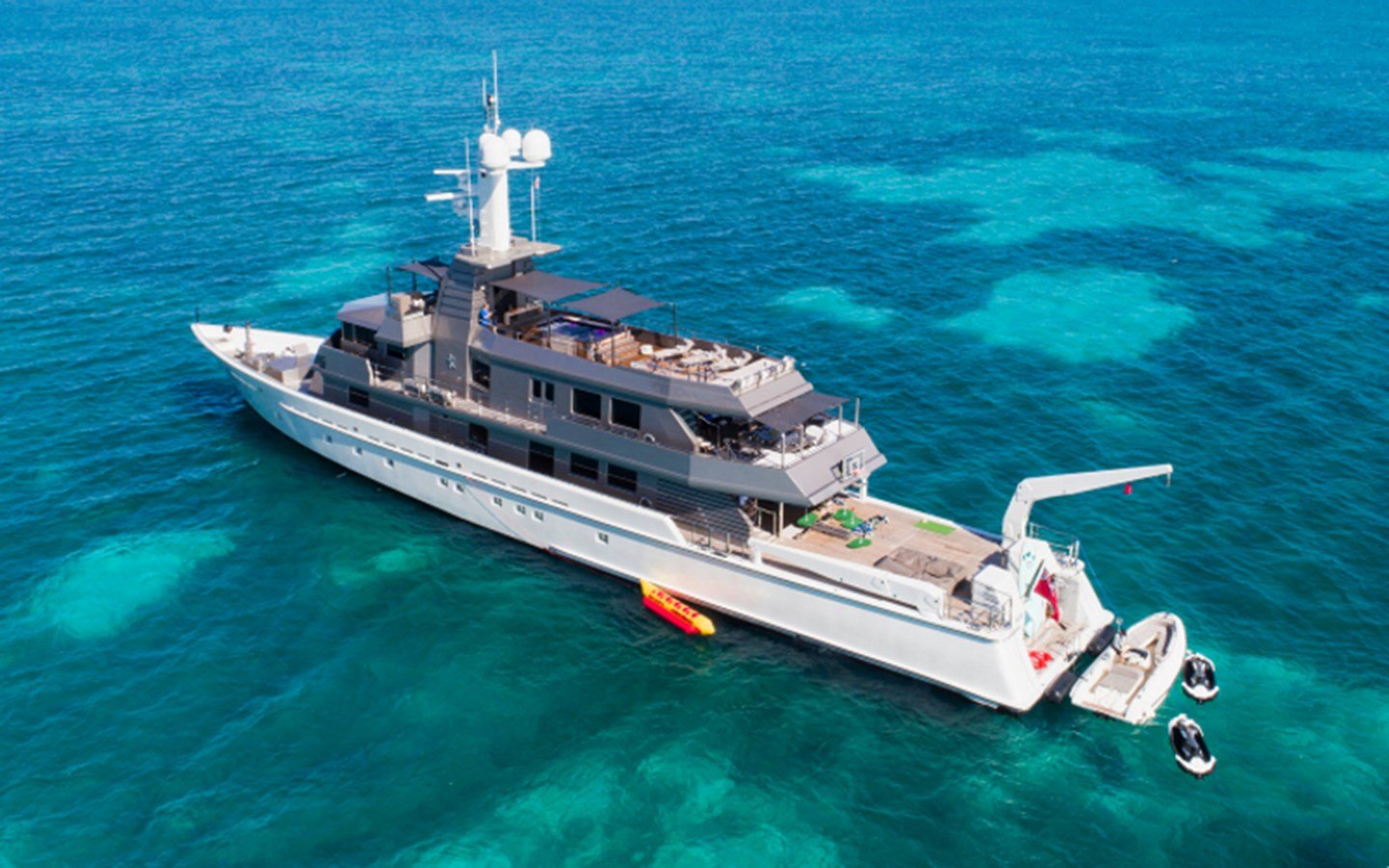

We are pleased to announce the Central Agency appointment for the sale of the 53m Oceanfast superyacht MIZU. Built in aluminium and designed for speed and long-range cruising, MIZU offers a rare combination of trans-Atlantic capability, distinctive styling and expansive deck spaces. The yacht has benefitted from refit and upgrade works and presents an attractive opportunity for experienced owners seeking performance and individuality. A new professional photoshoot will be completed shortly and updated imagery will follow
- 53.03 m174′Length
- 2004YearRefit 2023
- 5Guest cabins10 guests
- 2 × MTUEngines7,500 hp, 1,460 h
- 4,500 nmRange20 kn cruise
- 8.84 m29′Beam
Specifications
Mizu at a glance
Dimensions
- Length
- 53.03 m174′
- Beam
- 8.84 m29′
- Draught
- 2.5 m8′ 2″
- Gross tonnage
- 498
- Decks
- 3
Accommodation
- Guests
- 10 in 5 cabins
- Crew
- 10 in 5 cabins
Build
- Year
- 2004 · refit 2023
- Hull
- Mono Hull · aluminium
- Superstructure
- aluminium
- Classification
- Bureau Veritas
Performance
- Engines
- 2 × MTU 16V 4000 M90
- Total power
- 5,592 kW · 7,500 hp
- Engine hours
- 1,460 h
- Max speed
- 28 kn
- Cruising speed
- 20 kn
- Range
- 4,500 nm
- Fuel capacity
- 83,270 l
- Water capacity
- 14,409 l
Design & history
- Naval architect
- Oceanfast
- Exterior design
- Sam Sorgiovanni
- Interior design
- Sam Sorgiovanni
- Previous names
- Sea Bowld
Audio & Visual Equipment
- Sea Tel Worldwide Satellite TV system
- 3 x 42" Sony Flat screen Plasma TV
- 8 x Regular TV
- Separate sound systems in galley, engine room and outside deck areas
- Sonos sound system
- Starlink antenna
Deck Equipment
- 2 x MUIR VRC18000 Polished SS Vertical Anchor Windlass
- 2 x MUIR VR18000 Polished SS Vertical Mooring Windlass Capstans
- 2 x 675kg Fully Balanced HHP Poole Anchors
- 2 x Sections of 192.5m Grade U4 24mm Galvanized Studlink Chain
- Nautical structures 5,500 lb SWL (port side)
- Nautical structures 5,500 lb SWL (stbd side)
Mechanical
- N.R. Koeling BV Air Conditioning
- H.E.M. Duplex 30/2100 RO water maker 16000 L/day
- H.E.M Type 3300 Water Treatment Plant
- Hamann Wassertechnik Sewage Treatment Plant
- 2 x Brunton Fixed Pitch 1590mm Propellers
- 2 x ZF7540 Reverse Reduction Gearboxes
- Quantum Bow Truster QT120
Galley
- Vulcan Six Ring Electric Cooktop
- Vulcan Electric Combination Oven
- (2) Hobart Electric Combination Oven and Steamer
- Vulcan VMB Single Broiler (Grille)
- Built In Miele Electric Deep Fryer
- Amana Microwave Oven
- Kitchen Aid Under Sink Waste Disposal Unit
- Hobart Dishwasher
- Subzero Full Height Wine Storage
- Subzero Full Height Refrigerator
- Scotsman Under Counter Compact Cuber
- Ice Maker General Electric Trash Compactor
Remarks
- 2025
- QL3 on both Engines
- New Control and Monitoring system from Golden AS
- New External and Internal gpr lights
- New AI Cameras
- New electronic panels on the flaps and stablisers
- New Sonos sound system and TV's
- New floor at the crew mess
- New washing machines
- Installation of Starlink
- Summer 2023
- Main Engines
- Compete Service
- Lube oil, filters & coolant
- Major overhaul of (2) Seawater pumps
- Installed (2) freshwater pumps
- Valve clearance checked & adjustment
- Gear box coolers – cleaned & flushed
- Diesel Generators
- Major mechanical overhaul of port & starboard generators
- Sea Water & Bilge System
- All sea chest & overboard valves overhauled and/or replaced
- Bilge pump overboard piping replaced
- Auxiliary sea water suction piping replaced
- Main Engines Exhaust System
- Replaced starboard side compensator
- Replacement of port and starboard sections of wet exhaust system as required
- Deck Machinery
- Major Overhaul of
- Port and starboard boat deck cranes
- Port and starboard anchor windlasses (gearbox and hydraulic motors)
- Port and starboard capstans (gearbox and hydraulic motors)
- Aft boarding passerelle
- Port & starboard cranes load test performed as per Bureau Veritas requirements
- Hydraulic System
- Major Overhaul of
- Two (2) PTO pumps
- One (1) electrical driven pump
- Emergency power pack 24v
- Bow thruster
- One (1) electrical driven pump replaced
- Stabilizers
- Full overhaul of (4) hydraulic cylinders
- Flaps
- Full overhaul of (2) hydraulic cylinders
- Steering Gear
- Full overhaul of (2) hydraulic cylinders
- Diesel generators exhaust system
- Port and starboard side wet section exhaust pipes replaced
- Air Conditioning & Refrigeration System
- Full service of (4) compressors incl. oil & freon replacement condenser cleaning
- Full overhaul of (4) seawater pumps
- Fresh water pump replaced
- All fan coils cleaned
- Full overhaul of all supply incl. installation of new filters
- Installation of a new compressor for the deep freezer chamber
- Main Engines & Diesel Generators Exhaust Insulation
- Removed & inspected with partial replacement as required
- Sewage system
- Full overhaul of Hamman & vacuum pump
- Watermaker
- Chemical cleaning & flush system
- Replacement of sand filter
- Major overhaul of two (2) high pressure pumps & motors
- Hull Bottom
- Aluminum shell plates replacement as required
- Zinc Anodes replaced
- Antifouling application
- Batteries
- Replacement of all service and emergency batteries
- Hull
- Hull paint touch up with complete polish
- Monitoring System
- Installation of new vessel monitoring system (as per Bureau Veritas)
- Various Electrical Inspections & Tests
- Megger test
- Emergency lighting system repair & test
- Bilge alarm & float switches test
- Fire alarm system repaired & test
- Fire and bilge pumps
- Test doors indication test

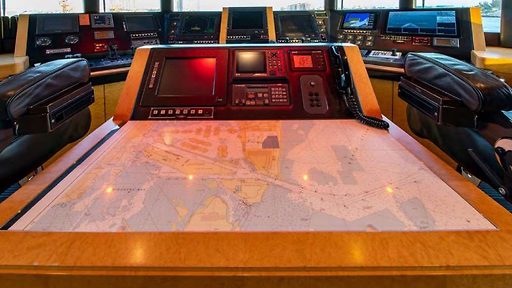

- Wheelhouse
- Radar replaced with new NMEA
- Buffer installation
- ECDIS installation
- Display Hatteland VGA replaced with new starboard side wing station
- Tiller control repair
- Starboard side wing station maneuvering controller repaired
- Teak Deck
- Sun Deck teak replacement
- Main & Sun Deck sanded
- Cathodic protection system
- Cathodic protection serviced
- Sliding Electric Doors
- Installation of new ball bearings & nylon guide sliding electric doors
- CCTV System
- System restored
- Installation of 2 new cameras in the Engine Room
- Tanks
- All tanks cleaned & inspected
