About Swan 45M Project

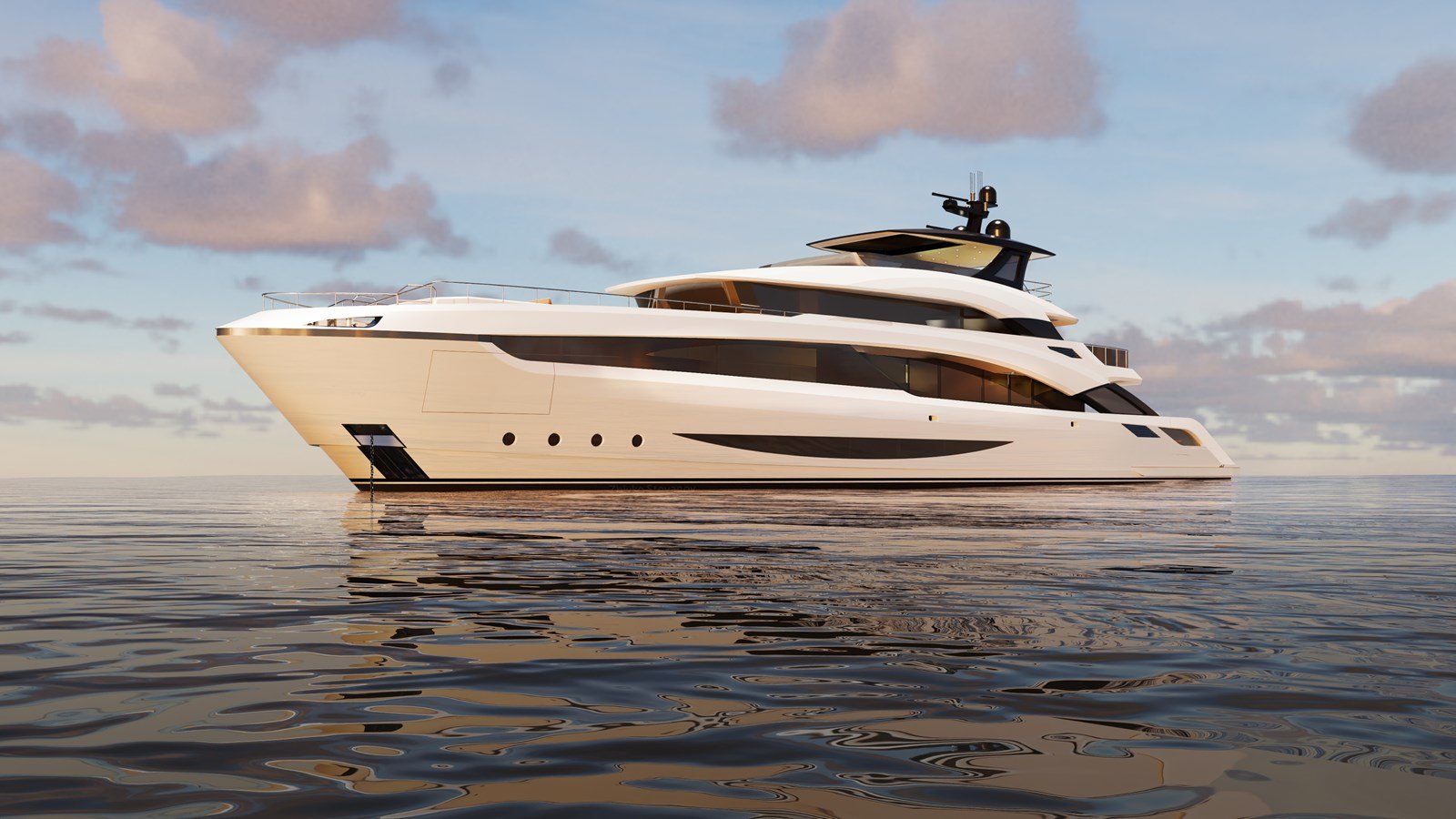

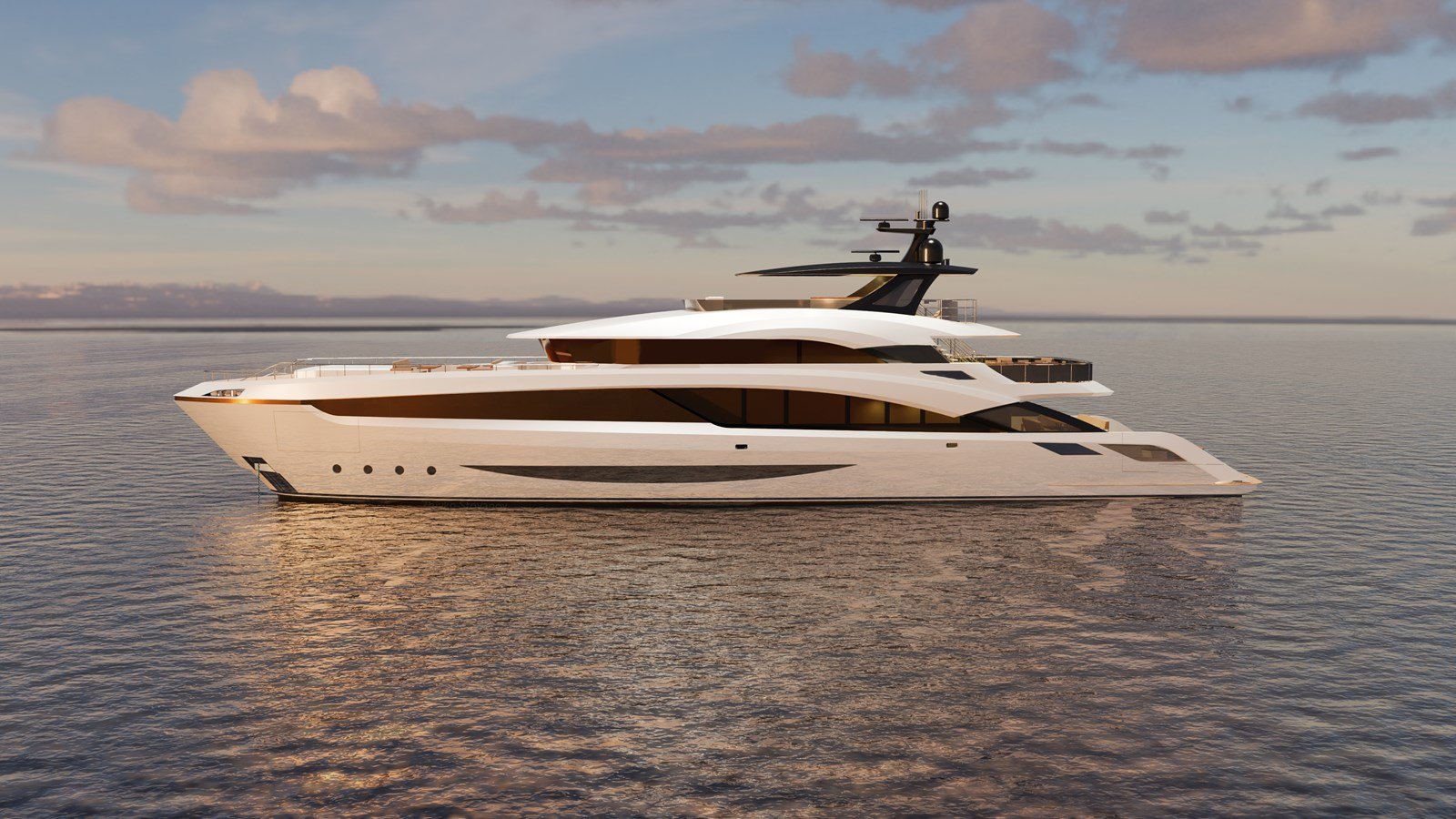

NEW BUILD - The SWAN 45M Project can accommodate 12 guests with up to 10 crew. This model is 45m (147′ 8″) in length, and has a beam of 8.94m (29′ 4″).
- 45 mLength
- 6Guest cabins12 guests
- 2 ×Engines
- 17 knMax speed14 kn cruise
- 8.94 mBeam
- 470Gross tonnage
About Swan 45M Project
NEW BUILD - The SWAN 45M Project can accommodate 12 guests with up to 10 crew. This model is 45m (147′ 8″) in length, and has a beam of 8.94m (29′ 4″).
Specifications
Dimensions
- Length
- 45 m
- Beam
- 8.94 m
- Draught
- 2.3 m
- Gross tonnage
- 470
Accommodation
- Guests
- 12
- Guest cabins
- 6
- Crew
- 10
Build
- Hull
- Mono Hull
- Hull material
- aluminium
- Superstructure
- aluminium
- Classification
- RINA
Performance
- Engines
- 2 × MTU Diesel, shaft with FPP (Alternative propulsion systems on request)
- Max speed
- 17 kn
- Cruising speed
- 14 kn
- Fuel capacity
- 50,000 l
- Water capacity
- 15,000 l
Design & history
- Exterior design
- Zhivko Stoyanov and consultant Carl Esch
- Interior design
- Sorin Vega Design
More about Swan 45M Project
Overview

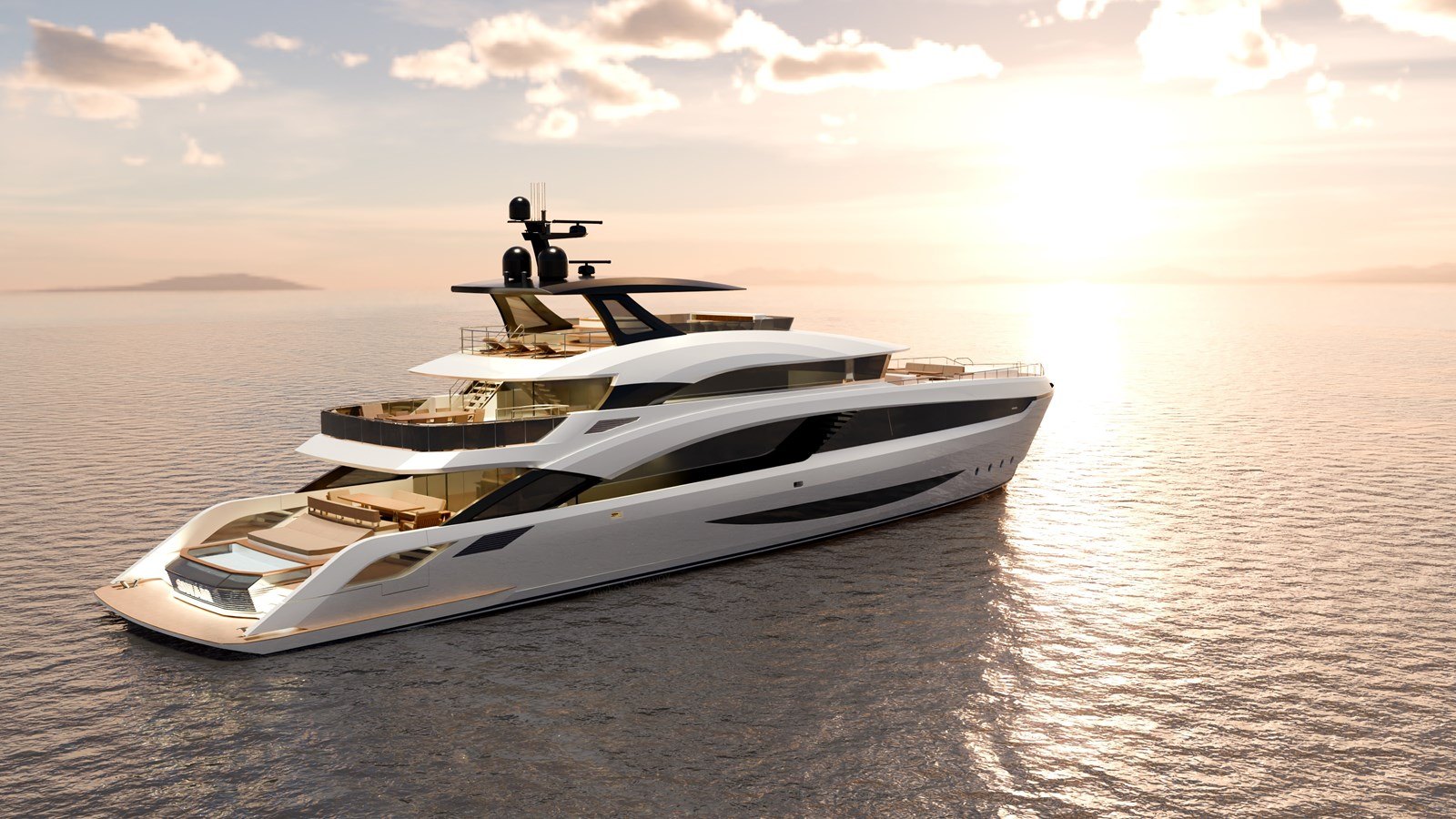

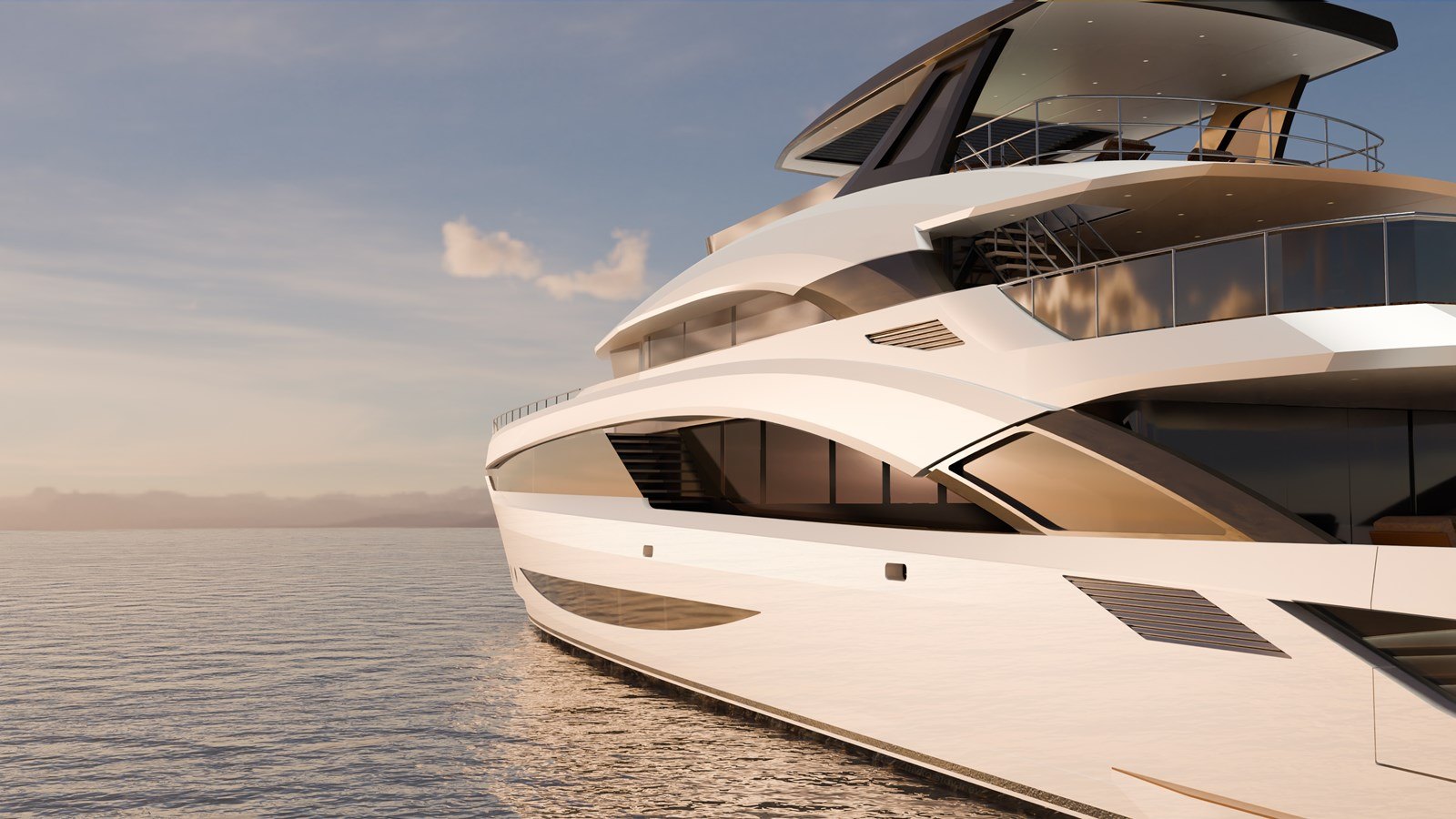

- The stunning SWAN 45M concept was developed by Carl Esch and Zhivko Stoyanov, with commercial input from Worth Avenue Yachts. Built in full aluminium, she combines generous interior volume with expansive exterior entertainment areas designed for an exceptional Mediterranean lifestyle.

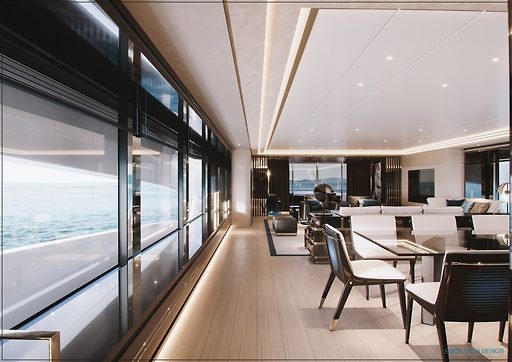

- Her sophisticated interior by Sorin Vega Design offers accommodation for 12 guests in six staterooms, including a private owner’s suite on the bridge deck, a forward VIP on the main deck, and four additional cabins on the lower deck. A crew of up to 10 ensures a relaxed and seamless experience. The interior and layout can be fully customized, with a full-beam Skylounge version also available.

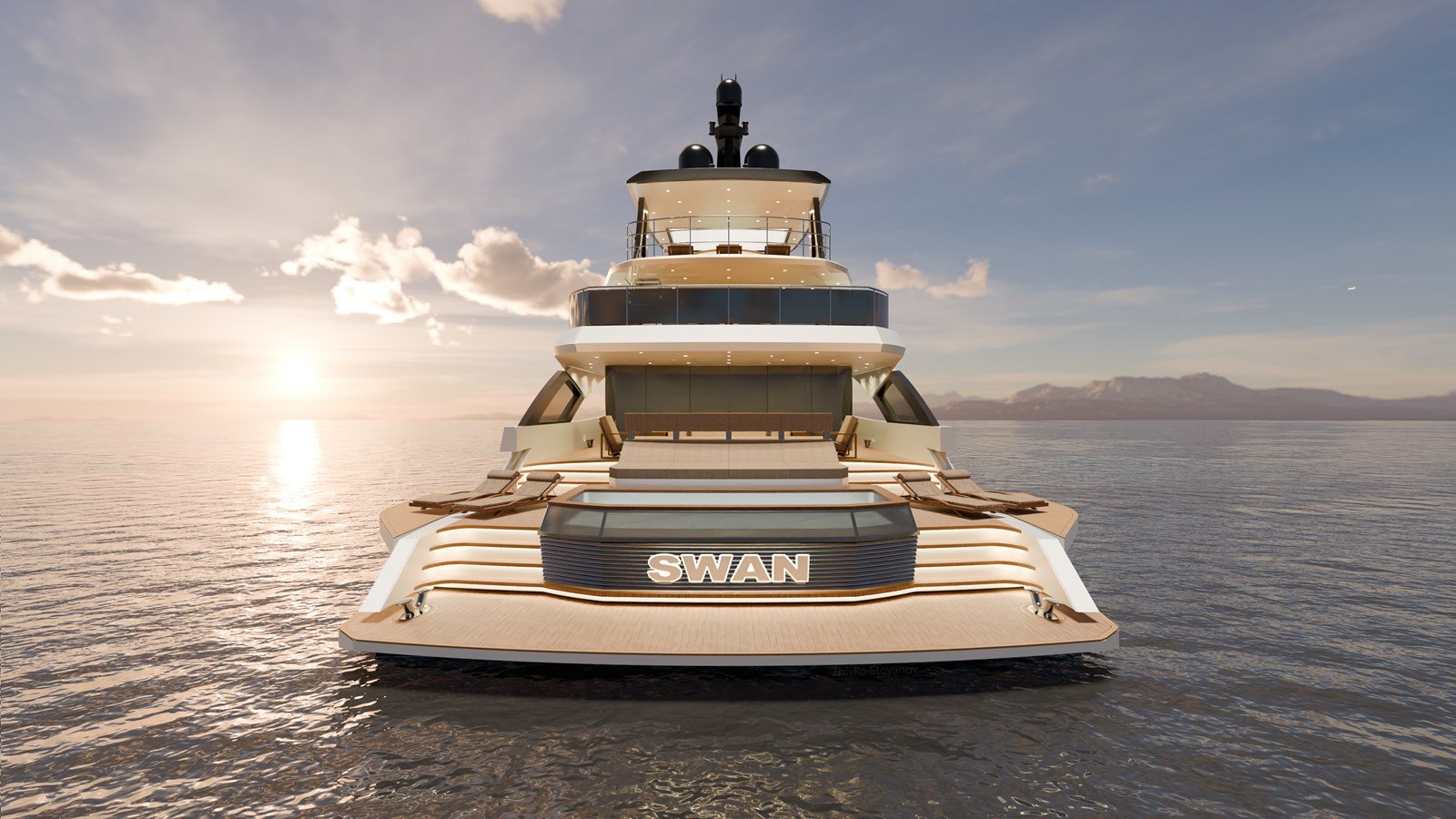

- Outdoor living is a key feature, with a large swimming pool, expansive bathing platform, fold-down bulwarks creating a beach area, multiple entertainment decks, sun loungers and a Jacuzzi. A large tender and several PWCs provide extensive opportunities for watersports, while dedicated storage ensures they remain safely secured underway.
- With her impressive volume, versatile outdoor spaces and highly customizable design, SWAN 45M offers a compelling combination of luxury, lifestyle and charter appeal.
- Key Features
- 12 Guests | 6 Staterooms - Spacious accommodation including a private owner’s suite and VIP.
- Exceptional Outdoor Living - Large pool, beach club, bathing platform, Jacuzzi and multiple entertainment areas.
- Full Aluminium Construction - Combining efficiency, performance and generous interior volume.
- Tender & Water Sports Garage - Large tender and multiple PWCs with dedicated storage.
Construction
- Hull and superstructure build in Marine grade aluminium
Classification
- RINA - Hull & Machinery, Unrestricted Navigation, EFP (Y), AUT-UMS, COMF (Y), Compliance LY3
Design
- The exterior design by Zhivko Stoyanov and consultant Carl Esch, interior design by Sorin Vega Design
Exterior
- Teak decks with first class grade quarter-sawn teak / stainless-steel exterior railing / glass windscreens / tinted double-glazed windows / Awl-Grip or Alexseal finishing
Deck Equipment
- Stern boarding passarela (hydraulic) / Side boarding ladder / Vertical anchor winches with warping head / Capstans and bollards (stainless steel) on each side at main deck / Telescopic knuckle-boom crane at forward bridge deck for launching the PWCs / Overhead crane at forward main deck for launching the tender / Top deck partially covered by hard top, with seats, bar, Jacuzzi and sun beds / Pool on main deck aft with dedicated pool tank / Transformer type section at bathing platform / Retractable sun canopy at aft main deck
Clear Heights From Finished Ceiling To Finished Floor
- Main deck 2.2 m / Bridge deck 2.10 m / Lower deck 2.10 m / Sun deck 2.2 m
Interior Accommodation

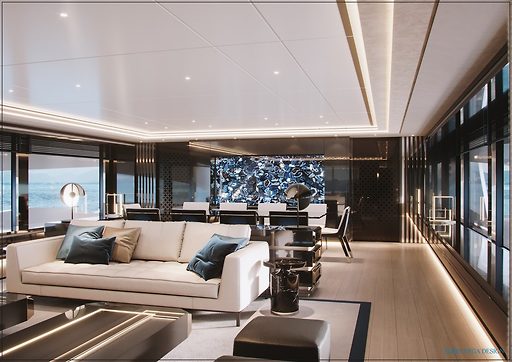

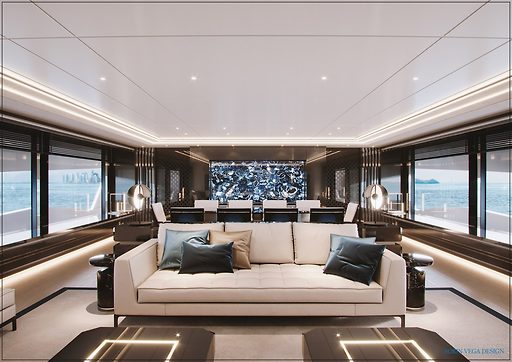

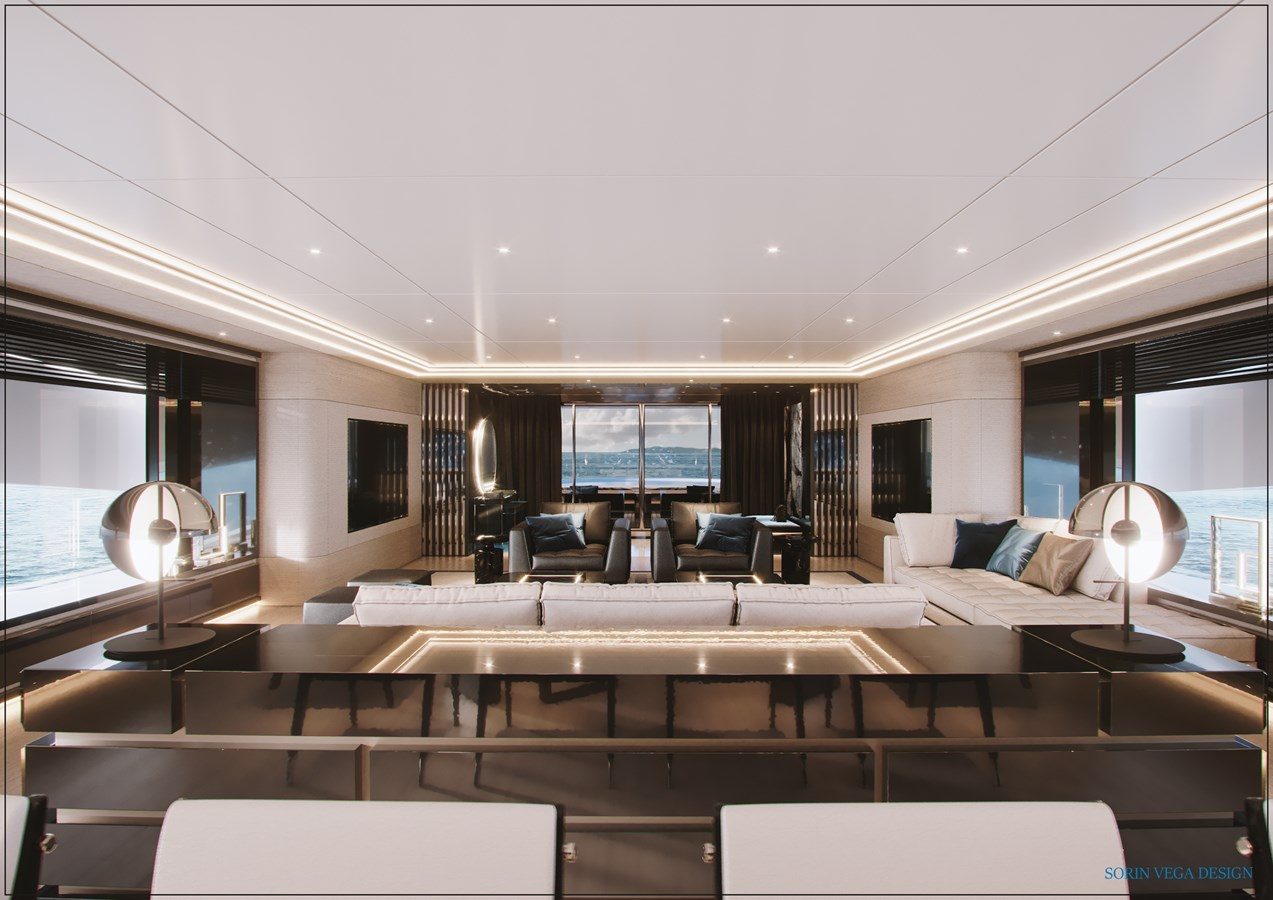

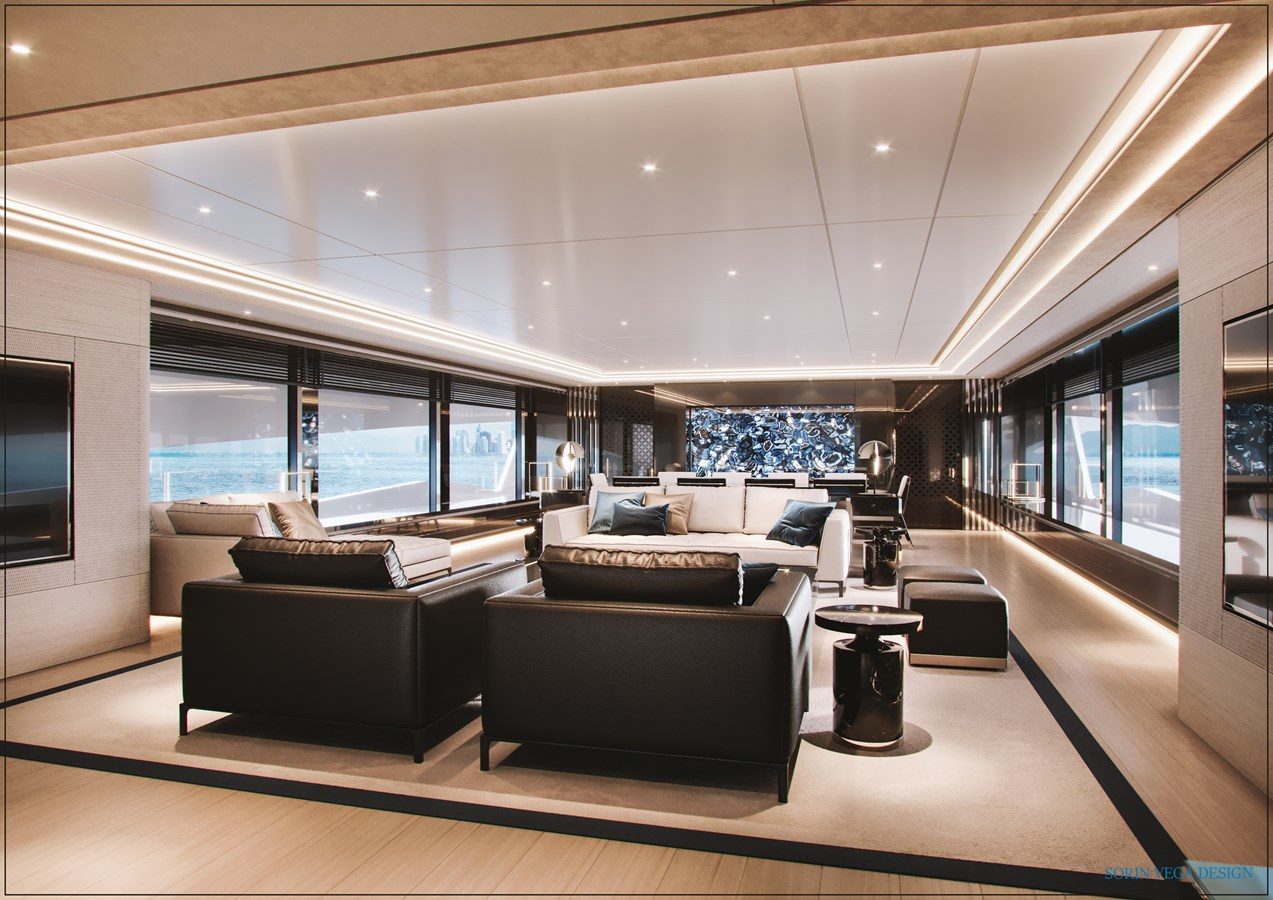

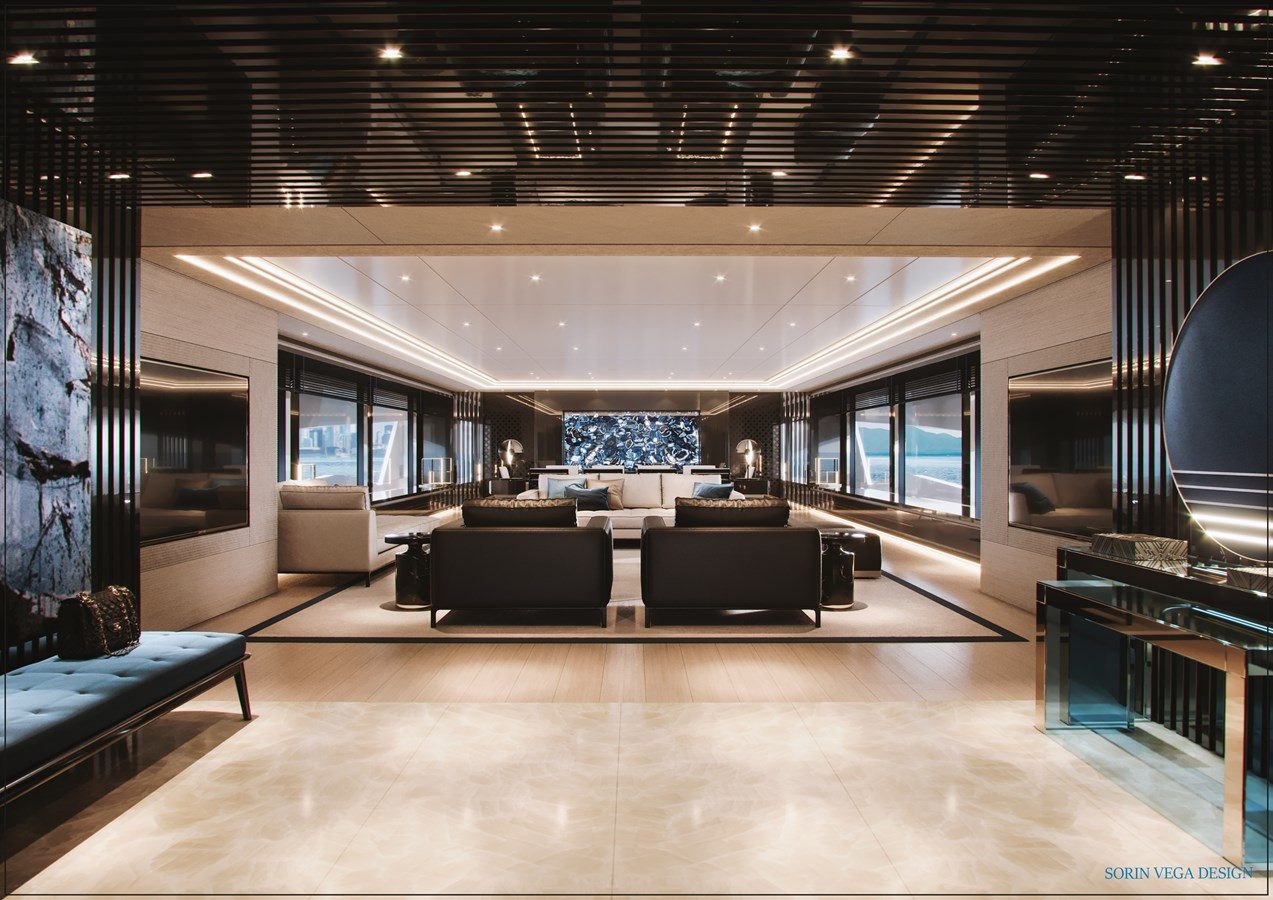

- Luxury staircases serving all decks / Central galley on main deck, with routing to main saloon, lobby, side deck and crew area / Owner’s suite, with dressing & bathroom and aft terrace at bridge deck / Large wheelhouse at bridge deck with captain’s cabin / Large saloon at main deck with dining / VIP cabin at forward main deck / Private office at main deck / Four (4) luxurious guest cabins located at lower deck / Crew and service areas at lower deck
Lighting
- A customized luxury LED lighting scheme based on the interior and exterior design, including underwater lights.
Propulsion
- The main propulsion plant consists of two MTU Diesel engines (or Caterpillar equivalent), each coupled to a Fixed Pitch Propeller (FPP), maximum speed is 17 knots. (Alternative propulsion systems on request)
Bow Thruster
- Hydraulic driven in tunnel, allowing for Dynamic Positioning (DPO)
Stabilizers
- Underway & Zero speed stabilization
Fuel & Water Capacity
- Fuel tank50.000 L
- Water tank15.000 L
Fresh Water System
- Two hydrophore pumps / three hot-water boilers / hot and cold water circulation system / Two reverse-osmosis water makers with sufficient capacity
Sewage Treatment
- Vacuum toilet sanitary system / Black-water treatment
Ventilation & Air Conditioning
- A centralized air conditioning system for interior owner/guest/crew living areas
Navigation & Communication
- Navigation, communication, IC & AV/IT equipment determined in consultation with owner
Electrical Installation
- Twin generators (approx. 2 x 100 kW) and Shore power transformer
Fire-Fighting
- Fire extinguishing system to protect the accommodation, service and machinery spaces
