About Avalina

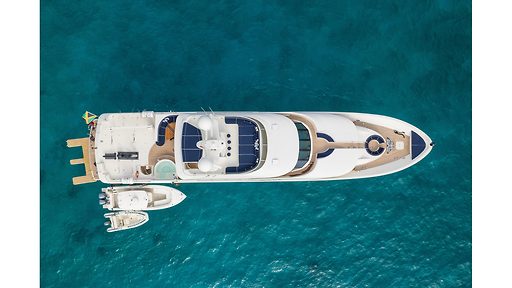

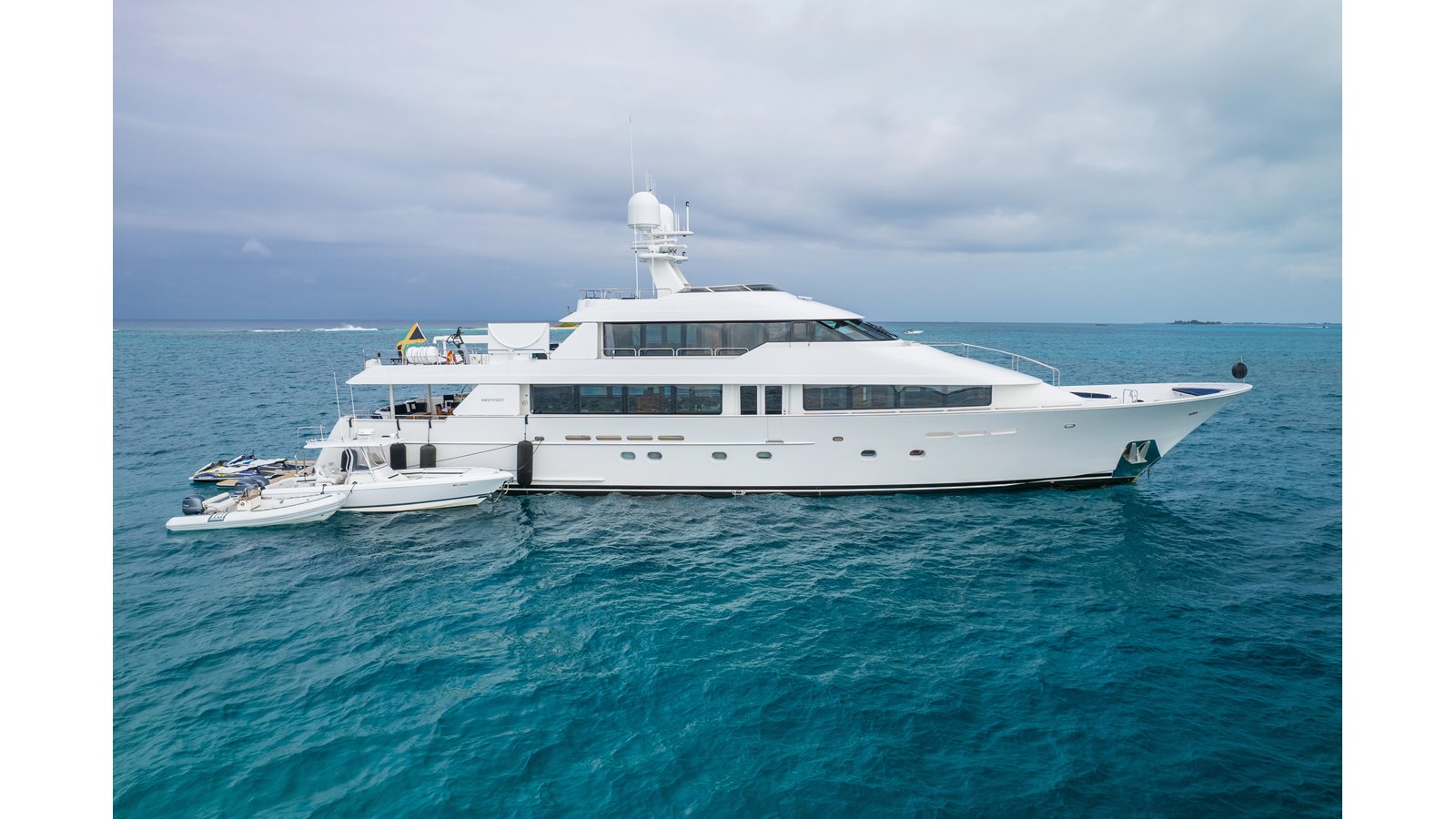

AVALINA is crusing the Northeast and enroute to Newport. The 130’ Westport motor yacht designed by naval architect William Garden with interiors by Pacific Custom Interiors. She represents a proven blend of performance, comfort, and craftsmanship. Built in 2003, refit in 2020, she is a well-maintained and capable semi-displacement yacht. Constructed with a GRP hull with a 26’3” beam, she offers generous volume at 280 GT, accommodating up to 10 guests with 7 crew. Powered for both performance and range, she reaches a maximum speed of 24 knots, cruises comfortably at 13 knots, and offers an impressive range of approximately 2,500 nautical miles, making her well suited for extended cruising.
- 39.62 m130′Length
- 2003Year
- 5Guest cabins10 guests
- 2 × MTUEngines5,470 hp, 3,400 h
- 2,500 nmRange13 kn cruise
- 8 m26′ 3″Beam
Specifications
Avalina at a glance
Dimensions
- Length
- 39.62 m130′
- Beam
- 8 m26′ 3″
- Draught
- 1.98 m6′ 6″
- Gross tonnage
- 280
- Decks
- 3
Accommodation
- Guests
- 10 in 5 cabins
- Crew
- 7 in 3 cabins
Build
- Model
- 130
- Year
- 2003
- Hull
- Mono Hull · grp
- Superstructure
- grp
Performance
- Engines
- 2 × MTU 12V 4000 M90
- Total power
- 4,077.4 kW · 5,470 hp
- Engine hours
- 3,400 h
- Max speed
- 24 kn
- Cruising speed
- 13 kn
- Range
- 2,500 nm
- Fuel capacity
- 37,468.01 l
- Water capacity
- 6,128.58 l
Design & history
- Naval architect
- William Garden
- Exterior design
- Gregory C. Marshall Naval Architect Ltd.
- Interior design
- Pacific Custom Interiors
- Previous names
- Dona Lola, Corrie Lynn
Main Specifications
- Length Overall 130 ft / 39.6 m Beam: 26' 3" ft / 8 m Draft: 6' 6" ft / 1.98 m Year Completed: 2003 Model Year: 2003 Refit: 2020 Type: Motor Yacht Tonnage: 280 GT Displacement: Semi Displacement Guests: 10 Crew: 7
Upgrades & Repairs
- Upgraded fresh water system, with New Headhunter- Aquabox and Mach 5-pumps. Also replaced old DC pump, with new
- Jet-Ski - sent out both units to be completely inspected and repaired, at the Jet Ski Doctor’s recommendations, for service and replacement of engine/unit- parts
- Made new weather covers, for the bow, bow- settee, fly-bridge, boat-deck, and aft-deck
- Replaced bow, fly-bridge, boat-deck, and aft-deck cushions, with new
- Crew Mattresses and Sheet sets- replaced all crew mattresses and sheet sets
- New Furuno System - GPS Gyro
- Windshield Wiper System- replaced
- Repainted boat deck non-skid
- New tender purchase - 16’ Walker Bay w/Honda motor, May 2025
- Installed all-new exhaust system, for main engines and generators, May 2025
- New/Replacement filters for DPF System, are in storage, at Metcalf Marine, FLL
- Installed new auto-shades, in the master stateroom
- Installed all new Entertainment system, on the yacht
- Installed new refrigerator and ice-maker, on the Flybridge
- Installed 2x new sun shade systems, on the fly-bridge
- Installed new sunshade system, on the boat-deck
- Remove and serviced hydraulic system- heat exchangers (3), August 2025
- Removed and rebuilt Naiad Stabilizer- hydraulic rams (4)
- Complete valve-job performed on both MTU- main engines (Mendol), June 2025
- Performed complete injector replacement on MTU- main
- All new sheets and duvet(s) in the guest areas
- Installed new dishwasher, in stew- pantry (galley)
- Replaced P.H. - windscreen, with new
- Props newly checked for balance and “S”- classed
- Shafts pulled and checked for alignment
- New strut-bearings installed
- Port & Starboard - engine & transmissions, strut- tubes, checked with laser alignment
- New Naiad stabilizer fin- shaft bearings, installed
- All new zincs applies to under waterline and running gear
- New Prop-Speed applied to running gear
- Replaced both rudder shaft seals
- Hauled anchor chain. Replaced, chain/anchor- swivels, repainted, end over ended chain, and re-loaded
- Replaced bow-thruster leg, with new
- Performed complete valve adjustment to main engines
- Rebuilt (4)- turbos on main engines
- Removed air-chargers (4) from main engines, bench-tested and cleaned
- Replaced the main fuel transfer - pump
- Performed annual service to davit. Also replaced the davit- lifting line
- Replaced insulation on main chill-water- trunk-line, running through the engine room.
- Perform waxing of entire yacht
- Rebuilt and replaced (2)- water-maker, high pressure pumps
- Added electric- window tinting, to master-stateroom
- Repainted- swim platform edge, from port to starboard, with non-skid
- Replaced teak-decking on entire swim-platform
Construction
- Builder Westport
- Naval Architect William Garden
- Interior Design/Stylist Pacific Custom Interiors
- Hull Material GRP
Speed & Capacities
- Maximum 24 Knots
- Cruising 13 Knots
- Range 24 knots max. 2,500nm range @13kts/52gph/9,984 gallons
- Fuel 9898.53 Gal / 37470 L
- Water 1619.37 Gal / 6130 L
- Grey Water 940 Gal / 3,560 L
- Black Water 1,360 Gal / 5,150 L
- Lube Oil Capacity 77 Gal / 291 L
Machinery
- Engine Type 2 x MTU 12V 4000
- Horsepower 2,734 Hp
- Engine Hours 3,400 hours since W-6 major overhaul
- Engine Serial Numbers 5262001231 Port, 5262001229 Starboard
- Generators 2 x Kohler 65EOZD (@1,800 rpm)
- Port Generator Hours 1,900 hours since overhaul
- Starboard Generator Hours 1,900 hours since overhaul
- Shore power ASEA 170‐520V, 3‐Phase, 60Hz
- Batteries 3 x 12V sets, 6 x 24V sets
- Stabilizer Naiad 521 with datum control for at‐anchor stabilization
- Stabilizer at Anchor Yes
- Steering System Jastram PTO pumps from main engines
- Water Makers Sea Recovery SRV 1500‐2 AWM
- Bow Thruster Wesmar Vortex V 2‐16
- Fuel Separator and Filtration RCI Technologies water separator
- Fresh Water System Aquabox pump 110V
- Air Conditioning Dometic 6 ton with 72 BTU
Communication & Navigational Equipment
- Pilothouse
- SAT COM Fleet 33 Inmarsat
- Telephone System Nortel 4 line
- VHF Icom IC‐M602
- Navtex Navtex Furuno NX700
- Navigation Systems
- Radar Furuno 2115B X‐band, Furuno 2115 ARPA X‐band
- Gyrocompass Sperry Marine Navigat X MK2
- Auto Pilot Sperry Marine Naviplot 4000+
- Depth Sounder Furuno RD‐33
- GPS Furuno GP‐33, Bridge Dash
- Entertainment Systems
- VSAT1 Yes
- iPads Yes

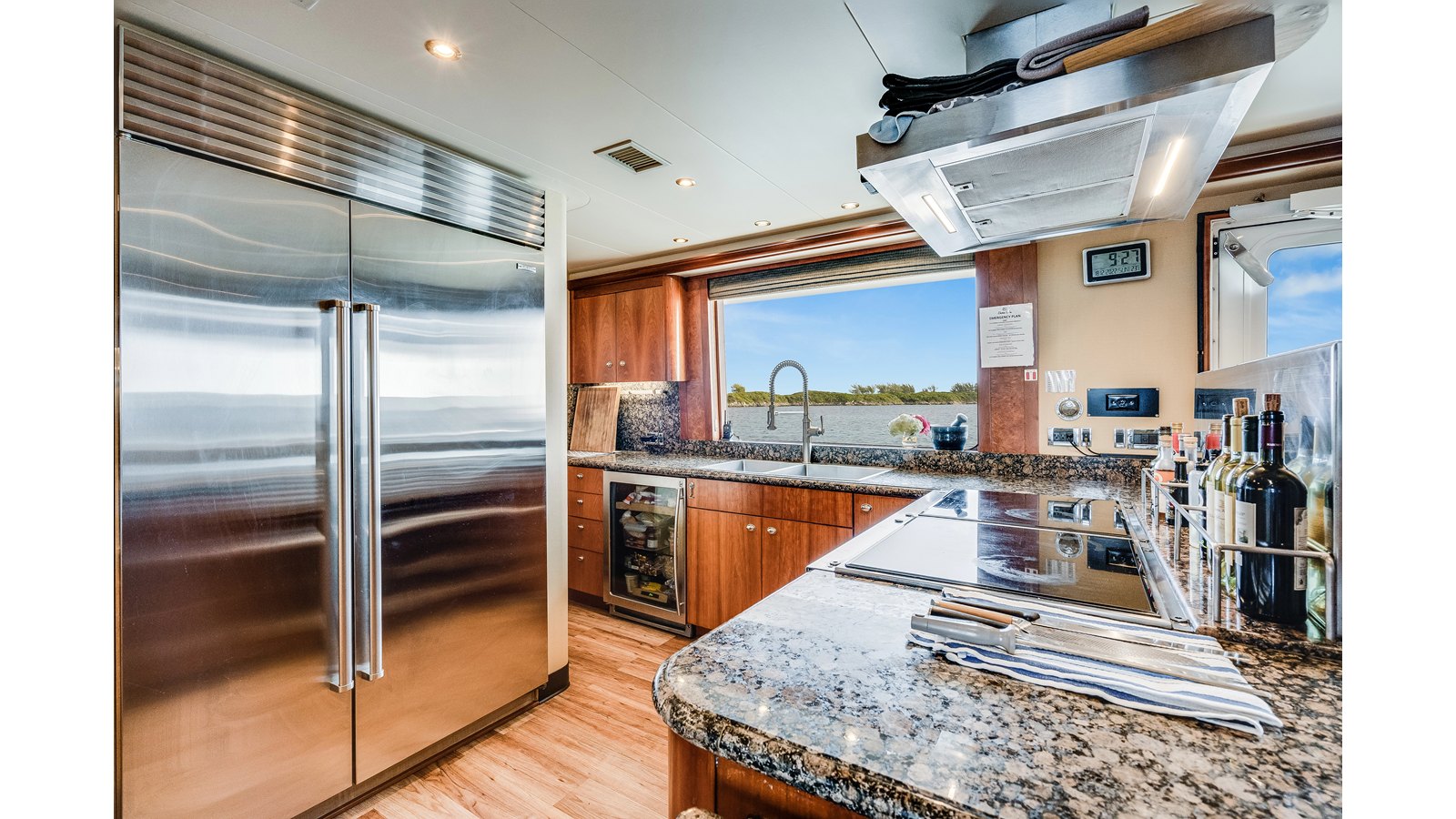

Galley & Laundry Equipment
- Main Galley Equipment
- Oven 2 x Miele ovens
- Microwave LG microwave
- Refrigerator Kitchen Aid refrigerator
- Freezer Kitchen Aid freezer
- Crew Galley/Mess
- Fridge Whirlpool refrigerator, Uline refrigerator
- Microwave LG Microwave
- Laundry
- Washing Machines 2 x Miele Washing Machines
- Dryers 2 x Miele clothes dryers
Deck Equipment
- Anchor Windlass Maxwell VWC 6000
- Aft Warping Capstans
- Anchors 2 x Poole 600lb
- Anchor Chain 2 x 400' 5/8"
- Main Tender Davits Nautical Structures CC2000 EX156 with 909kg capacity
- Passarelle Bensenzoni
Security, Fire Fighting & Safety Equipment
- CCTV System Pelco CCTV
- Cameras 9 x cameras
- Monitors 4 x monitors
- Fire Control System Custom Westport manufactured system
- Fire Extinguishers 26 x portable fire extinguishers
- Alarms Yes
- Life Rafts 2 x Zodiac Solas 25 life rafts
- Life Rings 4 x Life rings
- EPIRBS 2 x EPIRBS
- Flares 3 x Flares
- Medical Equipment Medical bag
