About Victoria

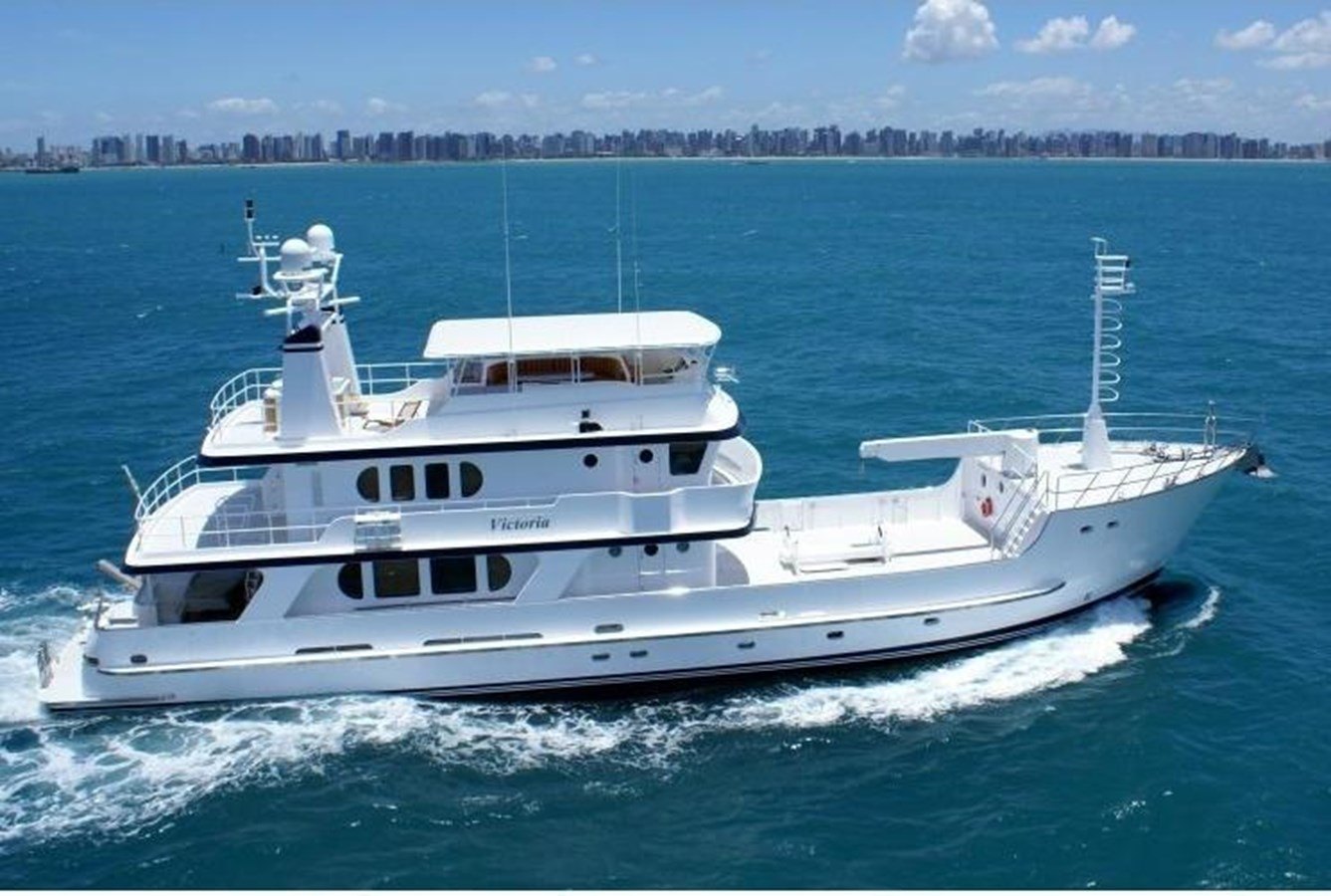

The 105.97ft /32.3m Explorer 105 expedition Victoria was built in 2006 by Inace. Her elegant exterior and interior styling are the work of Inace, who is also responsible for her engineering.
- 32.28 m105′ 11″Length
- 2006Year
- 4Guest cabins8 guests
- 2 × Volvo PentaEngines1,300 hp
- 4,700 nmRange10 kn cruise
- 7.13 m23′ 5″Beam
Layout
Explore every deck in detail: Victoria
Specifications
Victoria at a glance
Dimensions
- Length
- 32.28 m105′ 11″
- Beam
- 7.13 m23′ 5″
- Gross tonnage
- 230
Accommodation
- Guests
- 8 in 4 cabins
- Crew
- 5
Build
- Model
- Explorer 105
- Year
- 2006
- Hull
- Mono Hull · steel
Performance
- Engines
- 2 × Volvo Penta
- Total power
- 969.4 kW · 1,300 hp
- Max speed
- 13 kn
- Cruising speed
- 10 kn
- Range
- 4,700 nm
- Fuel capacity
- 64,850 l
- Water capacity
- 9,800 l
Design & history
- Naval architect
- Inace
- Exterior design
- Inace
- Interior design
- Inace
Accommodations & Layout

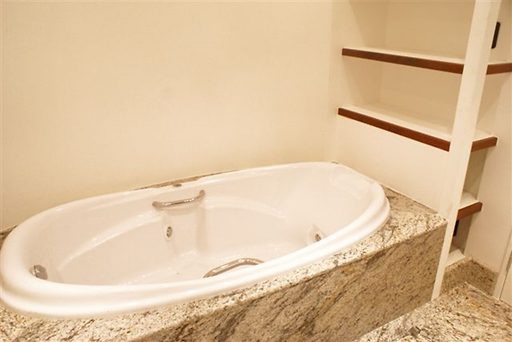

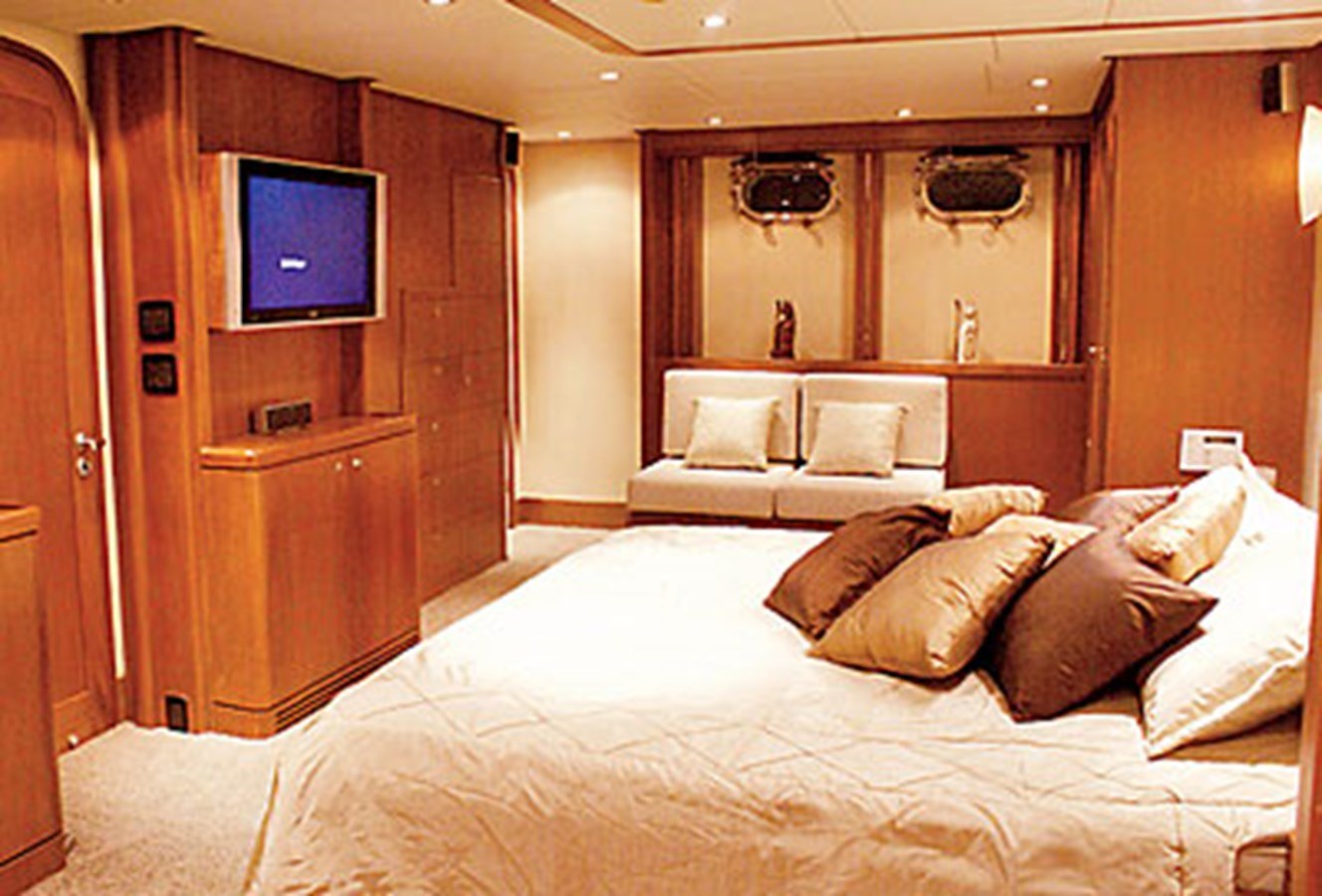

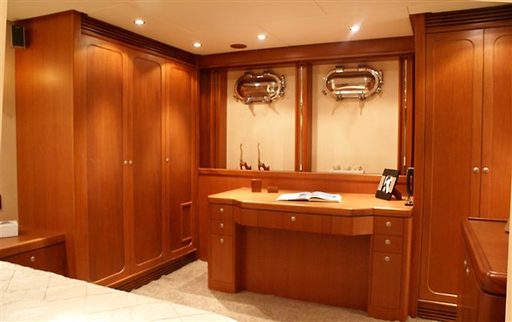

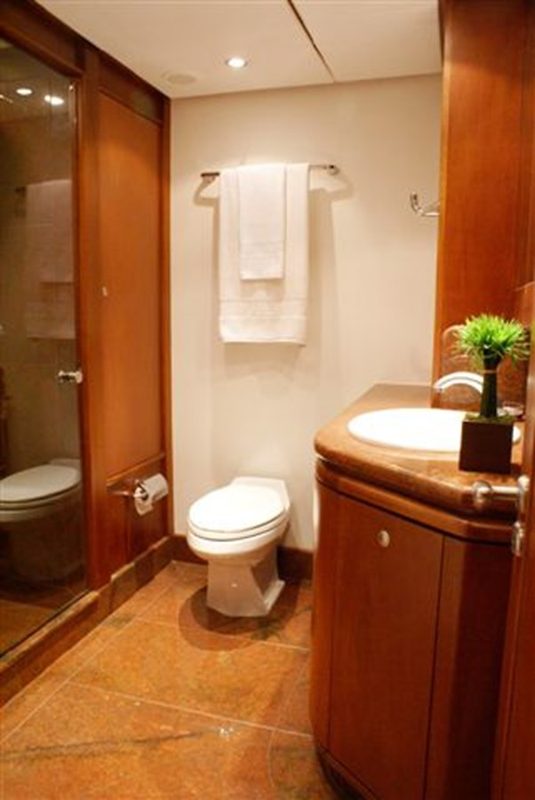

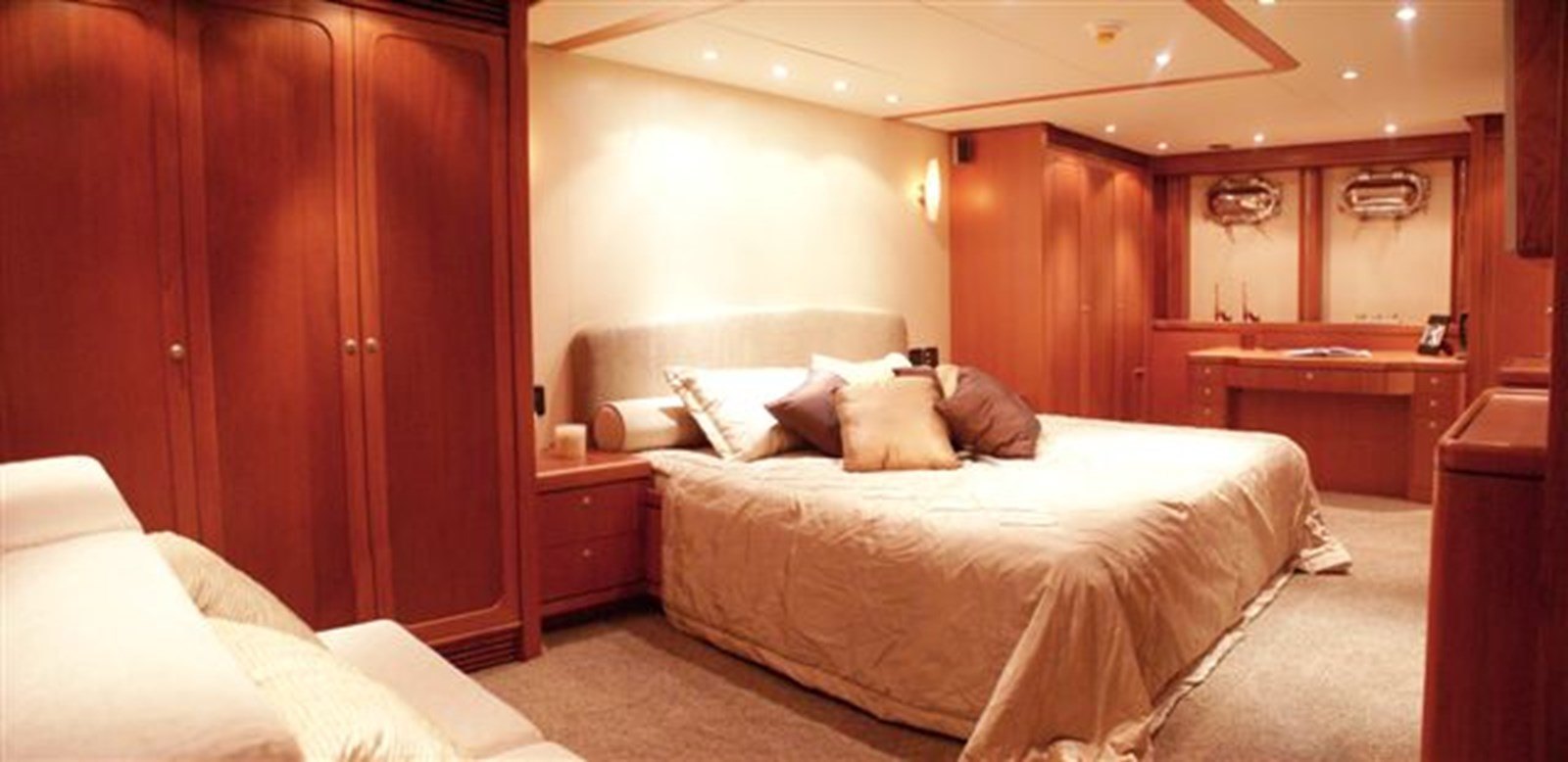

- Victoria's interior layout sleeps up to 8 guests in 4 rooms, including a master suite, She has three staterooms on the lower deck, including a full-beam, midship queen master suite, which features a settee, vanity and split baths. Two other ensuite cabins feature twin and queen berths. A foldout couch in the skylounge aft of the wheelhouse enables the yacht to sleep a total of 8 guests. An adjacent full bath also serves as a day head.She is also capable of carrying up to 5 crew onboard to ensure a relaxed luxury yacht experience. Timeless styling, beautiful furnishings and sumptuous seating feature throughout to create an elegant and comfortable atmosphere.
- Victoria's impressive leisure and entertainment facilities make her the ideal charter yacht and she is perfect for socializing and entertaining with family and friends.
Galley
- The galley features a breakfast bar that can be closed off and serves a portside dinette. There is extensive storage and granite counter tops.

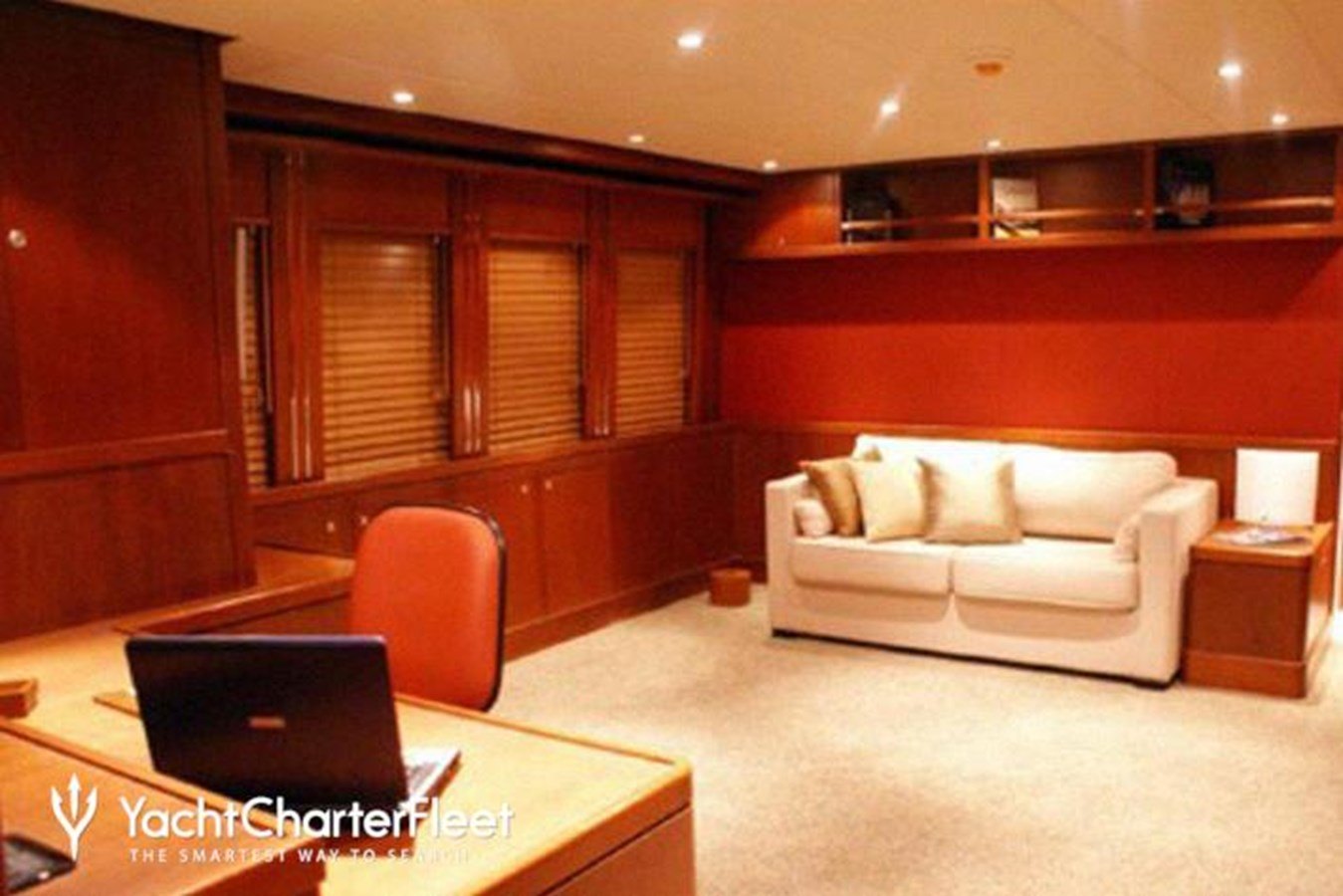

Salon

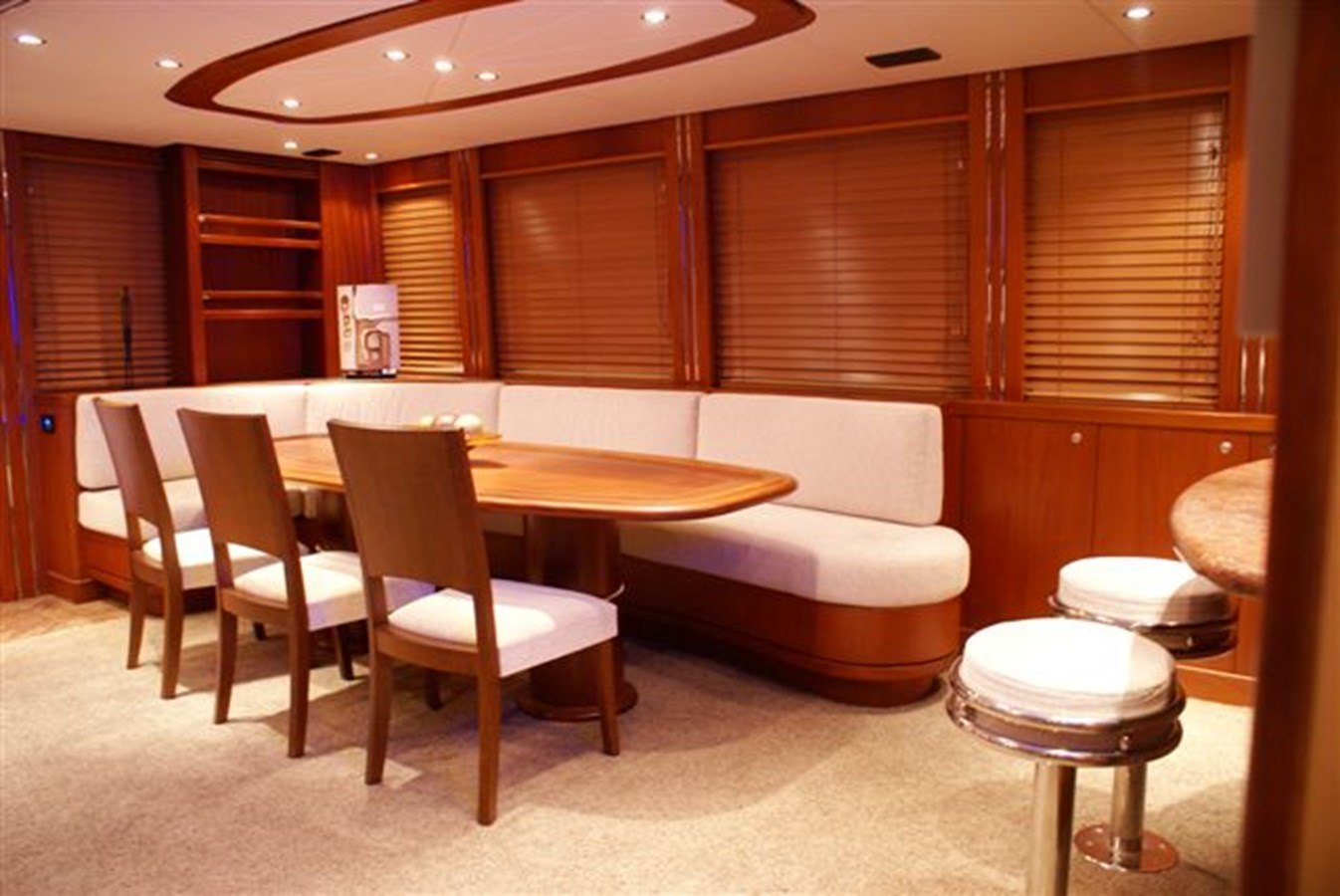

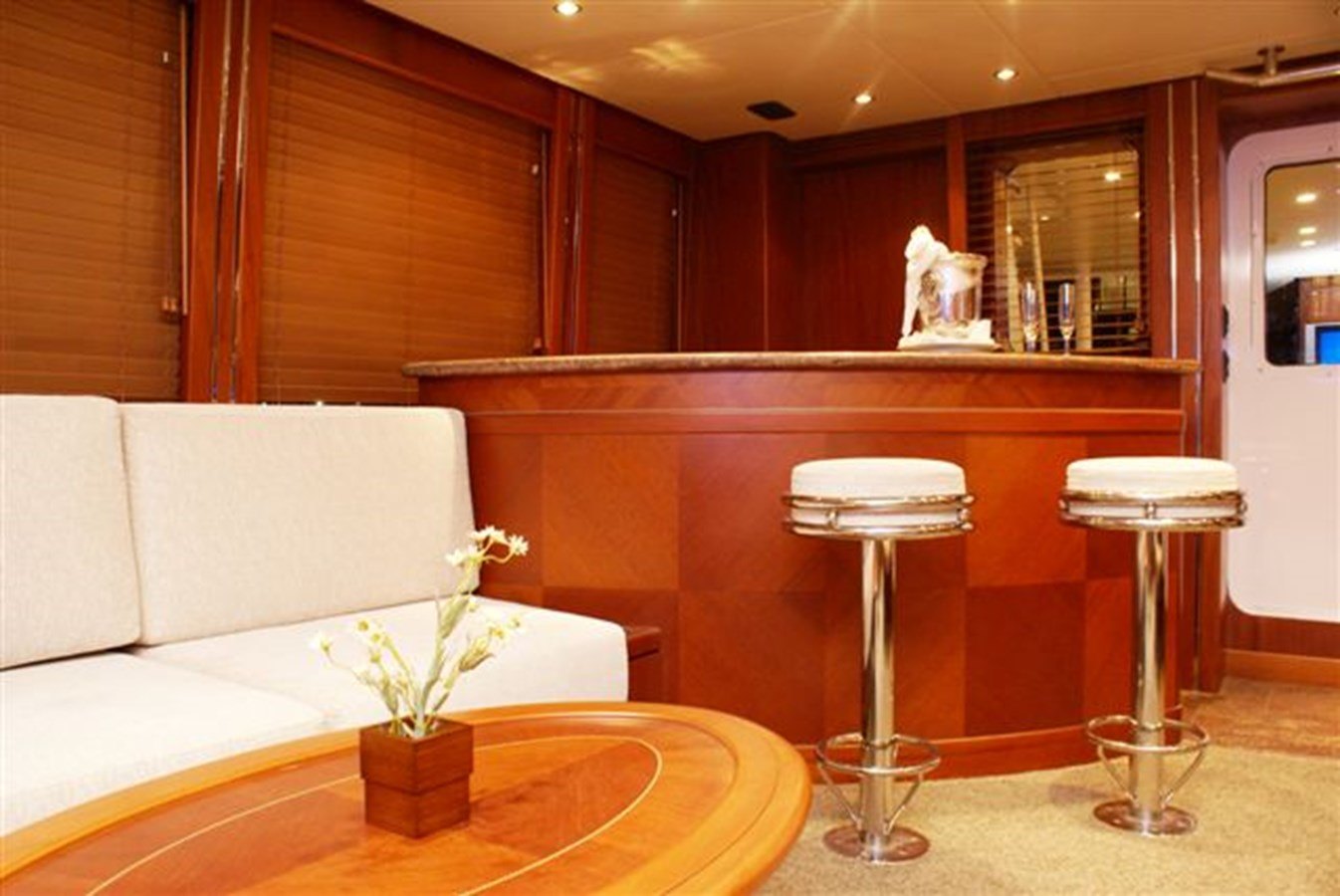

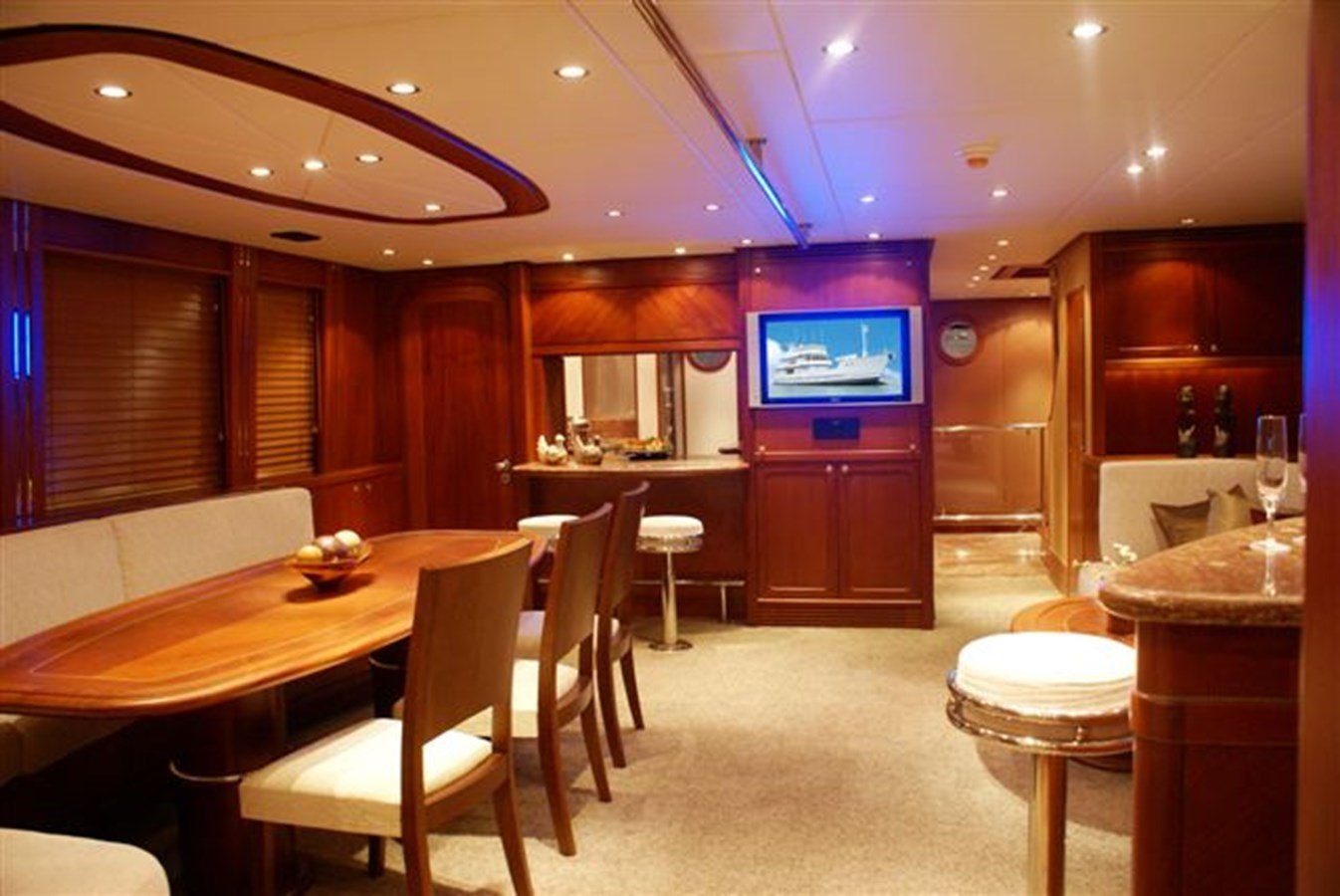

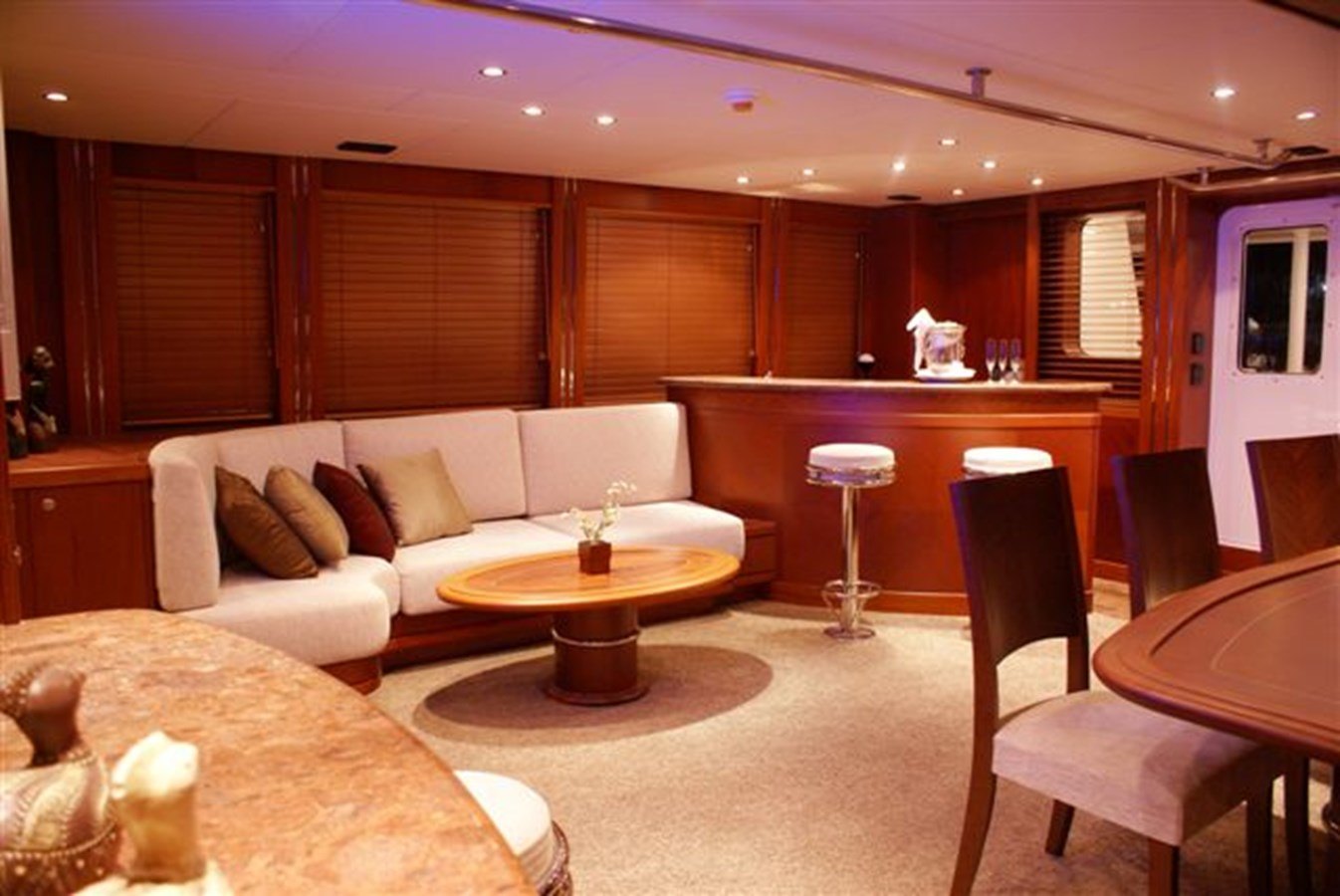

- Opposite the large dining area / settee is the full service bar and small settee with coffee table. There is a TV and full sound system. The saloon is open and light with the American Cherry creating a warm feel.
Electronics & Navigation
- 1 x SIMRAD GPS GN33
- 2 x SIMRAD VHF RS86
- SIMRAD Wind Indicator IS15
- 1 x Kobelt Rudder indicator and rudder control.
- 2 x SIMRAD AutoPilot AP50
- 1 x SIMRAD Nav Station CX54 with 7" screen
- 1 x SIMRAD Echo Sounder EQ54
- 1 x ICOM SSB M802
- 1 x SIMRAD HS50
- 1 x SIMRAD Gyro GC80
- 1 x SIMRAD ECDIS CS68
- 2 x SIMRAD X Band Radar
- 1 Inmarsat Sailor 150k
- 1 Inmarsat Nera 64k
- 1 Iridium
- 1 Inmarsat Portable
Engine & Mechanical
- Engines VOLVO 650HP at 1,800 RPM
- Transmissions ZF W350 or (Twin Disk – MG 516)
- Range @ 10 knots 4500 nm
- 8 water tight compartments
- Exhaust Centek Systems Exhaust water wash separator system main engine and generator
- Bow Thruster American Bow Thruster 65 HP
- Chain 2 x 100mt of 5/8"
- Anchors one 150 kg NAVY 150kg and one CQR 150kg in Stainless
- Air Conditioning system Aqua Air Alpha, Series with soft starts and Tempwise-2000 digital controls.
- Stabilizers American BowThruster Trac system
- Engine room ventilation system . Intake, Weg 2 hp, 600 mm diameter fan, Exhaust 1Weg ¾ hp, 500mm.
- Tank Monitors Tank Tender Systems plus sight gauges
- Capac corrosion monitor
- Door and fire alarm systems
- Bilge and fire system
- Central bilge system in engine room with 1.1/2 hp pump
- Fire pump with stations with 1.1/2 hp
- Bilge and fire pump valved to back each other up
- 24v Rules pumps for light de-watering
- Water maker
- Davit Hydraulic 2500 pounds,
- Drip less shaft seals, Tides Marine
- Shaft bearings DURAMAX
- Engine room fire extinguisher C02
- Engine controls Kobelt, 3 stations
- Steering system Kobelt
Plumbing
- PIPING
- Sea chest with two stand pipes and cross over pipe.
- Sea chest can be cleared by compressed air, tops can be removed in the water and bottom grates can be removed in the water. Primary filters located in each stand pipe. Secondary filters located at each piece of equipment.
- Seawater CuNi
- Black water system CPVC 1 ½”
- Fresh water system PVC
- Hydraulic seamless black pipe
- Head system
- Head Hunter with all hard CPVC piping
- Pump for black and gray water system back each other up.
- Fresh water system
- 2 x “Jacuzzi” water pumps and 36 gal pressure tank
- 2 x 50 gal hot water tank with circulating pump
- Shore side pressure reduction valve
Electrical System
- Generator 2 x Kohler 33 kw
- Inverter system
- Trace 4.0 KWA120 volts with link 2000
- Battery chargers
- 24V / 60 amperes main engines
- 24V / 40 amperes generators.
- 24V / 40 amperes para banco de 24V House sysems
- 24V / 40 amperes para banco de 24V electronics.
- 12V / 30 amperes para banco 12V Electronics
- Paralleling system for main engine starting
- Navigation lights Aqua Signal 55 dual system
Fuel System
- 5 tanks including one day tank.
- Transfer pump Burks model X315WA6BF 1 ½ hp 230 vt
- Tranfer pump Blackmer, modelo 414-414A manual ?
- Alfa Laval, model MIB 303
- 2x duplex filters “Racor” FG 75/900 for main engines
- 2 x duplex fliter “Racor” 900 MA for generators
- Fuel can be transfered between any tank using the transfer pump or Alfa Laval.
- Gasoline tank built under tender rack.
