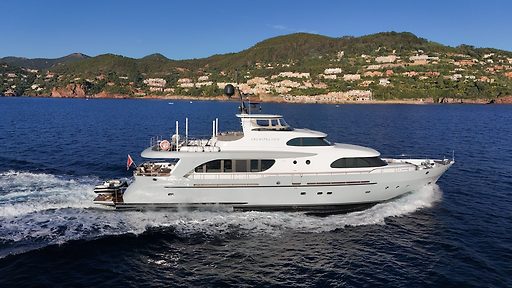

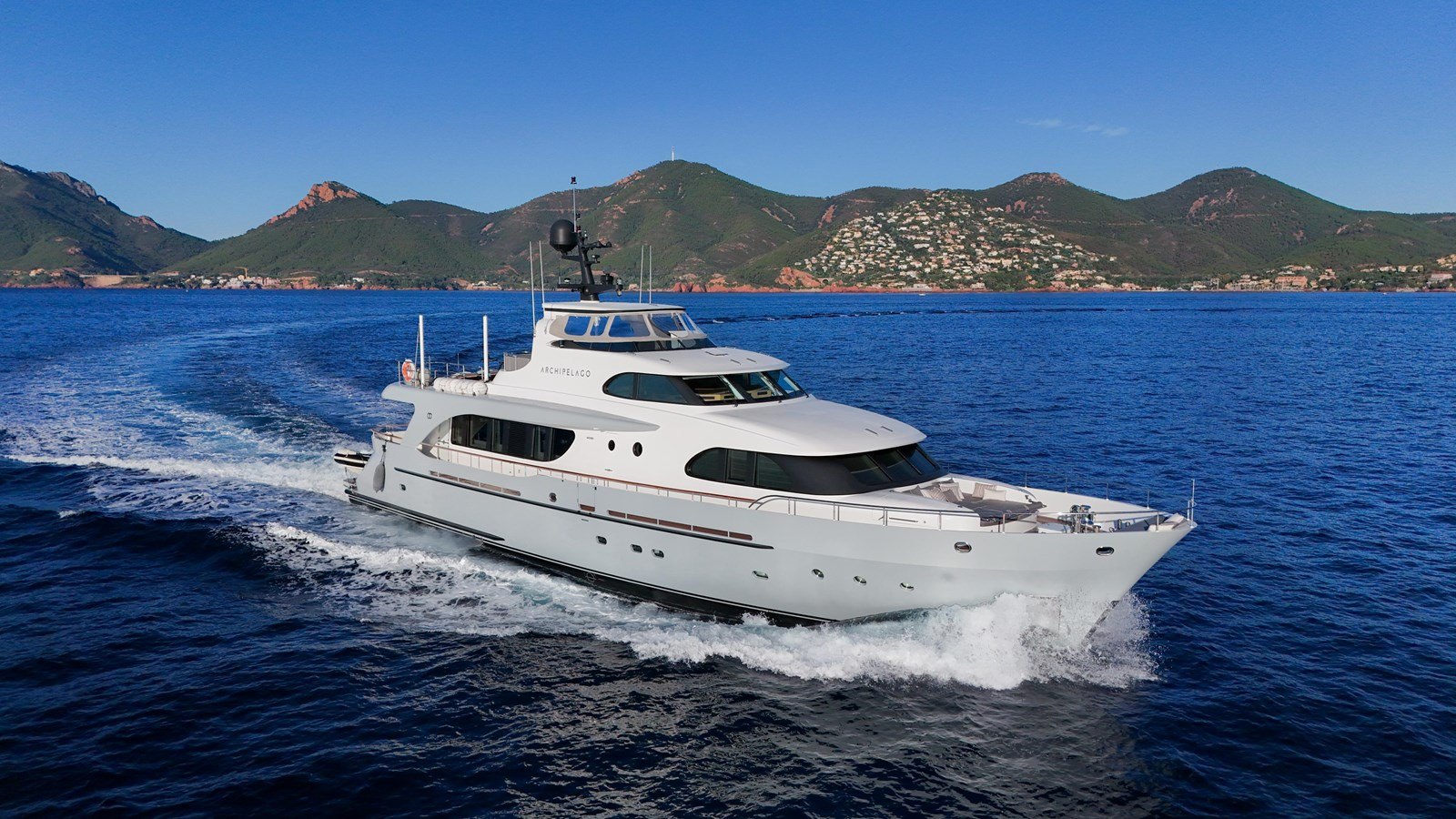

About Archipelago
ARCHIPELAGO is a prime example of the bulletproof high build quality exhibited by the world-renowned Dutch shipbuilders at Moonen Yachts. In essence a go-anywhere little ship, Archipelago is carefully maintained, only used privately, and has had care and…
- 30.8 mLength
- 2005YearRefit 2024
- 5Guest cabins9 guests
- 2 × CaterpillarEngines2,030 hp, 46,630 h
- 4,500 nmRange11 kn cruise
- 7.2 mBeam
About Archipelago
ARCHIPELAGO is a prime example of the bulletproof high build quality exhibited by the world-renowned Dutch shipbuilders at Moonen Yachts. In essence a go-anywhere little ship, Archipelago is carefully maintained, only used privately, and has had care and attention lavished on her by her current Owner and Captain. Benefiting from a very recent interior refresh and update, she offers excellent and flexible accommodation for 9 guests, including an attractive main deck owner's suite and a revamped sundeck, now with excellent protection from the weather. In pristine condition inside and out, as well as her master suite she also offers four additional cabins on the lower deck– making an excellent family-friendly flexible layout or for potential charter use. The addition of a new swim platform to launch the tender is a standout feature, as it frees-up deck space on the sundeck previously taken by the tender for guests, and adds a ‘beach club’ feel to the yacht. ARCHIPELAGOoffersthesmartyachtinvestoracompellingpackageandanexcellent pedigree that will hold its value. Her seaworthiness is proven, and she boasts a long-range capability of nearly 4,500nm, giving her ocean crossing capability. A full displacement yacht with a top speed of 12 knots, she cruises comfortably and quietly at 11 knots powered by twin 1,015hp Caterpillar C18 with low engine hours. KEY FEATURES
- Steel and Aluminium ‘go-anywhere’ displacement motor yacht
- Northern-European quality and Dutch pedigree
- Contemporary interior design refresh recently completed
- Back in full RINA Classification and well maintained
- Benefits from several recent major refits
- Exceptional volume for her length
- Zero-speed stabilisers and extended hydraulic swim platform among many recent upgrades
- EU VAT Paid and correctly priced

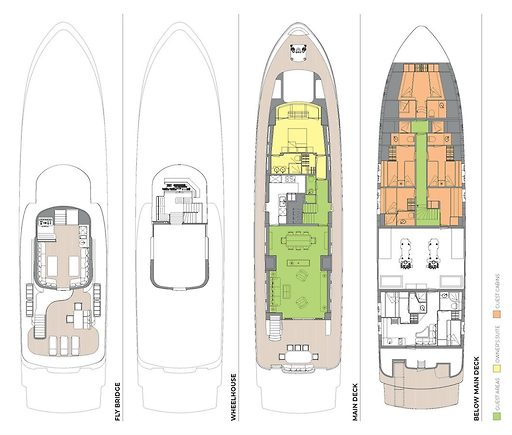

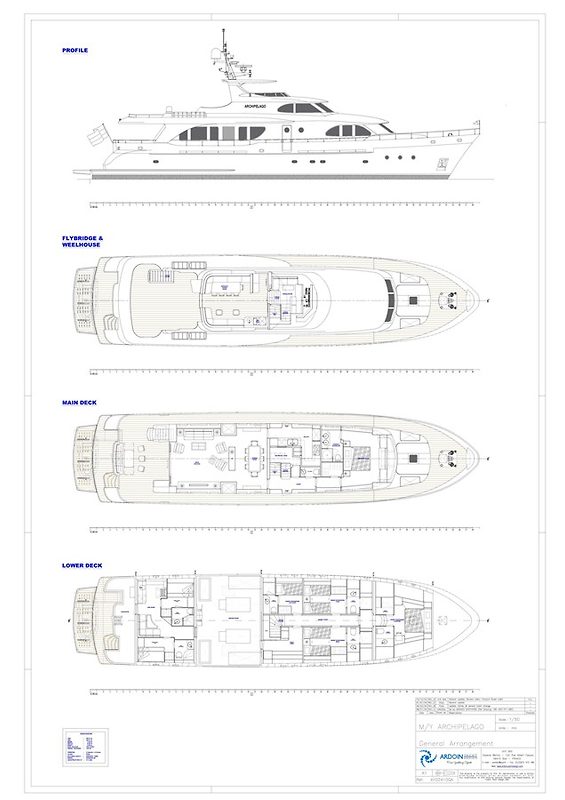

Layout of Archipelago
Archipelago, MOONEN YACHTS – Layout
Archipelago, MOONEN YACHTS – Layout
Specifications
Dimensions
- Length
- 30.8 m
- Beam
- 7.2 m
- Draught
- 2 m
- Gross tonnage
- 196
- Decks
- 2
Accommodation
- Guests
- 9
- Guest cabins
- 5
- Crew
- 4
- Crew cabins
- 2
Build
- Year
- 2005
- Refit
- 2024
- Hull
- Mono Hull
- Hull material
- steel
- Superstructure
- aluminium
- Classification
- RINA
Performance
- Engines
- 2 × Caterpillar C18 DITA
- Total power
- 1,513.8 kW · 2,030 hp
- Engine hours
- 46,630 h
- Max speed
- 12.7 kn
- Cruising speed
- 11 kn
- Range
- 4,500 nm
- Fuel capacity
- 25,800 l
- Water capacity
- 6,200 l
Design & history
- Naval architect
- Rene van der Velden, Design Studio Spadolini / Tommaso Spadolini
- Exterior design
- Rene van der Velden, Design Studio Spadolini / Tommaso Spadolini
- Interior design
- Alessandra Negrato
- Previous names
- Passepartout, Clementine III, Clementine
More about Archipelago
Detailed Description
- 1.
- # MAIN CHARACTERISTICS
- TYPE ·
- Full Displacement Motor Yacht
- BUILDER ·
- Moonen Yachts
- MMSI NUMBER ·
- 215518000
- NAVAL ARCHITECT ·
- Moonen Yachts
- EXTERIOR DESIGN ·
- Rene van der Velden, Tommaso Spadolini / Tommaso Spadolini
- INTERIOR DESIGN ·
- Alessandra Negrato
- YEAR ·
- 2005
- REFIT ·
- 2024
- CLASSIFICATION ·
- RINA
- CONSTRUCTION ·
- Steel Hull
- Aluminium Superstructure
- Teak Decks
- CREW ·
- Up to 4
- FLAG ·
- Malta
- ENGINES ·
- 2 x 757 kW (1,015 Hp) Caterpillar C18 DITA
- GT ·
- 196
- NT ·
- 58
- 2.
- # DIMENSIONS
- LOA ·
- 30.80m / 101'1"
- LWL ·
- 27.00m / 88'7"
- BEAM ·
- 7.20m / 23'7"
- DRAFT ·
- 2.00m / 6'7" max
- 3.
- # SPEED & RANGE UNDER POWER
- MAXIMUM SPEED ·
- 12.70 knots
- CRUISING SPEED ·
- 11.00 knots
- ECONOMICAL SPEED ·
- 9.00 knots
- FUEL CONSUMPTION ·
- 120 litres/hour (32 US gallons) @ 12.70 knots
- 100 litres/hour (26 US gallons) @ 11.00 knots
- 80 litres/hour (21 US gallons) @ 9.00 knots
- 4.
- # CAPACITIES
- ACCOMMODATION ·
- 9 guests in 5 cabin(s)
- CREW ·
- 4 crew in 2 cabin(s)
- FUEL ·
- 25,800 litres / 6,816 US gallons
- FRESH WATER ·
- 6,200 litres / 1,638 US gallons
- DIRTY OIL ·
- 300 litres / 79 US gallons
- GREY WATER ·
- 500 litres / 132 US gallons
- BLACK WATER ·
- 500 litres / 132 US gallons
- 5.
- # ACCOMMODATION
- OWNER ·
- Master cabin ensuite on the main deck with NEW king-sized mattress
- GUESTS ·
- 1 x Full beam VIP cabin on lower deck with NEW king-sized mattress
- 2 x Twin cabins, each convertible into a double bed with NEW mattresses
- 1 x Single cabin that can be converted for staff or captain
- CREW ·
- 2 x Twin cabins
- 6.
- # MECHANICAL EQUIPMENT
- ENGINES ·
- 2 x 757 kW (1,015 Hp) Caterpillar C18 DITA Diesel (@2,300 rpm)
- Serviced at 5,000 hours with a NEW REMAN short block, including a 2-year warranty
- ENGINE HOURS ·
- Port4,663 hours as of 08th May 2026
- Starboard4,660 hours as of 08th May 2026
- GENERATORS ·
- 2 x 40 kW (54 Hp) Onan MDDCF
- NEW in 2023
- GENERATOR HOURS ·
- Port1,968 hours as of 08th May 2026
- Starboard2,001 hours as of 08th May 2026
- STABILISERS ·
- CMC Marine
- WATERMAKER ·
- HEM chlorinator system, 200 l/h
- STEERING SYSTEM ·
- Cramm steel rudders, lubricated shaft with hydraulic ram system
- PROPELLER ·
- 2 x 5-Blades, ShaftRubber design
- Serviced 2023
- GEARBOX ·
- 2 x ZF 2050A reduction 2.467:1
- BOWTHRUSTER ·
- Cramm V2-12H hydraulic prop. 29kW
- SHORE POWER ·
- 230/400V system, 24V emergency system (50Hz)
- 3-phase 400 V AC 64 A connection
- 1-phase 240V/32 A connection
- Frequency Converter Mastervolt Dakar 230 V AC
- Chargers/Converter Mastervolt battery 24/100
- BATTERIES ·
- 24V 56AMP Optima Main Engines Batteries
- 24V 56AMP Optima Generators Batteries
- 900AMP Service Battery Bank
- RUDDER ANGLE INDICATOR ·
- Furuno for main system, Raymarine for backup steering
- FUEL FILTERS ·
- Racor
- FUEL SEPERATOR ·
- Alfa Laval MB 303 S
- FIRE/BILGE PUMP ·
- 1 x Johnson Electrical Bilge/Fire pump in engine room
- 1 x Rheinstrom Manual Bilge/Fire pump – Bilge oil/water separator
- WATER SOFTENER ·
- HEM 300
- WATER MAKER ·
- Idromar 500
- SEWAGE TREATMENT ·
- 2 x Grey water tanks, connected to an overboard stack in the engine room
- Emptied through electrical Rheinstrom 24V GW Pump, one black water tank,
- connected to Hamann Super Mini
- TOILET SYSTEM ·
- Microphor LF-210/LF
- HVAC SYSTEM ·
- Edaircon CLD compressors
- Salor ventilator 400V/3 Phase engine room ventilation
- Towel heaters and floor heating in all guest bathrooms
- 7.
- # NAVIGATION EQUIPMENT
- MAGNETIC COMPASS ·
- Ritchie Globemaster
- AUTOMATIC PILOT ·
- Simrad AP 70 MK2
- ECHO SOUNDER ·
- Furuno GP-37WAAS
- RADAR/CHART PLOTTER ·
- Furuno IMO ARPA “Black Box” Type FAR-2117B Performance Mxsea + yacht with Charts
- GPS ·
- Furuno GP-37WAAS
- OTHER ·
- 1 x NAVTEC Global 3 EPIRB Search and Rescue
- 8.
- # COMMUNICATION EQUIPMENT
- GMDSS ·
- Equipped & certified
- SATCOM ·
- Maritime Starlink system
- VHF ·
- Furuno FM-8900S VHF Marine radio system
- 9.
- # DECK EQUIPMENT
- ANCHOR WINDLASS ·
- 2 x Muir hydraulic VRC 4500
- AFT WARPING CAPSTANS ·
- 4 x Cramm hydraulic CK 1000
- ANCHORS ·
- 2 x 125kg galvanised Pool-N anchor & 2 x 130m/14mm short-ling galvanised chains
- PASSERELLE ·
- Morsaverio telescopic passerelle
- SWIM PLATFORM ·
- 5.2m x 1.6m hydraulic extended swim platform
- SEARCHLIGHT ·
- Sanshin Type HR-1012 U remote control
- AWNING ·
- Carbon fibre poles
- NEW two-part shade, with a top and side section, including one waterproof section, added in 2023
- NEW front wind protection with openable windows, NEW in 2023
- 10.
- # ENTERTAINMENT EQUIPMENT
- 40” Sharp TV in Main Salon
- 43" Samsung TV on Flybridge
- Bose sound system for interior and exterior
- Yamaha sound system in the saloon with NEW speakers and a subwoofer
- Fusion sound system on the flybridge with NEW speakers, subwoofer, and Yamaha amplifier
- 11.
- # GALLEY & LAUNDRY EQUIPMENT
- MAIN GALLEY ·
- Miele cook top
- Miele exhaust hood
- Miele microwave
- Miele dishwasher
- Gaggeneau fridge/freezer
- Potable water Qooker
- Sink with ISE macerator
- CREW ·
- Miele professional washing machine
- Miele dryer
- Miele fridge
- Miele cook top
- Microwave
- Ice maker
- Genius portable water system
- LAUNDRY ·
- Miele freezer
- Miele fridge/freezer
- Wine cave
- Miele professional washing machine
- Miele dryer
- FLYBRIDGE ·
- Frigomar fridge
- Single induction hob
- NEW Alpes Inox grill
- COCKPIT ·
- Hoshizaki ice maker
- 12.
- # SAFETY & SECURITY EQUIPMENT
- FIRE FIGHTING ·
- Consilium fire & smoke detector (NEW 2023)
- Novec FM200 extinguishing system in engine room
- ALARMS ·
- Ajax alarm system (NEW 2023)
- SECURITY ·
- CCTV with 2 x Cameras and 4 x I.S.O
- 13.
- # TENDERS & WATERSPORTS EQUIPMENT
- TENDER ·
- 1 x Williams SportJet 435 NEW in 2024
- 1 x 3.30m Genius 330 inflatable RIB with 25hp Suzuki outboard
- WATERSPORTS ·
- 1 x Seabob S5S
- 1 x Hobie 2-persons inflatable kayak
- 1 x Hobie Mirage iEclipse
- 1 x Inflatable SUP board
- 2 x Inflatable donut towables
- 14.
- # REFIT & MAINTENANCE NOTES
- ### REFIT & MAINTENANCE NOTES WINTER 2023-2024
- Vessel brought back into full RINA Classification as it had lapsed under the previous ownership. This involved doing a full 5-year Special Survey to reset the clock. Next Special Survey now due Winter 2028/29
- Brand NEW ONAN 40 kW generators installed
- NEW Consilium fire detection system with heat and smoke detectors installed
- NEW portable emergency radios
- NEW flybridge cover for enclosing flybridge in inclement weathers or windy conditions
- NEW seats and flooring in the crew mess
- Two twin guest cabins refitted with NEW movable beds
- VIP cabin updated and reconfigured with all NEW joinery
- NEW curtains and loose furniture throughout
- NEW Williams 435 tender (maximum size for hydraulic swim platform)
- NEW ice maker installed
- NEW portable water system installed in the crew mess
- NEW Quooker water system installed providing hot boiled water at the tap
- NEW cabinet in the cockpit
- NEW bench in the front bow
- NEW Bimini over the front bed
- NEW table layout on the flybridge
- NEW awning for shade and rain protection
- NEW music system
- NEW Wi-Fi system with Starlink antenna; option to connect fiber optic to shore
- NEW high-pressure water maker; old one removed
- NEW stainless steel swimming ladder with wooden steps
- NEW life rafts
- ### REFIT & MAINTENANCE NOTES 2021-2022
- Hull and superstructure fully painted
- NEW zero speed stabilisers installed
- NEW swim platform with tender lift system
- NEW passerelle
- NEW Boning monitoring system
- NEW seamless generator transfer system
- NEW fan coil air conditioning units installed
- NEW engine exhaust system
- NEW engine room valves fitted
- All diesel tanks cleaned
- NEW pump for fire system
- NEW toilet system
- NEW stainless steel black tank
- Shafts and propellers overhauled
- NEW watermaker installed
- NEW Miele appliances
- NEW electronic throttle system
- NEW Satellite TV antenna
- NEW air compression system for fender inflation
- NEW flybridge arrangement
- NEW electric blinds installed
- NEW exterior cushions and covers
- Engines and generators fully serviced
- All tanks opened and cleaned
- Hamann system overhauled
- All pumps inspected and overhauled or replaced as required
- NEW tank washing system and ionisation system installed
- Shutoff valves on the delivery lineInstallation of shutoff valves on the WC delivery lines
- EnginesService and inspection of the turbo seawater pumps, crankcase valves adjustment, inspection of the alternators, replacement of the thermostats, repair of the leak on the starboard invertor pump and fixing of the hoses
- GeneratorsInspections of the seawater pump exchangers, alternators, inspection of the injectors, inspection of the turbo belts and raiser
- Internal valves and pipesGreasing of the valves, inspection of the bilge pump pipes and exhaust manifold to be replaced with a NEW one
- Power pack pumpsRepair of the oil leaks
- Temperature in the dayheadInstallation of a thermostat to control the ac temperature
- Anchor jointsReplacement of the kongh joints
- Portable bilge suction in engine roomFitting of a portable bilge suction in engine room
- NEW hob installed in galley
- NEW safe installed in master cabin
- Toilet CompressorsSystem update
- Crew areaReplacement of the crew mattresses, enlargement of the crew mess table
- NEW rescue tender
- NEW fridge, storage, and freezer in laundry room
- NEW fender system installed on swim platform
- ### REFIT & MAINTENANCE NOTES 2020
- Inspection of the compressors WC charge system
- ScuppersCleaning of the exhaust lines external scuppers
- Grey waters pumpInspection of the pumping system
- Engines and generators serviced
- DDFF and tanksCleaning of the double bottoms and tanks for: fuel, water, greywaters, blackwaters, waste oils, decantation and condensation
- Separate blackwaters tank
- Watermaker serviced
- Freshwater systemWashing of the boiler, servicing of the group three autoclaves, inspection of the UV group, replacement of the production filters and replacement of the accumulators
- Firefighting systemInspection of the firefighting system, inspection of the fire extinguishers and replacement of the motor pump group
- Hammam purifierInspection of the purifier
- Bilges systemInstallation of the second emergency pump in line
- Main engine exhaustsRenewal of the exhaust pipes and related silencer
- NEW Mastervolt inverter installed
- NEW Mastervolt emergency battery charger
- 15.
- # COMMENTS
- ARCHIPELAGO is a prime example of the bulletproof high build quality exhibited by the world-renowned Dutch shipbuilders at Moonen Yachts. In essence a go-anywhere little ship, Archipelago is carefully maintained, only used privately, and has had care and attention lavished on her by her current Owner and Captain.
- Benefiting from a very recent interior refresh and update, she offers excellent and flexible accommodation for 9 guests, including an attractive main deck owner's suite and a revamped sundeck, now with excellent protection from the weather.
- In pristine condition inside and out, as well as her master suite she also offers four additional cabins on the lower deck – making an excellent family-friendly flexible layout or for potential charter use.
- The addition of a new swim platform to launch the tender is a standout feature, as it frees-up deck space on the sundeck previously taken by the tender for guests, and adds a ‘beach club’ feel to the yacht.
- ARCHIPELAGO offers the smart yacht investor a compelling package and an excellent pedigree that will hold its value. Her seaworthiness is proven, and she boasts a long-range capability of nearly 4,500nm, giving her ocean crossing capability. A full displacement yacht with a top speed of 12 knots, she cruises comfortably and quietly at 11 knots powered by twin 1,015hp Caterpillar C18 with low engine hours.
- ### KEY FEATURES
- Steel and Aluminium ‘go-anywhere’ displacement motor yacht
- Northern-European quality and Dutch pedigree
- Contemporary interior design refresh recently completed
- Back in full RINA Classification and well maintained
- Benefits from several recent major refits
- Exceptional volume for her length
- Zero-speed stabilisers and extended hydraulic swim platform among many recent upgrades
- EU VAT Paid and correctly priced
Similar Yachts
Azimut Yachts · 95 RPH
Anastasia V
- 2017
- 28.62 m
Custom Line · 100
Oxygen
This 2015 Ferretti Custom Line 100 — built by Custom Line, the performance division of the Ferretti Group — has had just one owner since new and has been privately used, never chartered. Based in Asia since delivery, she was originally in China and is now…
- 2015
- 30.58 m
Aluminium · SUNSEEKER 30 M
Infinity
- 2010
- 29.78 m
Sunseeker
Melissa
Classic flowing lines give this yacht an outstanding profile. Three spacious decks provide opulent entertainment areas and generous accommodations for up to 10 in 5 en suite staterooms There's also an impressive fly bridge with hardtop, 4 stool wet bar and…
- 2011
- 35.05 m
Oceanline
One Blue
ONE BLUE is a sleek 38.71m luxury motor yacht built by Oceanline and designed by Frank Mulder . Refitted in 2020, she seamlessly combines high performance with modern elegance, reaching a top speed of 22 knots . She comfortably accommodates up to 12 guests…
- 2009
- 38.71 m
Princess Yachts · Princess 95
Blue Eyes
Motor Yacht BLUE EYES is a 29.42m (95') yacht for sale, built and launched by yacht builder Princess Yachts and delivered in 2009 and refit in 2026. This vessel sleeps up to 8 guests in 4 staterooms and has accommodations for 5 crew in 3 cabins.
- 2009
- 28.95 m
Benetti Yachts · CLASSIC
Mamma Mia
2007 BENETTI CLASSIC 120 "MAMMA MIA" Trades Welcomed | In-House Financing
- 2007
- 36.57 m
Horizon Yachts
The Clubhouse
This Horizon 97 Raised Pilothouse Yacht available for sale is a luxurious and elegant motor yacht designed for comfort, performance, and style. The interior spaces feature a calm and serene palette of neutral colours which evoke a sense of tranquillity and…
- 2009
- 29.5 m
Cheoy Lee · Tri-Deck
Charlotte Ann
CHARLOTTE ANN, crafted by Cheoy Lee and designed by Frank Mulder, combines volume, style, and advanced systems. This ABS Class yacht features five staterooms with ensuite bathrooms, including a spacious master suite with dual baths and an office. The main…
- 2003
- 38.09 m
DL Yachts - Dreamline · Dreamline 26
Rekoma
The 26m Dreamline REKOMA, delivered in 2018, presents a rare opportunity to acquire a meticulously maintained yacht in outstanding condition with low engine hours. Privately owned since new and never chartered, she has been carefully maintained and stored…
- 2018
- 26 m
Palmer Johnson · 120
Taimare
- 2005
- 37.9 m
Ocean Alexander · 100 MY
Wiggle Room
WIGGLE ROOM is an exceptionally well-maintained 2018 Ocean Alexander 100 Motor Yacht offering luxurious accommodations, proven Caterpillar power, and an extensive list of recent services and upgrades that make her truly turnkey. Measuring 100'8" with a 23'…
- 2018
- 30.68 m
