• ACCOMMODATIONSFive (5) ensuite guest cabins – 3 double bedded and two twins. Three (3) crew cabins accommodating 5 crew (two twin and one single) with 2 wc/shower.

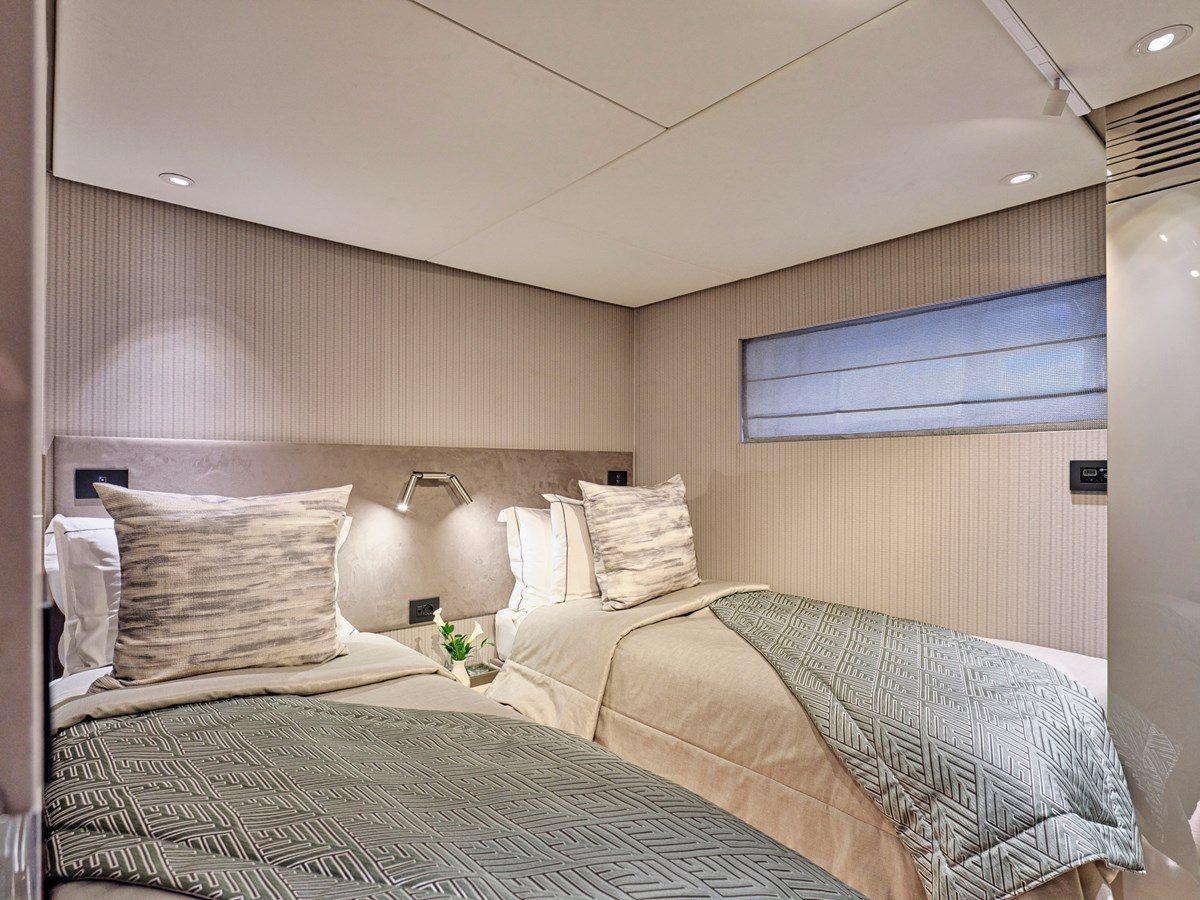

• LOWER DECKFour (4) ensuite guest cabins – 2 double bedded and two twins. Crew area fwd with seating area and a small pantry and 3 cabins for 5 crew.

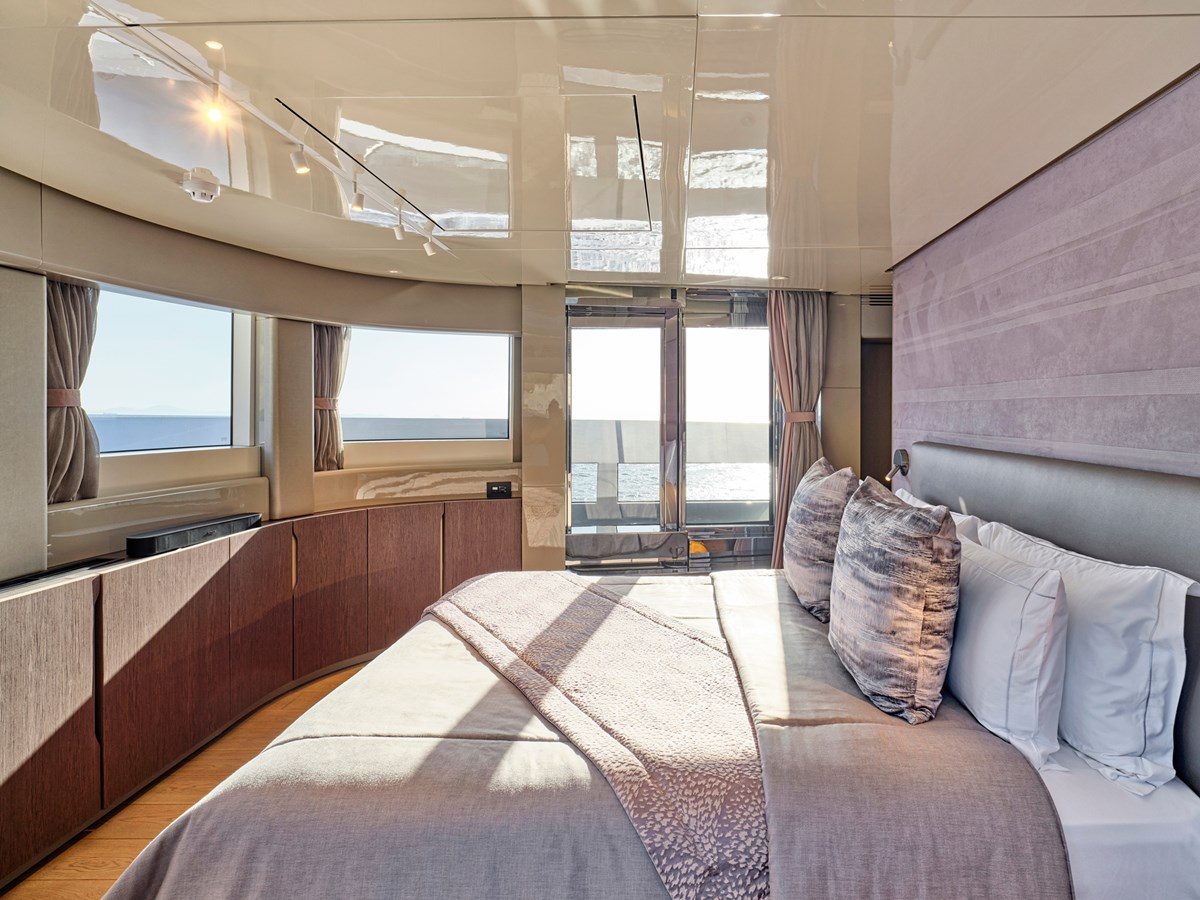

• OWNER’S STATEROOM

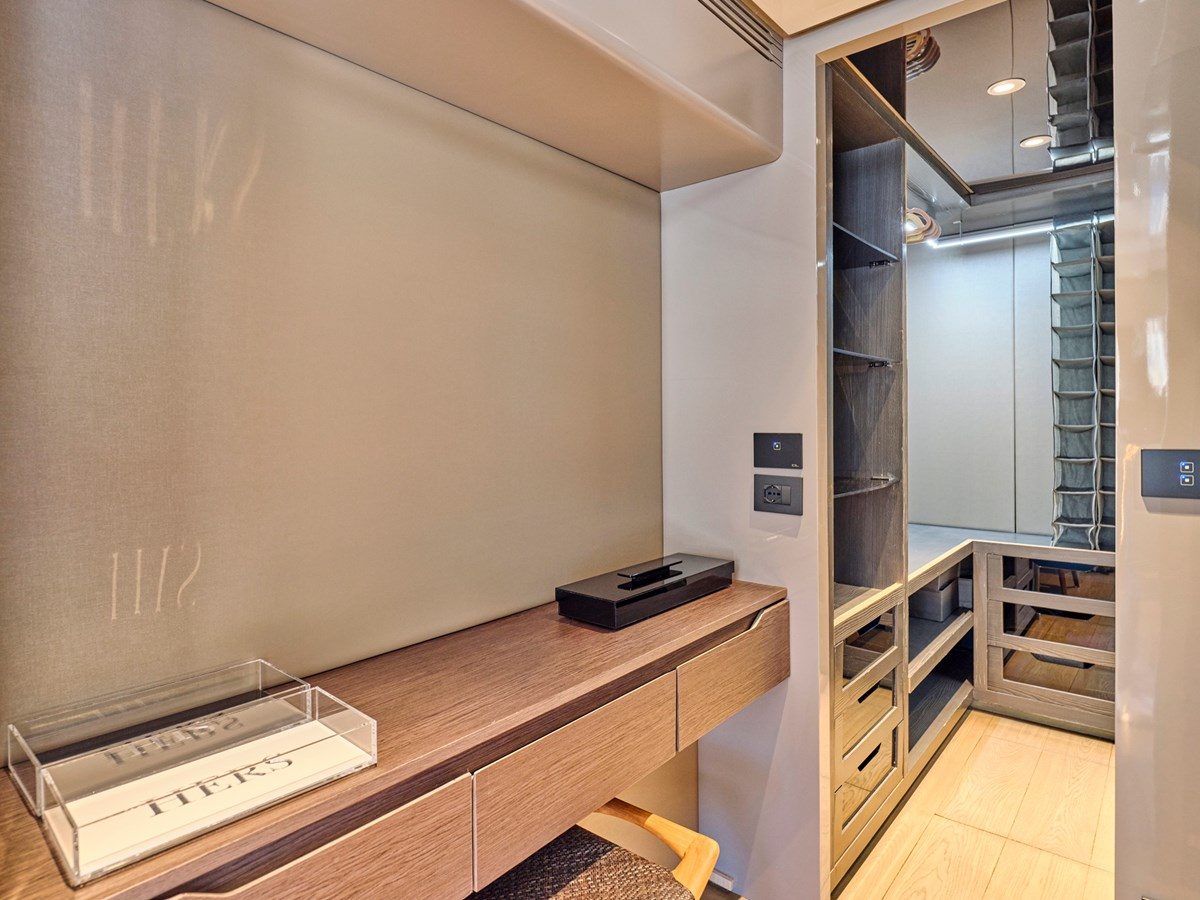

• On the Main deck fwd with a walk-in closet, hers beauty desk with leather puff and further storage lockers under the bed. Its entertainment system include a SONOS dolby digital system and a flop down 50’’ Samsung TV. There is an electric side glass door giving a direct access opening to the deck and the bow seating that can be used as the Owner’s private relax area.

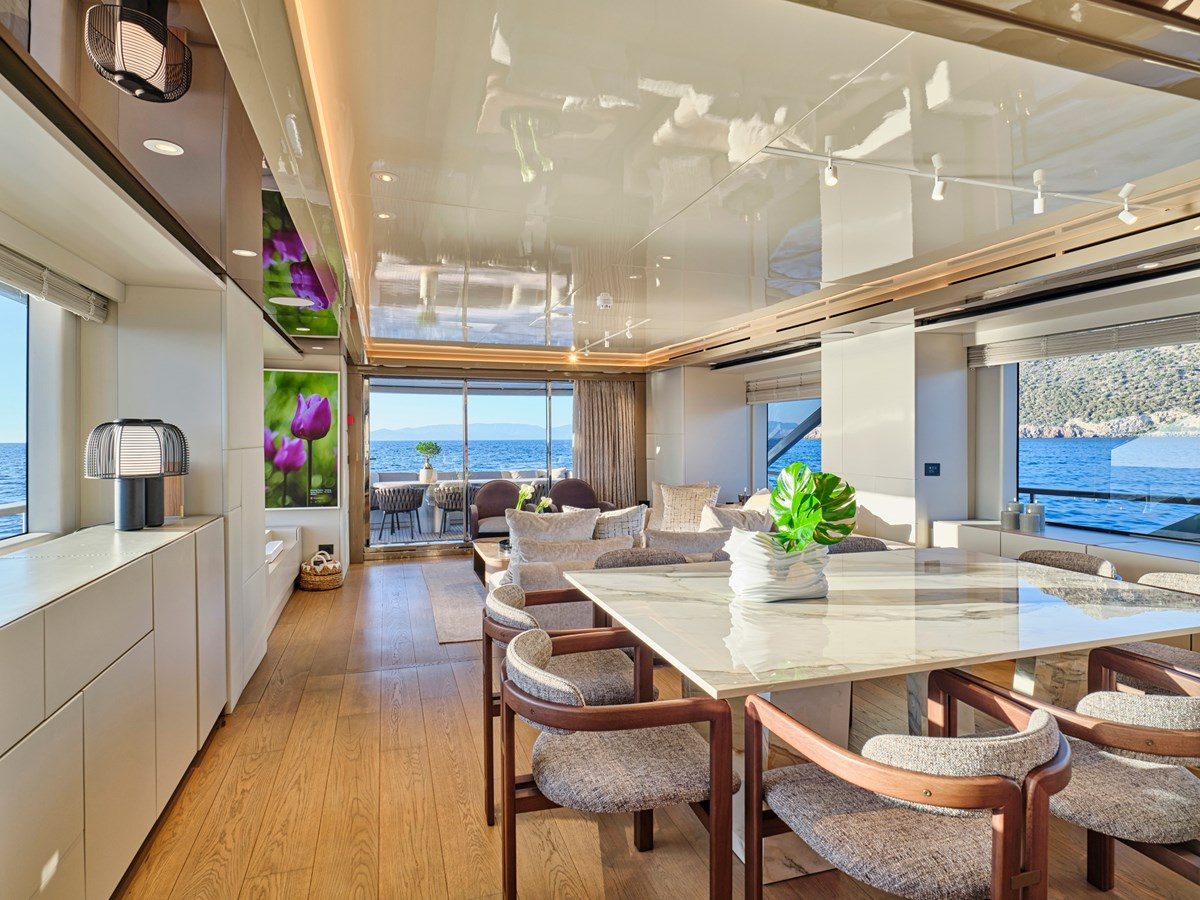

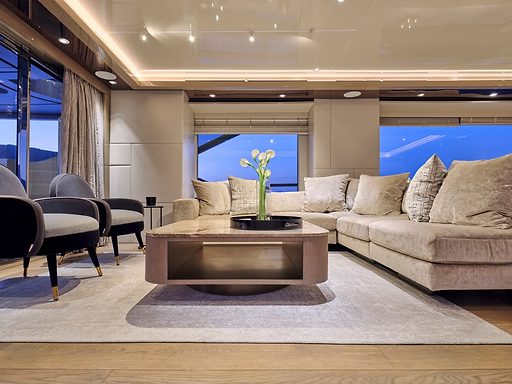

• On the Main deck aft there is an outdoor dining table and a raised sofa sun pad. The main deck aft is separated from the salon with a sliding door with tempered safety glass and stainless steel frame. Sofas and lounge chairs in port side. On starboard side there is a panoramic window and a movable TV mount for the Samsung 55" smartTV. Ceiling illumination is with led ceiling lights.

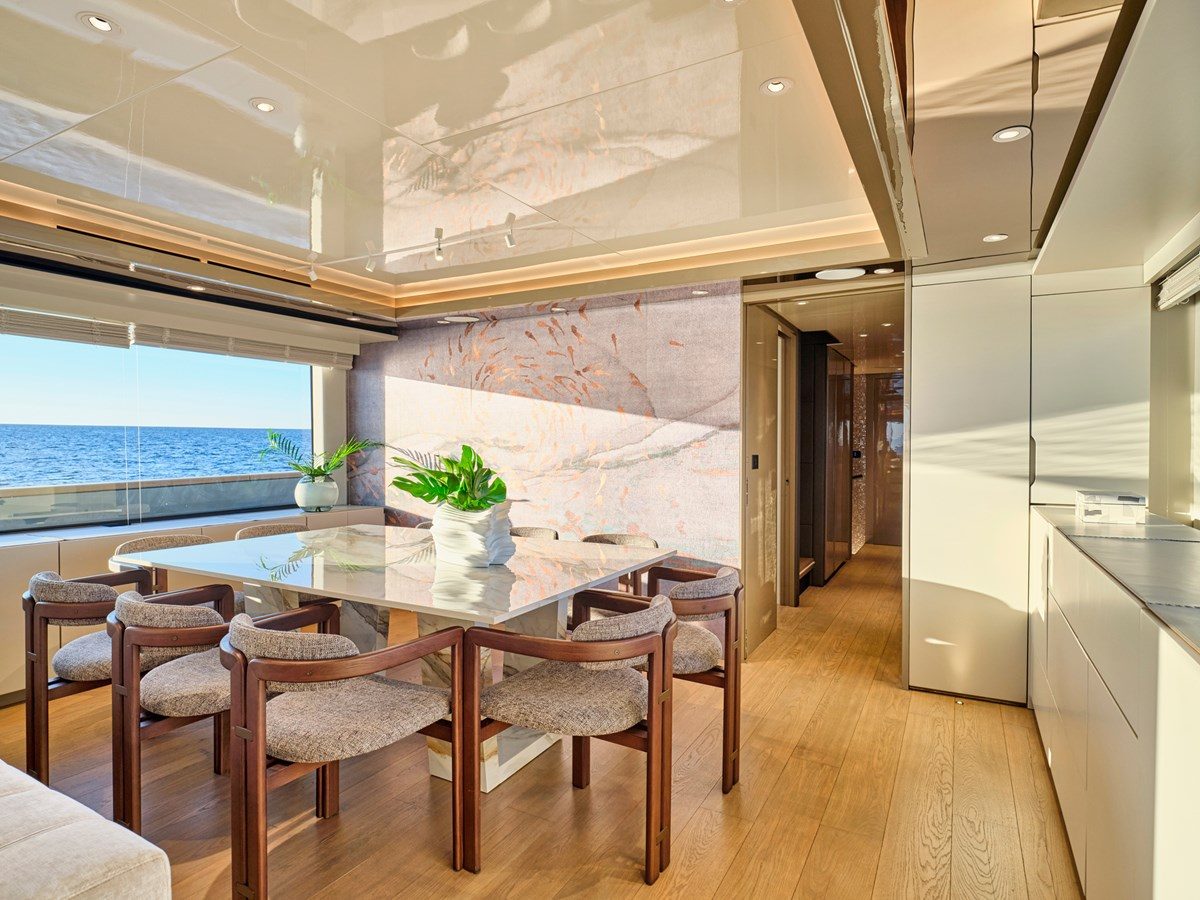

• The large dining table for 10 guests is located further fwd in the salon.
• Forward, into the corridor, on the port side we see the galley and the access stair to the crew area (with exit to deck) and on the stbd side the day WC and another side exit to deck.

• BRIDGE DECK
• The main wheelhouse is located on the raised pilothouse with all navigation and monitoring instrumentation. Has direct access to the Sun deck.

• The available space provides a comfortable environment, as well as a rational and complete control station, a large sofa with integrated furniture, a dining table with chairs, a bar, an internal barbeque zone and large sun pads. The access is made by an external staircase and by an internal one, which goes down next to the pilothouse below. The entire sun deck is teak covered and self-draining. A large hard top built in fiberglass/ carbon mix provides for an extended shaded area.

• Main Engines· MTU 16V2000M96
• Engine Hours· Port: 95
• · Starboard86
• Propulsion Type· V-Drive shafts
• Engine Controls· 3 Control stations (wheelhouse, flybridge, aft stations)
• Gear Boxes· ZF
• Propellers· 5-Blade Radice
• ·

Generators & electricity

• Generators· KOHLER 35kw & 28kw (new 2023)
• Generator Hours· Port: (35kw) 380
• · Starboard(28kw) 376
• Shore Power· 65A / 380V 3-Phase
• Power Supply· 380V for systems, 220V for sockets & appliances and 24V for light and emergency systems
• Generator Start· Wheelhouse / Local

• Bow & Stern Thrusters· Twin Disc Hydraulic each 60 HP
• Stabilizers· Humphree zero speed stabilizers system electric with side fins
• Under Water Lights· 5 on each side plus 4 at the stern
• Helm/Wing Station Controls· Flybridge and aft cockpit
• ·
• ·
• Firefighting & Bilge Systems ·
• Firefighting· - N°1 electric-pump with by-pass for fire bilge service type Gianneschi
• 2 fire hydrants UNI45 on main deck
• fixed extinguisher system in engine room CO2
• Manual activation from cockpit
• External manual emergency closing of fuel lines to the engines and generators and manual closing of the ventilation shutters and fans
• Fire Smoke Warning System
• Bilge · - Bilge suctions for each of the water-tight compartments
• N°1 electric-pump with by-pass for fire fighting service type Gianneschi
• The two pumps are also used for the anchor chain washing.
• Electrical bilge level sensors
• manual bilge pumps
• Bilge level alarms
• Engine cooling sea water suction with three way split for bilge
• Bilge alarm panel
• ·
• ·
• Fresh Water System · - Structural grp tank cap. 2000 litres connected with Idromar Watermaker 250 lt/h (full automatic)
• Group of two independent pressure pumps from Gianneschi & two hydrophores with two electronic pressure controls (one unit only for owner compartment, 2nd unit for remaining freshwater system with interconnection)
• Shore water connection for fresh water and pressure reducer
• Water maker 250 lt/h full automatic
• 2 filters for shore connection
• Fresh Water Makers· - Idromar 250lt/hr
• Hot Water Boilers· 2 Boilers located on the lower deck under the guest area staircase
• ·
• Black & Grey Water System · - 2 Electric-pump black/grey waters
• Electric-pump for every toilet contained in the WC unit
• Black water tank grp cap. 1,200 ltrs.
• Grey water tank grp cap. 1,100 ltrs.
• Possibility of discharging black and grey waters overboard using by-pass controls
• WC's (toilets)· TECMA
• ·
• AC & Ventilation System·
• Air Conditioning· Frigomar CU70 Inverter
• ·
• Air Compressor· Three (3) total 210,000BTU
• ·
• Provision Refrigeration· 2 Provision Fridges +1 Deep Freezer
• ·
• Ventilation System· - Forced air intake to the engine room from the internal and external walkways
• Engine room ventilation made by two large fans drawing in fresh air from the walkways, discharge of natural hot air onto the walkways
• Extraction systems in all bathrooms with centrifugal ventilation
• Extraction system in galley with centrifugal ventilation
• ·
• Antifouling System· EUMARIA
• ·

• Anchors· Two (2) Stainless Steel 107kgs each
• Anchor Chains· 2x 120m 14mm
• Cranes· Number, Brand, Model, Max Load
• Passerelle· Hydraulic Besenzoni
• Side Boarding· Yes
• Swimming Platform· Hydraulic Swim Platform covered with Teak Deck Lifting Capacity 800 kg
• Swimming Ladder· Besenzoni Hydraulic Bathing ladder with deck lift function - max. 200 kg
• Garage· Garage entrance door with electrohydraulic opening system with control on deck and hydr. tender lifting system custom made. Custom fold down sofa on garage door
• Paint Exterior· Grey Metallic
• Paint Interior· Grey Metallic
