About Arlene

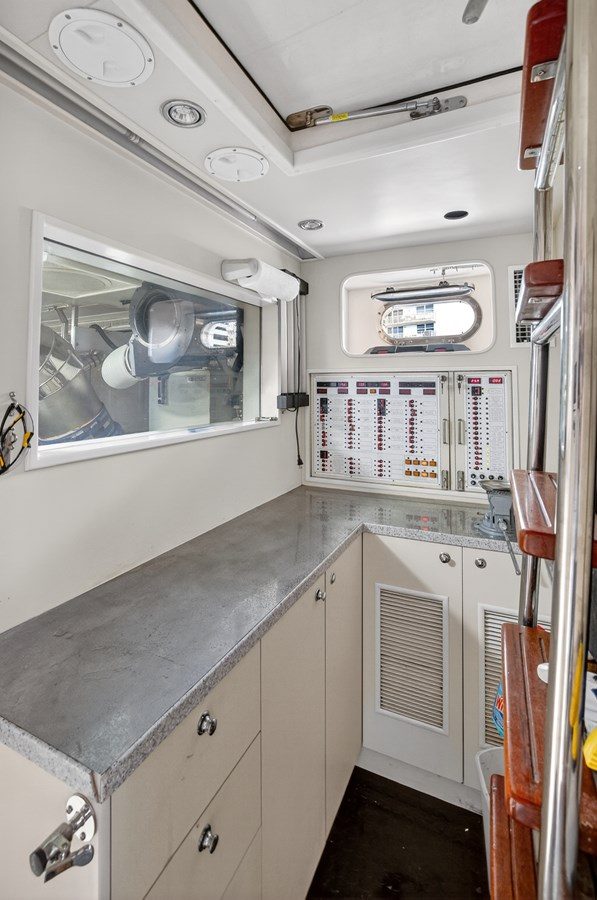

Owner will consider all reasonable offers, including a quality 65'+ sportfish in partial trade Over USD 250,000 invested in upgrades and improvements over the past two years Powered with upgraded Caterpillar C-32 Diesels - 1,550 Hp each ARLENE has been maintained to the highest standards by a truly knowledgeable owner. She has been thoughtfully enhanced with significant recent upgrades, ensuring she is turnkey for her next owner. KEY FEATURES: A highly desirable model with expansive interior volume All-new exterior cushions (2025) A massive crew area, complete with a dedicated workshop—a captain’s dream New CCTV system fully integrated with a high-speed Starlink satellite array New Awlgrip finish on the forward bow area 1,000 GPD Watermaker by Watermakers Inc. — new March 2026 All machinery has been rigorously and regularly serviced New Delta T ventilation and cooling system
- 23.16 m76′Length
- 2009Year
- 4Guest cabins8 guests
- 2 × CaterpillarEngines3,100 hp, 3,100 h
- 24 knMax speed17 kn cruise
- 5.63 m18′ 6″Beam
Layout
Explore every deck in detail: Arlene
Specifications
Arlene at a glance
Dimensions
- Length
- 23.16 m76′
- Beam
- 5.63 m18′ 6″
- Draught
- 1.72 m5′ 8″
- Gross tonnage
- 74
Accommodation
- Guests
- 8 in 4 cabins
- Crew
- 2 in one cabin
Build
- Year
- 2009
- Hull
- Mono Hull · grp
- Superstructure
- grp
Performance
- Engines
- 2 × Caterpillar C 32
- Total power
- 2,311.6 kW · 3,100 hp
- Engine hours
- 3,100 h
- Max speed
- 24 kn
- Cruising speed
- 17 kn
- Range
- 850 nm
- Fuel capacity
- 6,510.91 l
- Water capacity
- 1,514.16 l
Design & history
- Exterior design
- Horizon Yachts (Taiwan)
- Interior design
- Spadolini Design
Construction
- Fiberglass hull and superstructure
Dimensions
- General
- Length Overall (L.O.A.)
- 76.00 feet (23.16 meters)
- Beam
- 18.50 feet ( 5.64 meters)
- Draft (loaded)
- 5.67 feet ( 1.73 meters)
- Tonnage
- 74 gross
- Displacement
- 105,822 lbs
- Capacities
- Fuel Capacity
- 1,720 US Gallons (6,511 liters)
- Water Capacity
- 400 US Gallons (1,514 liters)
- Holding Capacity
- 148 US Gallons ( 560 liters)
- Speed Consumption per hours Range RPM
- Maximum
- 24.0 knots 164 US Gallons /hr 450 nm 2,300
- Cruising
- 17.0 knots 118 US Gallons /hr 850 nm 1,700
- Economical
- 10.0 knots 16 US Gallons /hr 1,200 nm 1,000
Machinery
- Main Engines
- Engine Type
- (2) Caterpillar C-32 Diesels @ 1,550 Hp each, inboard – 1,000 hour full service Oct.2024, 3,100 hours on engines
- Gearboxes for Main Engines
- ZF
- Drive
- Direct
- Propellers
- 5-blade
- Other
- Delta T high volume engine ventilation system – New 2024 (USD 40,000)
- Underwater engine exhaust system w/mufflers
- Cat vision system for engines
- Main & intermediate bronze struts w/backing plates
- Stainless steel emergency tiller
- Stainless steel rudder w/zinc plates
- Generators & Electricity
- Output
- 220/110V, 60Hz
- Generators
- (2) Northern Lights 30 kW generators
- Generator Fuel Consumption
- 1.5 US Gallons /hr each
- Shore Power
- 100 AMP, Charles Smart Y
- Shore Power Cables
- (2) Cablemasters
- Inverter System
- Step down 24V/12V transformer
- Batteries
- (4) main engine
- (3) chargers (house, engine, generator)
- Other
- Charles ISO boost transformers, 100 AMP
- Additional Charles ISO boost transformer, 50 AMP
- 24V DC monitoring & main circuit breaker panel
- 24V DC & 110V AC lighting & electrical pumps
- 24V DC & 110V AC water pumps
- Air Conditioning
- Type
- 6 ton, 180,000 BTU system – New 2026
- Other Machinery
- Trim Tabs/Stabilizers
- Hynautic heavy duty trim tabs with indicators
- Bow & Stern Thruster
- Hydraulic, 38 Hp - Overhauled Oct. 2024
- Steering System
- Hynautic power steering
- Fuel Separator & Filtration
- Dual Racor fuel filters and water separator
- Racor 500 MA fuel filter for gensets
- Sewage System
- Headhunter tank sensor system
- Fresh Water System
- Headhunter
- Bilge Water Filtration
- High volume AC w/DC backup freshwater pump
- (6) Auto/manual bilge pumps
- Other
- Jabsco engine driven bilge pump
Communication, Navigation & Entertainment Systems
- Communication Systems
- SATcom
- KVH
- Telephone System
- Panasonic
- VHF
- (2) Icom – IC-M506
- Internet
- Starlink – Marine version
- Navigation Systems
- Radar
- (2) Garmin – New 2025, 18”
- Gyrocompass
- Ritchie
- Magnetic Compass
- Garmin
- Auto Pilot
- Raymarine ST 8002 autopilot
- Depth Sounder
- Garmin
- GPS
- Garmin
- Weather FAX
- Furuno
- Other
- Raymarine ST60+ Rudder angle indicator
- Entertainment System
- a. Video Equipment
- TV’s
- Flat screen 50" TV on hi/lo mechanism, TracVision satellite TV system – Main salon
- 42" TV, Direct TV - Master
- 26” TV, Direct TV – VIP stateroom
- 19” TV, Direct TV – STB Guest stateroom
- Electric fold down 29" TV, Direct TV receiver – Main deck aft
- 20" flat screen TV – Galley
- (2) 19" TV Direct TV – Crew cabins
- b. Audio Equipment
- Stereo’s
- Blue Ray DVD & add'I speakers – Main Salon
- DVD & AM/FM stereo, HP extender & I pod docking station – Master
- AM/FM stereo, HP extender & I pod docking station - VIP stateroom
- AM/FM stereo, HP extender & I pod docking station – STB Guest stateroom
- (2) Stereo speakers - Main deck aft

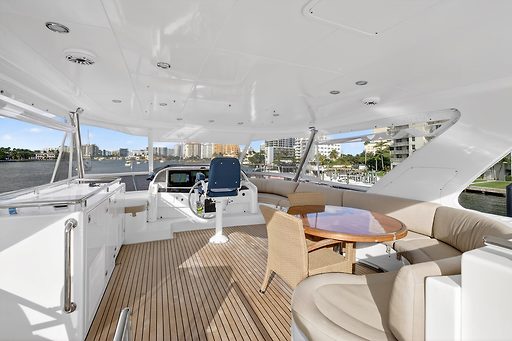

- (2) Bose speakers & (2) ceiling speakers - Flybridge
- (2) Speakers - Bow
- DVD, AM/FM stereo, l pod docking station & Bose speakers – Crew cabins
Galley & Laundry Equipment
- Main Galley Equipment
- Cooking Equipment
- Halogen 5-burner cooktop & oven
- Refrigeration/Freezer
- (2) Sub-Zero 700BR refrigerator drawers
- (2) Sub-Zero 700B refrigerator/freezers
- Dishwasher
- (1) Whirlpool - New 2025
- Additional Galley Equipment
- Cooking Equipment
- (1) Microwave - Galley
- Seimnes BBQ grill - Flybridge
- Refrigeration/Freezer
- Sub-Zero wine chiller - Galley
- Other
- Manatowic icemaker - Flybridge
- Laundry Equipment
- Main Laundry Equipment
- GE washer & dryer
Deck Equipment
- Anchor Windlass System
- (2) Maxwell 3,500 hydraulic windlass w/capstan
- Anchors
- (2) Delta 130 Ib anchors
- Boat Crane and Davits
- Steelhead 20001b hydraulic retractable davit – rebuilt Oct 2024
- Swimming Platform
- Extended teak swim platform w/custom swim ladder
- Other
- (2) Spreader lights
- Stern flood lights
- (4) Stern docking lights
- 3 sided EZ2CY enclosed - New Oct. 2024
Security, Fire Fighting & Safety Equipment
- Security Equipment
- CCTV System
- Elbex camera security system – Aft Deck, Engine room
- Cameras
- New system – Salon Ring Camera
- Fire Fighting Equipment
- Fire Control System
- Salwico fire alarm system
- Automatic emergency ventilation dampers
- Fire Extinguishers
- Fireboy automatic/manual fire extinguisher
- Alarms
- Salon, Crew, Owners' cabins
- Safety Equipment
- Life Rafts
- (2) Revere 6-man
- Life Rings
- (2)
- EPIRBS
- (1)
- Flares
- (1)
- Medical Equipment
- (1)
- Spotlight
- Sanshin spotlight
Accommodations
- GENERAL

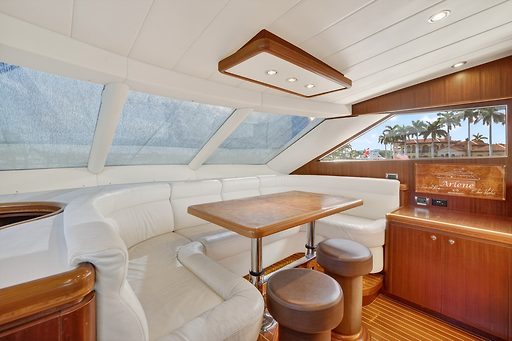

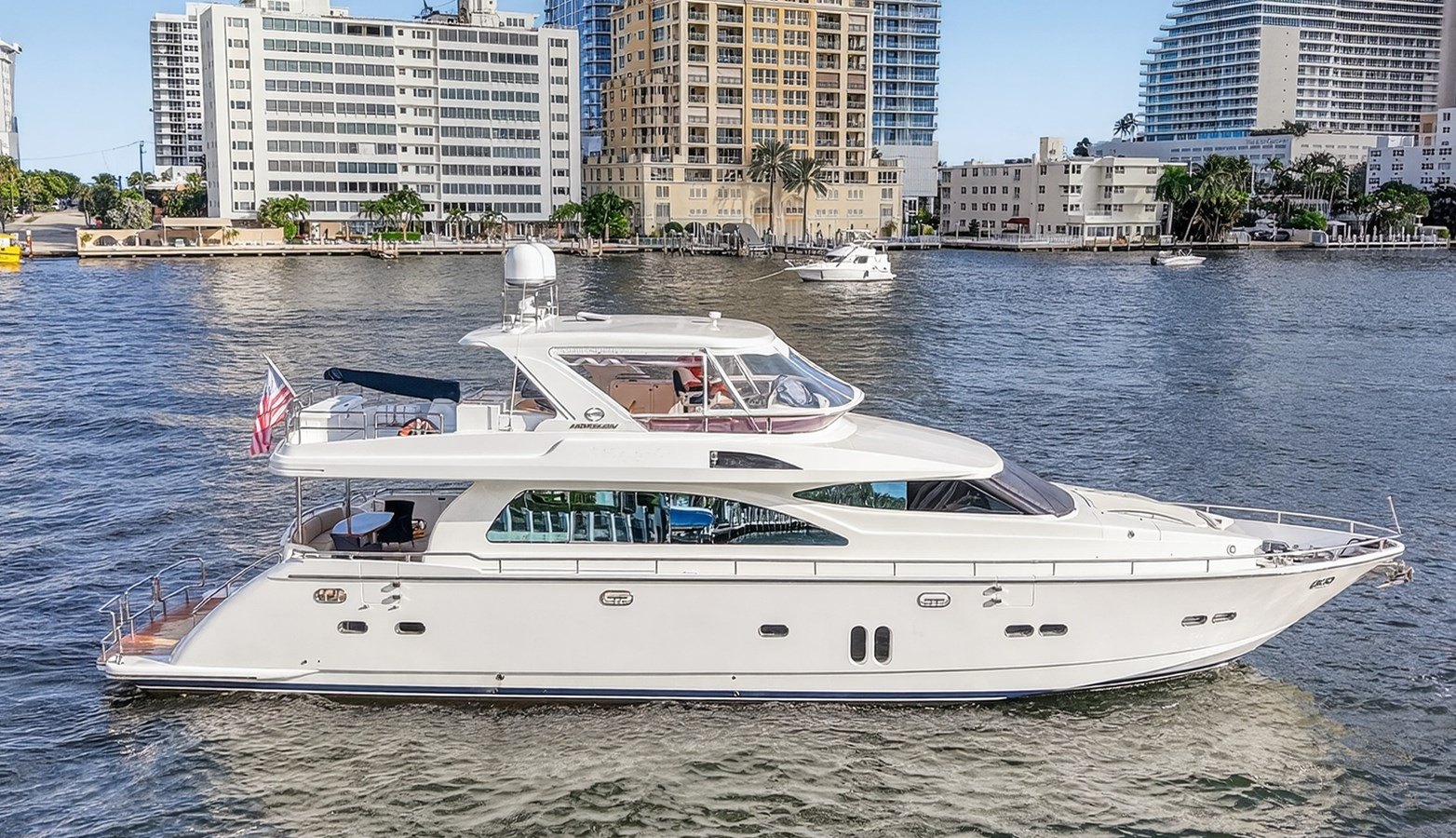

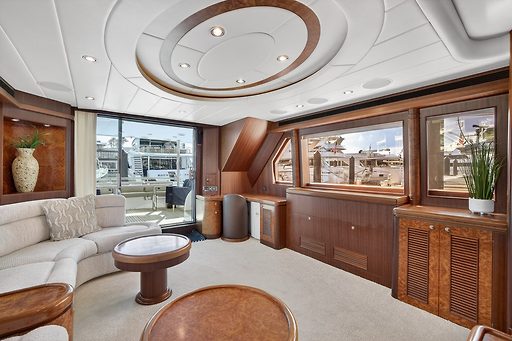

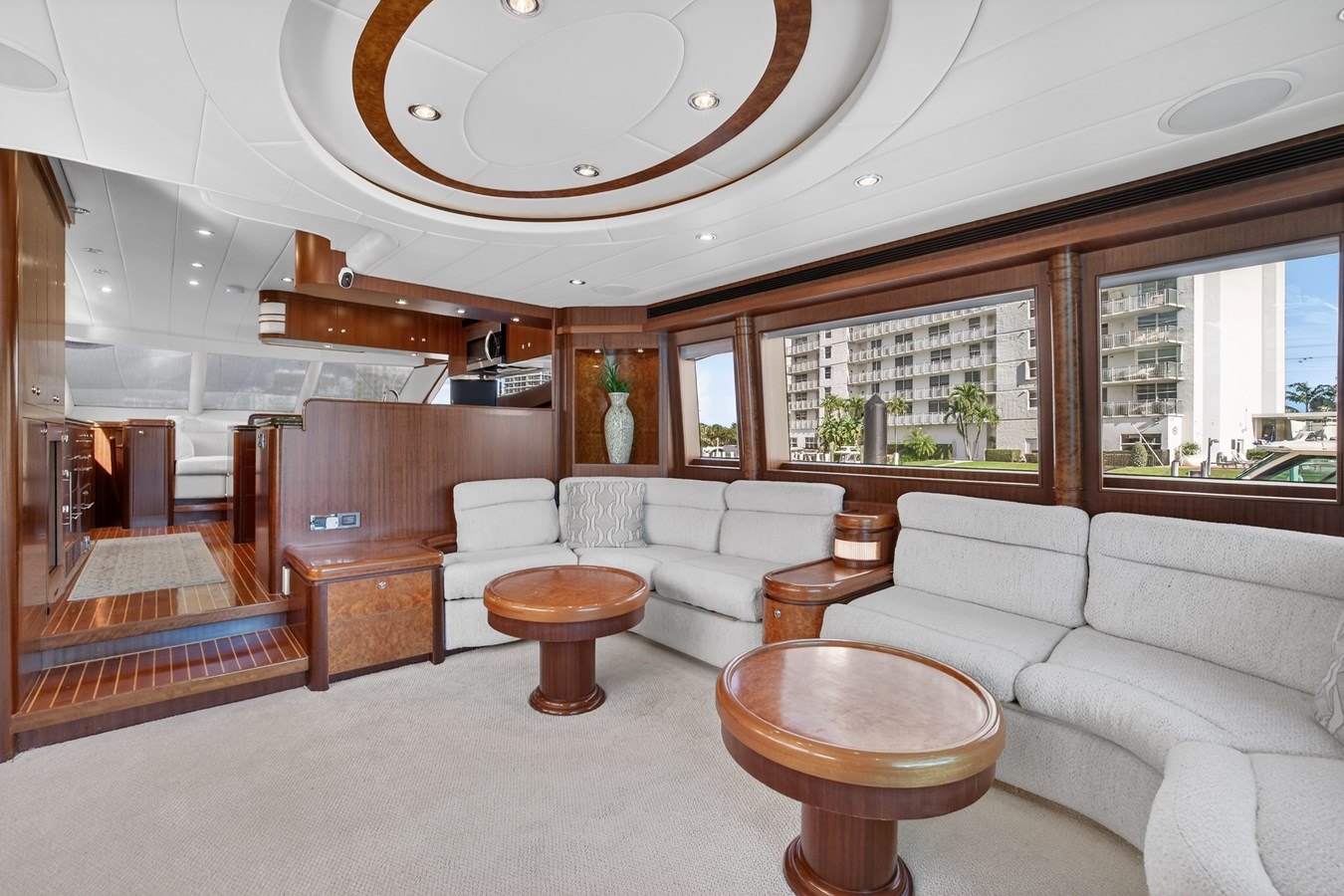

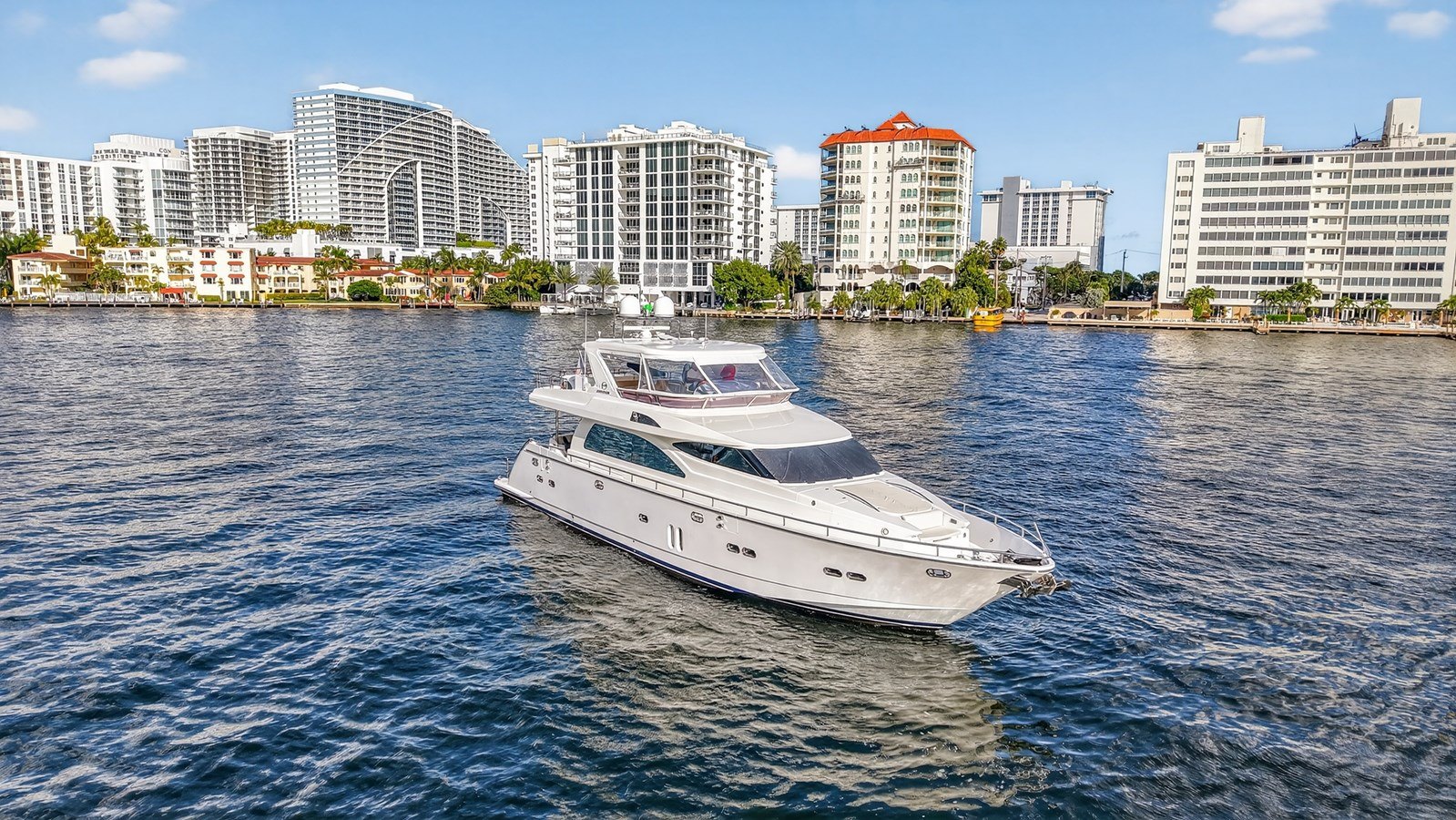

- ARLENE is a 76’ (23.16m) Horizon Motoryacht, delivered in 2009, that combines elegant design with exceptional cruising capability. Her spacious layout features expansive salon and dining areas, a well-equipped galley, and comfortable accommodations for owners and guests. Built with Horizon’s renowned craftsmanship, ARLENE is perfectly suited for extended cruising or entertaining in style.
- OWNER
- The master stateroom features a centerline queen berth with ample storage, custom finishes, and elegant lighting throughout. Highlights include built-in nightstands, dressers, a leather settee, a vanity, and a walk-in cedar-lined closet with safe. Entertainment is provided by a 42" TV with DirecTV, DVD, stereo, and iPod docking station. The luxurious en suite bath offers a granite-topped dual vanity, spacious glass shower with twin heads, and granite flooring, creating a refined and comfortable retreat.

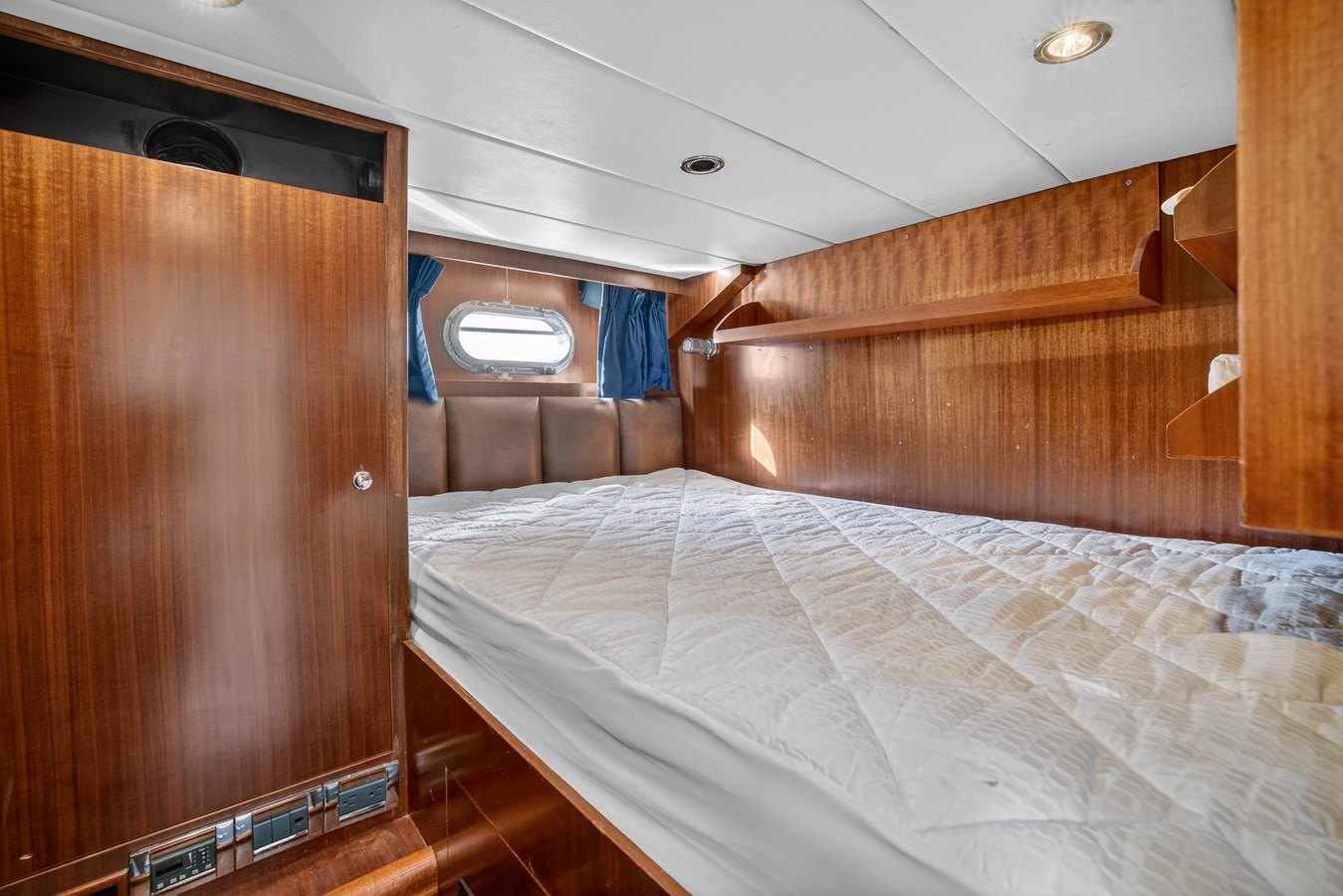

- GUESTS

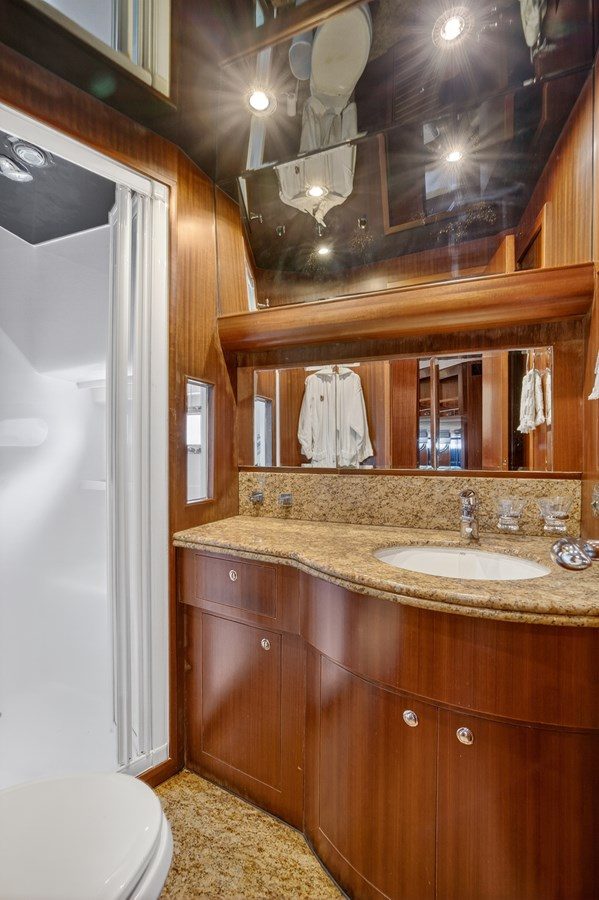

- The guest accommodations include a versatile stateroom with a double berth that converts to twins, built-in storage, an entertainment system, and access to the guest bath. The VIP stateroom offers a queen berth with storage below, custom upholstered finishes, ample cabinetry, a cedar-lined hanging locker, and a full entertainment system. The adjoining guest head is appointed with a granite vanity, mirrored cabinet, stall shower with glass doors, and granite flooring. Aft of the boat there is another well-appointed stateroom with an oversized double berth, ample storage, an entertainment system, and a private en suite with a stall shower.

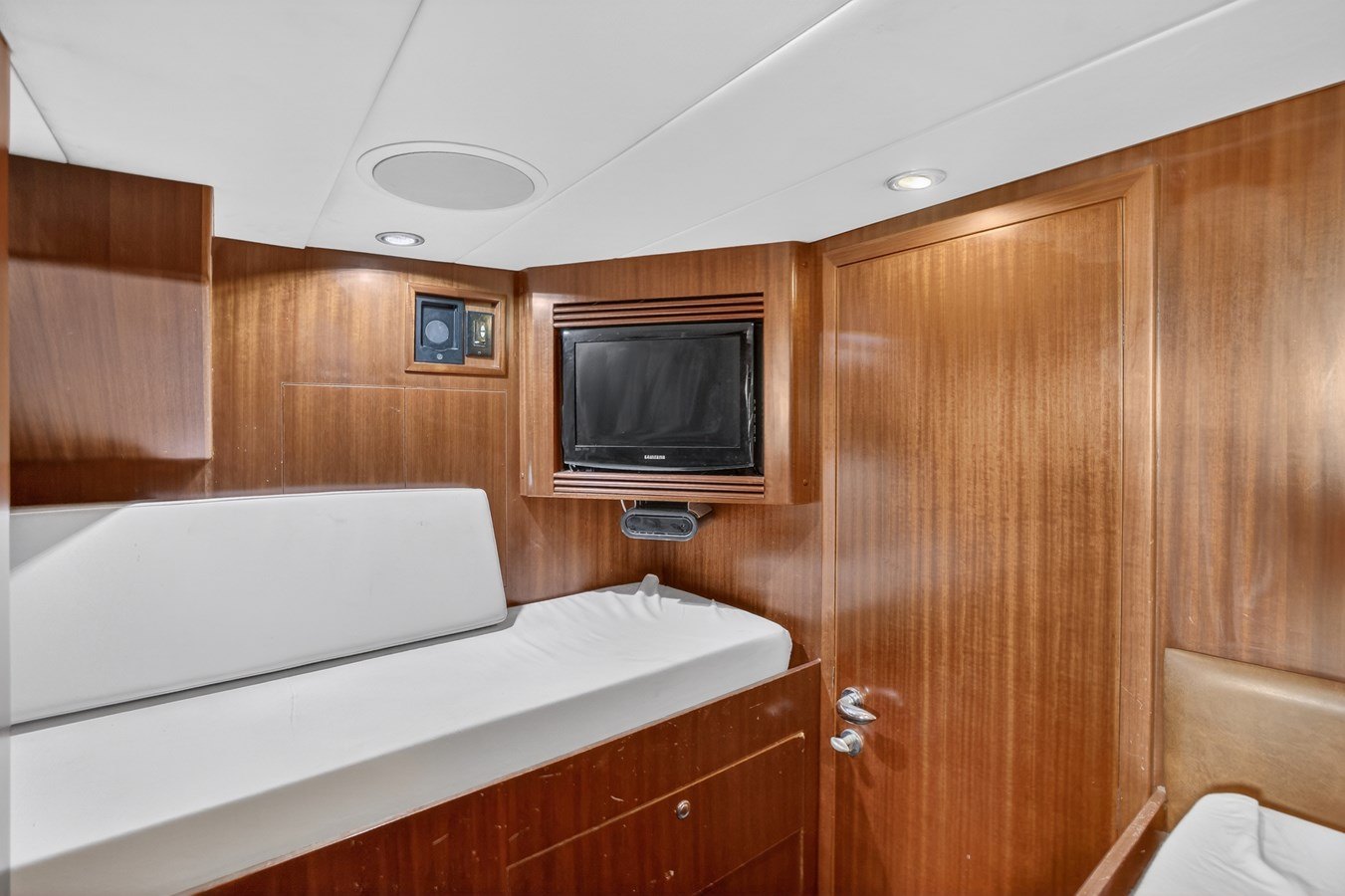

- CREW

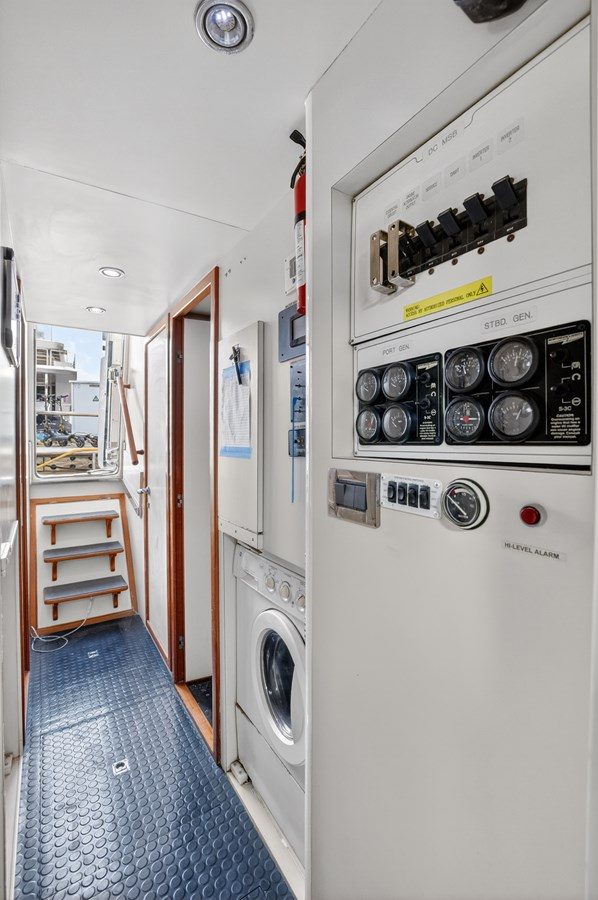

- The crew area features a crew cabin that offers twin berths, storage, and TV with docking station. The utility area is equipped with additional storage as well as a GE washer and dryer, ensuring comfort and functionality for extended cruising.
Shipyard
Built by Horizon Yacht
Founded in 1987, Horizon Yacht is a Taiwanese shipyard renowned for its leading build techniques, high-end craftsmanship, and advanced technology.
