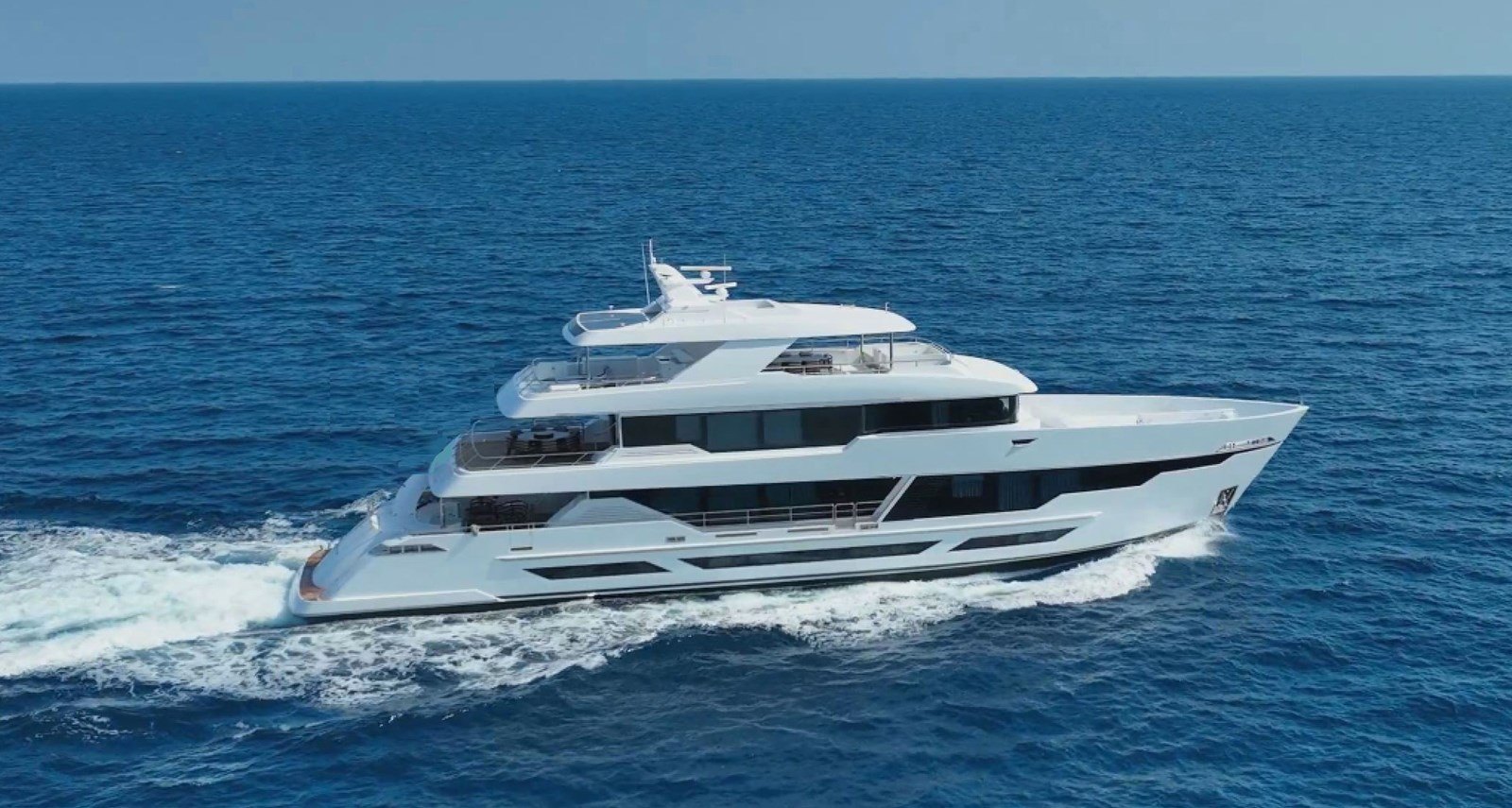

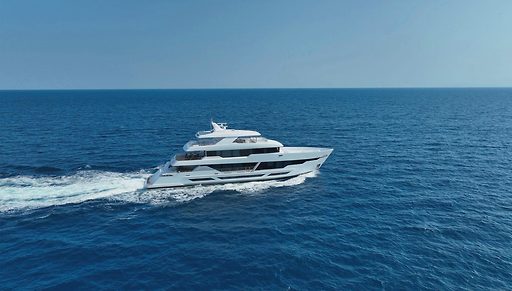

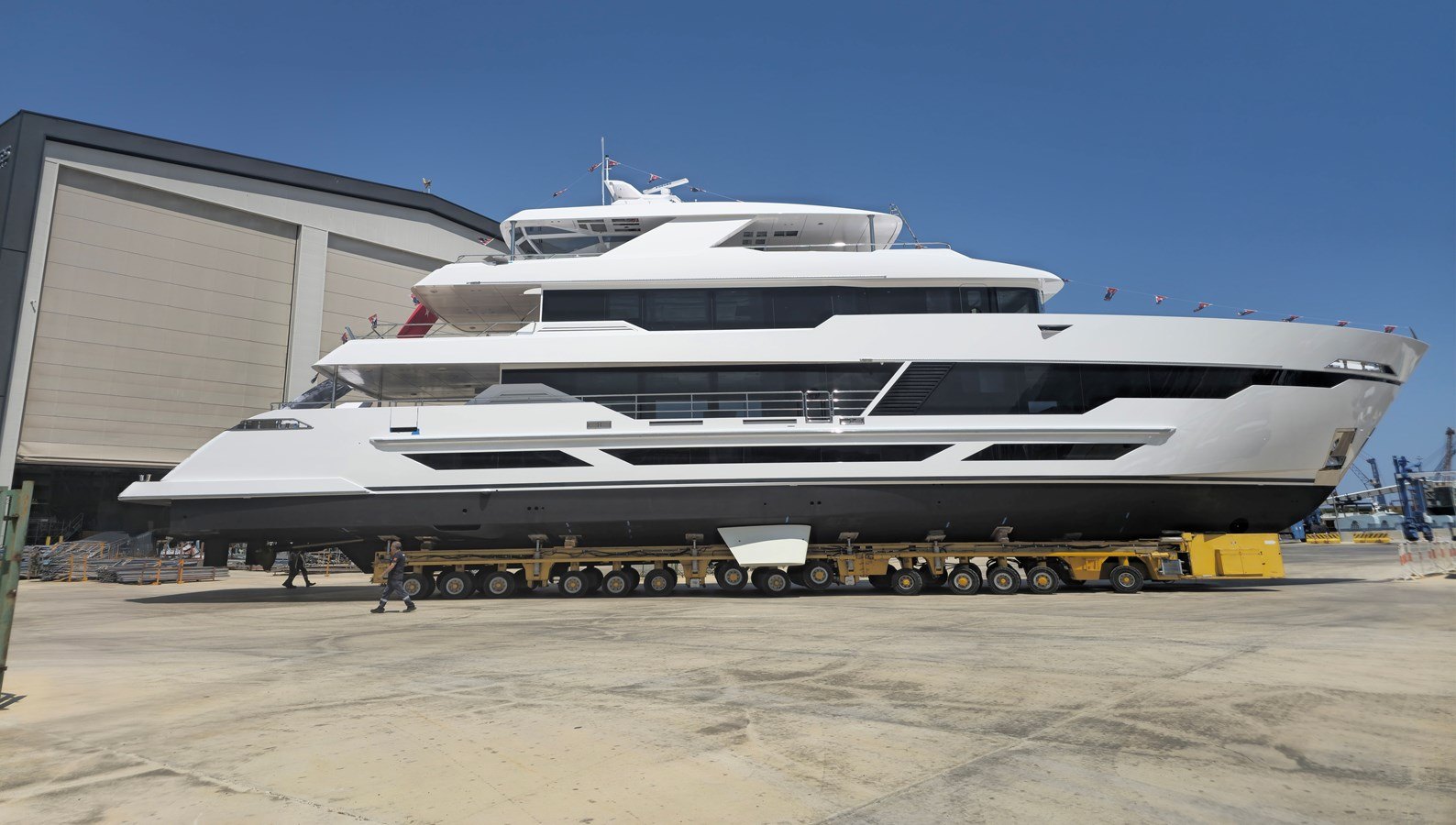

About My Resonance
SEE HER DURING THE CANNES YACHTING FESTIVAL 2025 AT VIEUX-PORT SUPERYACHT EXTENSION SYE 010 Hargrave Superyachts Division: E SERIES 125 Tri-Deck" Available for immediate delivery with 10 Years Structural Warranty and 10 Years Platinum Warranty on her Main Engines and Generators. KEY FEATURES 342 GT 10 Years Structural Warranty 10 Years Platinum Warranty on Main Engines and Generators Hargrave Management and Technical Support included for the first 6 months RINA Class 7-7.2ft (2.20m) Ceiling Heights throughout Full size Beach club with Gym Area and Day-head Bow Storage for Tender and 2 Jet-Skis Bahamas Friendly Draft Guest-privacy-focused crew layout Hull engineered for long-range, foul weather cruising At Rest and Underway Stabilization ASEA Power Converter Caterpillar C 32 Main Engines 2x 75KW Caterpillar Generators
- 38.09 m125′Length
- 2025Year
- 5Guest cabins10 guests
- 2 × CaterpillarEngines3,800 hp
- 18 knMax speed15 kn cruise
- 7.92 m26′Beam

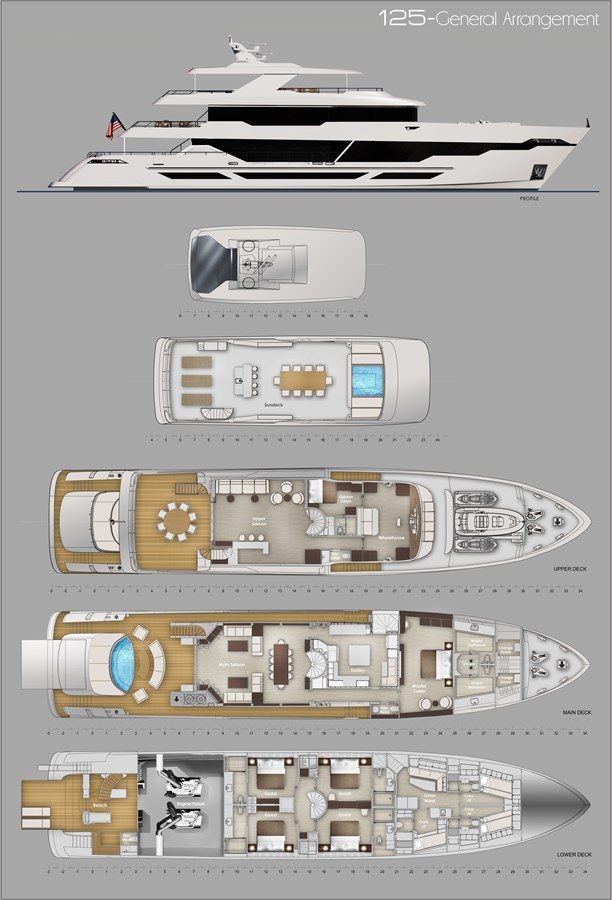

Layout
Explore every deck in detail: My Resonance
Specifications
My Resonance at a glance
Dimensions
- Length
- 38.09 m125′
- Beam
- 7.92 m26′
- Draught
- 1.98 m6′ 6″
- Gross tonnage
- 342
Accommodation
- Guests
- 10 in 5 cabins
- Crew
- 8 in 4 cabins
Build
- Year
- 2025
- Hull
- Mono Hull · carbon
- Superstructure
- grp
- Classification
- RINA
Performance
- Engines
- 2 × Caterpillar C32
- Total power
- 2,833.6 kW · 3,800 hp
- Max speed
- 18 kn
- Cruising speed
- 15 kn
- Fuel capacity
- 30,283.29 l
- Water capacity
- 3,785.41 l
Design & history
- Naval architect
- Jack Sarin
- Exterior design
- Hargrave Superyachts
- Interior design
- Hargrave Superyachts
Short Specifications
Main characteristics
- ACCOMODATION 10 GUESTS + 7 CREW
- CLASSIFICATION RINA PLEASURE YACHTS
- CÌHULL lMACH Y UNRESTRICTED NAVIGATION(ISPP) INTERNATIONAL SEWAGE POLLUTION PREVENTION
- LENGTH OVERALL 38.25 meters - 125.5 ft
- LENGTH 33.26 meters - 109 ft
- BEAM MAX 7.80 meters - 25.6 ft
- DEPTH 3.45 meters - 11.3 ft
- DISPLACEMENT (Light Ship) 165 Tonnes
- DISPLACEMENT (Fully loaded) 205 Tonnes
- GROSS TONNAGE 342 GT
- SPEED 18 Knots
Propulsion
- MAIN ENGINES 2 x CAT C32 1900HP @ 2300 Rpm
- GEARBOX TWIN DISC MGX-6598DC 3.03:1
- ENGINE CONTROL GLENDINING ( 1 main + 2 remote station)
- GENERATORS
- CAT C4.4 75KW
- CAT C4.4 75KW
- SHAFT PROPELLER CJR (UK) 4,5” MARINEMET 25 Shaft / 5 Blades Class S Propellers
Electric system
- Main Service 115/208 VAC 3PH 60Hz
- Shore Power Converter ASEA 75 kVA
- Service and Engine Start System 24DC
- Service Batteries 2200 Ah ( 2x 100 A Charger )
- Emergency Batteries 880 Ah ( 1x 80 A Charger )
- Radio Batteries 260 Ah ( 1x 30 A Charger )
- ME & Generator Batteries (x2) 960 Ah ( 2x 40 A Charger )
- Fire Puımp Batteries 880 Ah ( 1x 80 A Charger )
Tank capacity
- Diesel Oil 30.250 Lt / 8.000 Gallons
- Fresh Water 4.540 Lt / 1.200 Gallons
- Black Water 2.000 Lt / 500 Gallons
- GreyWater 3.000 Lt / 800 Gallons
Build / construction
- HULL / SUPERSTRUCTURE CARBON RAINFORCED E-GLASS - EPOXY COMPOSITE SANDWICH
- OPEN DECK HANDLAID BURMESE / MYANMAR TEAK OR NON SKID PAINT
- PAINT SYSTEM AWLGRIP
Master equipment list
- Airhorn Kahlenberg
- Anchor winch and Capstans (x2 )Maxwell VWC6000 Hyd. Windlass, VC4000 Capstans
- Windscreen Wipers (x4) Speich
- Alarm & Monitoring system Wago
- Anchor and Chain (x2) 200kg 316L S.S. Pool Anchor, (x2) 123m (400 ft) 14mm, Grade 3 Studlink Chain
- Batteries and chargers Victron
- ER Venilation Delta T System
- Bow thruster Naiad 67 hP Bow thruster
- Stabilizers Naiad 525 At Rest Stabilizer with 22kW Power Pack
- Fuel Water filters Separ
Hvac
- TECHNICOLD Chiller assembly (x3) 120,000 BTU
Steeri̇ng system
- Wills Ridley Electro Hydraulic Steering
Insulation
- Unifrax B15 Engine room and B0 Galley insulation
- Rockwool Thermal cabin insulation
Pumps
- HeadHunter and FEIT
- Sewage treatment Headhunter TW-HMX-6001LP
- Toilet system Headhunter White Royal Flush Bravo

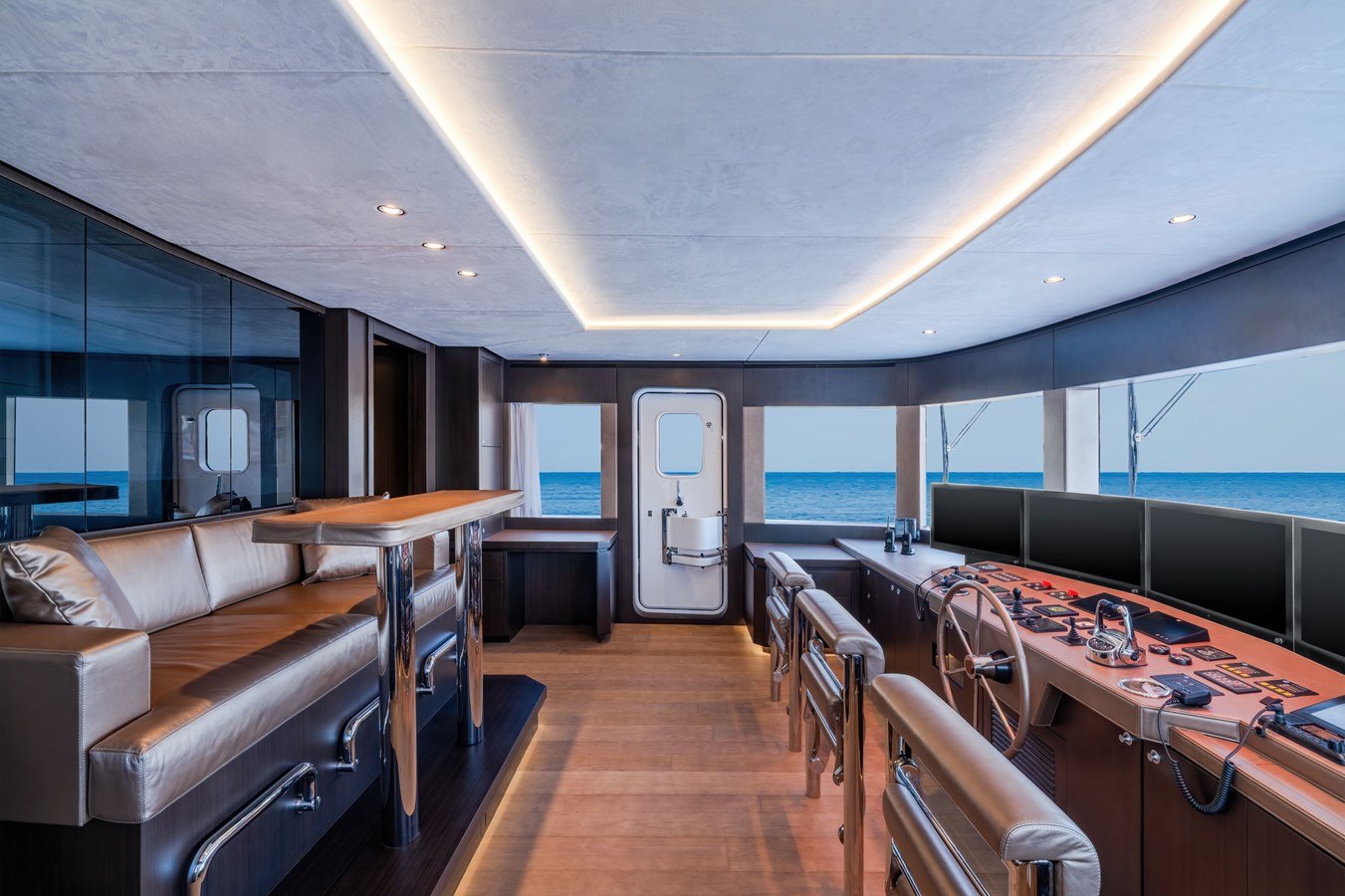

Navigation and communi̇cati̇on equipment
- GARMIN & FURUNO
- (x5) Surveillance Cameras & FLIR N232 Thermal Camera
- (x5) 32” Pilot House Touchscreen
- (x2) Garmin 215 VHF Radio
- Garmin Fantom 54 Radar / Furuno 6” Radar
- Furuno NV700 Autopilot
- Furuno Navtex, AIS and NavNet
- (x2) Starlink Antenna
Deck equipment
- SWIM LADDER 316L Stainles Steel
- CRANE SW 1000kg (2200lbs) Telescobic Hydraulic Deck Crane
- PASARELLA 17ft Hydraulic Gangway
- HANDRAILS 316L S.Steel
- PANTOGRAPH DOORS (x4) Pantograph Door
- SLIDING DOORS Electric Operated main and upper saloon doors
- WATERTIGHT DOORS AND DECK HATCHES Watertight Deck Hatches and Engine room WT Fire Doors
- AFT BEACH SHELL DOOR Hydraulic Actuator Operated Carbon Reiforced Composite
- Watertight Door
Safety equipment
- LIFE RAFTS Viking 2 x 12 Persons
- FIRE PROTECTION Fireboy FM200 Engine Room Fixed Fire Extinguishing System
- FIRE & GENERAL ALARM SYSTEM HAES Conventional Fire Detection System
Appliancescooktop
- GE 36" Built-In Touch Control Induction Cooktop (Galley)
Washer
- (x2) GE 4.8 cu. ft. Capacity Smart Front Load ® Washer
- Crewmess(1) / Guest Corridor(1)
Dryer
- (x3) GE 7.8 cu. ft. Capacity Smart Front Load Electric Dryer
- Crewmess(2) / Guest Corridor(1)
- REFIGERATOR Subzero 36" Classic French Door Refrigerator/Freezer (Galley)
- Subzero 42" Classic French Door Refrigerator/Freezer (Galley)
Wine cooler
- (x3) Schmecke 12 Bottle Freestanding 2 Shelf Wine Cooler
- MD Corridor(2) / UD Salon(1)
- Zephr 24" French Door Dual Zone Wine Cooler (Sundeck)
- (x2) Zephr 15″ Single Zone Wine Cooler
- MD Aft(1) / UD Salon(1)
Microwave oven
- GE 2.1 Cu. Ft. Over-the-Range Sensor Microwave Oven (Galley)
- GE 0.7 Cu. Ft. Countertop Microwave Oven (Crewmess)
Grill
- Fire Magic Deluxe Gourmet Drop In Grill (Sundeck)
Dishwasher
- Fisher&Paykel Series 7 Contemporary Tall Double (Galley)
Garbage disposal
- (x2) GE 3/4 HP Continuous Feed Garbage Disposer (Galley)
Range hood
- Broan® Elite EWT1 Series Chimney 36” Range Hood (Galley)
Oven
- (x2) GE 30"Smart Built-In Convection Single Wall Oven (Galley)
Ice maker
- (x4) Hoshizaki Top Hat Cuber Icemaker, Air-cooled
- MD Aft(1) / UD Salon(1) / Beachclub(1) / Sundeck(1)
Entertainment
- TELEVISION
- Samsung 32" Class QLED 4K Q60D (Captain Cabin)
- (x6) Samsung 55" Class QLED 4K Q60D
- UD Salon(1) / Guest Cabins(4) / Crewmess(1)
- Samsung 65" Class QLED 4K Q60D (MD Salon)
- Samsung 85" Class Neo QLED 8K Smart TV (Master Cabin)
- (x9) Apple Tv 4K
- (x9) Xantech DL85K/CFL-Proof Dinky Link Ir Receiver
Sound system audio / video: crestron ready
- Bose Smart Soundbar 900 Dolby Atmos (MD Salon)
- Bose Smart Soundbar 700 Dolby Atmos (UD Salon)
- (x2) Bose Bass Module 500, Black 10’’
- MD Salon(1) / UD Salon(1)
- (x6) JL Audio M6-770X-C-GWGW Speaker
- MD Aft(2) / UD Aft(1) / Sundeck(3)
- JL Audio M6-650X-C-GWGW Speaker (Bowdeck)
- (x2) JL Audio M6-10IB-C-GWGW-4 Subwoofer
- MD Aft(1) / Sundeck(1)
- (x3) Fusion Apollo MS RA770 Marine Stereo
- MD Aft(1) / UD Aft(1) / Sundeck(1)
- Fusion Apollo SRX400Marine Stereo (Bowdeck)
- (x4) Fusion® ARX Wireless Remote
- MD Aft(1) / UD Aft(1) / Sundeck(1) / Bowdeck(1)
Internet system
- (x8) TP-LINK AX1800 Ceiling Mount WiFi 6 Access Point
- (x2) TP-LINK Omada Hardware Controller
- Peplink Cellular Antenna Mobility 40G 5G /LTE Ready
- Peplink Max BR2 Pro/Dual 2.5 GPS Wan Ports,X62 5G
