About Ellen
Ellen is the last of the 40m Perini Navi class and only one to have a 4 guest stateroom layout. She has been expertly maintained and has undergone a complete refit including new sails, fresh paint on masts, superstructure, hull and bottom in 2015. The bottom…
- 40.41 mLength
- 2001YearRefit 2015
- 4Guest cabins9 guests
- 2 × MTUEngines730 hp, 9,644 h
- 3,300 nmRange10 kn cruise
- 8 mBeam
About Ellen
Ellen is the last of the 40m Perini Navi class and only one to have a 4 guest stateroom layout. She has been expertly maintained and has undergone a complete refit including new sails, fresh paint on masts, superstructure, hull and bottom in 2015. The bottom and internal tanks were sandblasted to bare metal and recoated at that time. New teak decks were also installed. Every system was updated with new or serviced including hydraulics, winches, HVAC, Refrigeration, NavCom and A/V. Full maintenance of the Starboard gearbox (bearings, seals, oil change, filter etc…) and regular maintenance on the Portside completed. The AC unit has been changed. Charts and Radio have been controlled and updated. All security equipment has been checked She got a Cosmetic refit in 2020.
Specifications
Dimensions
- Length
- 40.41 m
- Beam
- 8 m
- Draught
- 3.53 m
- Gross tonnage
- 210
- Decks
- 1
Accommodation
- Guests
- 9
- Guest cabins
- 4
- Crew
- 6
- Crew cabins
- 3
Build
- Year
- 2001
- Refit
- 2015
- Hull
- Mono Hull
- Hull material
- steel
- Superstructure
- aluminium
- Classification
- ABS
Performance
- Engines
- 2 × MTU 8V183 TE 62
- Total power
- 544.4 kW · 730 hp
- Engine hours
- 9,644 h
- Max speed
- 13 kn
- Cruising speed
- 10 kn
- Range
- 3,300 nm
- Fuel capacity
- 25,000 l
- Water capacity
- 8,600 l
Design & history
- Naval architect
- Perini Navi
- Exterior design
- Perini Navi
- Interior design
- Perini Navi
- Previous names
- Ellen V, Lady Lauren, Thetis
More about Ellen
Overview
- Ellen is a 40 m / 131′3″ luxury sailing yacht. She was built by Perini Navi in 2001. With a beam of 8 m and a draft of 6.46 m, she has a steel hull. She is powered by engines giving her a maximum speed of 13 knots and a cruising speed of 11 knots. The sailing yacht can accommodate 8 guests in 4 cabins. The yacht was designed by Perini Navi
- Ellen'sinterior layout sleeps up to 8 guests in 4 rooms, including a master suite, 1 VIP stateroom and 2 twin cabins. She is also capable of carrying up to 6 crew onboard to ensure a relaxed luxury yacht experience. Timeless styling, beautiful furnishings and sumptuous seating feature throughout create an elegant and comfortable atmosphere.
Main Characteristics
- BUILDERPerini Navi
- YEARMay 2001
- DESIGNERPerini Navi
- L.O.A40.4m / 132’
- L.W.L31.72m / 104’
- BEAM8.0m / 26’2
- DRAFT6.37m / 22’ centreboard down (approx)
- 3.44m / 11’28 centreboard up (approx)
- DISPLACEMENT75 tons full load (approx)
- KEEL LEAD BALLAST30 tons
- SAIL AREAApprox 812 m sq
- CLASSIFICATIONAmerican Bureau of Shipping. (ABS)
- Malta Cross A1 & Yachting service AMS
- MCA
Capacities
- FUEL CAPACITY25,000 litres
- WATER CAPACITY8,600 litres
- LUB OIL890 litres
- GREY WATER1,745 litres
- BLACK WATER1,745 litres
- SLUDGE1,195 litres
- BILGE WATER1,195 litres
- WATERMAKERTwo Idromar Mini compact Junior 2J, 3100 litres per day each
Machinery
- ENGINESTwo 496hp MTU 8V 183 TE 62 (overhauled 2016)
- 365 Kw @ 2100rpm, 8 V90
- Port ME9,622 H
- Start ME9,644 H
- SHORE POWER60 Kva shore power connection allowing use of 380v 50 Hz voltage
- AIR CONDITIONINGCondaria system with fan coils in each area with treated fresh air.
- GEARSReverse / Reduction gearbox Hundested CPG 32
- Reduction ratio 3.44:1
- SHAFTS & PROPELLERSTwo shafts and two four blade feathering propellers
- GENERATORSTwo Northern Lights M-668T, 66 kw 380v 50 HZ
- One Northern Lights 35 kw 380v 50HZ ( emergency use)
- Generators overhauled 2016
- Port Gen28,344
- Start Gen28,316
- ELECTRICITY380v 50 Hz three phase.
- 220v 50 Hz single phase.
- 24v DC for emergency lighting, limited energy, signaling circuit, RTF station, electronic instruments and alarms.
Other Machinery
- BowthrusterSchottel STT-010 LK 37 Kw approx
- Fuel Separator380V AC Alfa Laval manual MAB 103 B24 centrifugal fuel separator of approx 900 litres /hr

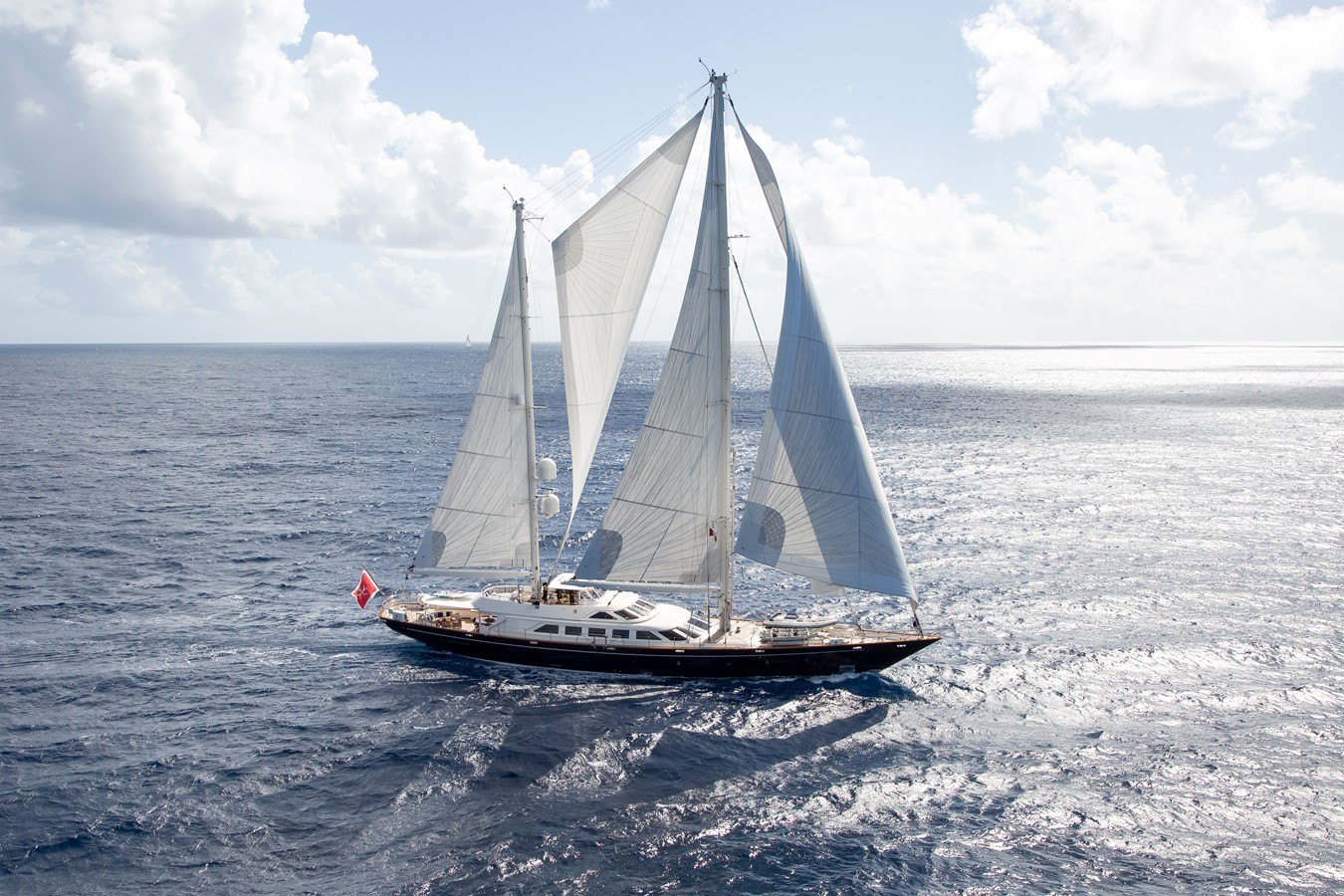

Rig And Sail
Sails
- Spectra sails by North new 2016. Sail monitoring system by Perini Navi
- Genoa approx 274 m sq
- ·
- Fisherman 145 m sq
- Staysail 100 m sq
- ·
- Mizzen sail 111 m sq
- Mainsail approx 182 m sq
- ·
- MPS
Rig
- Two Perini Navi masts, in light alloy fully painted 2016, with an elliptical section with reinforcements and internal lead ways. All stainless standing and running rigging replaced in 2016.
- Main MastFour pairs of spreaders and one double jumper
- Mizzen MastThree pairs of spreaders and two single jumpers
- Genoa, Main, Mizzen, Fisherman and Staysail equipped with Perini Navi electric furling system. Furling systems overhauled and restored to like new 2016
- Two aluminium alloy booms, 11.6m and 9.9m approx with a topping-lift and electric auxillary winch. The sheets for the booms are controlled by automatic winches from the wheelhouse and Flybridge. Mast wiring replaced 2016.
Deck Equipment
- One hydraulic stern gangway
- ·
- Eight Perini Navi Captive winches
- ·
- One tender launching pole with electric winch
- Six Antal winches
- ·
- One anchor Windlass
- Two Perini Navi Drum winches
- ·
Navigation Equipment
Navigation EquipmentOne C. Plath JUPITER magnetic compass (dia. 180mm)
- ·
- One C. Plath NAVIGAT X MK1 gyrocompass
- One Electronic compassThree portable VHF’sDedicated computer with
- Tsunamis 99 software ( electronic charts).
- ·
- One C. Plath NAVIPILOT V/GM autopilot system with rudder angle feedback unit. Gyrocompass and electronic compass heading information input.
- Master and repeater display and control units.

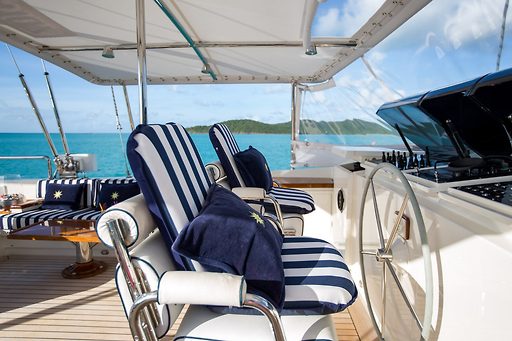

Wheelhouse console
- Plath control incorporating
- C.Plath NAVIGAT X gyrocompass console steering repeater.
- C. Plath NAVIPLOT V/GM auto pilot control and display unit.( Master)
- Tiller with double NFU Naviguide NN/EF
- Three-mode steering gear interface selector switch (Auto / Manual / NFU ).
- Over ride / take over button.
- Analogue rudder angle indicator.
Flying Bridge
- One analogue boat speed indicator.
- One analogue wind speed indicator
- One analogue magnified wind indicator.
- One anologue depth gauge
- Two FFD’s

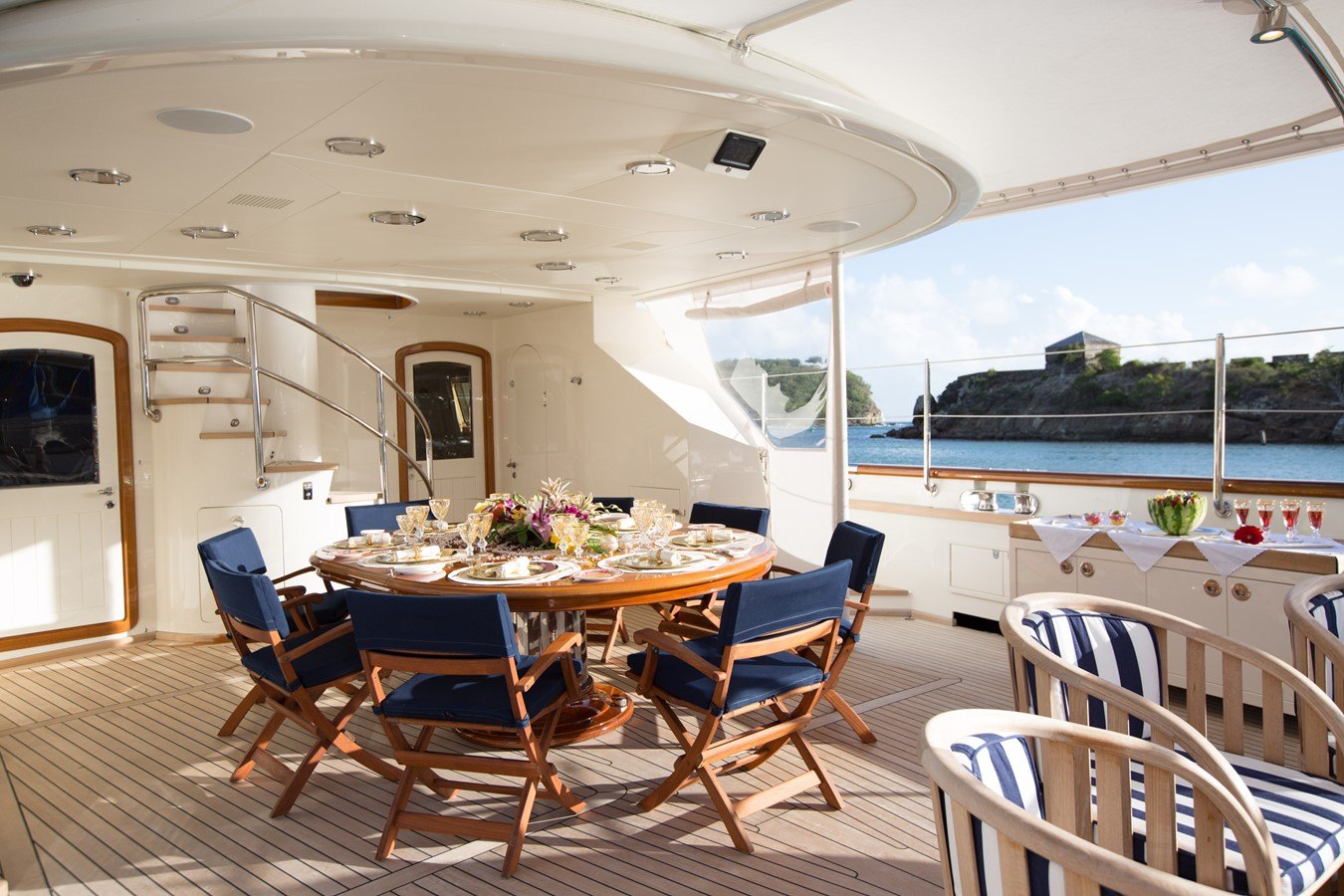

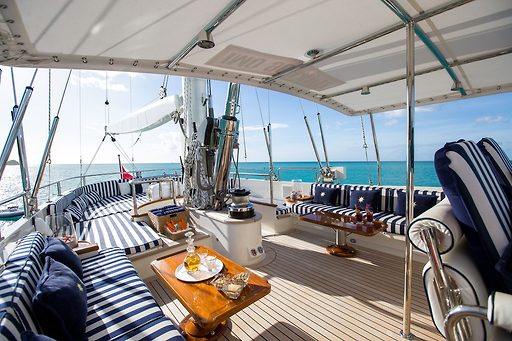

Aft cockpit
- One Hydraulically operated aft gangway
- One Hydraulically operated side boarding ladder.
Galley And Laundry Equipment
Galley Equipment
- One Miele convection microwave
- ·
- Two twin coil Gaggenau hotplates
- One Gaggenau oven
- One Miele dishwasher 67856
- ·
- One Gaggenau griddle
- One Hoshizaki ice maker
Laundry Equipment
- Two Miele washing machines WS5425
- One Miele roller Iron B865E
- ·
- Two Miele dryers TS5205C
Entertainment Equipment
- One Broadcast and Closed circuit TV system
- ·
- One hi-fi system in the main saloon and dining saloon. Aft cockpit speakers. Independent HI-FI systems in the Owner’s cabin, guests cabin, crew cabins and crew mess.

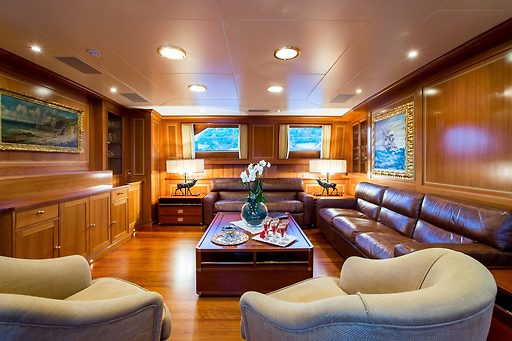

Main saloon
- One Multi-standard 29” Loewe TV
- One Multi-standard Aiwa with converter video recorder.
- Stereo system including
- -Pioneer PD-M426 multi CD player
- -Pioneer CT-W606DR cassette deck
- -Pioneer YSX 808 RDS stereo receiver
- Rotel RDV 995 DVD player
- Panasonic sky digibox.
- One Play Station 2.
- Four JBL Control loud speakers.
Dining Saloon
- One Multi-standard 29” Loewe TV
- One Rotel DVD player
- Four JBL loud speaker control.
- One Infrared sensor.
- One Sony Playstation

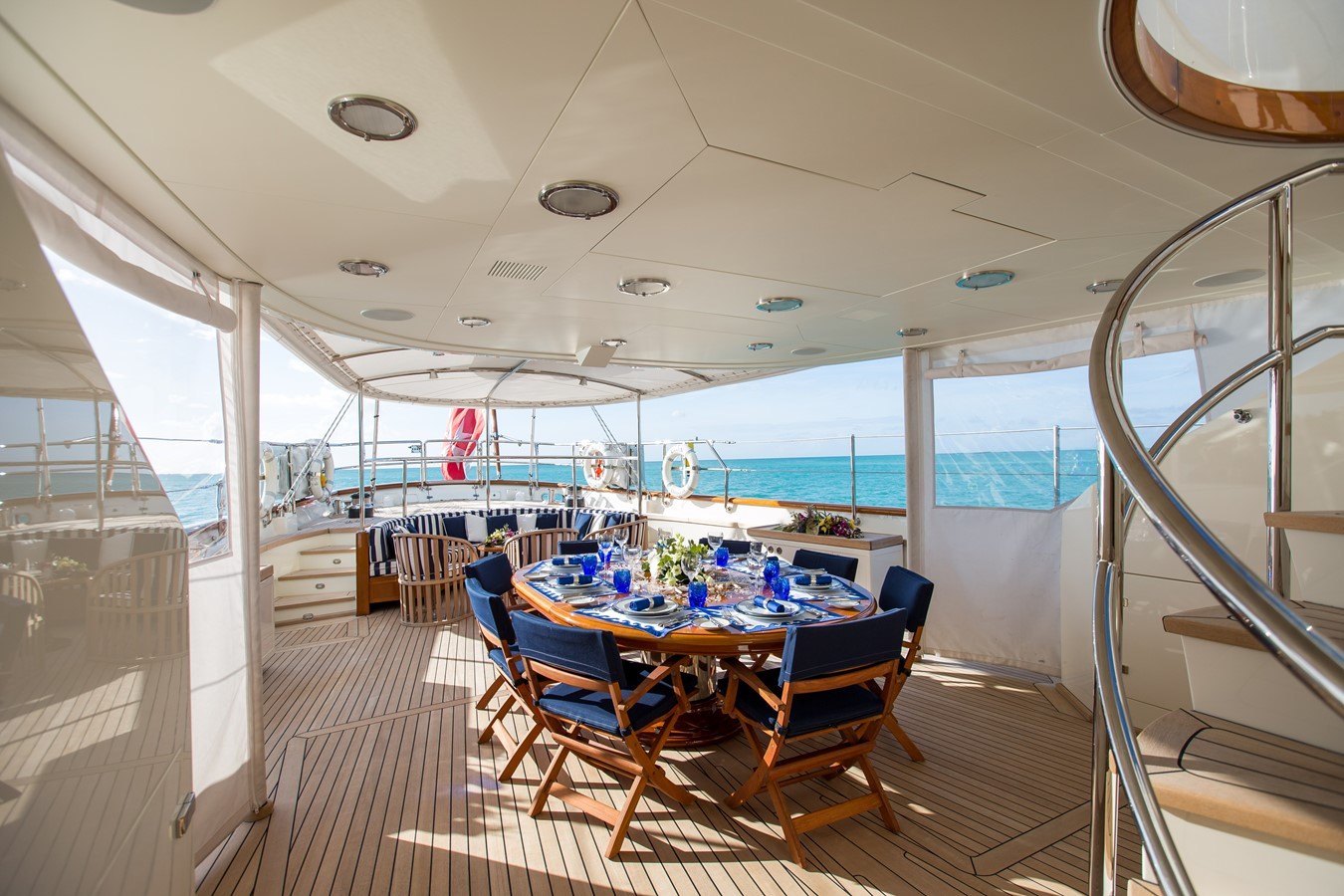

Aft Cockpit
- Four Bose waterproof loud speakers.
- One infrared sensor
Wheel house.
- One Pioneer RDS car stereo
- Two JBL SR 130 loud speakers.
Flying Bridge
- Two Bose waterproof loud speakers (connected to wheel house car stereo)
- One infrared sensor.
Owner’s cabin
- One Multi-standard 21” Loewe TV
- One Multi-standard Aiwa with converter video recorder.
- One Technics SCDH 70 HI-FI system including
- One Tuner
- One Amplifier
- One Rotel DVD player
- One Cassette deck
- Four JBL Controls for loud speakers (2 in bedroom, 2 in sitting room)
Twin guest cabin
- One 21” Loewe TV
- One Rotel DVD player
- One Pioneer RDS car stereo
- Two JBL SR 130 loud speakers.
Double guest cabin
- One Multi-standard 21” Loewe TV
- One Rotel DVD player.
- One Pioneer RDS and stereo.
- Four JBL Control 1 loud speakers
Forward Guest Cabin
- One Pioneer RDS car stereo
- Two JBL SR 130 loud speakers.
Galley
- Two JBL SR 130 loud speakers
Crew Mess
- One Technics Stereo system including cassette deck, multi CD player, tuner, Pioneer DV-525 DVD player.
- Sharp 15’ LCD T.V
Captain’s and crew cabin
- One Pioneer RDS car stereo
- Two JBL SR 130 loud speakers.
Safety And Security
- CO 2 Fire fighting system in Engine room
- Three eight man inflatable liferafts
- Two life rings with luminous buoys
- and smoke signals
- Four line throwing rockets.
- B.A kit for fire fighting
- ·
- Portable fire extinguishers in accordance with
- classification society requirements
- Sixteen type-tested life jackets
- One set of signal rockets and distress flares
- Two life rings with attached lines.
Similar Yachts
Perini Navi

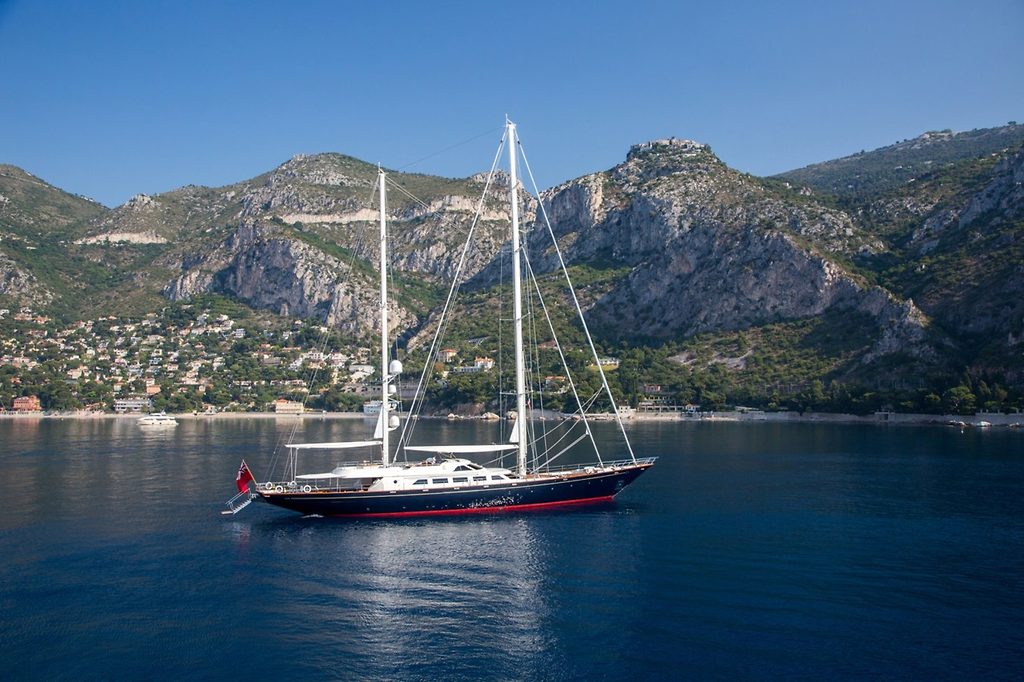

Antara
1991 Perini Navi 46 Meter- MAJOR 2025 REFIT & ABS Survey One of two distinguished Perini Navi vessels built by an experienced serial-owner, S/Y ANTARA, measuring 46.5m, represents the third in the 46m series. Notably, her main deck was designed and built for…
- 1991
- 46 m
HULL PN 43
2021 · 42.3 m
Introducing Hull PN 43, a remarkable sailing yacht measuring 42.3 metres in length. Currently undergoing construction at the prestigious Lusben Shipyard, this exquisite vessel has reached an impressive 70% completion stage. With a mere 12 months remaining…
- 2021
- 42.3 m
Fitzroy Yachts
Dakota
DAKOTA is a striking 39m / 128ft sailing yacht designed by the renowned naval architect Ed Dubois, who was tasked with creating a truly world-capable sailing yacht. Built by Fitzroy Yachts in New Zealand with an aluminium hull, DAKOTA combines proven…
- 2006
- 38.9 m
Bloemsma van Breemen
Valquest
VALQUEST is a 40m full aluminum meter Sailing Yacht built by Bloemsma Van Breemen in the Netherlands at their Makkum shipyard. Her interior is styled by British designer design house Dubois and she was completed in 2009. VALQUEST is a performance cruising…
- 2009
- 40.75 m
Gdansk
Running on Waves
Meet Running on Waves, a 64-metre-long three-mast barquentine, for the adventure of a lifetime. She is a sailing cruise vessel of high ocean-going class that can explore any region except for glacial zones in winter, and that follows the highest safety…
- 2011
- 64 m
2026 Custom Global Saling Vessel
Project Synergy | 50M / 165 FT Grand Touring Performance Cruising Sloop
- 2026
- 50 m
Mengi Yay · Sailing Yacht
North Star
Rare find available now for sale " NORTH STAR " shortlisted for The International Yacht & Aviation Awards 2024 North Star project The extensive and detailed refit of this 40-meter motor Sailer, built at Mengi Yay Shipyard . The quality of materials and…
- 2019
- 40 m
Southern Wind Shipyards · SW100RS
Freebird
The Southern Wind 100 has become the benchmark 30-metre sailing yacht, an icon of performance cruiser that perfectly balances speed, comfort, and elegance. Initially offered in a deck saloon configuration and later refined with a sleeker raised saloon…
- 2011
- 30.2 m
Pendennis
Akalam
Launched in 2011, AKALAM stands out as a high performance luxury sailing yacht that seamlessly blends innovative design with unparalleled comfort. Conceived by Barracuda Yacht Design for its naval architecture and exterior styling, and brought to life inside…
- 2011
- 32 m
Ava Yachts
Agica
New construction 40 metre ketch, built by the Turkish shipyard Leymar. Steel hull construction with a beautiful wooden superstructure, this yacht is in build and ready for her new owner to step in and complete the process to their own specifications.
- 2026
- 39.9 m
Yapluka · Yapluka
115' 2008 Yapluka
- 2008
- 35.1 m
Su Marine · Schooner

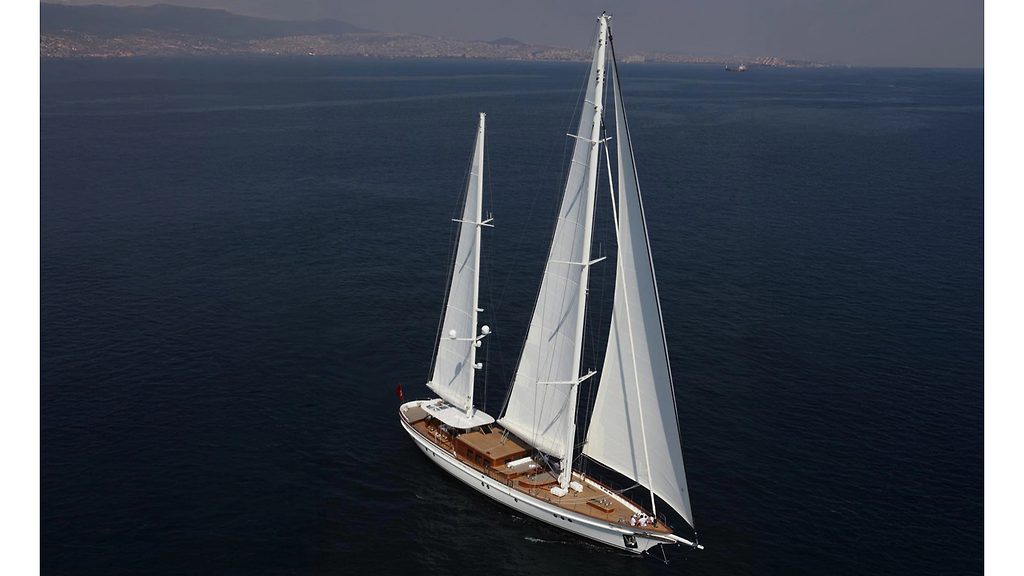

In Love
