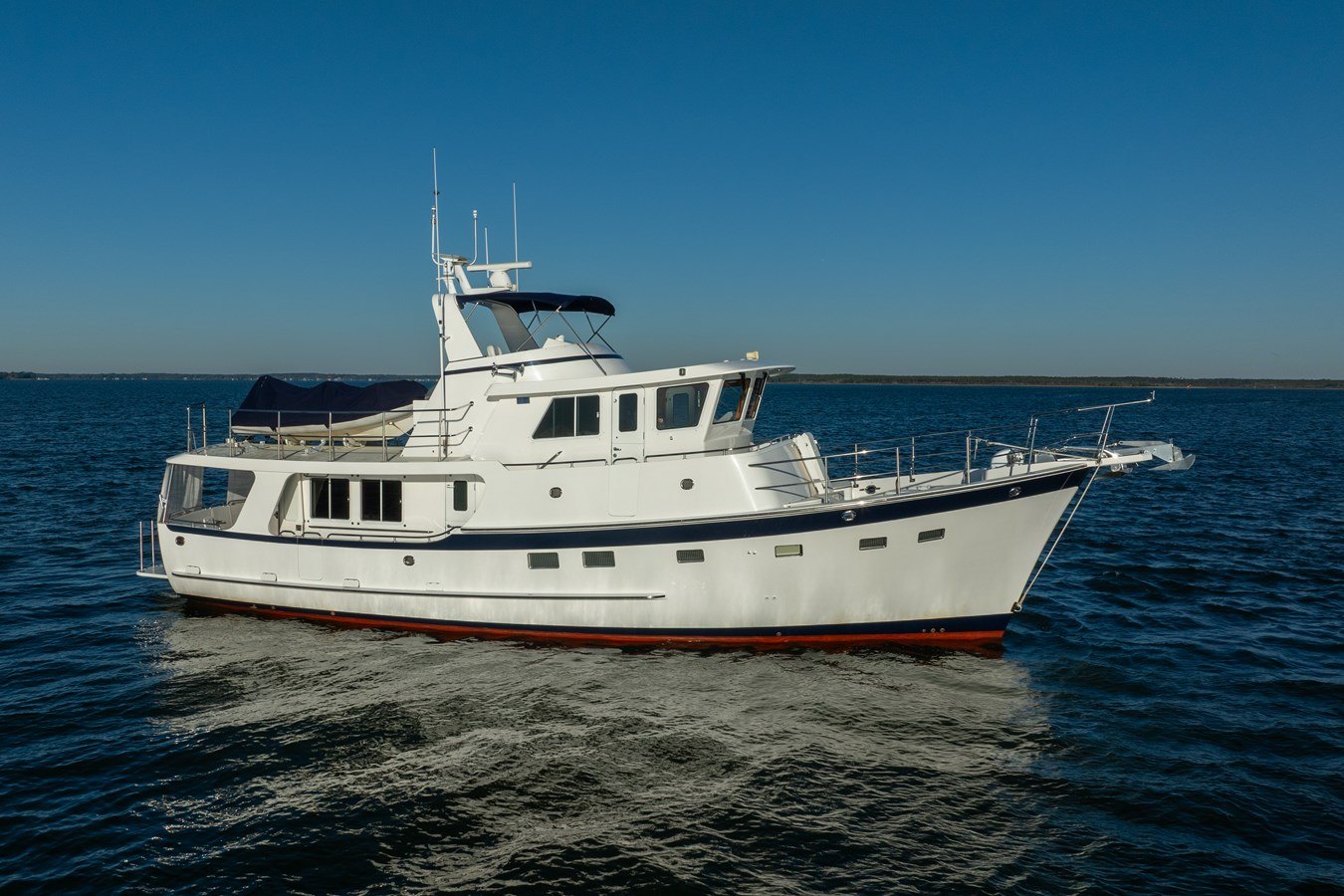

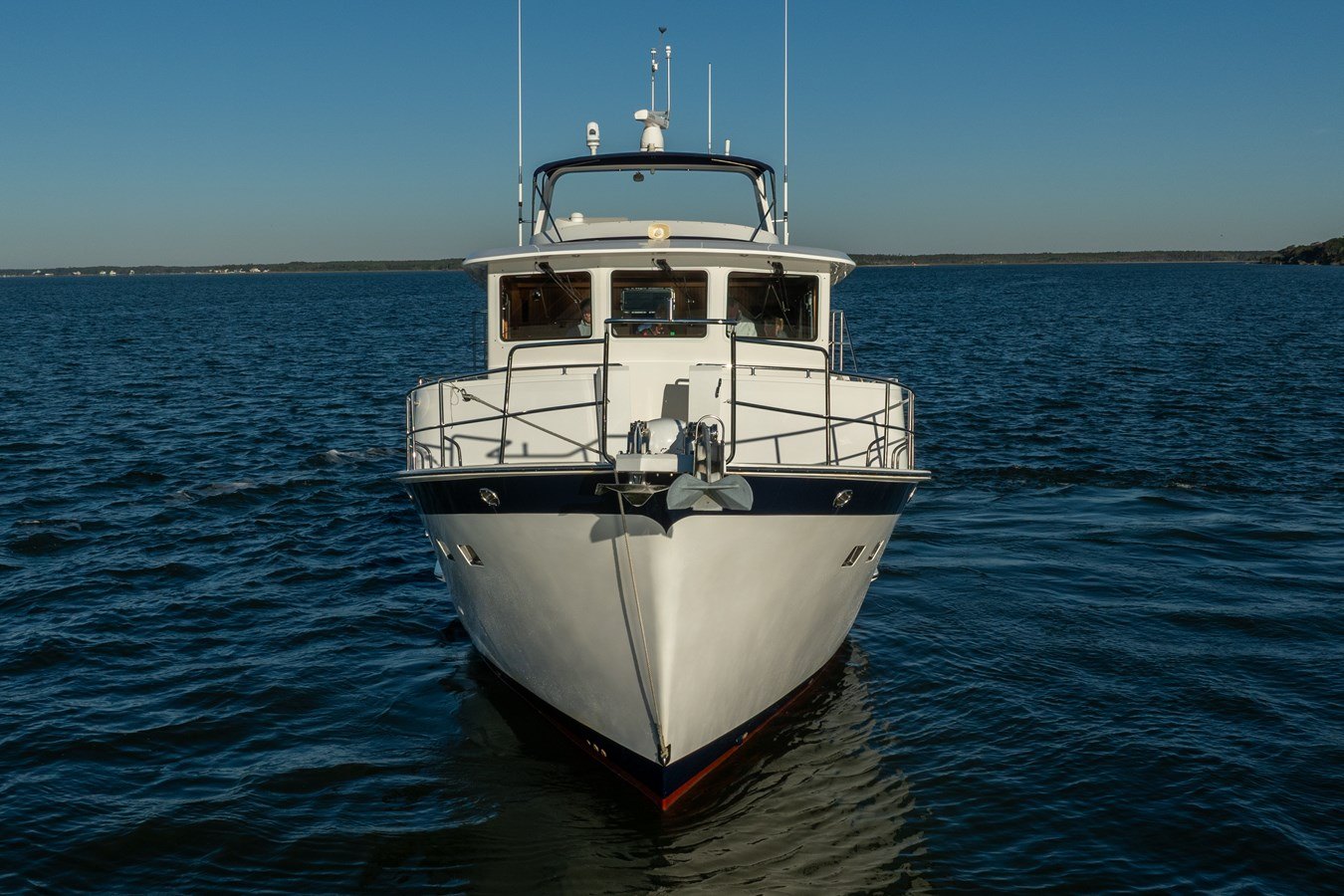

About Wind Knot

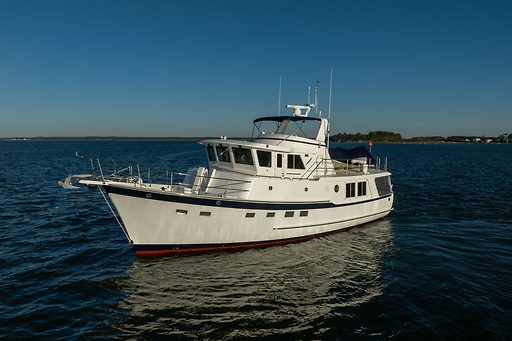

WIND KNOT is an excellent example of the consummate long-range trawler: proven bluewater design and construction, well-equipped for extended periods at sea, and expertly maintained by a highly knowledgeable owner. She features the very desirable two-cabin, open-office arrangement, with the primary suite forward. The guest cabin has twin berths, preferable for accommodating crew during long-distance passage-making. Every area of the Krogen 52' is designed with comfort, safety, and ergonomics in mind. From the luxurious owner's suite to the ship-like pilothouse, from the spacious saloon to the walk-in engine room, the Krogen 52' is a proper yacht capable of truly being "At Home On Any Sea." WIND KNOT is absolutely turnkey and ready to go. Move your personal items aboard and go! Adventure awaits.
- 15.84 m52′Length
- 2015Year
- 2Guest cabins6 guests
- 2 × John DeereEngines320 hp, 2,518 h
- 9 knCruising speed
- 5.41 m17′ 9″Beam
Specifications
Wind Knot at a glance
Dimensions
- Length
- 15.84 m52′
- Beam
- 5.41 m17′ 9″
- Draught
- 1.44 m4′ 9″
Accommodation
- Guests
- 6 in 2 cabins
Build
- Model
- 52
- Year
- 2015
- Hull
- Mono Hull · grp
Performance
- Engines
- 2 × John Deere 4045 AFM
- Total power
- 238.6 kW · 320 hp
- Engine hours
- 2,518 h
- Cruising speed
- 9 kn
- Range
- 2,500 nm
- Fuel capacity
- 5,034.6 l
- Water capacity
- 1,514.16 l
Design & history
- Naval architect
- Kadey-Krogen Yachts
Overview
- The Krogen 52' features an asymmetrical deck arrangement. The port side of the main deck is pushed all the way to the sheer, while the starboard side has a very wide walkaround and hip-high bulwark. An aluminum Dutch door provides access to the galley. The side deck and aft deck are fully covered with a solid teak sole.
- Molded fiberglass steps lead forward from the starboard side deck to the Portuguese bridge and foredeck. Port and starboard wing stations simplify close-quarters maneuvering, while the Portuguese bridge offers generous storage. Aluminum Dutch doors on both sides provide pilothouse access, and a wide door leads to the foredeck.
- The foredeck includes seating and storage just forward of the Portuguese bridge, with high bulwarks and stainless-steel rails for added safety. A Freeman aluminum hatch to port of the bow pulpit provides access to the chain locker and additional storage.

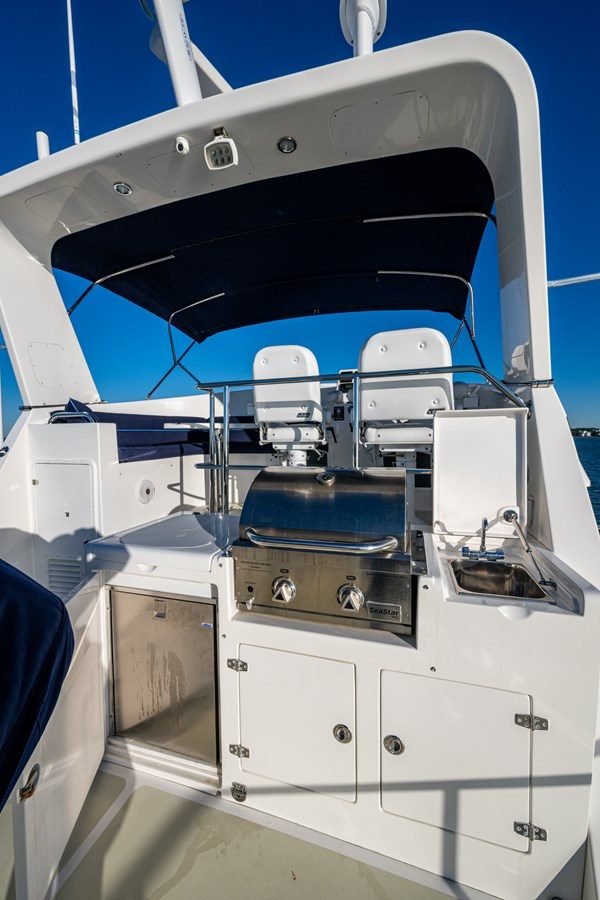

- Aft of the pilothouse, molded steps to port lead up to the boat deck and flybridge, again, with high stainless-steel rails all around. The tender and hydraulic crane are located on the boat deck, along with the summer kitchen and access to the under flybridge storage.
- Molded fiberglass steps lead up to the flybridge, which features L-shaped seating and a table, twin Stidd chairs, and upper helm console.
- Key Features
- Bluewater capability, yet easily handled by a cruising couple
- Generous accommodations for owners and guests
- Equipped for extended periods away from the dock
- Efficient hull form for true ocean-crossing capability, excellent handling, and sea kindliness
- Complete hydraulic package including bow and stern thrusters, windlass, stabilizers
- Turnkey ready
Construction
- The hull and superstructure are built from high-grade female tooling, with the hull constructed using USA-made Cook® gelcoat and hand-laid Knytex® fiberglass. Closed-cell PVC sandwich core is used in the topsides, while the hull below the waterline is solid fiberglass. Blister-resistant vinylester resin is utilized in the first two laminates below the waterline, with aramid fiber/FRP reinforcements. The superstructure incorporates Knytex® and mat in combination with Corecell® cores and surface mats for reduced print-through.
- Construction Features
- Teak aft and side decks
- GripTex® non-skid finish on the boat deck and foredeck
- Molded bulwarks with plank lines and gelcoat finish
- Polyurethane-formulated marine sealants at hull-to-deck and boat-deck joints and exterior fittings
- Marine-grade plywood bulkheads with molded fiberglass hat-section stringers
- Handcrafted solid teak and teak veneer interior

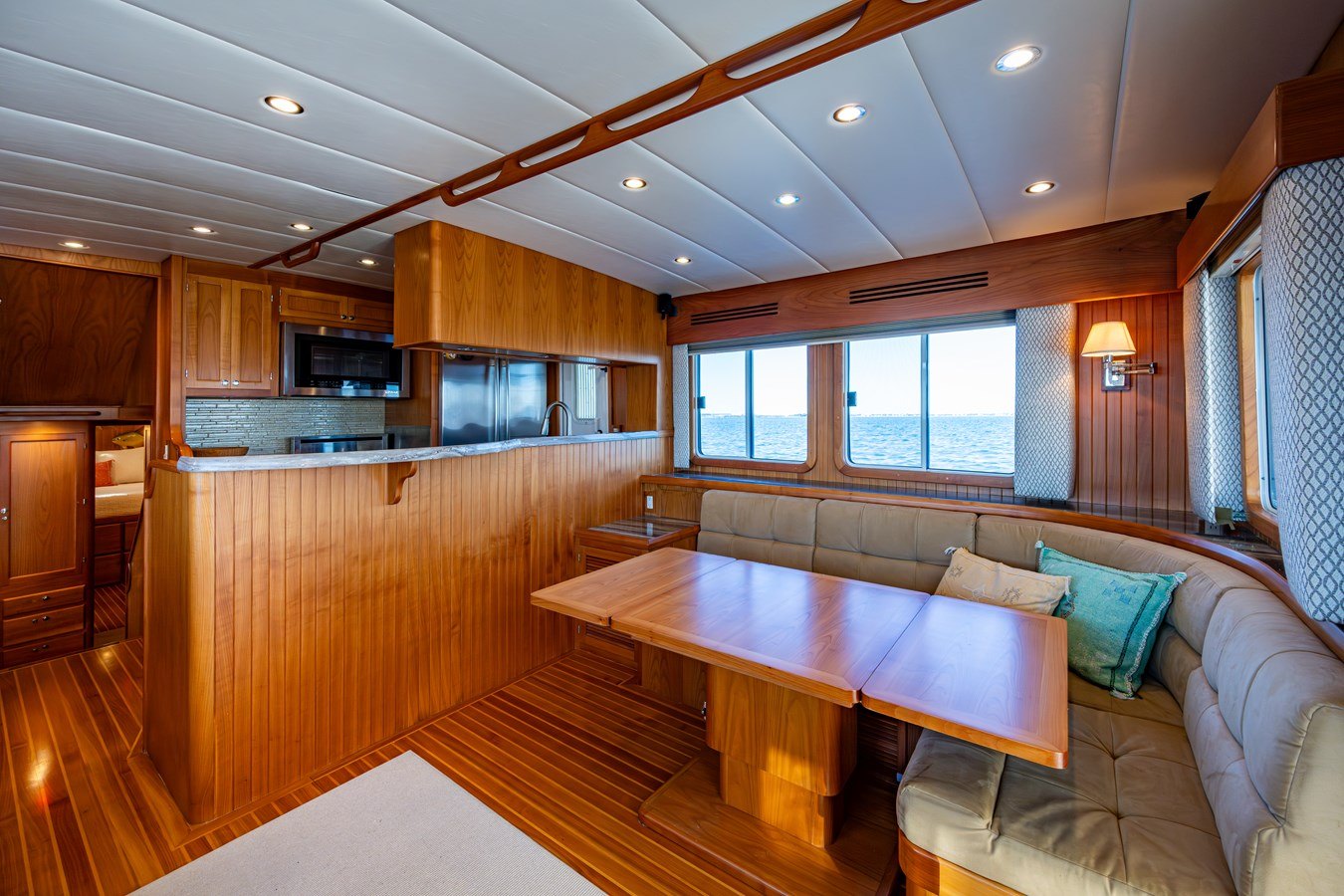

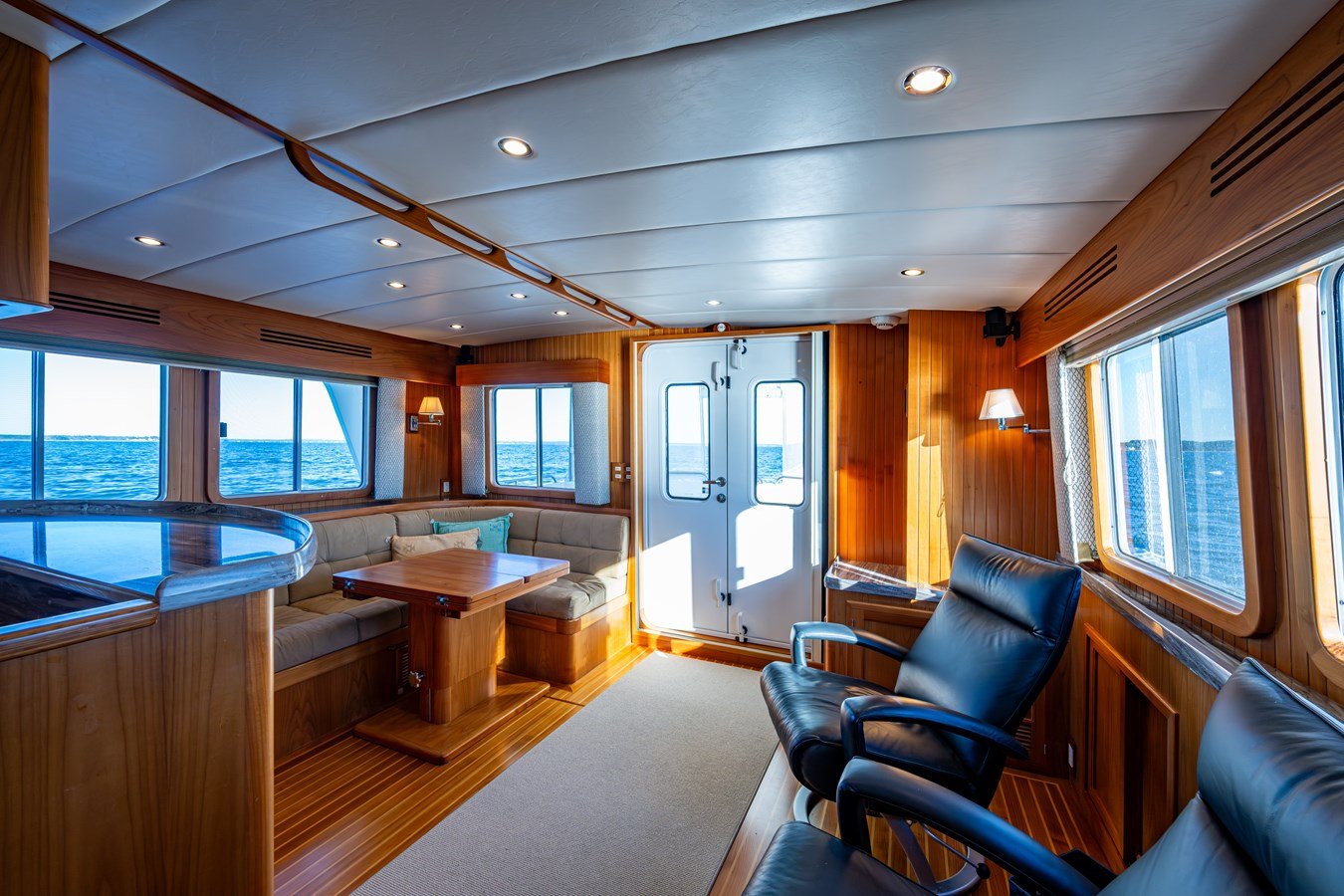

Saloon
- The saloon is entered through double weather-tight aluminum doors. The natural light and ventilation are abundant by virtue of large opening screened windows to port, starboard, and aft. There is also a retractable screen for the entry doors. Custom shades and valances complement all of the windows.
- To starboard is a large L-shaped settee with an expandable hi-lo freestanding table. A Samsung flat-screen TV rises from behind the settee. To port are two leather recliners, while generous storage is found throughout the saloon. Matching granite is used on all horizontal surfaces.
Galley
- The in-line galley and breakfast bar is forward of the saloon. There is also a separate galley entrance from the starboard side deck through a Dutch aluminum door. The galley is tastefully accented with a tile floor and glass backsplash.
- Major components include
- JennAir French-door refrigerator with drawer freezer and ice maker
- Isotherm supplemental freezer, located in the open office
- BlueStar four-burner propane stove and oven
- JennAir convection microwave oven
- GE dishwasher
- Elkay double stainless-steel sink with Grohe fixture
- Filtered water spigot
- Garbage disposal
- Trash drawer with two bins
- Pantry with pull-out drawer
Office
- Down and forward of the saloon/galley is the open office, which offers plenty of desk space and storage, including a locking drawer, file drawer, and cabinet. Large opening ports provide abundant natural light and ventilation.

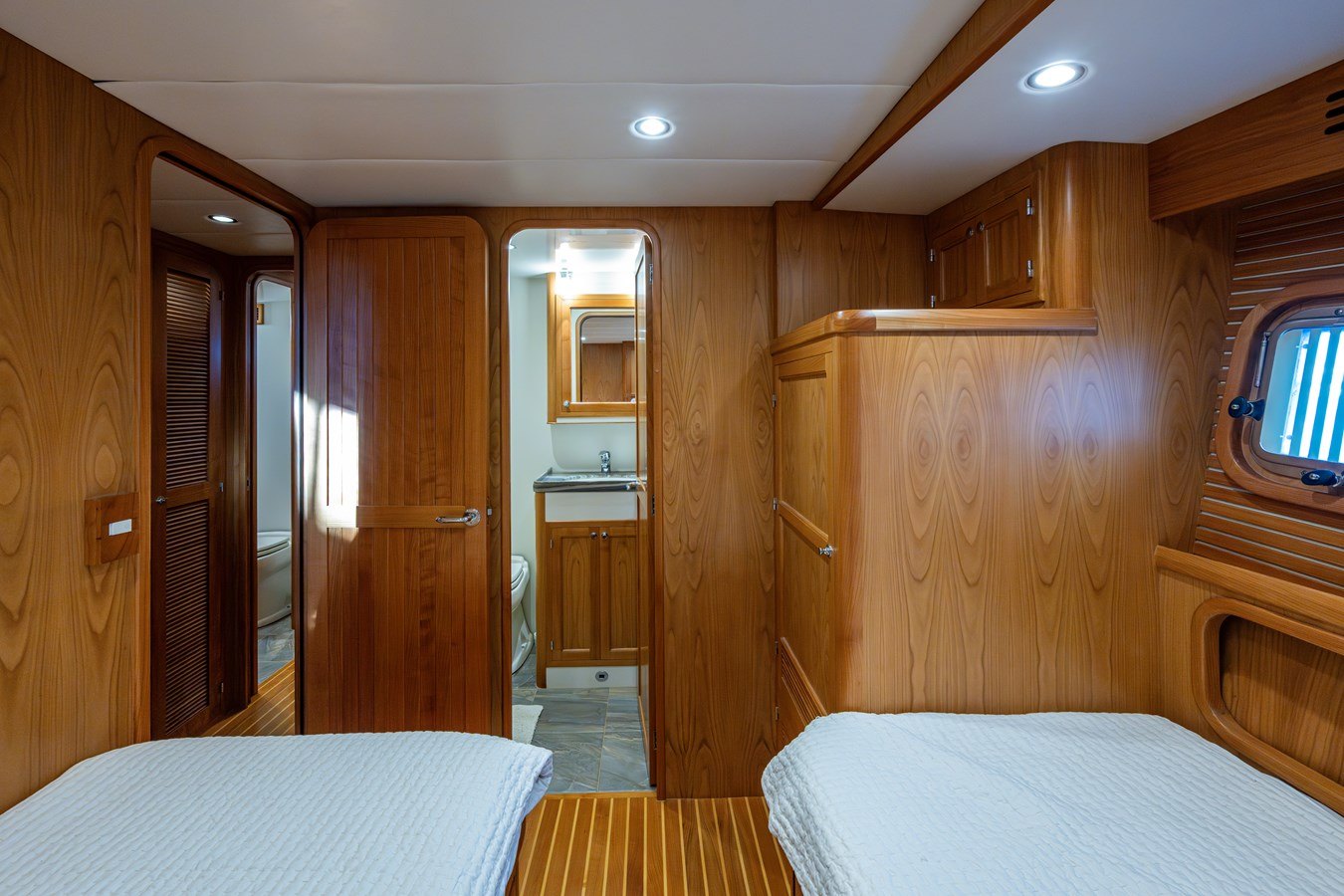

Guest Stateroom and Ensuite Head
- Opposite the open office to starboard is the guest stateroom, with the ensuite head located forward. Opposite the guest cabin is the laundry, featuring a stacked Bosch washer.
- The stateroom features
- Twin berths
- Hanging locker
- 4 x Large opening ports
- Excellent drawer and cabinet storage
- Ensuite
- Vanity
- Medicine cabinet
- Tile floor
- Large stall shower with opening port and glass shower door
Master Stateroom and Ensuite
- Forward is the spacious master stateroom and ensuite head. Upon entering the stateroom, the entrance to the ensuite head is to port.
- The stateroom features
- Centerline queen-size berth
- 2 x Hanging lockers
- 4 x Large opening ports
- 2 x Overhead hatches with Oceanair shades/screens
- Large mirrored vanity
- Storage throughout the stateroom

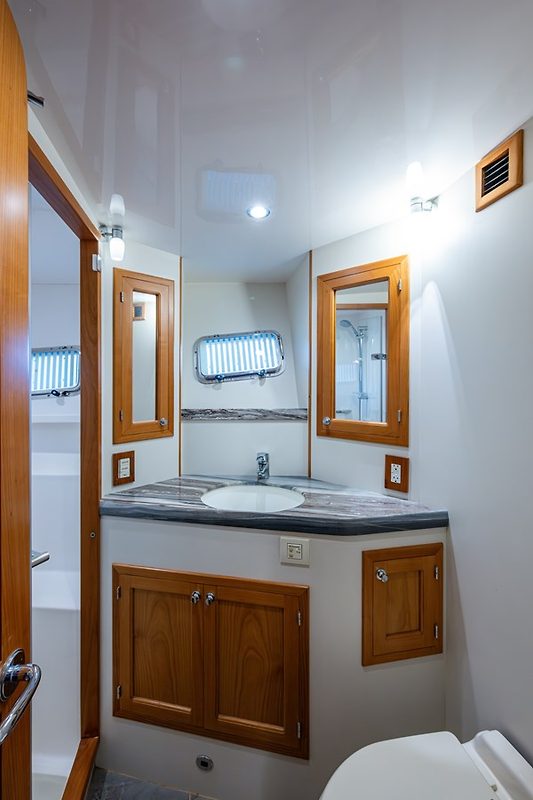

- Ensuite
- Vanity with opening port
- Tile floor
- Large stall shower with molded seat and glass shower door
- Opening port

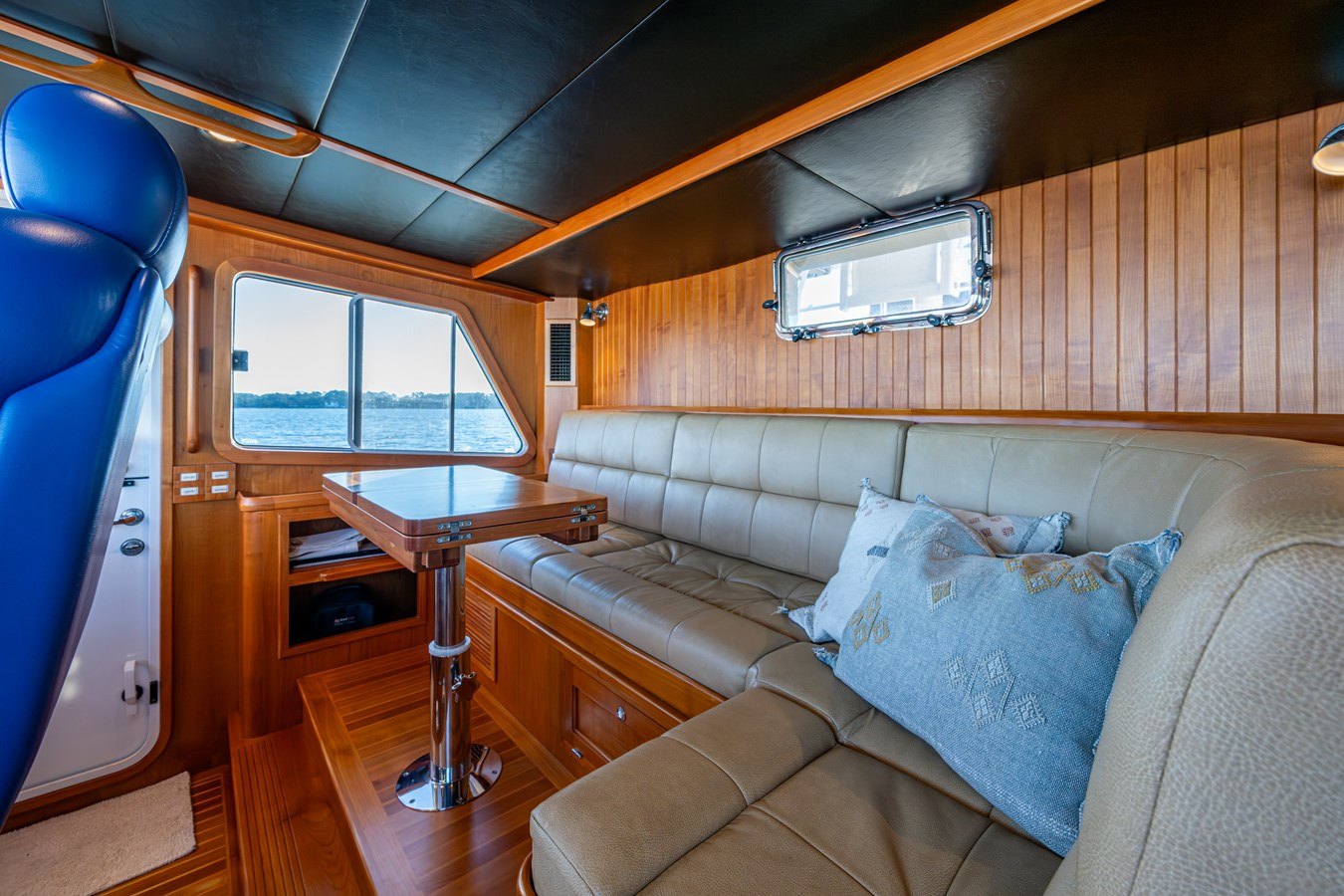

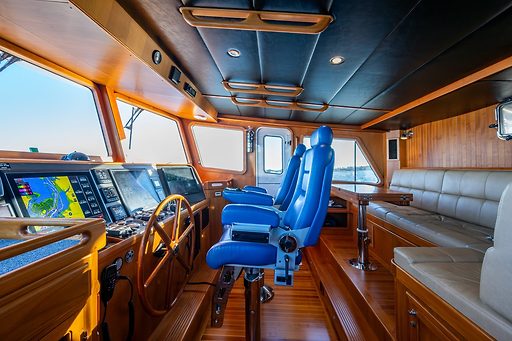

Pilothouse
- Up and forward from the saloon/galley is the ship-like pilothouse, offering commanding views for the captain and plenty of seating for guests.
- The pilothouse features twin Stidd helm chairs for the captain and mate, along with a large L-shaped leather settee and expandable table for guests. Opening screened windows to port and starboard, aluminum Dutch doors to port and starboard, and an opening port, providing excellent natural ventilation. A black headliner is particularly well-suited for nighttime passages. The pilothouse is also the perfect spot for morning coffee.
Machinery and Mechanicals
- Twin Tier III John Deere 4045AFM85 with ZF Marine 2.917:1 ratio gears
- ABT hydraulic stabilizers, serviced with new seals 6/25
- ABT® 25hp hydraulic bow thruster with proportional controls at all four stations
- ABT® 15hp hydraulic stern thruster with proportional controls at all four stations
- Shaft Shark line cutters
- Props tuned and balanced 6/25
- Tides dripless shaft seals
- ESI® fuel polishing system
- Reverso® oil change system plumbed to both engines, transmissions and generators
- Sea Fire® automatic fire suppression system
- Dual Racor® fuel filters with vacuum gauges for main engines and generators
- Dual Balmar hi-output alternators (190-amp and 60-amp) with external smart regulators
- Mannship engine-room moisture eliminators with biaxial variable, hi-speed fans
- ZF Mathers Cruise Command four-station engine controls
- Village Marine 800-GPD water maker with remote panel and auto flush
- Raritan 20-gallon water heater
- Johnson variable speed 24V DC freshwater pump
- Headhunter 120V AC freshwater pump
- 5 x Rule bilge pumps @ 3,700 GPH, with Ultra high-water alarm at two stations
- 2 x Whale Gulper dry pumps with Ultra Jr. switches
- Emergency bilge pump tied into raw-water intake on main engine
- Centek fiberglass mufflers
- Engine room intake and exhaust fans with moisture eliminators
- 4 x Aluminum fuel tanks with sight gauges
- 140-Gallon fiberglass black-water tank with macerator
- 140-Gallon fiberglass grey-water tank with macerator
- Fireboy Xintex CO detectors
- Highly polished stainless-steel panel mounted on the fuel tanks to permit ease of viewing for inspections on the outboard of both John Deere engines
Electrical
- Northern Lights® 12kW generator with sound shield (2199 hours)
- Northern Lights® 6kW generator (1213 hours) with Magnum automatic generator start
- Glendenning shore-power retrieval system
- 240-volt Charles isolation boost transformer
- Charles 60-amp battery charger
- Magnum Energy 4,000-watt inverter/charger
- 4 x Lifeline AGM 12-volt batteries wired in series for 24V DC engine starting
- 2 x Lifeline AGM 12-volt batteries for generator starting
- 8 x Lifeline AGM 6-volt, 400-Ah wired in series for 24V DC ships service (new 6/25)
Pilothouse and Flybridge Electronics
- Pilothouse
- Garmin GMR624xHD2 open-array 6kW HD radar
- Garmin GHP 20 Reactor autopilot with Shadow Drive
- Garmin GHC 20 marine autopilot control display
- 2 x Garmin 8530 black-box chartplotter system
- 2 x Garmin GMM190 19-inch black-box Glass Helm monitor
- Garmin GPS 19x Receiver
- Garmin Remote Input Device Keypad (GRID) mounted on STIDD helm chair armrest
- Garmin GSD 24 digital black box network sounder
- Garmin GXM 52 XM weather receiver/antenna
- Garmin VHF 300 marine radio with a remote at master stateroom
- Hailer with horn
- Garmin VHF 200 remote at pilothouse with main unit on flybridge
- Em-Trak B100 AIS transceiver
- 3 x Garmin GMI 20 - 4-inch display multifunction unit
- 4 x Garmin GC 10 marine cameras, including reverse-image cameras mounted at the cockpit arch for aft viewing and two in the engine room
- FLIR 625L thermal low-light and infrared camera
- Samsung 19" monitor to display cameras and FLIR system
- Maretron multifunction display
- Maretron MConnect remote monitoring
- Ultrasonic wind/weather station
- Wi-Fi hotspot amplifier
- Fusion AM/FM/Bluetooth/SiriusXM stereo system with JL speakers in cockpit, saloon, pilothouse, flybridge & volume controls
- Bose Lifestyle V25 home system
- Starlink system
- Samsung flat-screen TV
- Ritchie compass
- VDO rudder angle indicator

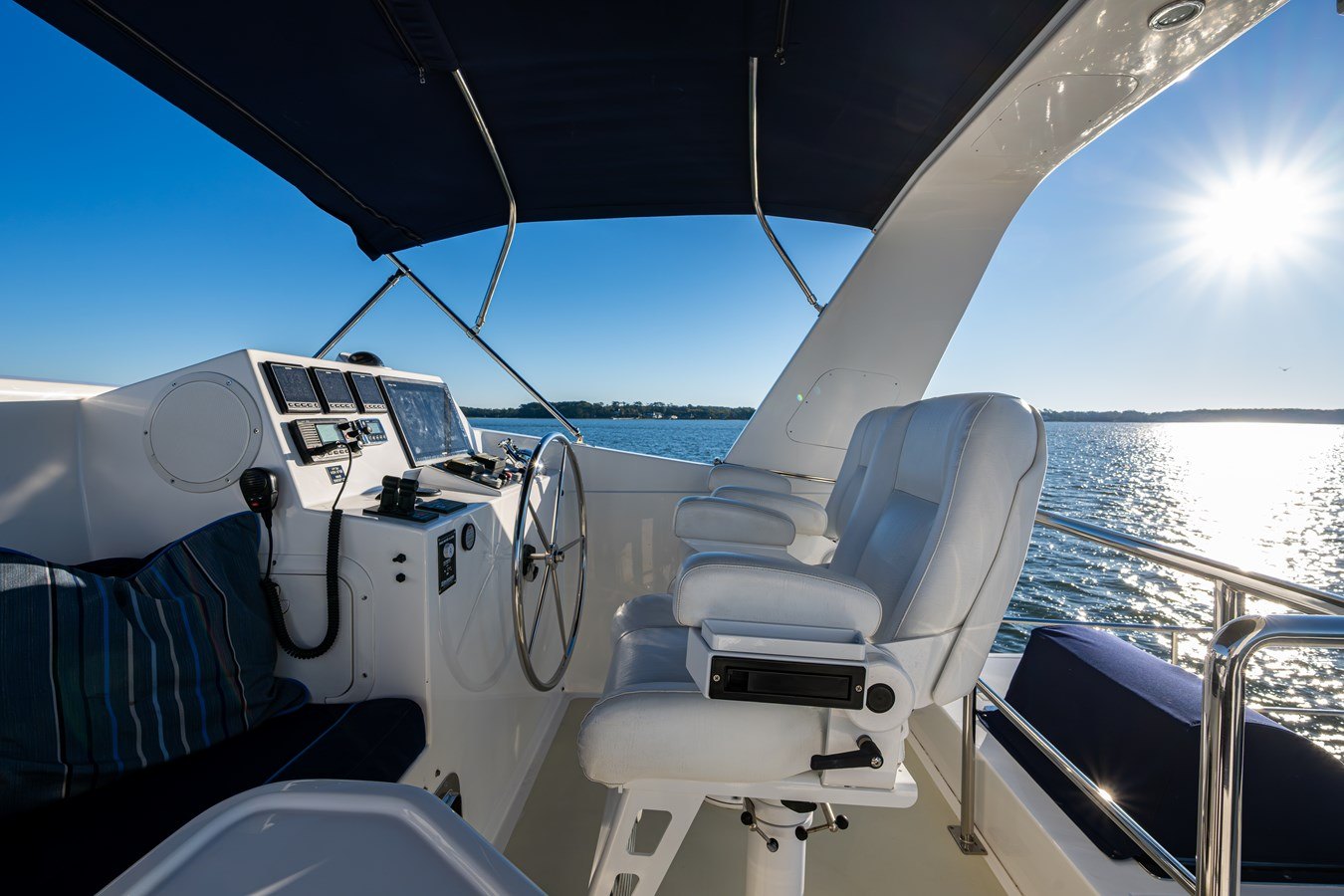

- Flybridge
- Garmin GPSMAP 7616 16-inch touchscreen chartplotter
- Garmin GHC 20 marine autopilot control display
- 2 x VHF antennas, one mounted on each side
- 2 x Rupp PAK00005 mounts
- Garmin VHF 200 marine radio with remote to pilothouse
- 3x Garmin GMI 20 marine displays
- Garmin GPS 19x antennas
- Ritchie compass
- VDO rudder angle indicator
- Fusion music system controller
Additional Components
- i2Systems LED lighting throughout
- All exterior lighting is LED
- 3 x Collision bulkheads
- 4-Zone CruiseAir reverse cycle A/C and heat units with remotely mounted compressors and SMXht control panels throughout
- Maxwell horizontal hydraulic windlass
- Maxwell anchor remote-control station with chain counter at pilothouse and flybridge
- 45kg Ultra Quickset anchor with 300' of 3/8" Hi-Test chain
- 88 lb. Delta secondary anchor with 130' of HT chain and 300' nylon rode
- Anchor washdown spigots, saltwater and freshwater
- Steelhead ES1000 electric-hydraulic davit system (new hydraulic lines, 3/25)
- 13' AB RIB with 60 hp Yamaha
- Radar arch
- Kahlenberg ship’s horn system with automatic fog signals
- Freeman watertight foredeck hatch, color-matched to deck gelcoat, for anchor locker
- Bow shore-power inlets
- Custom canvas covers for windows, flybridge, cockpit, and tender (new 2024)
- Bimini top (new 2024)
- Custom Sunbrella exterior seating cushions
- Stainless-steel stern staples
- Cockpit shower
- LED flybridge and boat deck lighting
- Custom stainless-steel handrails
- Storm plate receptacles (hardware only)
