About Rocco

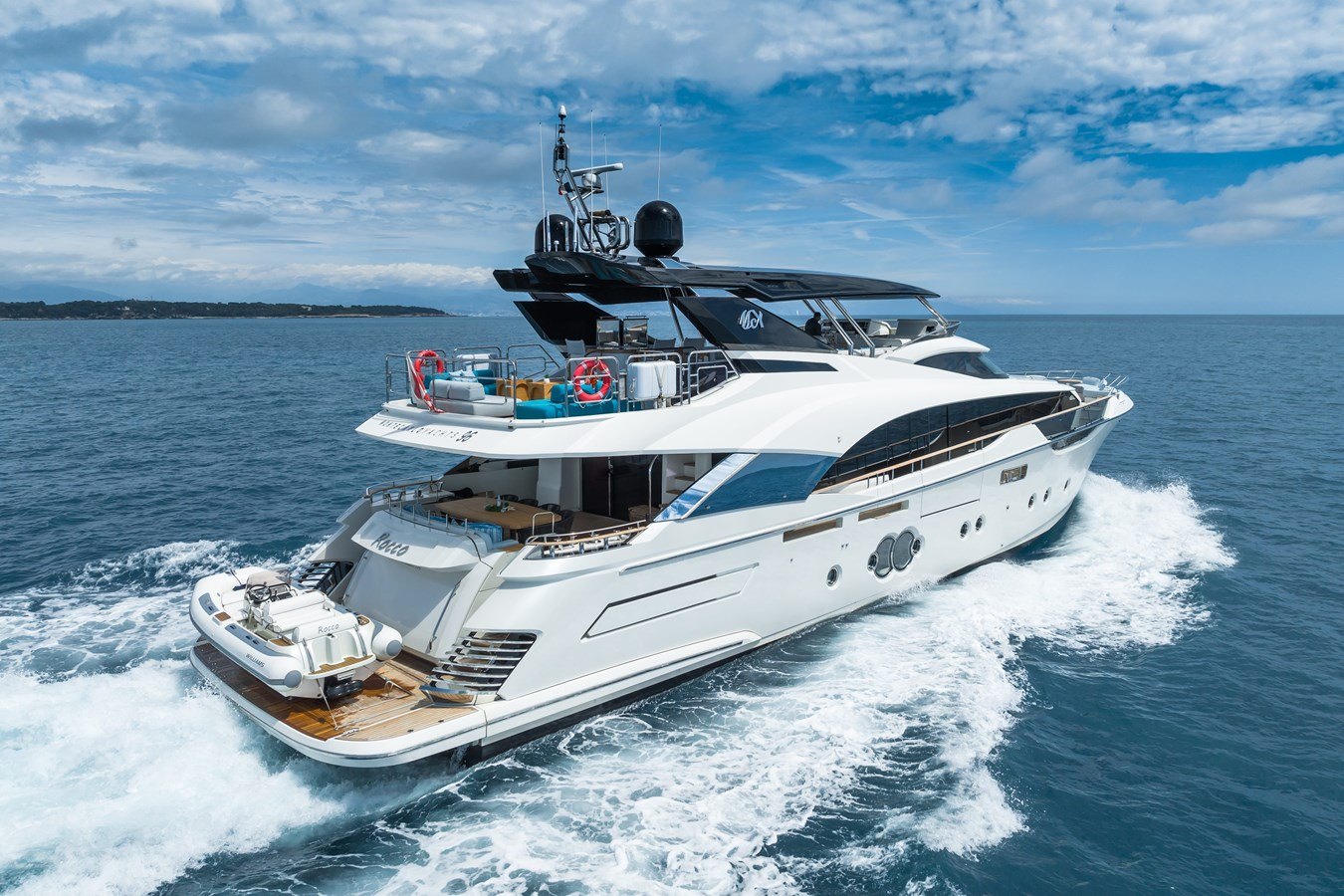

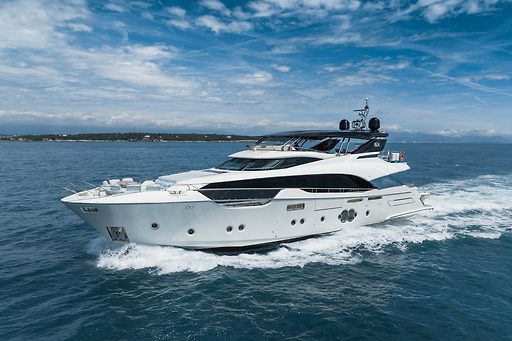

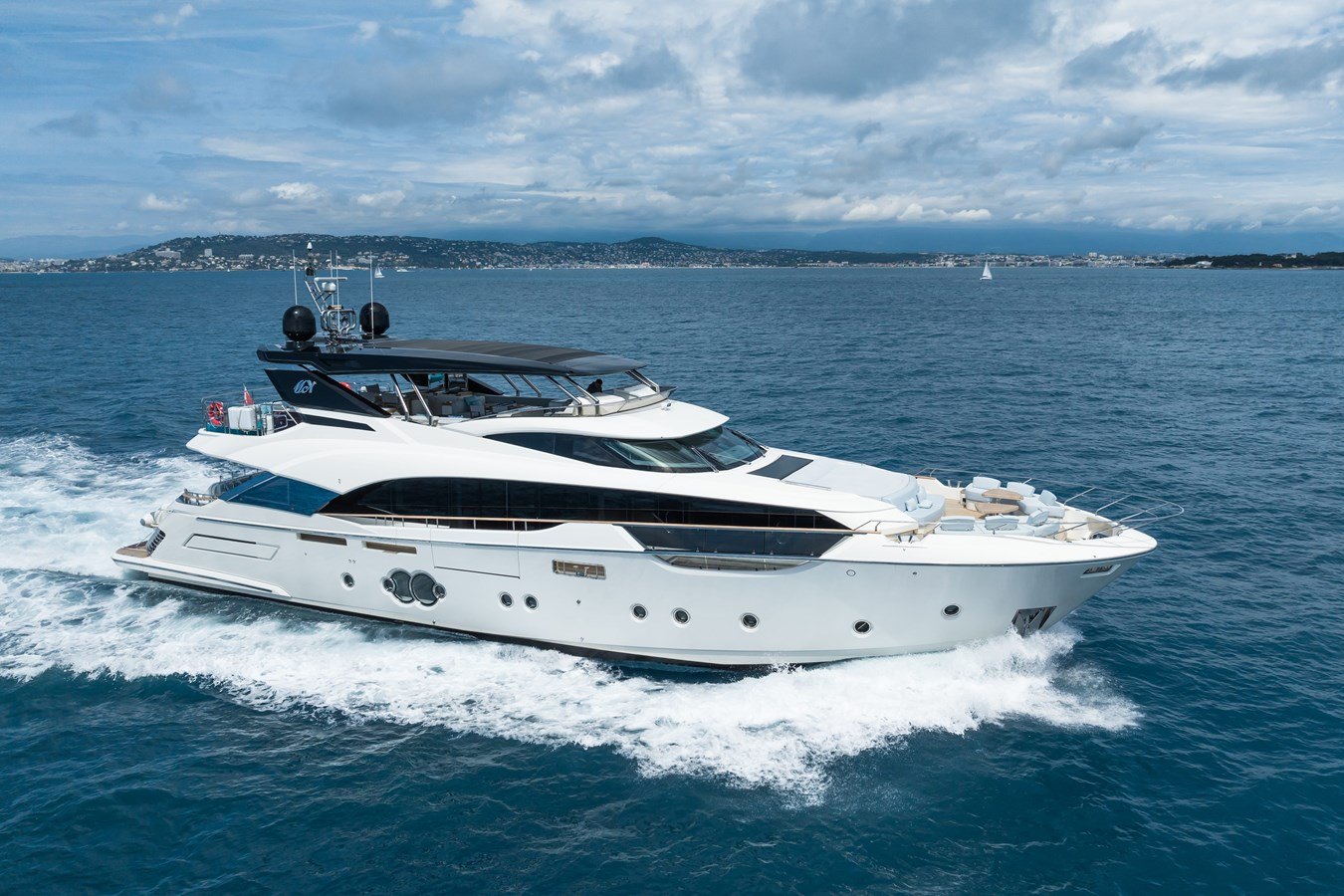

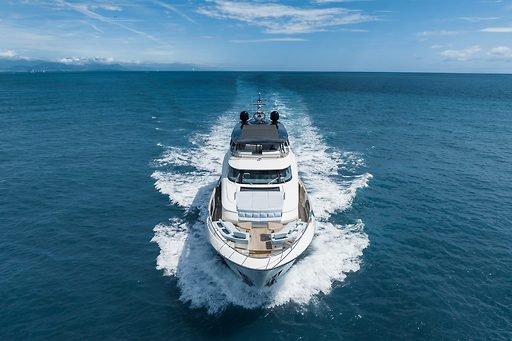

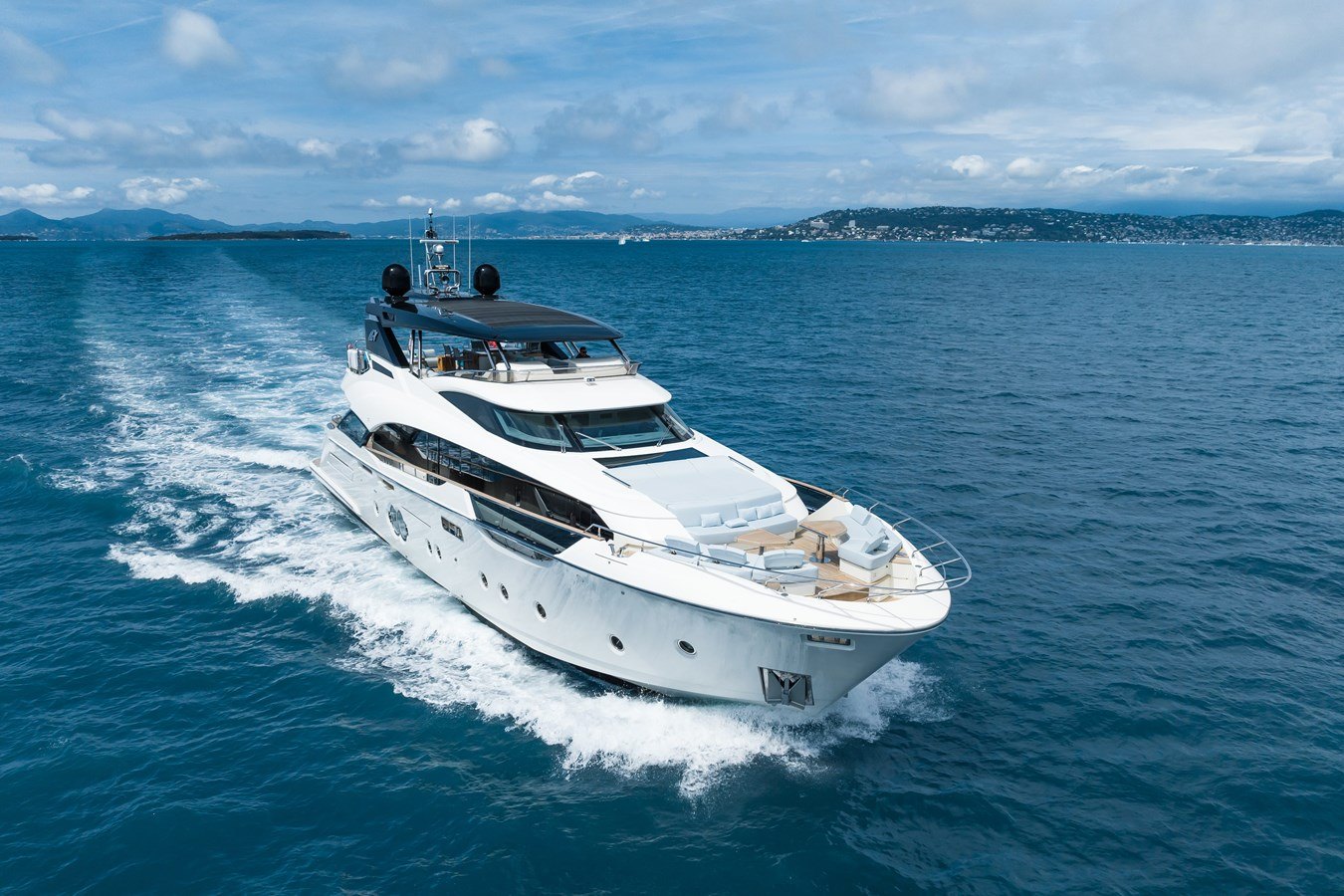

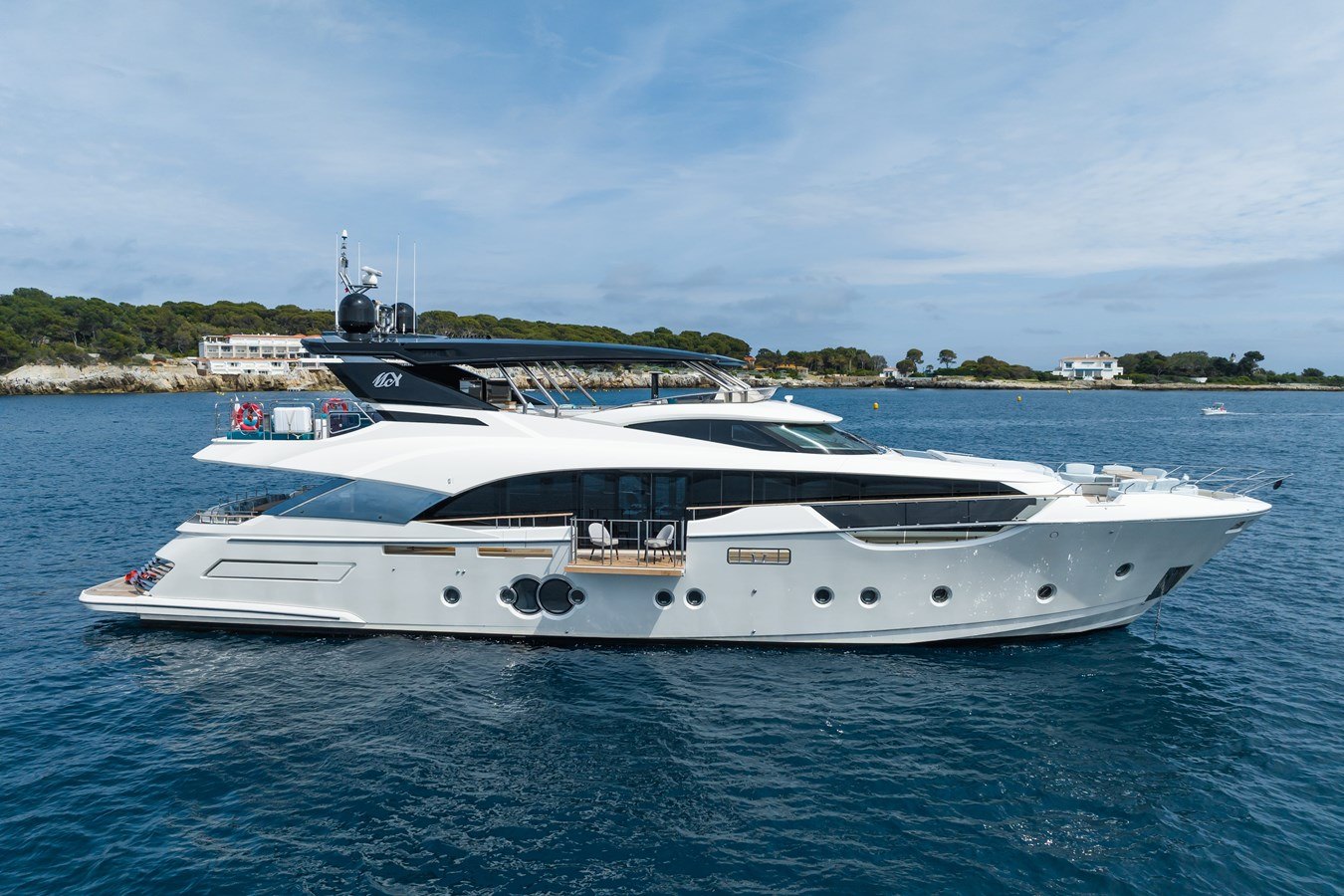

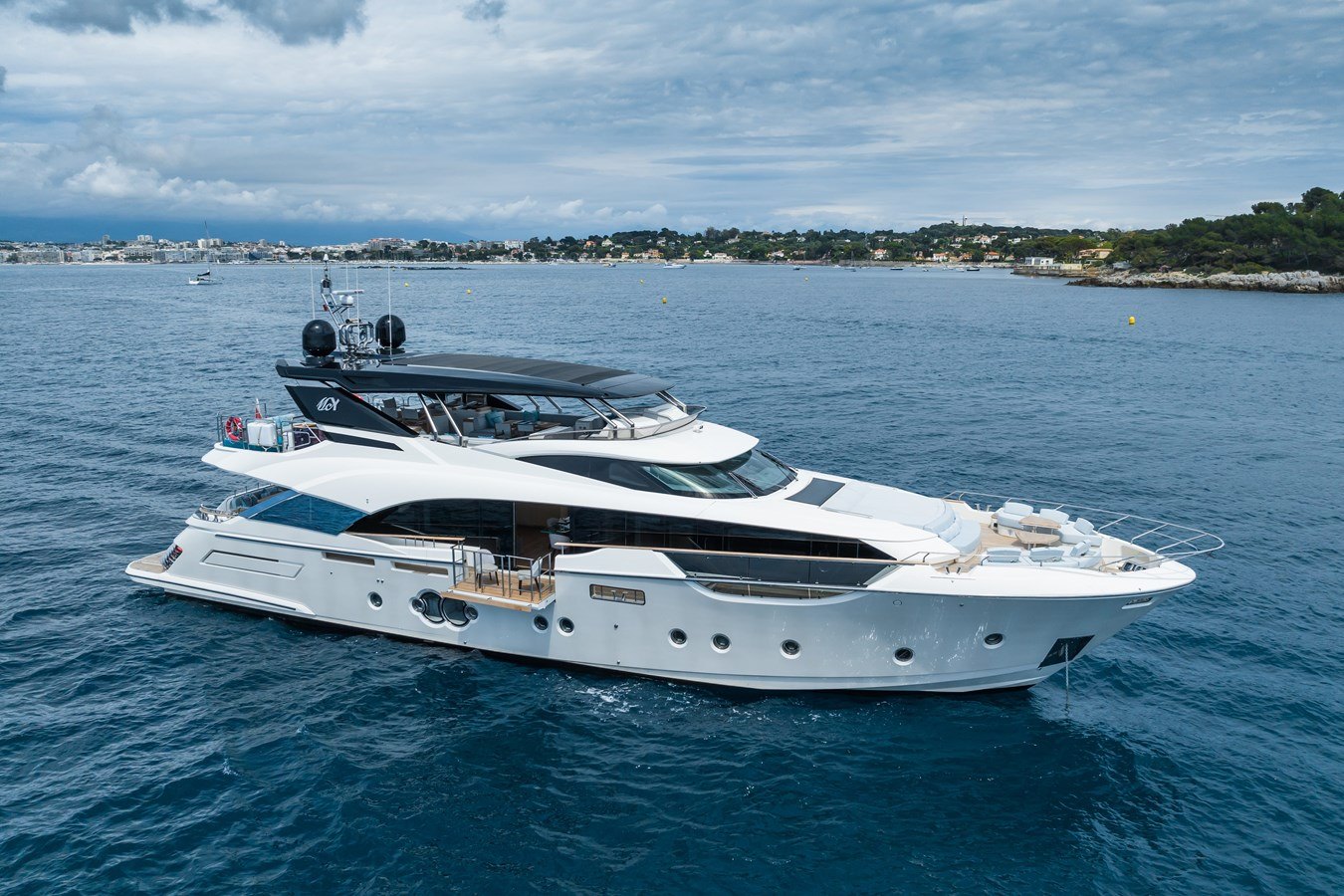

Motor Yacht ROCCO is a 96’ (29.26m) yacht for sale, built and launched by yacht builder Monte Carlo Yachts and delivered in 2021. This vessel sleeps up to 12 guests in 5 staterooms and has accommodations for 5 crew in 3 cabins.
- 29.26 mLength
- 2021Year
- 5Guest cabins12 guests
- 2 × MTUEngines4,400 hp, 1,465 h
- 27 knMax speed21 kn cruise
- 6.94 mBeam
About Rocco
Motor Yacht ROCCO is a 96’ (29.26m) yacht for sale, built and launched by yacht builder Monte Carlo Yachts and delivered in 2021. This vessel sleeps up to 12 guests in 5 staterooms and has accommodations for 5 crew in 3 cabins.
Specifications
Dimensions
- Length
- 29.26 m
- Beam
- 6.94 m
- Draught
- 2.1 m
- Gross tonnage
- 118
Accommodation
- Guests
- 12
- Guest cabins
- 5
- Crew
- 5
- Crew cabins
- 3
Build
- Model
- MCY 96
- Year
- 2021
- Hull
- Mono Hull
- Hull material
- grp
- Superstructure
- grp
- Classification
- RINA
Performance
- Engines
- 2 × MTU 16V 2000 M86
- Total power
- 3,281 kW · 4,400 hp
- Engine hours
- 1,465 h
- Max speed
- 27 kn
- Cruising speed
- 21 kn
- Fuel capacity
- 11,000 l
- Water capacity
- 1,650 l
Design & history
- Naval architect
- Monte Carlo Yachts
- Exterior design
- Nuvolari Lenard
- Interior design
- Nuvolari Lenard
More about Rocco
Overview
- ROCCO, the newest addition to the Monte Carlo Yachts 96 series, is now available in exceptional condition. Designed by the award-winning studio Nuvolari Lenard, ROCCO is perfect for both first-time yacht owners and seasoned enthusiasts looking to upgrade. With an impeccable charter history, she offers a proven track record for dependable charters while also providing an outstanding private ownership experience.
- Her unique layout maximizes interior and exterior space, featuring a well-appointed bow and a spacious flybridge outfitted with a bar, table, and sunbathing area. The retractable top allows fresh air circulation and enhanced sun exposure, ideal for off-season cruising.
- ROCCO comfortably accommodates up to 12 guests across 5 staterooms, including a full-beam master suite on the main deck—a rarity in this yacht category. The yacht’s high sides provide enhanced safety for families with children. The bow offers a large sunbed and a convertible table that transforms into an additional sunbathing area. The flybridge table is the perfect private spot for breakfast or a pre-dinner drink.
- A large hydraulic swim platform ensures easy water access and jet ski launching, adding to the yacht’s versatility and fun.
Key Features
- Turn-key motor yacht with no large expenses in the near future
- 5 staterooms for 12 Guests supported by 5 Crew
- Full-beam master stateroom on the main deck
- Large hydraulic swimming platform with tilting function
Main Systems / Electrical
- Tropical Air Conditioning (including bathrooms and crew quarters) 278000 BTU/h
- Control room with air conditioning system
- 24 V /220 V inverter - 5 kW
- 2x45 kW generators upgrade 50Hz
- Shore isolator Transformer 125A (1 unit) Hydraulic bow thruster
- Hydraulic stern thruster Electric Anchor Windlasses Searchlight
- Third control station on flybridge with bow and stern thruster joystick, engine controls and monitor for cameras
- Additional control station in rear cockpit with bow and stern thruster Joysticks, engine controls
- Aft mooring winches (electric)
- Twin anchor at bow Flaps
- Stabilizer fins with anchor stabilizing function
- Engine, Generator oil change system
- Double Racor filters for Engine
- Racor filters for generator
- Automatic fire fighting system
- Fresh water system (1650L), Water maker 220 L/h + Additional water maker 220 L/h, 80L / min fresh water pump
- Sea water System
- Megayachts underwater lights (4 pcs)
- Concealed lights for front cockpit area
- Concealed lights for flybridge area
Exteriors
- Cradle for tender (on bathing platform)
- Hydraulic Up/down lifting platform with gross loading capacity up to 1200 kg with tilting feature
- Garage for tender (suitable for 4.45 Williams turbo jet tender)
- -Megayacht concealed gangway
- Semi-automatic electric weathertight door from service area to port sideway
- Semi-automatic electric weathertight door from service area to starboard sideway

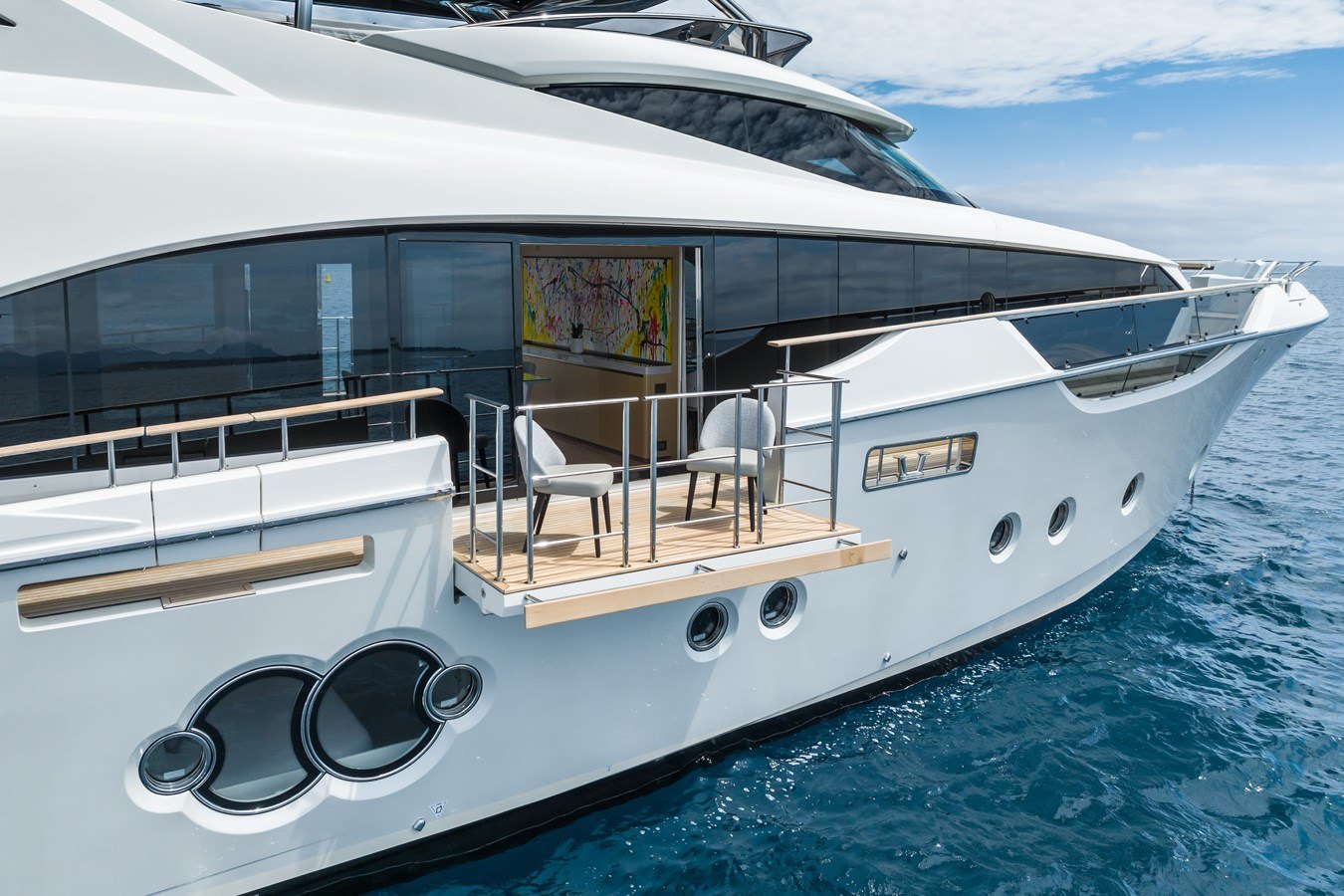

- Upgrade to main deck saloon bulwark balcony with weathertight sliding saloon crystal door (STBD or PORT; per balcony)
- Flybridge hatch
- Doors for side access (2)
- Teak floor on cockpit
- Teak floor on sideways
- Teak floor on bathing platform
- Teak floor on fly bridge
- Sideways teak hand rails
- Teak chairs (4 units - stern cockpit)
- Teak chairs on fly bridge (8 units)
- Cleats on sideways close to bow sunpads
- Cleats on aft deck (bathing platform level)
- Carbon Fibre T-Top on flybridge (soft sliding top)
- Light system for crystal fashion plates
- Dimmers for flybridge lights
- Windows and windscreen external covers
- External cushions, sunpad and tables covers
- Front Cockpit cover
- Closing for aft cockpit (on main deck)
- Front cockpit with cocktail tables and sofas
- Flag stem
- Sidewalk weathertight access to engines room /crew quarters
- Dock side water inlet with water filters
- Electric grill on flybridge
- Fridge on flybridge
- lce maker on flybridge
- Boat name (inox lettering with retrolight)
External Layout and Equipment
Flybridge
- External staircase with teak steps
- Lights and perimeter courtesy lights
- Plexiglas and aluminum access hatch to flybridge
- Glass and stainless steel sliding door to access flybridge from raised pilot house
- Plexiglas and stainless steel windscreen
- Stainless steel protection pulpit and handrails with integrated supports for lifecrafts
- N°2 Fiberglass radar mast, black painted, with fiberglass arch, supporting: navigation lights, radar and GPS antennas equipment, TV antenna, horn, lightning protection, flybridge lights
- Pilot console, navigation, and engine control screens, including instrumentation, plus: Steering wheel in skay, Main engines and reversing gear electronic levers, Key switches for port and starboard engines, horn, anchor winch, searchlight, fire extinguisher controls, Helm seat, Storage behind pilot seat (not available when OPT TV lift is selected)
- N°1 C - shape sofa, with integrated chaise longue, decorative pillows and large capacity storage
- N°1 linear sofa, with decorative pillows and integrated large capacity storage
- Sunbathing aft platform
- Galley withsink, hot and cold water supply, fridge, ice maker, N.2 separate electric Grills
- OptionSPA tube installation on flybridge
- OptionCarbon T-top with sliding soft top, electrically operated

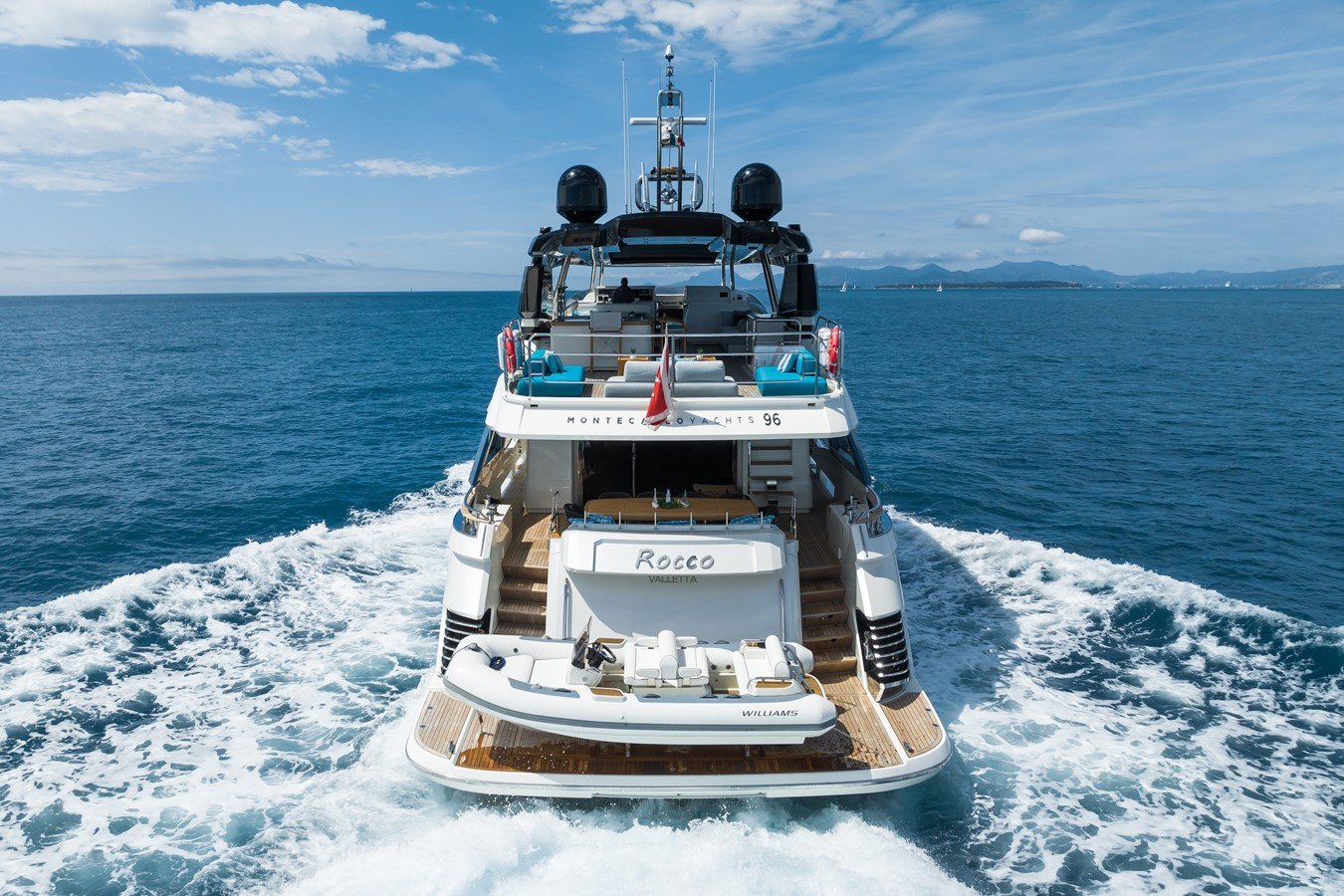

Stern
- Bathing platform with
- hydraulic up/down lifting system - 1.200 kg (gross) max loading capacity + tilt function upgrade
- platform size suitable for a 4.45 m long tender
- platform teak floor
- stainless steel fender bar with rubber insert reinforcement
- Transom lazarette with hydraulically operated door
- Foldable and removable bathing ladder
- Stern stairs to aft cockpit, with stainless steel handrails and hatches for shore power connection and stem platform shower
- Electro-hydraulic concealed stainless steel gangway, with teak grating and manual stanchions
- Option Tender Garagetender garage, accessible from lazarette door, suitable for 4.45 Williams diesel jet tender or two-seaters jet ski with transom hydraulic up/down lifting system - 1600 kg (gross) max loading capacity
Aft Cockpit
- Teak handrails on bulwark with stainless steel vertical supports
- Teak floor with perimeter courtesy lights
- Stainless steel and tempered glass fashion plates for lateral protection of the cockpit, with courtesy lights
- Saloon door in stainless steel and tempered glass
- Stainless steel gates to stern staircases
- Stern sofa with storage
- Emergency access to engine room
- Teak dining table with fixed supports
- Power Led and courtesy lights on ceiling
- 4 x Foldable teak director chairs
- Stainless steel cleats (2 bathing platform level, 4 mooring area)
- Option5 x Armchairs
Sideways
- Teak floor with perimeter courtesy lights
- Diesel intake on port and starboard sides on the superstructure with fuel recovery system and level indicators covered with GRP Door.
- GRP steps covered with teak, containing black and grey waste discharges
- Teak handrails on bulwark with stainless steel supports
- Stainless steel cleats, 2 on sideways, 2 forward the Portuguese bridge
- Stainless steel fender bar with rubber insert reinforcement
- Led downlights on ceilings
- Light system for crystal fashion plates
- Tempered high thickness glass windows glued to the superstructure
- 2 x semi-automatic electric weathertight doors from main dashboard to port side sideway and from guests' lobby to starboard sideway
- 1 x manual weathertight door to the control room
- Optionup to two main deck saloon bulwark balconies with sliding saloon crystal door.
Raised Pilot House
- Forward windscreen in sandwich tempered glass, with XIR filter films
- 4 x electric windscreen wipers for forward windscreen
Bow cockpit
- Front storage withStorage for fenders with handrail to fix them
- Mooring area withAluminum hatch with teak covered steps, cold and hot water shower, 2 x windlasses, anchors and 2 cleats
- Teak floor with perimeter courtesy lights
- 2 x sofas, with integrated foldable backrest for double function (sofa or sunbathing cushion), with large capacity storages, fire extinguishing system, cushions and decorative pillows
- 1 x Central sofa with cushions
- 2 x Lateral coffee tables
- Stainless steel handrails
- 1 x large sunpad with cushions
- Optionforward ceiling window for owner area
Interiors
- Miele (or equivalent) appliances (oven, galley extractor, hobs)
- Side-by-side fridge and freezer
- Wine cooler (around 35 bottles)
- Dishwasher
- Washing machine
- Drying Machine
- Professional Miele (or equivalent) multifunction oven
- Dimmers for main deck saloon, fly bridge and aft cockpit lights
- Courtesy lights stairs to access the cabins
- Safe Box (owner's and VIP)
- Bidet in owner's bathroom
- Japanese Tecma seats (Owner's cabin only)
- Portholes mosquito nets
- Memory foam mattresses
- Towel sets for bathrooms (1 set per berth, including crew)
- LED light system
- Domotic system electric blinds and lights
- Domotic system - Upgrade PackageA/C controls included
- Crockery, cutlery and glasses (set for 10)
- Extra Luxe Decor
- Wood floor on main deck saloon
- Stone floor in bathrooms
- Main dashboard seat in leather
- Main dashboard seat - electrical movement
- Sliding beds in guest cabins (with sliding system to obtain a queen-size bed)
- Pullman bed in guest cabin (per cabin)
- Electric roman blinds (owner and saloon)
- Electrical ceiling blind in owner cabin (in lieu of manual one)
- Roman blinds
- Stone walls in VIP showers
- Stone walls in owner shower
- Stone walls in guests showers
- Headboard leather and top quality fabrics finishing
- VIP cabin vanity pouf in leather and top quality fabrics finishing
- Day toilet on main deck
- Additional soundproof insulation between master cabin and lower deck
- Hi-tech material floor in galley
Internal Layout and Equipment
Raised Pilot House
- Instrument console in leather and wood
- Chart top
- Pilot seat in leather, electrically moved
- Chaise longue on starboard side
- Direct LED lights on ceilings (day and night red navigation lights)
- Pilot station includes, further to the instrumentationSteering wheel in leather, Main engines and reversing gear electronic levers, Key switches for port and starboard engines, panel with warning and alarms for bilge pumps, Horn, windscreen wipers, anchor winch, searchlight, fire extinguisher controls
Main Deck Saloon
- Dining area forward, with table up to 10 people
- Chairs for dining tablenumber to be defined according to layout
- Cabinet on front bulkhead with dishware and cutlery storage
- Cabinet on port side with up/down lifting mechanism for a 50 "LCD TV, fridge and storage
- Sofa on starboard side
- Electrical venetians blinds on both port and starboard sides
- Wine cooler (around 35 bottles) if not present in galley
- Direct dimmerable LED lights on ceilings
- Master Stateroom
- - King size bed with four drawers underneath
- Memory foam mattress, bedspread and pillows
- 6 x throw pillows
- Two nightstands in wood and lacquered wood
- Storage cabinet below TV on front bulkhead
- 2 x lateral large windows, n°4 portholes with mosquito net
- Desk with leather pouf on starboard side
- Storage cabinet on starboard side
- Sofa on port side
- Storage cabinet on port side
- Bookcase with storage underneath
- Electrical roman blinds on both port and starboard sides
- Carpet
- Door
- LED courtesy lights
- Direct LED lights on ceilings
- Optionblack blinds on windows and portholes Option: ceiling fixed window (skylight) equipped with: electric shade, electric total black blind
- Walk-in closet (in master stateroom)
- - Located starboard, forward to the cabin, equipped as follows
- hanging bar
- 4 x shelves and 4 x drawers on starboard side
- 4 x shelves, 2 x drawers and 1 door shelf on fore side
- Safe box
- Mirror
- LED courtesy lights
- Direct LED lights on ceilings
- Carpet
- Door
Master bathroom
- Located port side, forward to the cabin
- Cabinet top in stone with integrated sink and two taps.
- Mirror, cabinet with two drawers under the sink, and LED spotlights
- Cabinet above the sink
- Stone floor and cabinet top with sandwich construction to reduce weight
- LED courtesy lights
- Direct LED lights on ceilings
- Door
- Separate shower room with-Stone floor and walls, N°1 rain showers, Hydro-massage shower column, LED lights on ceiling, Extractor, Stainless steel and glass
- N° l separate toilet room, withTecma WC, Bidet, Manual roman blind, Opening porthole with mosquito net, Stone floor, Stainless steel and glass door, Direct LED lights on ceilings
Day Toilet
- Tecma WC
- Stone floor and cabinet top with sandwich construction to reduce weight
- Top mounted glass sink
- Cabinet under the sink
- Mirror
- Door
- LED courtesy lights
- Direct LED lights on ceilings
Guest Lobby LD
- Cabinet with storage and electric panels
- Stairs with storage underneath
- Carpet
- LED courtesy lights
- Direct LED lights on ceilings
Starboard side VIP Stateroom
- Queen size bed with storage underneath
- Memory foam mattress, bedspread and n°2 pillows
- n°4 throw pillows
- One nightstand in wood and lacquered wood and a niche on the bedhead
- Vanity desk
- Pouf in leather
- Two opening portholes with mosquito nets
- Two "MCY-Style" fixed windows
- Wardrobes with doors covered in valuable fabric
- Mirror
- Manual roman blinds in valuable fabric
- Carpet
- Door
- LED courtesy lights
- Direct LED lights on ceilings
Starboard side VIP bathroom
- Tecma WC
- Cabinet top in stone with integrated sink and two taps
- Stone floor and cabinet top with sandwich construction to reduce weight
- n°2 drawers under the sink
- Wall cabinet on fore side
- Mirror
- Door
- LED spotlights on ceiling
- LED courtesy lights
- Separate shower withStainless steel and glass door, Hand shower, Central rain shower, Stone floor and stone wall with sandwich construction to reduce weight, Opening porthole with mosquito net, LED spotlights on ceiling, Extractor
Port side VIP Stateroom
- Queen size bed with storage underneath
- Memory foam mattress, bedspread and n°2 pillows
- n°4 throw pillows
- One nightstand in wood and lacquered wood and a niche on the bedhead
- Vanity desk
- Pouf in leather
- Two opening portholes with mosquito nets
- Two "MCY-Style" fixed windows
- Wardrobes with doors covered in valuable fabric
- Mirror
- Manual roman blinds in valuable fabric
- Carpet
- Door
- LED courtesy lights
- Direct LED lights on ceilings
Port side VIP bathroom
- Tecma WC
- Cabinet top in stone with integrated sink and two taps
- Stone floor and cabinet top with sandwich construction to reduce weight
- n°2 drawers under the sink
- Wall cabinet on fore side
- Mirror
- Door
- LED spotlights on ceiling
- LED cou1tesy lights
- Separate shower withStainless steel and glass door, Hand shower, Central rain shower, Stone floor and stone wall with sandwich construction to reduce weight, Opening porthole with mosquito net, LED spotlights on ceiling, Extractor
Starboard side Guest Stateroom
- Twin beds with storage underneath
- Twin beds can be transformed in king size bed, through sliding system
- Memory foam mattresses, bedspreads and n°2 pillows
- n°4 throw pillows
- One nightstand in wood and lacquered wood with drawer
- Two opening portholes with mosquito nets
- n°2 wardrobes with doors covered in valuable fabric
- Manual roman blind in valuable fabric
- Mirror
- Carpet
- Door
- LED courtesy lights
- Direct LED lights on ceilings
Starboard side Guest Bathroom
- Tecma WC
- Top-mounted glass sink
- Cabinet under and above the sink
- Stone floor and cabinet top with sandwich construction to reduce weight
- LED spotlights on ceiling
- LED courtesy lights
- Mirror
- Door
- Manual roman blind in valuable fabric
- Separate shower with:, Stainless steel and glass door, Hand shower, Central rain shower, Stone floor and stone wall with sandwich construction to reduce weight, LED spotlights on ceiling, Extractor
Port side Guest Stateroom
- Twin beds with storage underneath
- Twin beds can be transformed in king size bed, through sliding system
- Memory foam mattresses, bedspreads and n°2 pillows
- n°4 throw pillows
- One nightstand in wood and lacquered wood with drawer
- Two opening portholes with mosquito nets
- Wardrobe with doors covered in valuable fabric
- Manual roman blind in valuable fabric
- Carpet
- Door
- LED courtesy lights
- Direct LED lights on ceilings
Port side Guest bathroom
- Tecma WC
- Top mounted glass sink
- Cabinet under the sink
- Stone floor and cabinet top with sandwich construction to reduce weight
- LED spotlights on ceiling
- LED courtesy lights
- Mirror
- Door
- Separate shower withStainless steel and glass door, Hand shower, Central rain shower, Stone floor and stone wall with sandwich construction to reduce weight, Opening porthole with mosquito net, LED spotlights on ceiling, Extractor
Lower deck - Galley
- Corian working top with cooking top and two sinks
- Storage above sink and main cooking top
- Storage below cooking top and rubbish bin below sink
- Crew dinette (sofa and two poufs)
- Two portholes with mosquito net
- Extendable oak table with stainless steel support
- Extra storage under access stairs
- Equipment from Miele or equivalent high quality standards. Galley equipment includes: induction hobs, extractor, professional oven (90 cm), dishwasher, side by side American fridge and freezer, separate washing and drying machine, Wine cooler (around 35 bottles) if not present in saloon, LED courtesy lights, LED lights underneath the hanging cabinet, Direct LED lights on ceiling
Captain Cabin
- French bed with memory foam mattress, bedspread and n°1 pillow
- n°2 opening po1thole with mosquito nets
- Manual roman blind
- Storages underneath the bed
- Wardrobes with shelves and hanging bar
- Reading light
- Door
- Carpet
- LED courtesy lights
- Direct LED lights on ceilings
Captain bathroom
- Tecma WC
- Sink
- Corian cabinet top
- Storage above the sink with mirror
- Shower with stainless steel and glass door and teak floor
- Opening porthole with mosquito nets
- Anti slippery lacquered floor
- Door
- Extractor
- LED courtesy lights
- Direct LED lights on ceilings
Starboard side Crew Cabin
- Bunk bed with two memory foam mattresses, bedspreads and pillows
- Opening porthole with mosquito net
- Manual roman blind
- Locker with shelves and hanging bar
- Reading lights
- Door
- Carpet
- LED courtesy lights
- Direct LED lights on ceilings
Port side Crew Cabin
- Bunk bed with two memory foam mattresses, bedspreads and pillows
- Cabinet with shelves
- Reading lights
- Door
- Carpet
- LED courtesy lights
- Direct LED lights on ceilings
Crew bathroom
- Tecma WC
- Sink
- Corian cabinet top
- Mirror
- Extractor
- Anti-slippery lacquered floor
- Porthole
- LED courtesy lights
- Direct LED lights on ceilings
Crew Shower
- Teak floor
- Taps
- Stainless steel and glass door
- Direct LED spotlights on ceilings
- Porthole
Additional Custom Options
- Additional ice maker on main deck saloon
- Additional fridge on main deck saloon
- Professional air extraction fan for galley
- Additional teppanyaki grill on flybridge galley
- 6 x chairs on aft cockpit, 2 x teak director chairs and 3 x teak director stools, in lieu of 4 + 8 standard teak director chairs
- Hull and aft side deck painting (it does not include custom full yacht painting)
- Coffee Table for main deck saloon
- Set for 12 for Crockery, Cutlery and Glasses, plus a spare set for 6
- Paola Lenti free-standing sun lounges
Audio & Visual Equipment
- Satellite television system - KVH TV8 (including wiring for decoder for main deck saloon and owner's cabin + dummy dome, decoders excluded)
- 55” Edge Led full HD TV for main deck saloon (up/down lift system included) with Blue-Ray DVD players + Home Theatre System
- 49” Edge Led full HD TV (with Blue-Ray DVD players) + Home Theatre System
- 32” Edge Led full HD TV (with Blue-Ray DVD players) for VIP staterooms
- 28” Edge Led full HD TV (with Blue-Ray DVD players) for guest staterooms
- 22” Edge Led full HD TV (with Blue-Ray DVD players) for crew cabins
- 32” Edge Led full HD TV (with Blue-Ray DVD players) for crew dining area and galley
- 28” Edge Led full HD TV (with Blue-Ray DVD players) for captain cabin
- 55” Edge Led full HD TV (with Blue-Ray DVD players) for flybridge (up/down and rolation lift system included)
- Fusion Stereo on fly bridge
- Fusion Stereo for bow lounge area
- Upgrade to Audio systems and Home Theatra - Sonos System for interiors and exteriors
Helm / Navigation Electronics
- LCD displays (3 x 15") on main deck dashboard (including Radar/GPS Chartplotter with STO
- Raymarine GS-series keyboard)
- LCD displays (3 X 19") on main deck dashboard (including Radar/GPS Chartplotter with Raymarine keyboard)
- LCD display touch screen for monitoring system (main functions) on fly dashboard
- Radar Chartplotter GPS Raymarine AXIOM 12 (2 x 12" displays on flybridge dashboard)
- Upgrade Package 1Radar Chartplotter GPS Raymarine AXIOM 16 (2 x16" displays on flybridge dashboard)
- Raymarine Radar Antenna (Open Array 72 nm - super HD 48")
- AIS receiver and transceiver
- Raymarine Auto Pilot Evolution (main deck and flybridge dashboards)
- Raymarine Multifunctional Tridata display
- Furuno VHF DSC (main deck and flybridge dashboards)
- Engine digital displays
- Portable interphone system
- Videocamera (aft cockpit and engine room x 2)
- 4G router for wireless WAN connection
- Additional touchscreen in crew area or captain's cabin (monitoring system and alarms repeater)
Power and Drive Systems
- Engines2 x MTU 16V 2000 M86 (2.200 hp)
- Engine hours1465h hours both (September 2026)
- Generator hours2250 hours both (September 2026)
- GearboxZF 3060 V
- GearboxZF 3060 V
- Rudder and steering systemAISI 316 steel
- Power-assisted steering system on flybridge and main helm
- Third control station with bow and stern thruster joystick, reversing gear electronic levers (OPT)
- 4th control station with bow and stem thruster joystick and reversing gear electronic levers (OPT)
- Bow ThrusterProportional hydraulic thruster 57.5 hp with double control panels on main helm and flybridge
- Stem Thruster Proportional hydraulic thruster 57.5 hp (OPT) with double control panels on main helm and fly bridge (when installed)
- Flaps2 x Hydraulic flaps with double reversible actuator with control pads in main helm and flybridge
- StabilizersStabilizer fins CMC SE60 (OPT)
Mooring
- 2 x 114 kg PTW High Holding Power Anchors with 140 m chains each (14 mm diameter)
- OptionPolished stainless steel anchors
- 2 x 3 kW 400V AC electric anchor winches, with foredeck, main helm, and flybridge remote control and controls on floor to operate in the deck near the winch
- 2 x 2,2 kW 400 V AC aft mooring winches with UP push buttons in the cockpit area
- Side stainless steel protections for anchors
- Stainless steel cleats, positioned as followsn°2 in bow area, n°2 forward the Portuguese bridge, 11°4 in stem area, n°2 in the stem tails, n°2 on sideways for springs
- Bow and Stem stainless steel fairleads with rollers
Electrical Equipment
- General characteristics
- Voltage system as follows
- 24V DC with grounded negative for
- Emergency Bilge systems
- Centralized bilge system integrated with sea water fire extinguishing system
- Steering systems
- Navigation lights
- Monitoring system
- Navigation systems
- Emergency systems
- Internal/external lights
- Engine room lights
- Other small utilities
- 400V AC, three phases / 230V AC, single phase, 50Hz for
- Centralized bilge system integrated with sea water fire extinguishing system
- Air conditioning systems
- Galley appliances
- Engine room ventilation Mooring winches
- Battery chargers
- Electrical outlets
- Entertainment systems
- Other small utilities
- Electrical panels
- Main electrical control panels are installed in the
- control room
- in pilot house
- lower deck galley
- main deck saloon
- next to lower deck stairs to guests cabins
- Secondary electrical panels are installed in all the areas of the yacht.
- Wiring / Conduits
- Electrical wiring is housed in metal or self-extinguishing closed PVC conduits.
- Electrical wiring is developed with no flammable materials and with proper cross section related to use.
- Ground equipment (EU-USA)
- Ground system for all the water intakes, aluminum structures and steel components
- Ground system for all the AC equipment
- Lightning protection
- The ground system is connected to
- -Stem and under hull zincs
- -Porous copper plates under the hull
- 400V AC Power sources - Shore power
- One 400V AC, 125A shore inlet is placed on stem stairs. AC shore inlet is connected to main electrical panel in engine room.
- Each shoreline has a multi-meter, to control all the electrical parameters (Volt, Amp, Watt, Hertz).
- Power sources are protected by magneto/thermal breakers.
- Generators
- 2 x 45kW Kohler generators, 400V AC, 50Hz, 12V DC starter, with sound shield box and electronic control panel are located in the engine room, on the two sides. 2072/2072 hours
- AC power source is connected to the main electrical panel in the engine room.
- Power sources are protected by magneto/thermal switches.
- Generators has a multi-meter that control all the electrical parameters (Volt, Amp, Watt, Hertz).
- 400V/230 V AC distribution
- Double Bus (A,B) that spreads current to all the appliances is provided. Each appliance is protected by magneto/thermal breakers.
- 24V DC Power sources - batteries
- Group of 24V AGM batteries of 640Amp for services
- Group of 24V AGM batteries of 225Amp for port engine
- Group of 24V AGM batteries of 225Amp for starboard engine
- Group of 24V AGM batteries of 160Amp for port engines electronics
- Group of 24V AGM batteries of 160Amp for starboard engines electronics
- Group of 24V AGM batteries of 320 Amp for emergency systems
- 12V AGM battery of 160Amp for port generator
- 12V AGM battery of l 60Amp for starboard generator
- Group of 24V AGM battery of 160Amp for radio communication system
- Batterv chargers
- 2 x 24V 80 Amp battery charger for service batteries
- 2 x 24V 30 Amp battery charger for engine batteries
- 1 x 12V 35 Amp battery charger for generators
- 1 x 24V 30 Amp battery charger for emergency systems batteries
- 1 x 24V 30 Amp battery charger for radio communication system.
- 1 x 24V 80 Amp backup battery charger.
- Alternators
- 24V 140Amp engine portside alternator connected to engine batteries
- 24V 140Amp engine starboardside alternators connected to engine batteries
- Generator alternator is connected to the generator batteries
Light System
Engine Room
- Spot power LED lights 24V DC are installed to the ceiling of the engine room.
- Engine room lights are connected to service batteries and emergency batteries
Master, VIPs and Guests Cabins
- LED Spotlights in the ceiling
- Courtesy strip LED around the bed an under the furniture
- Lights control close to the entrance door and near the bed
Raised pilot house
- LED Spotlights in the ceiling
- Red power LED spotlights in the dashboard ceiling (night navigation lights)
- Lights control close to the entrance
Saloon
- LED Spotlights in the ceiling
- Dimmers to vary the brightness of light
- Lights control close to the entrance door
Galley
- LED Spotlights in the ceiling
- Courtesy light LED
Captain and Crew quarters
- LED Spotlights in the ceiling
- Courtesy LED under the bed
- Lights control close to the entrance door
Bathrooms
- LED Spotlights in the ceiling
- Courtesy LED spotlights around the furniture
- Lights and shower ventilation control close to the entrance door
Exteriors
- Power LED spotlights and strip power led in the aft cockpit ceiling
- Power LED spotlights in the side walking's ceiling
- Courtesy LED spotlights around the floor of the external deck and the floor of the flybridge
- Courtesy LED spotlights on the upper side of the fashion plates
- Courtesy LED spotlights in the T-Top ceiling
- Lights control close to the entrance door and in the monitoring system
- 4 x Megayachts underwater lights on yacht transom (OPT)
Electronics
- Dashboard & Navigation instrumentsHull
- N°I Raymarine DST800 Depth / Temperature transducer
Wheelhouse
- 3 x 15" touchscreen displays2x navigation parameters+ lx boat
- Option3x 19" touch control displays: 2x navigation parameters+ Ix boat monitoring
- 2x MTU/MAN displays for engines monitoring (including voltmeter, engine oil temperature, water temperature, engine revs, gearbox oil temperature, etc)
- 1 x Raymarine 170 displays
- 1 x Raymarine P70r autopilot control
- 1 x Raymarine keyboard
- 1 x Furuno DSC VHF
- Flaps indicators
- Magnetic compass
- Fire / gaz detection control units
Flybridge
- 2 x MTU/MAN displays for engines monitoring (including voltmeter, engine oil temperature, water temperature, engine revs, gearbox oil temperature, etc)
- 2x Raymarine GS125 12" display
- Option2x Rayrnarine GS165 15.4" display
- 1 x Raymarine 170 display
- 1 x Rayrnarine P70r autopilot control
- 1 x Raymarine keyboard
- 1 x Furuno VHF DSC
- Flaps indicator
- Magnetic compass
Radar Mast
- 1 x Raymarine wind transducer2 x GPS antenna
- 1 x Raymarine radar antenna open array 4 KW digital
- Monitoring system Wheelhouse dashboard display
- 3 x 15" touchscreen displays2x navigation parameters+ lx boat monitoring as anticipated in par.9 "Wheelhouse"
- External and engine room temperature indicators
- Alarms and manual controls for bilge system
- Fresh, Grey and Black water level indicators and alarms with discharge control systems
- Fuel level indicators and alarms with engines consumption indication, water in Racor filters indicator (option), fuel valve ON/OFF indicator
- Service battery indicators (Volt, Amp IN/OUT, Charge level)
- Engine batteries switch control and voltage indicator
- Generators batteries switch control, voltage indicator, Start/Stop control, fuel valve ON/OFF indicator, water in Racor filter indicator (option)
- Engine room ventilation alarms and control
- 400/230V AC Source selection page with Volt, Amp, Watt, frequency
- 400/230V AC main breaker status indicators
- 400/230V AC overload and load shedding system
- Navigation lights status (ON/OFF) and alarms indicators
- Fly dashboard acoustic alarm activation
- Fly dashboard optical alarm activation
Fly dashboard indicators
- Acoustic remote alarm
- Optical remote alarm
- Option1 x 12" touch screen displays for monitoring system ( main functions)
Emergency operation panels
- In Engine room
- Bilge pump alarm indicator and manual switch
- Black and grey water tanks discharge pumps control and alarm indicators
- In pilot house
- VHF power supply selection
Additional Equipment supplied as Standard
- Engine and generator oil change
- 5 x mooring ropes, 24 mm diameter x 20 m length
- 1 x mooring rope, 24 mm diameter x 25 m length
- 8 x F7 fenders, with MCY fender covers, 380 mm diameter x 1040 mm length2 x A4 fenders with MCY fender covers, 550 mm diameter x 710 mm length
- 10 fenders ropes, 10 mm diameter x 4m length
- Dishware, glassware and cutlery for 12 people
- Towel sets for bathrooms (2 per each bathroom), with MCY logo
- Owner's manual
Similar Yachts
Azimut Yachts · Grande 26 Metri
Taiga
The Azimut Grande 26M motor yacht features a rare extended specification, equipped with two complementary stabilization systems: a Seakeeper gyroscopic stabilizer and Humphree fin stabilizers. This exceptional combination delivers outstanding comfort both at…
- 2024
- 26.36 m
Sanlorenzo Yachts · SL96A
Gatsby
GATSBY is a 2021 Sanlorenzo SL96 Asymmetric, with exterior design by Bernardo Zuccon of Zuccon International Project and an interior by Marty Lowe Design. The asymmetric arrangement provides additional main-deck living space. GATSBY accommodates eight guests…
- 2021
- 29.26 m
Sunseeker · 95 Yacht
Everdeen
Everdeen is a 2018 Sunseeker 95 acquired by her second owner from new and brought to a standard that reflects exactly that. An owner who has not compromised on a single detail. A full refit addressed every space on board: the galley was completely refitted…
- 2018
- 28.06 m
Riva Yacht · 90 Argo
Beyond Beyond
BEYOND BEYOND, the Riva 90 Argo is a large volume yacht with features such as an on-deckowner’s suite, full-beam VIP, a large tender storage garage, and three distinct outdoor entertainment areas. Built on Riva’s proven hull design, she is an excellent…
- 2019
- 27.43 m
Johnson · Open Flybridge with Hydraulic Platform
JOHNSON 93 Open Bridge
- 2027
- 28.34 m
Ocean Alexander · 28R
Ocean Alexander 28R
Dock Dock Goose is an exceptionally well-maintained 2021 Ocean Alexander 28R that perfectly blends contemporary styling, luxury accommodations, and proven offshore performance. Powered by twin MAN V12 1900 HP diesel engines with approximately 1,250 hours, she…
- 2021
- 27.43 m
Princess Yachts · S78
Paragon
NEW ARRIVAL 2022 PRINCESS S78 !!! M/Y PARAGON This 2022 Princess S78 is a turn-key, exceptionally well-maintained yacht with all services and maintenance up to date. Powered by twin MAN V12 1900 HP diesel engines with 875 hours, she delivers the performance…
- 2022
- 24.66 m
Ferretti Yachts · 850
XFAF8532J021
4 Staterooms, 5 Heads plus Crew Luxury, power and style combine in a model with the dynamic, flowing lines to entrance the eye. Like a penthouse surrounded by the sea, this magnificent flybridge offers bright, airy accommodation elegantly furnished with…
- 2021
- 25.9 m
Pershing · Pershing 8 X
Silver Bullet
Pershing 8X (#16, 2022) - FULL OPTIONAL. Owner is motivated to sell. "Owner's version" with 3 spacious cabins & Second saloon on the lower deck. All the "teething problems" are solved, the yacht is turn-key ready for the season - just bring your swimsuits…
- 2022
- 25.3 m
Aegean Yacht · AEGEAN EXPLORER 26 M
Tortura
The AEGEAN EXPLORER 26M is a full displacement, steel-hulled explorer yacht with an aluminum superstructure, engineered for fuel efficiency and long-range cruising. She offers 187 GT of volume and accommodates up to 12 guests in 6 suites , including 3 master…
- 2024
- 26 m
Permare · AMER 94
Visionaria
Visionaria is a modern and elegant motor yacht with flybridge. The Lenght over all is close to 30 meters. Equipped with seakeeper stabilizers, hangar for dinghy, hydraulic platform and many other accessories. Sleeping area feauteres 4 comfortable guest cabins…
- 2016
- 28.85 m
Delta Carbon · Delta Carbon 88
Bise I
BISE 1, DELTA 88 Power boat. Pioneering design, unmatched hydrodynamic efficiency, luxury comforts and an impeccable craftsmanship enable the 88 to deliver the most memorable on-the-water experience. Her strong and light carbon fiber hull is paired with the…
- 2020
- 25.88 m
