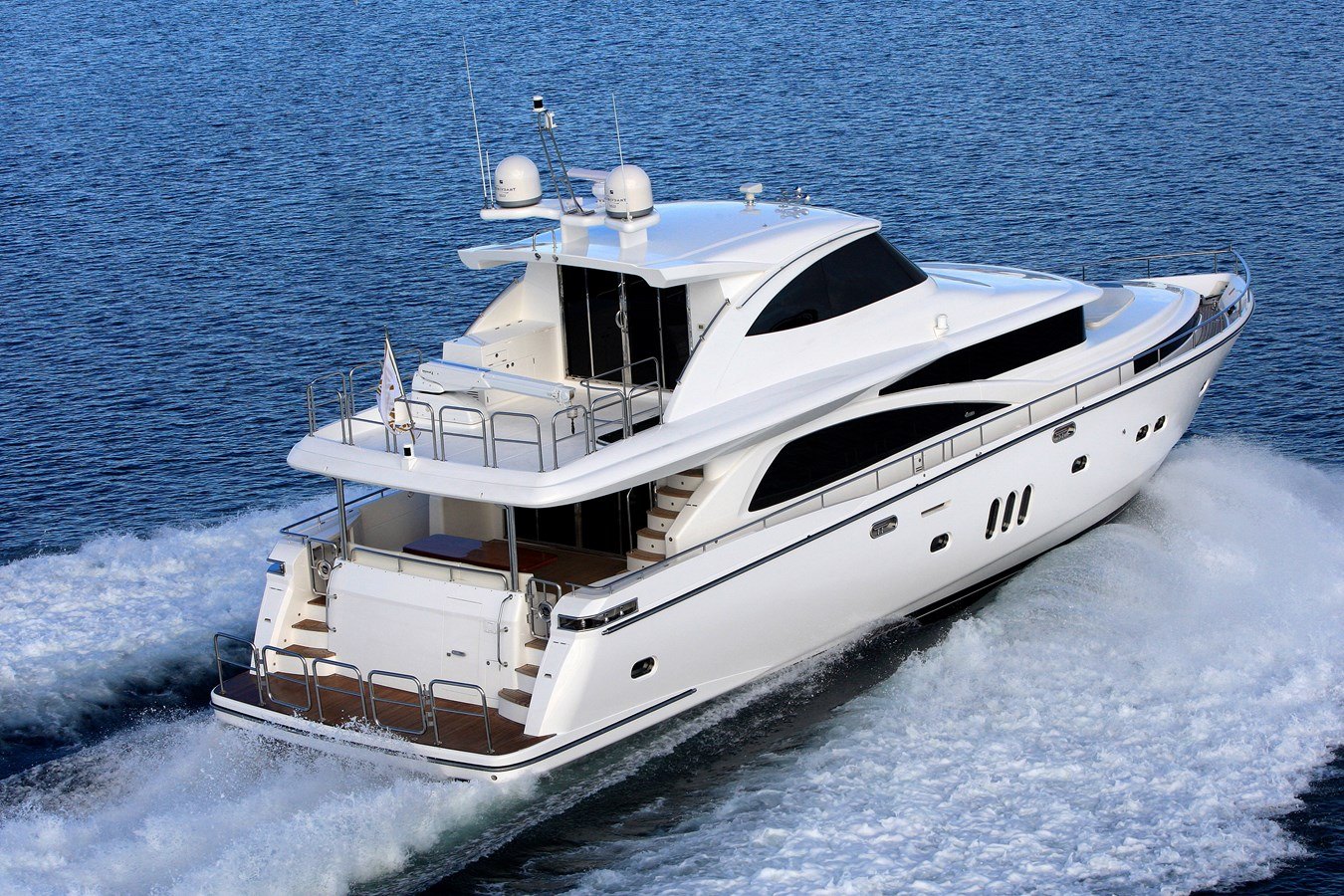

About Johnson 83' Skylounge W/Hydraulic Platform
I. Hull & Deck- Exterior General: 1. MAIN DECK-TEAK 14MM. 2. STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER. 3. 250 FEET GALVANIZED CHAIN (3/8”). 4. MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE). 5.…
- 25.29 mLength
- 2026Year
- 4Guest cabins8 guests
- 2 × MANEngines3,100 hp
- 25 knMax speed
- 6.32 mBeam
About Johnson 83' Skylounge W/Hydraulic Platform
I. Hull & Deck- Exterior General:
1. MAIN DECK-TEAK 14MM
2. STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER
3. 250 FEET GALVANIZED CHAIN (3/8”)
4. MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE)
5. STAINLESS STEEL 120 LB ANCHOR (SINGLE)
6. FRESH WATER ANCHOR CHAIN WASHDOWN PLUS OUTLET ON FOREDECK FOR HOSE ATTACHMENT
7. HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS IN ELLIPTICAL S/S
8. HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS WITH 2 EXTRA POP UP CLEATS ON AFT PLATFORM
9. BLACK TEMPERED SAFETY GLASS LAMINATED 5MM+ 5MM GLASS
10. STAINLESS STEEL SALOON PENUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS
11. PANTOGRAPH STYLE SIDE DOOR IN DECK HOUSE (PORT ONLY)
12. MANSHIP ELLIPTICAL STAINLESS STEEL PORT LIGHTS
13. S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT
14. STERN CAPSTAN MAXWELL VC1500 24V x 2
15. AFT DECK SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC AND REMOVABLE COVER

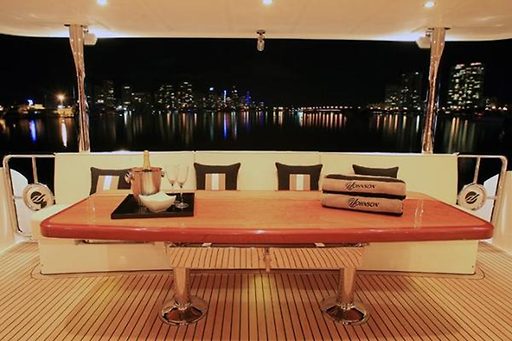

16. AFT DECK TABLE WITH PROTECTIVE COVER
17. LOW LEVEL LED COURTESY LIGHTS ON SIDE DECK
18. LOW LEVEL LED COURTESY LIGHTS ON AFT DECK
19. STAIRS TO FLYBRIDGE WITH TEAK LAID TREADS
20. LARGE TEAK INLAY SWIM PLATFORM WITH CURVED STAIRWAY TO AFT DECK
21. HOT & COLD SWIM SHOWER
22. S/S SWIM LADDER
23. LAZARETTE STORAGE FOR FENDERS
24. ONE SET OF ENGINE AND THRUSTER CONTROLS FITTED TO STBD OR PORT AFT COAMING
25. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/ 1873 LBS. LIFTING CAPACITY
Ii. Underwater Gear
1. 5 BLADE BRONZE PROPELLERS x 2
2. BRONZE P-BRACKETS x 2
3. S/S AQUATECH 22HS SHAFTS 3 ½" DIAMETER x 2
4. SHAFT SEAL AND SHAFT LOGS TIDES MARINE SHAFT LIP SEAL GLANDS 3 ½" x 5 ½" AND DURAMAX MARINE CUTLASS BEARINGS
5. HIGH PERFORMANCE S/S RUDDERS USING AQUATECH 22 STAINLESS STEEL STOCKS WITH TIDES MARINE SHAFT LIP SEAL GLANDS AND BRONZE BEARING
6. ANTI-FOULING BOTTOM PAINT
SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE
3445 BLACK OR 3430 DARK BLUE
7. BOOT TOP STRIPE SIZE 3” COLOR: BLACK, BLUE OR RED
8. FULL CATHODIC BONDING SYSTEM TO ZINC ANODES
9. SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONER
10. SEACOCKS ON ALL UNDERWATER FITTINGS
11. HYDRAULIC BOW THRUSTER
12. HYDRAULIC STERN THRUSTER
13. "AT REST" STABILIZERS
14. UNDERWATER EXHAUST SYSTEM WITH MUFFLERS AND BYPASS
15. HYDRAULIC STEERING BY HYNAUTIC MODEL PSHC5803 WITH POWER STEERING

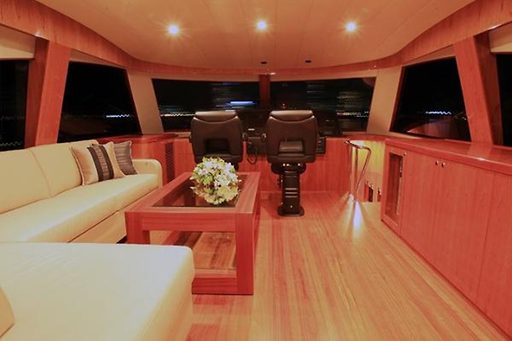

Iii. Skylounge
1. TEAK FLOOR WITH 14 MM TEAK AND HOLLY WITH MATT FINISH
2. INSTRUMENT CONSOLE UPHOLSTERED WITH LEATHER
3. ACCESS HATCH AND STAIRS TO SALOON IN S/S WITH TEAK TREADS
4. HIGH QUALITY BUILT IN LEATHER COUCH & SMALLER COFFEE TABLE
5. ICE MAKER & REFRIGERATOR COMBO UNIT
6. HYDRAULIC STEERING HYNAUTIC PSHC5803
7. ENGINE CONTROL AND INSTRUMENTATION
8. MAGNETIC COMPASS
9. WIPERS EXALTO MODEL 250BS 24 V 950 MM ARM LENGTH WIPERS x 2
10. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
I. GARMIN
GPSMAP® 8617 17" FULLY-INTEGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x1
II. RAYMARINE
RAYMARINE GS15,4" GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400
ACTUATOR CONTROL UNIT x 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1
11. STABILIZER CONTROL AND MONITORING DISPLAY
12. BOW & STERN THRUSTER CONTROL PANEL
13. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE
ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH
14. RUDDER INDICATOR
15. FUEL GAUGE HEADHUNTER TS-3000 SERIES
16. SEARCH LIGHT PAR 60010-2024 WITH JOYSTICK CONTROL
17. FUSION STEREO SYSTEM
MS-AV700I DVD / RECEIVER–WITH FUSION LINK
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
18. POP UP TV CABIN W/ 32" LCD TV
19. APPLE TV
20. LOW LEVEL LED COURTESY LIGHTS LED 24V
21. LIGHTS UNDER RADAR ARCH LED 24V
22. S/S GRAB RAIL AROUND BAR UNIT
23. LED INDIRECT LIGHTING UNDER WET BAR AND SEATING
24. S/S STEERING WHEEL
25. BUELL AIR HORN
26. LEBROC LX DOUBLE WIDE TWO SEATER HELM SEAT
27. STARBOARD SETTEE TO PULL OUT WITH CUSHION INSERT TO CONVERT TO A SKIPPERS BERTH
Iv. Engine Propulsion & Engine Room Equipment
1. MAN D2842 LE433 1550HP/2300RPM ENGINE x 2
ZF TRANSMISSION ZF2050A, 2.029:1 RATIO x 2
2. ONE DUAL RACOR FILTER FOR EACH ENGINE x 1
3. GENERATOR RACOR FILTER FOR EACH GENSET
4. VAN CAPPELLEN DESIGN DOUBLE SOUND & HEAT INSULATED MATERIAL WITH FOAM & LEAD COMBINATION THRUOUGHOUT ENGINE ROOM
5. WELL PLANNED, SPACIOUS E/R WITH WHITE PAINTED FINISH AND GREY NON-SKID RUBBER FLOORING
6. FUEL TANKS WITH ELECTRIC SENDING UNITS - HEADHUNTER TS-3000 SERIES
7. AUTOMATIC FIRE EXTINGUISHER - SEAFIRE FM-200
8. EXTRACTOR FANS - DELTA “T” SYSTEM WITH AUTOMATIC VENT CLOSURE IF FIRE
9. E/R AC FLOURESCENT LIGHTS & DC LED DOME LIGHTS
10. MANUAL BILGE PUMP WITH PICKUP AT LOWEST POINT WHEN VESSEL IS AT REST
11. HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
HEADHUNTER MARCH 5 M5-115 AC PUMP
GROCO PSR 4000004-24 24V DC PUMP
12. CHILLED WATER AIR CONDITIONING
CRUISAIR AIR CONDITIONING 96,000 BTU
13. WATER MAKER
AQUA WHISPER DX 450 450GPD x 2
14. OIL CHANGING PUMP FOR ENGINES, GENERATORS AND TRANSMISSIONS
15. GENERATOR 1 * ONAN QD MDKBU 29 KW 60HZ
GENERATOR 2 * ONAN QD MDKBU 29 KW 60HZ (OPTION)
16. WATER HEATERS - TORRID 20 GALLONS x 2
17. EMERGENCY TILLER
18. HYDRAULIC PUMP ON EACH ENGINE FOR THRUSTERS,STABILIZERS AND STEERING
19. CENTRAL VACUUM CLEANER (NUTONE CV352 110V/220V SYSTEM)
V. Electrical
1. 110V/220 AC ELECTRICAL SYSTEM
2. DC 24V SYSTEM
3. 75’ GLENDINNING CABLE MASTER - 50 AMP x 2 SETS
4. BATTERY CHARGER FOR 24V CIRCUIT
5. BATTERY CHARGER FOR 12V CIRCUIT
6. ALTERNATOR SPLIT CHARGING SYSTEM LINKED CHARGING THE HOUSE BANKS WITH BEP HIGH CHARGE REGULATORS FITTED
7. 4 x 255AMP/HR 12v GELL CELL SEALED BATTERIES FOR SHIP SERVICE
8. 225AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4
9. 210AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1
10. AC SOCKETS THROUGHOUT THE BOAT
11. GFI PROTECTION FOR AC REQUIRED SOCKETS
12. BEP BATTERY SELECT SWITCH
13. MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS WITH 4 PANELS (E/R, HELM, A/C AND DC) WITH AUTOMATIC BACKLIGHTING WHEN DOOR OPENS
14. ANTI-ELECTROLOSIS BONDING SYSTEM
15. AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50AMP x 2
16. GENERATORS: (2) Onan QD MKKDS 29kW
Vi. Plumbing System
1. 100 GALLON BLACKWATER HOLDING TANK WITH MACERATOR PUMP
2. “Y” VALVE FOR HOLDING TANK OVERBOARD PUMP OUT
3. HOLDING TANK LEVEL INDICATOR HEADHUNTER
4. SUMP PUMP FOR SHOWER
5. MARINE GRADE LINES FOR FRESH WATER SYSTEM
6. S/S WATER TANK WITH SENDING UNIT - 350 GALLONS
7. SIGHT GAUGES FOR FUEL AND WATER TANKS
8. DOCKSIDE FRESH WATER INLET
9. COLOR CODED PIPING FOR EASY IDENTIFICATION
10. BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS
11. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER
OF THRU-HULL FITTINGS
12. FRESH WATER SEALAND VACUUM TOILET SYSTEM
13. HIGH WATER BILGE ALARM IN ENGINE ROOM, FORWARD BILGE AND LAZARETTE COMPARTMENTS x 6 WITH MIMIC PANEL AT HELM
14. BILGE PUMP x 6 RULE 3700 GPH PUMPS WITH FLOAT SWITCHES WITH HIGH
WATER ALARMS
Vii. Interior Finish
1. INTERIOR JOINERY IN MAHOGANY OR CHERRY, BURR WOOD AND IVORY LACQUER WITH A CHOICE OF UPHOLSTERY FABRICS

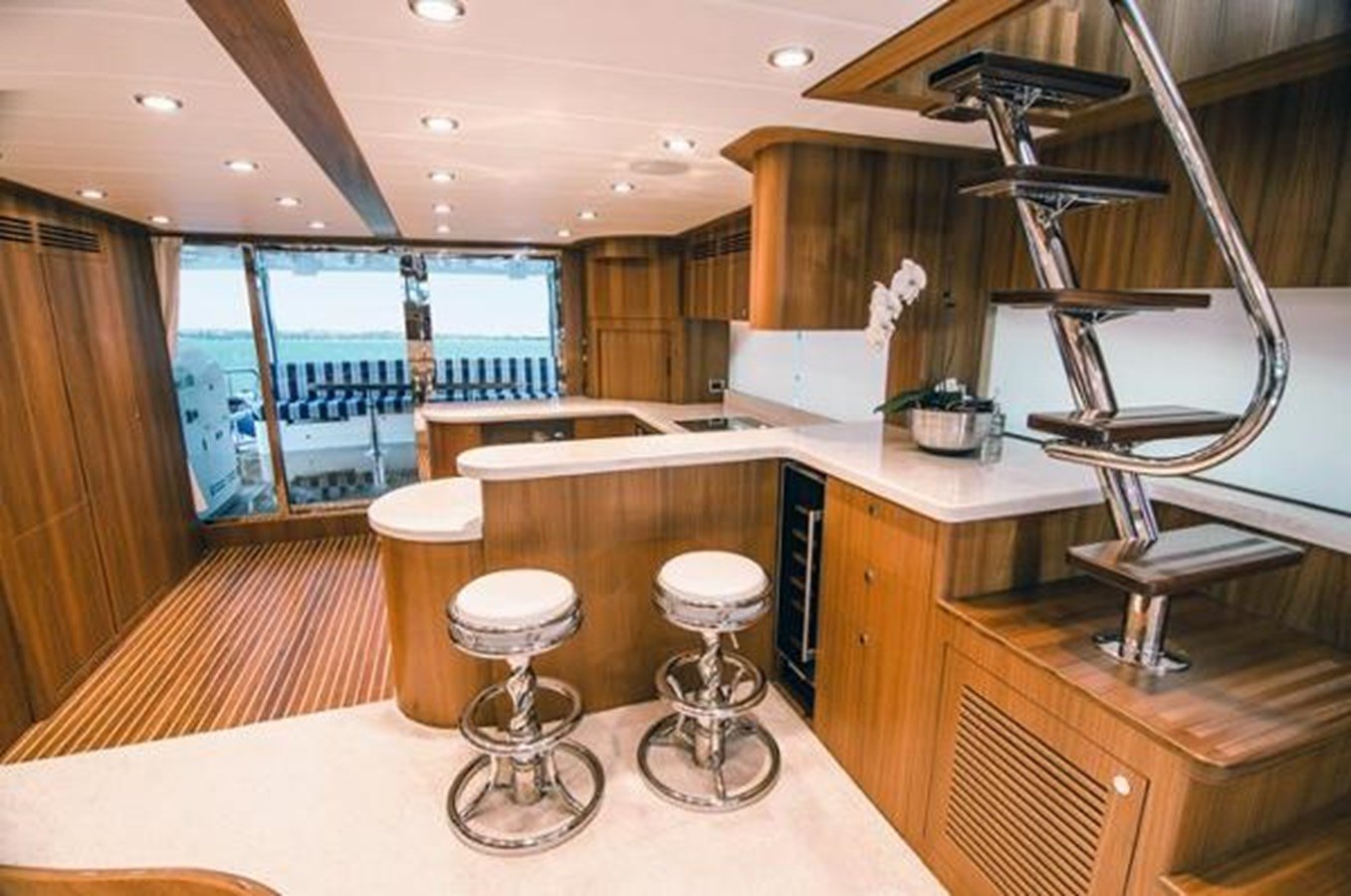

Viii. Galley
1. ELECTRIC REFRIGERATOR/FREEZER- G.E. LATEST MODEL
2. COOKTOP - G.E. LATEST MODEL
3. OVEN - G.E. LATEST MODEL
4. MICROWAVE W/EXTRACTOR FAN - G.E. LATEST MODEL
5. S/S SINK
6. HOT AND COLD WATER
7. TRASH COMPACTOR - G.E. LATEST MODEL
8. DISHWASHER - G.E. LATEST MODEL
9. DOUBLE AC SOCKETS x 2
10. CUPBOARD,DRAWERS AND STOWAGE
11. TEAK FLOOR OR MARBLE FLOOR
12. OVERHEAD STORAGE ABOVE GALLEY BENCH

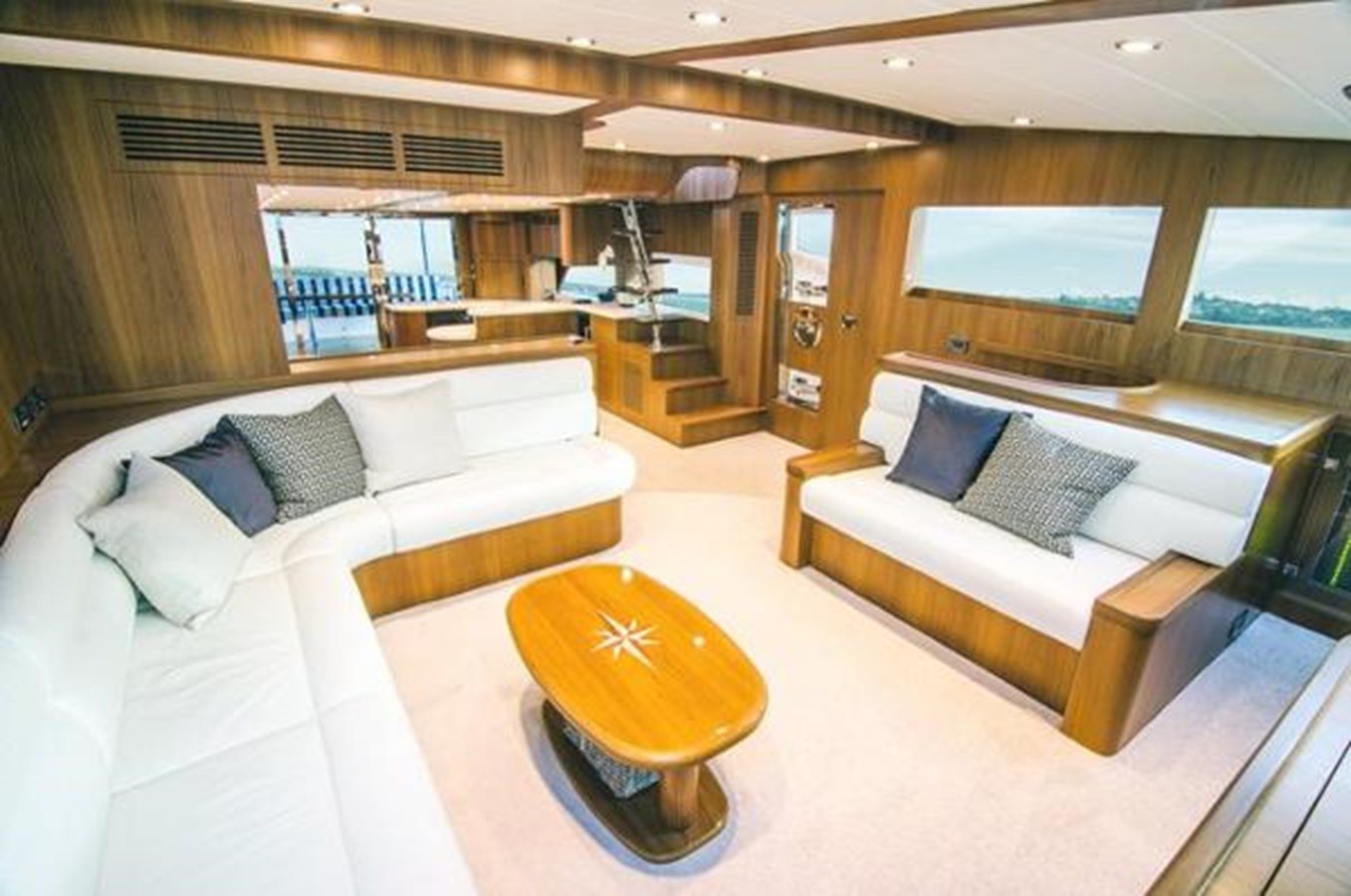

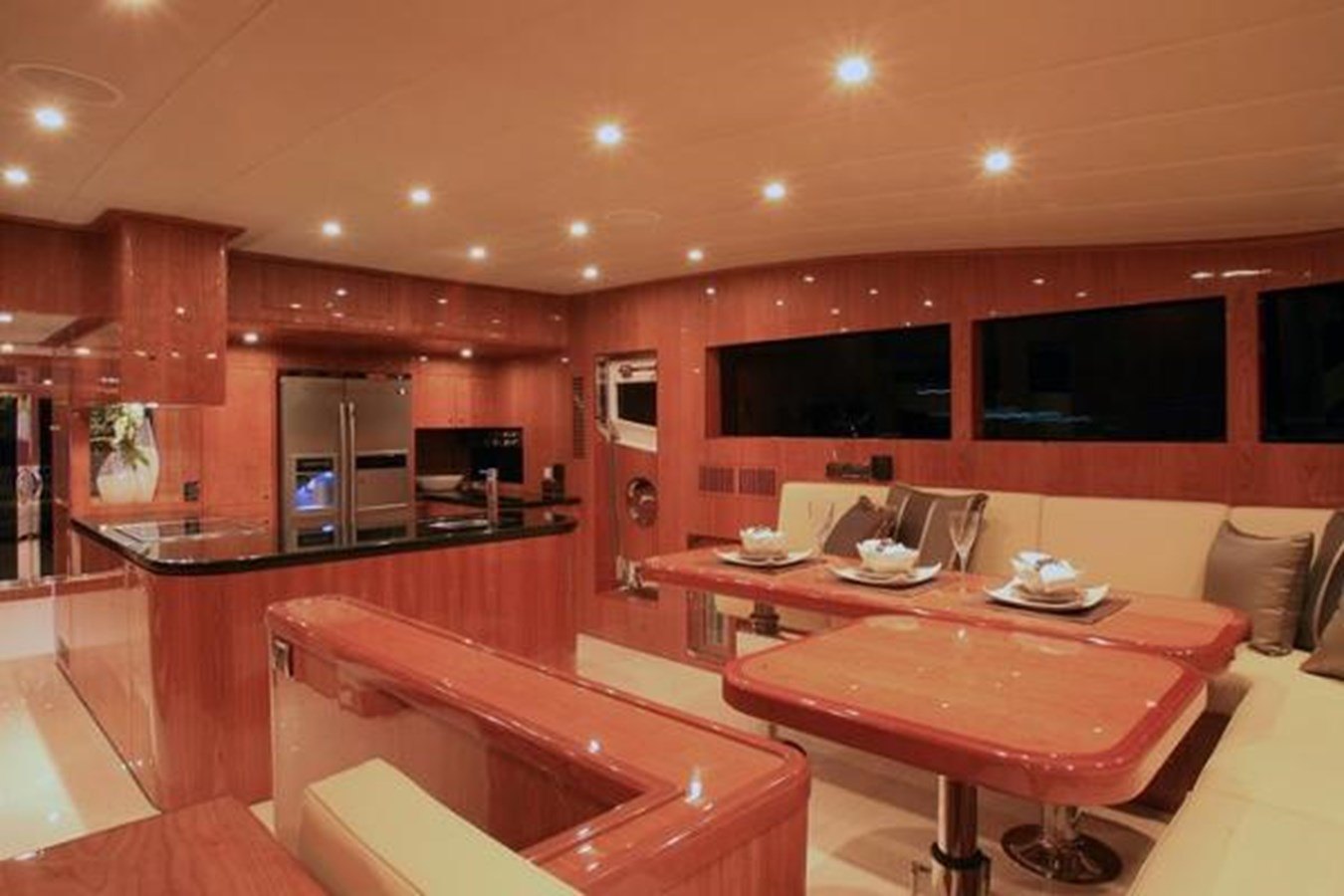

Ix. Saloon
1. DINING AREA IN UPPER SALOON
2. PNEUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND
SAFETY SENSOR DEVICE
3. 42" LCD TV
4. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM
5. PIONEER BDP-160 BLU-RAY DISC PLAYER
6. APPLE TV
7. HIGH QUALITY LEATHER COUCH IN LOWER SALOON BUILT IN
CURVED SEATING
8. MAIN CONTROL PANEL AC/DC
9. LOW LEVEL LIGHTS 24V LED
10. CEILING LED LIGHTING 24V LED
11. COFFEE TABLE

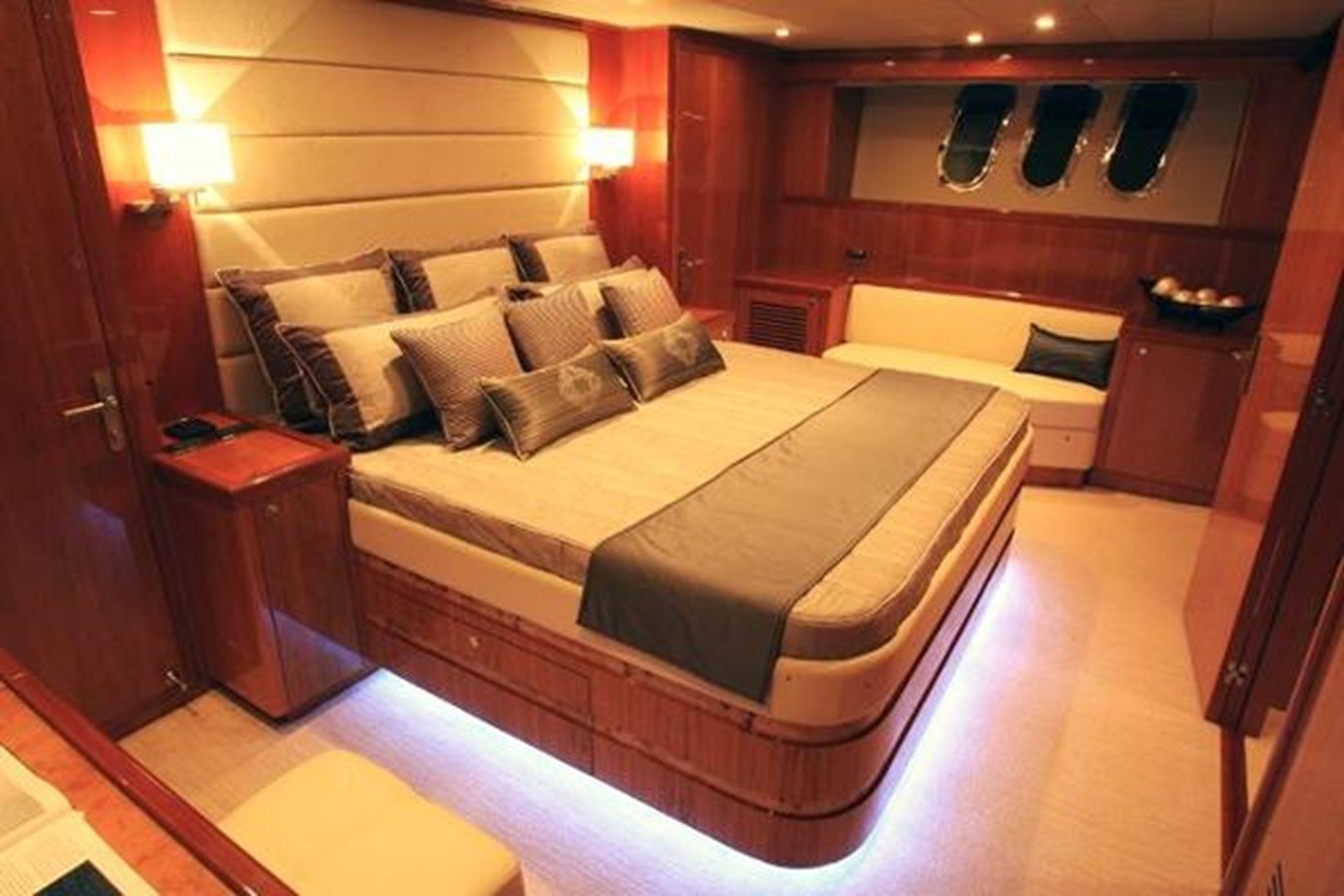

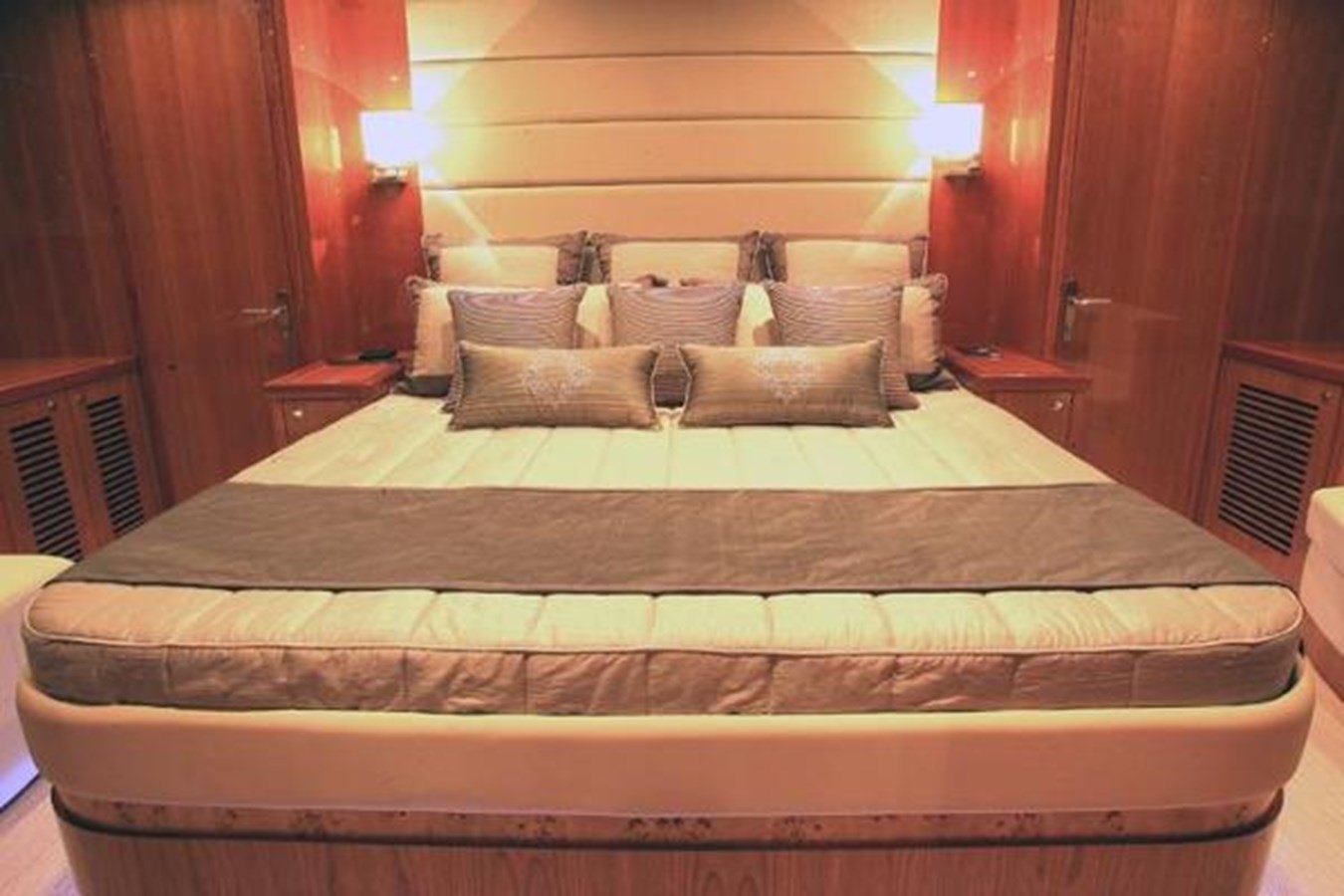

X. Master Stateroom
1. KING SIZE BERTH
2. STORAGE BENEATH BERTH
3. DRAWERS IN BASE OF BERTH
4. VANITY
5. COUCH
6. WALK-IN CLOSET FINISHED IN CEDAR WOOD
7. LED CEILING LIGHTING 24V
8. READING LIGHTS 24V x 2
9. LARGE SIDE WINDOWS 3 x MANSHIP S/S W/ 2 FIXED AND ONE OPENING
10. 42" LCD TV
11. FUSION MS-205 RECEIVER/MEDIA PLAYER WITH FULL IPOD/IPHONE CONTROL
MS-CL602 6 ” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
12. PIONEER BDP-160 BLU-RAY DISC PLAYER
13. APPLE TV
Xi. Master En Suite Shower Room
1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
2. WASH BASIN WITH MABLE COUNTERTOP
3. HOT & COLD WATER
4. FAUCET AND FITTINGS
5. MIRROR AND MIRROR CEILING
6. LACQUER FINISH ABOVE BASIN COUNTERTOP
7. VENEER FINISH BELOW BASIN COUNTERTOP
8. EXTRACTOR FAN
9. AC DOUBLE SOCKET WITH GFI
10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS
11. LED CEILING LIGHTS 24V
13. MARBLE FLOOR
Xii. Forward (Vip) Stateroom
1. DOUBLE BERTH
2. STORAGE BENEATH BERTH
3. DRAWERS IN BASE OF BERTH
4. WALK-IN CLOSET FINISHED IN CEDAR WOOD
5. DRESSING TABLE W/STOOL
6. READING LIGHTS 24V x 2
7. LED CEILING LIGHTS 24V
8. AC DOUBLE SOCKETS
9. 32" LCD TV
10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
11. APPLE TV
Xiii. Forward (Vip) En Suite Shower Room
1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
2. WASH BASIN WITH MABLE COUNTERTOP
3. HOT & COLD WATER
4. FAUCET AND FITTINGS
5. MIRROR AND MIRROR CEILING
6. LACQUER FINISH ABOVE BASIN COUNTERTOP
7. VENEER FINISH BELOW BASIN COUNTERTOP
8. EXTRACTOR FAN
9. AC DOUBLE SOCKET WITH GFI
10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS
11. LED CEILING LIGHTS 24V
12. MARBLE FLOOR

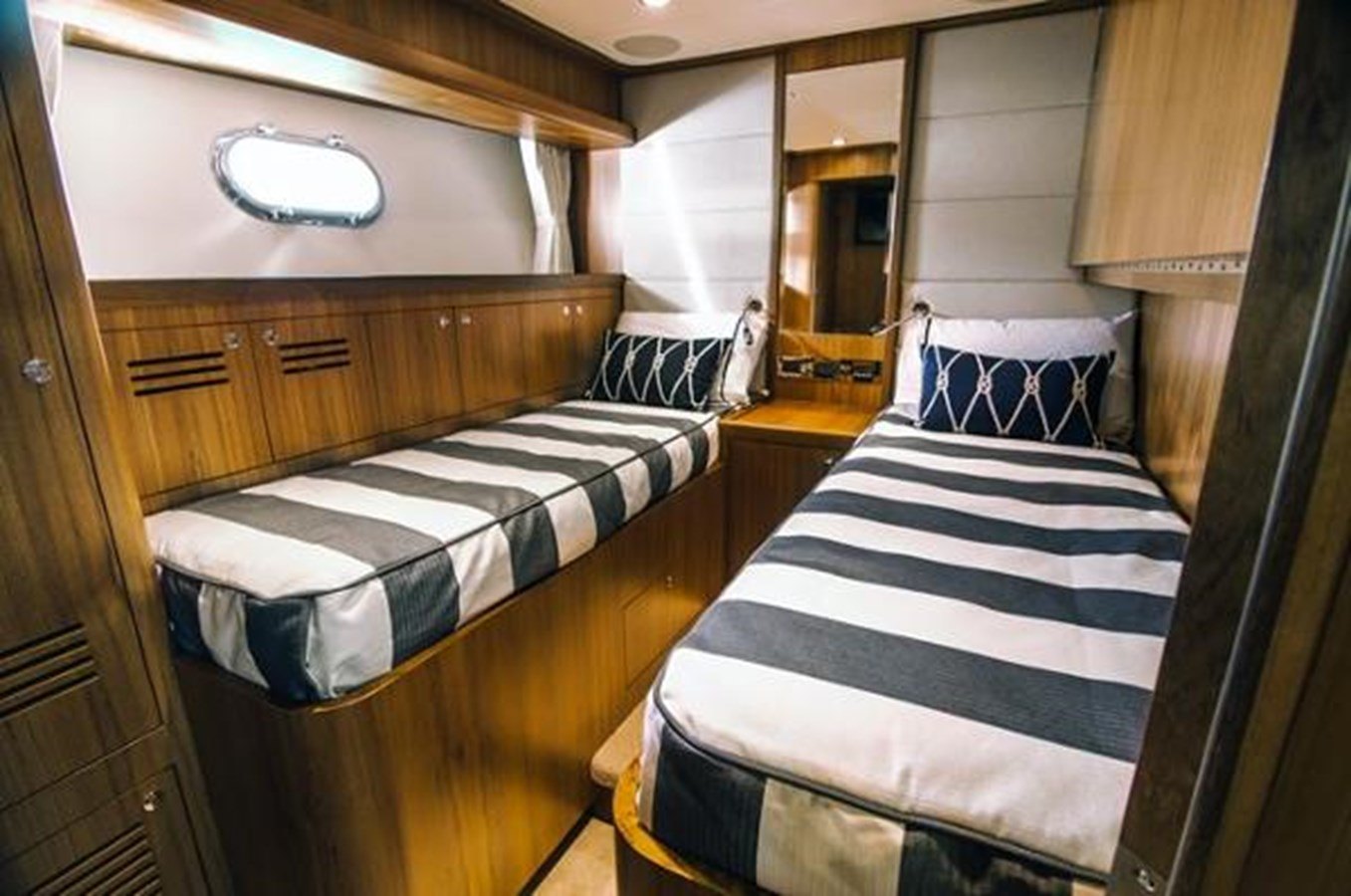

Xiv. Port Guest Cabin
1. TWO SINGLE BERTHS
2. UNDER BERTH STORAGE
3. READING LIGHTS 24V x 2
4. LED CEILING LIGHTS 24V x 2
5. HANGING LOCKER
6. PULLMAN BERTH
7. 32" LCD TV
8. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
9. APPLE TV
Xv. Port Toilet/Shower Room
1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
2. WASH BASIN WITH MABLE COUNTERTOP
3. HOT & COLD WATER
4. FAUCET AND FITTINGS
5. MIRROR AND MIRROR CEILING
6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS
7. AC DOUBLE SOCKET WITH GFI
8. LACQUER FINISH ABOVE BASIN COUNTERTOP
9. VENEER FINISH BELOW BASIN COUNTERTOP
10. EXTRACTOR FAN
11. LED CEILING LIGHTS
12. MARBLE FLOOR

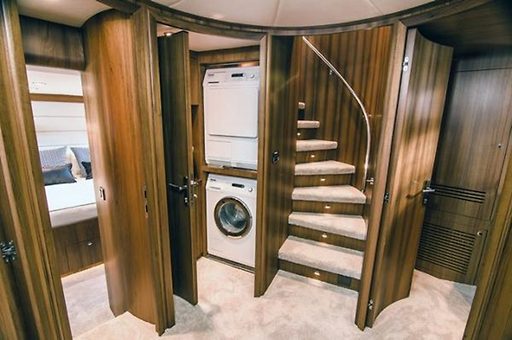

13. FULL HEIGHT WASHER/DRYER - G.E. LATEST MODEL

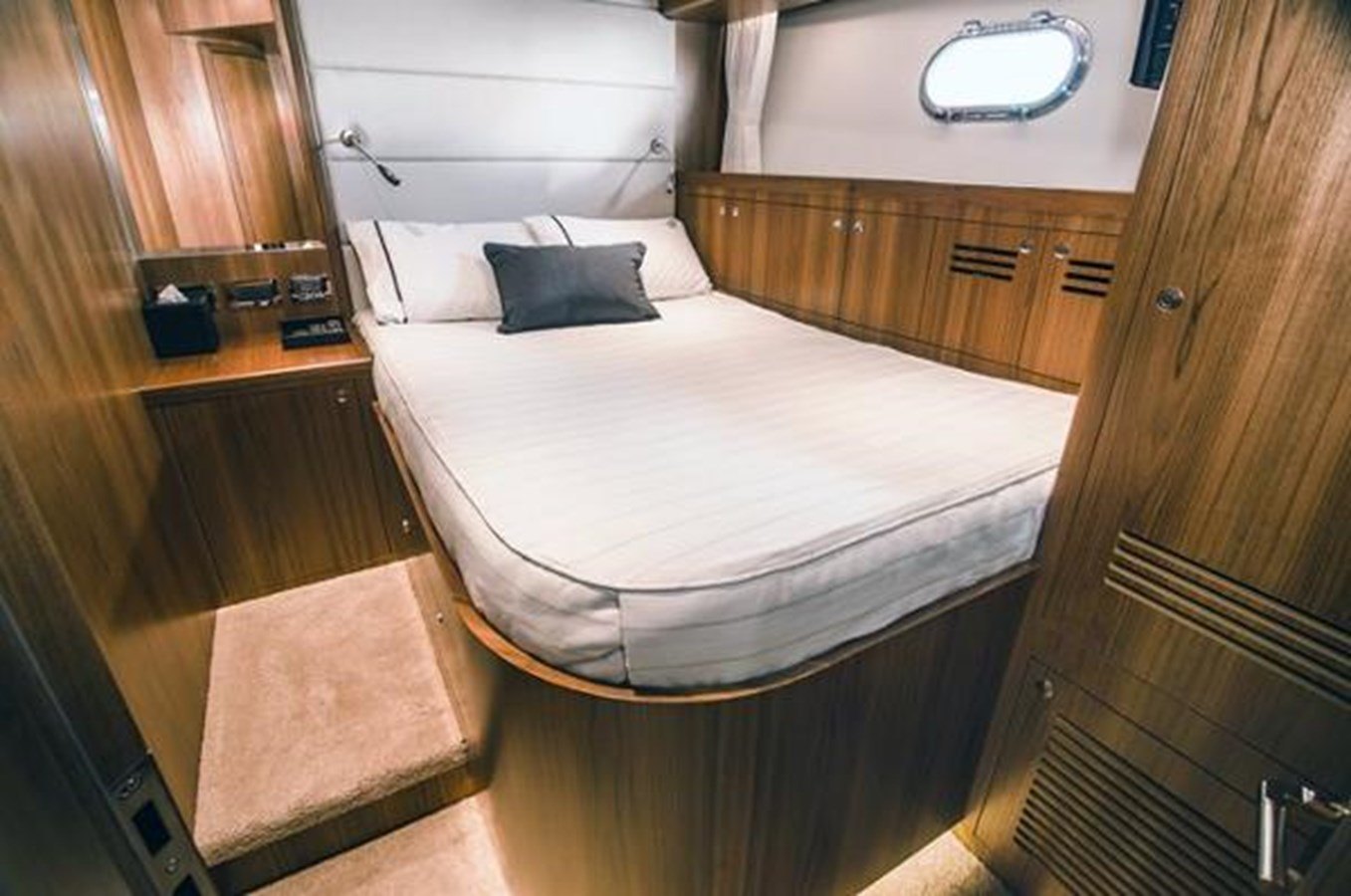

Xvi. Starboard Guest Cabin
1. DOUBLE BERTH
2. UNDER BERTH STORAGE
3. READING LIGHTS 24V x 2
4. LED CEILING LIGHTS 24V x 2
5. HANGING LOCKER
6. 32" LCD TV
7. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
8. APPLE TV
Xvii. Starboard Toilet/Shower Room
1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
2. WASH BASIN WITH MABLE COUNTERTOP
3. HOT & COLD WATER
4. FAUCET AND FITTINGS
5. MIRROR AND MIRROR CEILING
6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS
7. AC DOUBLE SOCKET WITH GFI
8. LACQUER FINISH ABOVE BASIN COUNTERTOP
9. VENEER FINISH BELOW BASIN COUNTERTOP
10. EXTRACTOR FAN
11. LED CEILING LIGHTS 24V
12. MARBLE FLOOR
Xviii. Crew Quarters
1. ENTRANCE DOOR FROM TRANSOM
2. TWO SINGLE BERTHS
3. READING LIGHTS 24V x 2
4. LED CEILING LIGHTS
5. AC DOUBLE SOCKET
6. HANGING LOCKER
7. HOT & COLD TO WASH BASIN AND SHOWER WITH MARBLE COUNTERTOP AND FLOOR
8. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
9. 24" LCD TV
10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6 ” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
11. APPLE TV
Xix. Remarks
Please note, this is an unbuilt new construction project which has not yet been started.
Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete! Completion time is approximately 9-12 months depending on other yard projects.
OPTIONS UPON REQUEST
ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
***Price is FOB Taiwan. Neither duty nor tariffs are included in the price.*
Specifications
Dimensions
- Length
- 25.29 m
- Beam
- 6.32 m
- Draught
- 1.85 m
- Gross tonnage
- 63
Accommodation
- Guests
- 8
- Guest cabins
- 4
Build
- Model
- Skylounge with Hydraulic Platform
- Year
- 2026
- Hull
- Mono Hull
- Hull material
- grp
Performance
- Engines
- 2 × MAN D2842 LE433
- Total power
- 2,311.6 kW · 3,100 hp
- Max speed
- 25 kn
- Fuel capacity
- 6,056.66 l
- Water capacity
- 1,324.89 l
Design & history
- Naval architect
- Dixon Yacht Design
- Exterior design
- Dixon Yacht Design
- Interior design
- Johnson Yachts
More about Johnson 83' Skylounge W/Hydraulic Platform
I. Hull & Deck- Exterior General
- 1. MAIN DECK-TEAK 14MM
- 2. STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER
- 3. 250 FEET GALVANIZED CHAIN (3/8”)
- 4. MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE)
- 5. STAINLESS STEEL 120 LB ANCHOR (SINGLE)
- 6. FRESH WATER ANCHOR CHAIN WASHDOWN PLUS OUTLET ON FOREDECK FOR HOSE ATTACHMENT
- 7. HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS IN ELLIPTICAL S/S
- 8. HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS WITH 2 EXTRA POP UP CLEATS ON AFT PLATFORM
- 9. BLACK TEMPERED SAFETY GLASS LAMINATED 5MM+ 5MM GLASS
- 10. STAINLESS STEEL SALOON PENUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS
- 11. PANTOGRAPH STYLE SIDE DOOR IN DECK HOUSE (PORT ONLY)
- 12. MANSHIP ELLIPTICAL STAINLESS STEEL PORT LIGHTS
- 13. S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT
- 14. STERN CAPSTAN MAXWELL VC1500 24V x 2
- 15. AFT DECK SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC AND REMOVABLE COVER
- 16. AFT DECK TABLE WITH PROTECTIVE COVER
- 17. LOW LEVEL LED COURTESY LIGHTS ON SIDE DECK
- 18. LOW LEVEL LED COURTESY LIGHTS ON AFT DECK
- 19. STAIRS TO FLYBRIDGE WITH TEAK LAID TREADS
- 20. LARGE TEAK INLAY SWIM PLATFORM WITH CURVED STAIRWAY TO AFT DECK
- 21. HOT & COLD SWIM SHOWER
- 22. S/S SWIM LADDER
- 23. LAZARETTE STORAGE FOR FENDERS
- 24. ONE SET OF ENGINE AND THRUSTER CONTROLS FITTED TO STBD OR PORT AFT COAMING
- 25. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/ 1873 LBS. LIFTING CAPACITY
Ii. Underwater Gear
- 1. 5 BLADE BRONZE PROPELLERS x 2
- 2. BRONZE P-BRACKETS x 2
- 3. S/S AQUATECH 22HS SHAFTS 3 ½" DIAMETER x 2
- 4. SHAFT SEAL AND SHAFT LOGS TIDES MARINE SHAFT LIP SEAL GLANDS 3 ½" x 5 ½" AND DURAMAX MARINE CUTLASS BEARINGS
- 5. HIGH PERFORMANCE S/S RUDDERS USING AQUATECH 22 STAINLESS STEEL STOCKS WITH TIDES MARINE SHAFT LIP SEAL GLANDS AND BRONZE BEARING
- 6. ANTI-FOULING BOTTOM PAINT
- SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
- SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE
- 3445 BLACK OR 3430 DARK BLUE
- 7. BOOT TOP STRIPE SIZE 3” COLORBLACK, BLUE OR RED
- 8. FULL CATHODIC BONDING SYSTEM TO ZINC ANODES
- 9. SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONER
- 10. SEACOCKS ON ALL UNDERWATER FITTINGS
- 11. HYDRAULIC BOW THRUSTER
- 12. HYDRAULIC STERN THRUSTER
- 13. "AT REST" STABILIZERS
- 14. UNDERWATER EXHAUST SYSTEM WITH MUFFLERS AND BYPASS
- 15. HYDRAULIC STEERING BY HYNAUTIC MODEL PSHC5803 WITH POWER STEERING
Iii. Skylounge
- 1. TEAK FLOOR WITH 14 MM TEAK AND HOLLY WITH MATT FINISH
- 2. INSTRUMENT CONSOLE UPHOLSTERED WITH LEATHER
- 3. ACCESS HATCH AND STAIRS TO SALOON IN S/S WITH TEAK TREADS
- 4. HIGH QUALITY BUILT IN LEATHER COUCH & SMALLER COFFEE TABLE
- 5. ICE MAKER & REFRIGERATOR COMBO UNIT
- 6. HYDRAULIC STEERING HYNAUTIC PSHC5803
- 7. ENGINE CONTROL AND INSTRUMENTATION
- 8. MAGNETIC COMPASS
- 9. WIPERS EXALTO MODEL 250BS 24 V 950 MM ARM LENGTH WIPERS x 2
- 10. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
- I. GARMIN
- GPSMAP® 8617 17" FULLY-INTEGRATED MULTI-TOUCH MFD x 2
- GMI 20 MARINE INSTRUMENT DISPLAY x 1
- GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
- GARMIN VHF 210 MARINE RADIO x 1
- GARMIN AIS 600 CLASS B TRANSCEIVER x 1
- GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
- GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x1
- II. RAYMARINE
- RAYMARINE GS15,4" GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
- RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
- RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
- RAYMARINE RAY218E VHF RADIO x 1
- RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
- RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400
- ACTUATOR CONTROL UNIT x 1
- RAYMARINE CP100 DOWNVISION FISHFINDER x 1
- 11. STABILIZER CONTROL AND MONITORING DISPLAY
- 12. BOW & STERN THRUSTER CONTROL PANEL
- 13. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE
- ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH
- 14. RUDDER INDICATOR
- 15. FUEL GAUGE HEADHUNTER TS-3000 SERIES
- 16. SEARCH LIGHT PAR 60010-2024 WITH JOYSTICK CONTROL
- 17. FUSION STEREO SYSTEM
- MS-AV700I DVD / RECEIVER–WITH FUSION LINK
- MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
- MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- 18. POP UP TV CABIN W/ 32" LCD TV
- 19. APPLE TV
- 20. LOW LEVEL LED COURTESY LIGHTS LED 24V
- 21. LIGHTS UNDER RADAR ARCH LED 24V
- 22. S/S GRAB RAIL AROUND BAR UNIT
- 23. LED INDIRECT LIGHTING UNDER WET BAR AND SEATING
- 24. S/S STEERING WHEEL
- 25. BUELL AIR HORN
- 26. LEBROC LX DOUBLE WIDE TWO SEATER HELM SEAT
- 27. STARBOARD SETTEE TO PULL OUT WITH CUSHION INSERT TO CONVERT TO A SKIPPERS BERTH
Iv. Engine Propulsion & Engine Room Equipment
- 1. MAN D2842 LE433 1550HP/2300RPM ENGINE x 2
- ZF TRANSMISSION ZF2050A, 2.029:1 RATIO x 2
- 2. ONE DUAL RACOR FILTER FOR EACH ENGINE x 1
- 3. GENERATOR RACOR FILTER FOR EACH GENSET
- 4. VAN CAPPELLEN DESIGN DOUBLE SOUND & HEAT INSULATED MATERIAL WITH FOAM & LEAD COMBINATION THRUOUGHOUT ENGINE ROOM
- 5. WELL PLANNED, SPACIOUS E/R WITH WHITE PAINTED FINISH AND GREY NON-SKID RUBBER FLOORING
- 6. FUEL TANKS WITH ELECTRIC SENDING UNITS - HEADHUNTER TS-3000 SERIES
- 7. AUTOMATIC FIRE EXTINGUISHER - SEAFIRE FM-200
- 8. EXTRACTOR FANS - DELTA “T” SYSTEM WITH AUTOMATIC VENT CLOSURE IF FIRE
- 9. E/R AC FLOURESCENT LIGHTS & DC LED DOME LIGHTS
- 10. MANUAL BILGE PUMP WITH PICKUP AT LOWEST POINT WHEN VESSEL IS AT REST
- 11. HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
- HEADHUNTER MARCH 5 M5-115 AC PUMP
- GROCO PSR 4000004-24 24V DC PUMP
- 12. CHILLED WATER AIR CONDITIONING
- CRUISAIR AIR CONDITIONING 96,000 BTU
- 13. WATER MAKER
- AQUA WHISPER DX 450 450GPD x 2
- 14. OIL CHANGING PUMP FOR ENGINES, GENERATORS AND TRANSMISSIONS
- 15. GENERATOR 1 * ONAN QD MDKBU 29 KW 60HZ
- GENERATOR 2 * ONAN QD MDKBU 29 KW 60HZ (OPTION)
- 16. WATER HEATERS - TORRID 20 GALLONS x 2
- 17. EMERGENCY TILLER
- 18. HYDRAULIC PUMP ON EACH ENGINE FOR THRUSTERS,STABILIZERS AND STEERING
- 19. CENTRAL VACUUM CLEANER (NUTONE CV352 110V/220V SYSTEM)
V. Electrical
- 1. 110V/220 AC ELECTRICAL SYSTEM
- 2. DC 24V SYSTEM
- 3. 75’ GLENDINNING CABLE MASTER - 50 AMP x 2 SETS
- 4. BATTERY CHARGER FOR 24V CIRCUIT
- 5. BATTERY CHARGER FOR 12V CIRCUIT
- 6. ALTERNATOR SPLIT CHARGING SYSTEM LINKED CHARGING THE HOUSE BANKS WITH BEP HIGH CHARGE REGULATORS FITTED
- 7. 4 x 255AMP/HR 12v GELL CELL SEALED BATTERIES FOR SHIP SERVICE
- 8. 225AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4
- 9. 210AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1
- 10. AC SOCKETS THROUGHOUT THE BOAT
- 11. GFI PROTECTION FOR AC REQUIRED SOCKETS
- 12. BEP BATTERY SELECT SWITCH
- 13. MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS WITH 4 PANELS (E/R, HELM, A/C AND DC) WITH AUTOMATIC BACKLIGHTING WHEN DOOR OPENS
- 14. ANTI-ELECTROLOSIS BONDING SYSTEM
- 15. AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50AMP x 2
- 16. GENERATORS(2) Onan QD MKKDS 29kW
Vi. Plumbing System
- 1. 100 GALLON BLACKWATER HOLDING TANK WITH MACERATOR PUMP
- 2. “Y” VALVE FOR HOLDING TANK OVERBOARD PUMP OUT
- 3. HOLDING TANK LEVEL INDICATOR HEADHUNTER
- 4. SUMP PUMP FOR SHOWER
- 5. MARINE GRADE LINES FOR FRESH WATER SYSTEM
- 6. S/S WATER TANK WITH SENDING UNIT - 350 GALLONS
- 7. SIGHT GAUGES FOR FUEL AND WATER TANKS
- 8. DOCKSIDE FRESH WATER INLET
- 9. COLOR CODED PIPING FOR EASY IDENTIFICATION
- 10. BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS
- 11. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER
- OF THRU-HULL FITTINGS
- 12. FRESH WATER SEALAND VACUUM TOILET SYSTEM
- 13. HIGH WATER BILGE ALARM IN ENGINE ROOM, FORWARD BILGE AND LAZARETTE COMPARTMENTS x 6 WITH MIMIC PANEL AT HELM
- 14. BILGE PUMP x 6 RULE 3700 GPH PUMPS WITH FLOAT SWITCHES WITH HIGH
- WATER ALARMS
Vii. Interior Finish
- 1. INTERIOR JOINERY IN MAHOGANY OR CHERRY, BURR WOOD AND IVORY LACQUER WITH A CHOICE OF UPHOLSTERY FABRICS
Viii. Galley
- 1. ELECTRIC REFRIGERATOR/FREEZER- G.E. LATEST MODEL
- 2. COOKTOP - G.E. LATEST MODEL
- 3. OVEN - G.E. LATEST MODEL
- 4. MICROWAVE W/EXTRACTOR FAN - G.E. LATEST MODEL
- 5. S/S SINK
- 6. HOT AND COLD WATER
- 7. TRASH COMPACTOR - G.E. LATEST MODEL
- 8. DISHWASHER - G.E. LATEST MODEL
- 9. DOUBLE AC SOCKETS x 2
- 10. CUPBOARD,DRAWERS AND STOWAGE
- 11. TEAK FLOOR OR MARBLE FLOOR
- 12. OVERHEAD STORAGE ABOVE GALLEY BENCH
Ix. Saloon
- 1. DINING AREA IN UPPER SALOON
- 2. PNEUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND
- SAFETY SENSOR DEVICE
- 3. 42" LCD TV
- 4. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM
- 5. PIONEER BDP-160 BLU-RAY DISC PLAYER
- 6. APPLE TV
- 7. HIGH QUALITY LEATHER COUCH IN LOWER SALOON BUILT IN
- CURVED SEATING
- 8. MAIN CONTROL PANEL AC/DC
- 9. LOW LEVEL LIGHTS 24V LED
- 10. CEILING LED LIGHTING 24V LED
- 11. COFFEE TABLE
X. Master Stateroom
- 1. KING SIZE BERTH
- 2. STORAGE BENEATH BERTH
- 3. DRAWERS IN BASE OF BERTH
- 4. VANITY
- 5. COUCH
- 6. WALK-IN CLOSET FINISHED IN CEDAR WOOD
- 7. LED CEILING LIGHTING 24V
- 8. READING LIGHTS 24V x 2
- 9. LARGE SIDE WINDOWS 3 x MANSHIP S/S W/ 2 FIXED AND ONE OPENING
- 10. 42" LCD TV
- 11. FUSION MS-205 RECEIVER/MEDIA PLAYER WITH FULL IPOD/IPHONE CONTROL
- MS-CL602 6 ” MARINE CEILING MOUNT SPEAKERS x 4
- MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- 12. PIONEER BDP-160 BLU-RAY DISC PLAYER
- 13. APPLE TV
Xi. Master En Suite Shower Room
- 1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
- 2. WASH BASIN WITH MABLE COUNTERTOP
- 3. HOT & COLD WATER
- 4. FAUCET AND FITTINGS
- 5. MIRROR AND MIRROR CEILING
- 6. LACQUER FINISH ABOVE BASIN COUNTERTOP
- 7. VENEER FINISH BELOW BASIN COUNTERTOP
- 8. EXTRACTOR FAN
- 9. AC DOUBLE SOCKET WITH GFI
- 10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS
- 11. LED CEILING LIGHTS 24V
- 13. MARBLE FLOOR
Xii. Forward (Vip) Stateroom
- 1. DOUBLE BERTH
- 2. STORAGE BENEATH BERTH
- 3. DRAWERS IN BASE OF BERTH
- 4. WALK-IN CLOSET FINISHED IN CEDAR WOOD
- 5. DRESSING TABLE W/STOOL
- 6. READING LIGHTS 24V x 2
- 7. LED CEILING LIGHTS 24V
- 8. AC DOUBLE SOCKETS
- 9. 32" LCD TV
- 10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
- MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
- MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- 11. APPLE TV
Xiii. Forward (Vip) En Suite Shower Room
- 1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
- 2. WASH BASIN WITH MABLE COUNTERTOP
- 3. HOT & COLD WATER
- 4. FAUCET AND FITTINGS
- 5. MIRROR AND MIRROR CEILING
- 6. LACQUER FINISH ABOVE BASIN COUNTERTOP
- 7. VENEER FINISH BELOW BASIN COUNTERTOP
- 8. EXTRACTOR FAN
- 9. AC DOUBLE SOCKET WITH GFI
- 10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS
- 11. LED CEILING LIGHTS 24V
- 12. MARBLE FLOOR
Xiv. Port Guest Cabin
- 1. TWO SINGLE BERTHS
- 2. UNDER BERTH STORAGE
- 3. READING LIGHTS 24V x 2
- 4. LED CEILING LIGHTS 24V x 2
- 5. HANGING LOCKER
- 6. PULLMAN BERTH
- 7. 32" LCD TV
- 8. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
- MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
- MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- 9. APPLE TV
Xv. Port Toilet/Shower Room
- 1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
- 2. WASH BASIN WITH MABLE COUNTERTOP
- 3. HOT & COLD WATER
- 4. FAUCET AND FITTINGS
- 5. MIRROR AND MIRROR CEILING
- 6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS
- 7. AC DOUBLE SOCKET WITH GFI
- 8. LACQUER FINISH ABOVE BASIN COUNTERTOP
- 9. VENEER FINISH BELOW BASIN COUNTERTOP
- 10. EXTRACTOR FAN
- 11. LED CEILING LIGHTS
- 12. MARBLE FLOOR
- 13. FULL HEIGHT WASHER/DRYER - G.E. LATEST MODEL
Xvi. Starboard Guest Cabin
- 1. DOUBLE BERTH
- 2. UNDER BERTH STORAGE
- 3. READING LIGHTS 24V x 2
- 4. LED CEILING LIGHTS 24V x 2
- 5. HANGING LOCKER
- 6. 32" LCD TV
- 7. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
- MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
- MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- 8. APPLE TV
Xvii. Starboard Toilet/Shower Room
- 1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
- 2. WASH BASIN WITH MABLE COUNTERTOP
- 3. HOT & COLD WATER
- 4. FAUCET AND FITTINGS
- 5. MIRROR AND MIRROR CEILING
- 6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS
- 7. AC DOUBLE SOCKET WITH GFI
- 8. LACQUER FINISH ABOVE BASIN COUNTERTOP
- 9. VENEER FINISH BELOW BASIN COUNTERTOP
- 10. EXTRACTOR FAN
- 11. LED CEILING LIGHTS 24V
- 12. MARBLE FLOOR
Xviii. Crew Quarters
- 1. ENTRANCE DOOR FROM TRANSOM
- 2. TWO SINGLE BERTHS
- 3. READING LIGHTS 24V x 2
- 4. LED CEILING LIGHTS
- 5. AC DOUBLE SOCKET
- 6. HANGING LOCKER
- 7. HOT & COLD TO WASH BASIN AND SHOWER WITH MARBLE COUNTERTOP AND FLOOR
- 8. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
- 9. 24" LCD TV
- 10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
- MS-CL602 6 ” MARINE CEILING MOUNT SPEAKERS x 4
- MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- 11. APPLE TV
Xix. Remarks
- Please note, this is an unbuilt new construction project which has not yet been started.
- Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete! Completion time is approximately 9-12 months depending on other yard projects.
- OPTIONS UPON REQUEST
- *ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE *
- Price is FOB Taiwan. Neither duty nor tariffs are included in the price.
Similar Yachts
Johnson · Skylounge w/Fishing Cockpit
Johnson 80’ Skylounge W/Fishing Cockpit
Price is FOB Taiwan. Neither duty nor tariffs are included in the price.
- 2026
- 24.38 m
Sanlorenzo Yachts · SX88
M/Y Intouchables
2022 SANLORENZO SX 88 "M/Y INTOUCHABLES" Trades Welcome | In-House Financing The 2022 Sanlorenzo SX88 combines contemporary Italian design with an innovative layout and impressive performance. Measuring 87'7" in length, this yacht features spacious exterior…
- 2022
- 26.69 m
Azimut Yachts · AZIMUT 26 Metri
AZIMUT Grande 26
The 2025 Azimut Grande 26M combines striking exterior lines by Alberto Mancini with sophisticated Italian interiors by Achille Salvagni. Featuring an innovative Deck 2 Deck™ sea-level terrace, carbon-fibre construction, and advanced ZF POD propulsion with…
- 2025
- 26.36 m
Sunseeker · 95
Mr. K Iriston
Introducing "Mr. K Iriston," the emblem of seafaring elegance. This luxurious motor yacht is a 2021 model constructed by the reputable shipbuilders, Sunseeker, a prestigious name in the yacht building world. Sunseeker has an esteemed reputation for their…
- 2021
- 28.07 m
Riva Yacht · 100 Corsaro
RIVA 100 Corsaro
2019 Riva 100’ Corsaro An exceptional example of the iconic Riva 100’ Corsaro, combining unmistakable Italian design, outstanding performance and refined onboard comfort. Built to European specification, she offers generous exterior spaces, sophisticated…
- 2019
- 29.9 m
Ocean Alexander · 100 MY
Ocean Alexander 100 MY
WIGGLE ROOM is an exceptionally well-maintained 2018 Ocean Alexander 100 Motor Yacht offering luxurious accommodations, proven Caterpillar power, and an extensive list of recent services and upgrades that make her truly turnkey. Measuring 100'8" with a 23'…
- 2018
- 30.47 m
Princess Yachts · S78
Paragon
NEW ARRIVAL 2022 PRINCESS S78 !!! M/Y PARAGON This 2022 Princess S78 is a turn-key, exceptionally well-maintained yacht with all services and maintenance up to date. Powered by twin MAN V12 1900 HP diesel engines with 875 hours, she delivers the performance…
- 2022
- 24.66 m
Ferretti Yachts · 960
Lontano
PRELIMINARY SPECIFICATIONS! KEY FEATURES: Privately used since new Panoramic floor-to-ceiling salon windows Full beam main deck owner’s suite Expansive 30’ flybridge Both Gyro stabilization at anchor & fins underway Fast cruise 22 knots | top speed 28 knots…
- 2016
- 29.26 m
Astilleros Astondoa · 80 Flybridge
24m
Behold the Astondoa 80 Flybridge model Onboard this motoryacht, it’s clear that the seductive quality of Astondoa yachts has been elevated with classic, refined luxury. She was designed to offer owners a peaceful reprieve in a modern atmosphere. Plus, it…
- 2020
- 24.38 m
Sirena Yachts, Finland · 88
Heliophilia
Heliophilia is a great opportunity to own one of the most spacious yachts in the 27-meter range. Built by Sirena Yachts in 2024, she combines comfort, smart design, and excellent range for long-distance cruising, with a capability of up to 2,290 nautical…
- 2024
- 26.82 m
Pershing · 9X
Stallion
Power, precision, and pedigree—STALLION lives up to her name in every way. This 2022 Pershing 9X is a striking example of Italian engineering and design at its finest. With her aggressive profile and 42-knot performance, she delivers the thrill of a true…
- 2022
- 28.04 m
Filippetti Yachts · F90
FILIPPETTI F90
The Filippetti F90 is a modern flybridge yacht that fuses elegant design, advanced engineering, and expansive living spaces, offering a refined yet deeply connected experience with the sea. Created in collaboration with acclaimed designer Fulvio De Simoni…
- 2027
- 27.43 m
