- 33.52 m110′Length
- 2027Year
- 5Guest cabins10 guests
- 2 × CATEngines3,850 hp
- 22 knMax speed19 kn cruise
- 7.18 m23′ 7″Beam
Layout
Explore every deck in detail: Johnson 110 Flybridge
Specifications

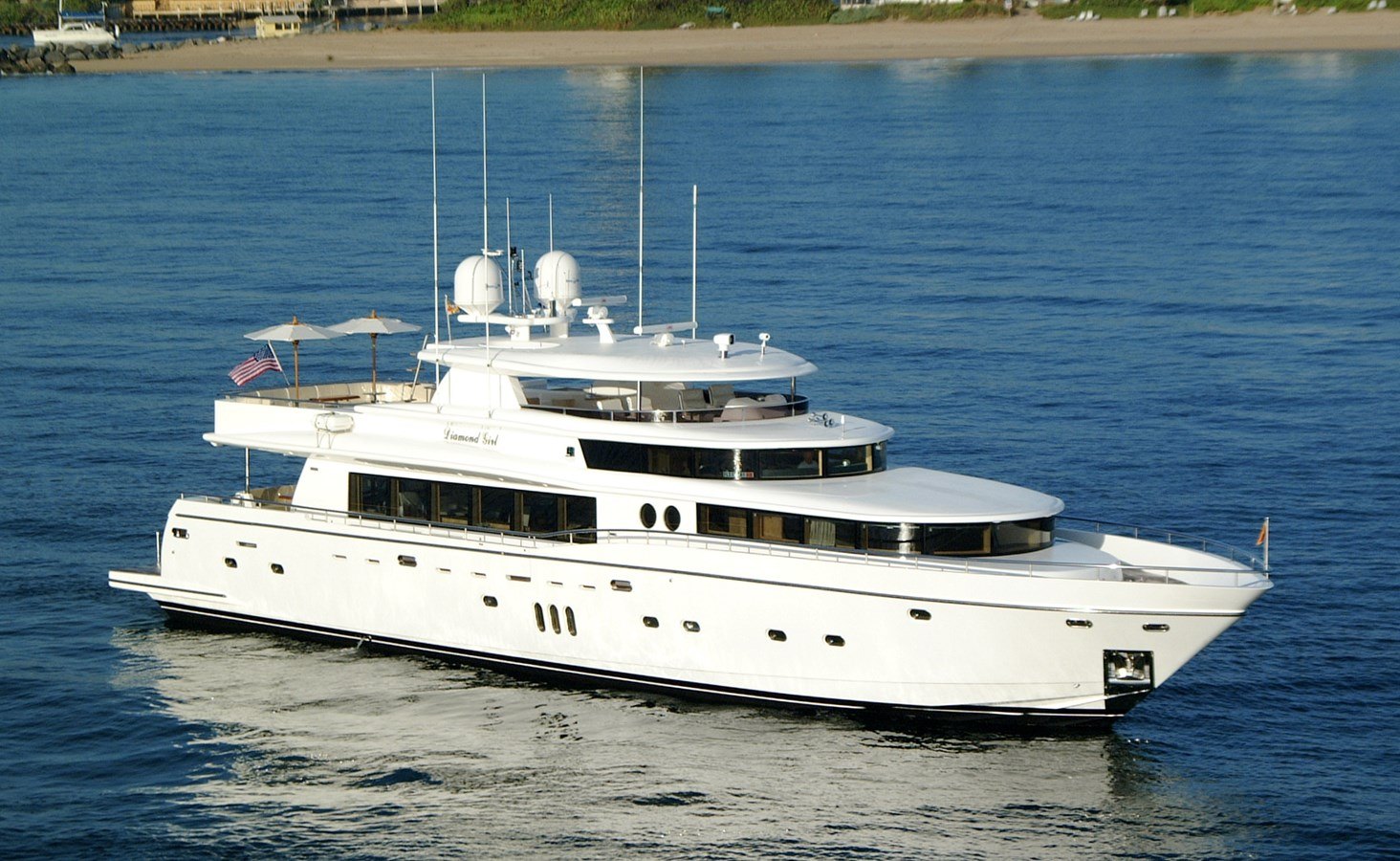

Johnson 110 Flybridge at a glance
Dimensions
- Length
- 33.52 m110′
- Beam
- 7.18 m23′ 7″
- Draught
- 2.1 m6′ 11″
- Gross tonnage
- 105
Accommodation
- Guests
- 10 in 5 cabins
- Crew
- 3 in 2 cabins
Build
- Model
- RPH W/ON-DECK MASTER
- Year
- 2027
- Hull
- Mono Hull · grp
Performance
- Engines
- 2 × CAT C - 32 ACERT
- Total power
- 2,871 kW · 3,850 hp
- Max speed
- 22 kn
- Cruising speed
- 19 kn
- Fuel capacity
- 15,141.65 l
- Water capacity
- 2,399.95 l
Design & history
- Naval architect
- Dixon Yacht Design
- Exterior design
- Dixon Yacht Design
- Interior design
- Johnson Yachts
I. Hull & Deck
- 1. MAIN DECK-TEAK 14MM
- 2. HIGH BULWARK W/FLUSH MOUNTED LED DECK LIGHTS, TWO REAR BULWARK SIDE DOORS FOR BOARDING (ONE BOARDING GATE ON EACH SIDE)
- 3. STAINLESS STEEL INTEGRAL ROLLERS & CHAIN STOPPER FOR DUAL ANCHOR CHAIN
- 4. VERTICAL ELECTRIC ANCHOR WINCHES x 2
- MAXWELL VWC6000C/HYD
- VERTICAL HYDRAULIC WINDLASS, DUAL DIRECTION, CHROMED, MATCHED PAIR, WITH CHAIN WHEEL C1=3182/016 (1/2”HT) AND PARTS
- 2 x AA560 ROPE/CHAIN COUNTER/REMOTE CONTROL
- 1 x BAND BRAKE
- 1 x CHAIN ROLLER STOPPER TENSIONER
- 1 x HAND HELD REMOTE CONTROL
- 5. AFT DECK MOORING CAPSTAN x 2 SETS
- MAXWELL VC2200W/D
- VERTICAL ELECTRIC CAPSTAN, WIDE DRUM SINGLE DIRECTION, 24VDC, CHROMED, AND PARTS
- 1 x FOOT SWITCH W/COVER
- 1 X 80 AMP BREAKER PANEL
- 1 x REVERSING SOLENOID PACKS, 24VDC
- 6. STAINLESS STEEL 250 LB ANCHOR x 2
- 7. HIGH TENSILE GALVANIZED ANCHOR CHAIN x 2
- LEFT 300 FEET (5/8”)
- RIGHT 300 FEET (5/8”)
- 8. FRESH WATER ANCHOR CHAIN WASH DOWN
- 9. HEAVY DUTY S/S 3” OVAL HANDRAIL WITH 1 1/2” STANCHIONS
- 10. S/S FLAGPOLE ON BOW RAIL
- 11. S/S FLAGPOLE ON BOW RAIL
- 12. HEAVY DUTY 316# STAINLESS STEEL TWIN CLEATS AND FAIRLEADS WITH ROLLERS
- 13. BLACK TEMPERED SAFETY GLASS (EXCEPT 5 WINDOWS IN FRONT OF PILOT HOUSE)
- 14. STAINLESS STEEL PNEUMATIC SALOON SLIDING DOOR WITH BUTTON AND SAFETY SENSOR DEVICE
- 15. TWO PANTOGRAPH SIDE DOORS (PORT SIDE & STARBOARD SIDE) IN DECK HOUSE
- 16. STAINLESS STEEL PORTHOLES ALL WITH BLACKOUT SHIELDS/ ROUND PORT LIGHTS ON DECK HOUSE
- 17. BUILT-IN HOT & COLD WATER SHOWER – SWIM PLATFORM
- SSI 48300000 STOWAWAY SHOWER UNIT WHITE x 1
- 18. LARGE TEAK INLAY SWIM PLATFORM WITH STAIRWAYS TO AFT DECK
- 19. FRP “U” SHAPE SEATING ON AFT DECK WITH CUSHION AND COVERS

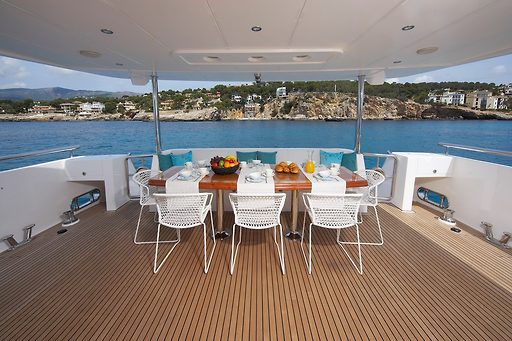

- 20. AFT DECK CUSTOM SLIDING HIGH-LOW TABLE WITH COMPASS INLAY x 2
- 21. FRP STORAGE CABINET ABOVE RUDDER IN THE LAZARETTE
- 22. ANTI-FOULING BOTTOM PAINT
- SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
- SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK OR 3430 DARK BLUE
- 23. SINGLE BOOT STRIPE COLOR BLACK
- 24. S/S HANDRAILS ON AFT DECK STAIRS WITH TWO INTERMEDIATE RA
- 25. LED FLOOD LIGHT ON THE END OF AFT DECK CEILING x 2
- 26. EXTERIOR STEP LIGHTS
- IMTRA KODIAK BLUE LED S/S 24V
- 27. RUB RAIL WITH S/S CAP ON LOWER AFT HULL SIDES
- 28. SOLID STAINLESS STEEL RUB RAIL AROUND HULL/DECK JOINT
- 29. ZINC ANODES ON TRANSOM, SHAFT AND BOW AND STERN THRUSTER
- 30. FRESH WATER WASH DOWN SPIGOTS ON THE BOW AND AFT DECK
- SCANDVIK 10187 S/S
- 31. AFT DECK REFRIGERATOR
- U-LINE WH95TP-20 110V/60HZ
- 32. DECK WASHDOWN, SALT WATER
- FLOJET 4325-343L WATER PUMP 24V W/NaOZZLE x 1
- 33. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/ 1873 LBS LIFTING CAPACITY
- 34. LADDER, SIDE RAILS + SUN PADS ON MASTER COACH ROOF
- 35. WATER FILL DECK FITTING X 1
- 36. DIESEL FILL DECK FITTING X 4

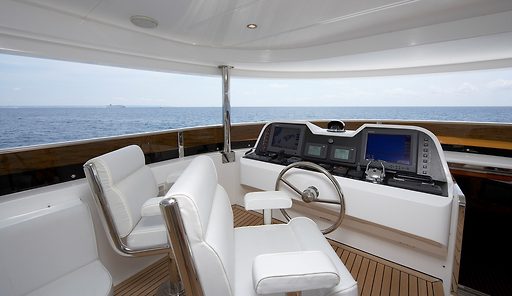

Ii. Flybridge
- 1. MAIN DECK - TEAK 14MM
- 2. FRP RADAR ARCH, MAST, AND WINGS
- 3. MANUAL HIGH-LOW TEAK TABLE WITH COMPASS INLAY x 2
- 4. TEAK TREAD STAIRWAY FROM AFT DECK TO FLYBRIDGE WITH HAND RAILS AND LED STEP LIGHTS
- 5. AIR HORN
- BUELL S/S AIR HORN COMPRISING
- 1 X 5444-3 24V TANK MOUNTED COMPRESSOR
- 1 X 1062 12” STROMBOS AIR HORN
- 1 X 1063 15” STROMBOS AIR HORN
- 1 X 1064 18” STROMBOS AIR HORN
- 6. CUSTOM WALK BEHIND WET BAR
- REFRIGERATOR/ICEMAKER U-LINE CO29BTP-20 110V/60 HZ
- FAUCET GROHE
- SINK
- 3 X BAR STOOLS
- GRANITE TOP
- 7. FRP SETTEE WITH REMOVABLE CUSHIONS, STORAGE BELOW AND COVER
- 8. S/S FLAG STAFF ON REAR OF FLYBRIDGE
- 9. HELM SEAT
- PORT SIDE AIRTEX HELM SEAT X 2
- 10. HIGH QUALITY ARITEX S/S GAS BBQ
- 11. S/S HATCH ON F/B DECK STEP OPENING
- 12. OVERSIZE DRAINS W/STRAINERS AT EACH CORNER OF FLY BRIDGE DECK WITH INTERNAL OVERBOARD DRAINS
- 13. CUSTOM LIFERAFT BRACKET ON THE OUTBOARD X 2 (LIFERAFTS OWNER SUPPLIED)
- 14. SEARCH LIGHT,DUAL STATION
- ACR RCL-100 24V
- 15. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
- I. GARMIN
- GPSMAP® 8215 FULLY-INTERGRATED MULTI-TOUCH MFD x 2
- GMI 20 MARINE INSTRUMENT DISPLAY x 1
- GMR™ 404 XHD OPEN ARRAY RADAR AND 4KW PEDESTAL x 1
- GARMIN VHF 200 MARINE RADIO x 1
- GARMIN AIS 600 CLASS B TRANSCEIVER x 1
- GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
- GARMIN GSD 24 MARINE NETWORK SOUNDER 2KW x 1
- II. RAYMARINE
- RAYMARINE A125 MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
- RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
- RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
- RAYMARINE RAY218E VHF RADIO x 1
- RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
- RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR CONTROL UNIT X 1
- RAYMARINE CP100 DOWNVISION FISHFINDER X 1
- 16. STABILIZER CONTROL AND MONITORING DISPLAY
- 17. BOW & STERN THRUSTER CONTROL PANEL
- 18. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH
- 19. RUDDER INDICATOR
- 20. DANFORTH 5” MAGNETIC COMPASS
- 21. FUEL GAUGE HEADHUNTER TS-3000 SERIES
- 22. ACRYLIC DEFLECTING WIND SCREEN
- 23. FUSION STEREO SYSTEM, FLYBRIDGE, AFT DECK
- MS-AV700I DVD / RECEIVER – WITH FUSION LINK
- MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
- MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- 24. DROP DOWN TV CABINET W/ 32” LCD TV
- 25. APPLE TV
- 26. LOW LEVEL COURTESY LED LIGHTS 24V
- 27. INTERNATIONAL NAVIGATION LIGHTS & CONTROLLER ALL LED
- AQUA-SIGNAL ONE SET (5)
- 3532-003 #55 MASTHEAD LIGHT 24V
- 3535-103 #55 STARBOARD LIGHT 24V
- 3534-203 #55 PORT LIGHT 24V
- 3533-703 #55 STERN LIGHT 24V
- 3531-703 #55 ALL-ROUNG LIGHT 24V
- 28. SIDE AND AFT BRIDGE RAIL STAINLESS STEEL
- 29. S/S GRAB RAIL AROUND BAR UNIT
- 30. INDIRECT LED LIGHTING UNDER WET BAR AND SEATING
- 31. OVERHEAD LED LIGHTS
- 32. INTERLOCKING HEADLINER
Iii. Engine Propulsion & Steering System
- 1. ENGINE
- CAT C-32 ACERT 1925 HP X 2 GEARBOX
- ZF2070A MARINE GEAR RATIO 2.467 1 x 2
- 2. SOUNDOWN ENGINES MOUNTS TO REDUCE VIBRATION
- 3. CAT ELECTRONIC ENGINE CONTROL SYSTEM, INCLUDING REMOTE STATION CONTROL & BACKUP SYSTEM
- FIXED STATIONS x 1 AT F/B; REMOTE CONTROL STATION x 1 IN THE AFT DECK PORT SIDE
- 4. ENGINE FUEL FILTERS
- RACOR 75/1000MAX2 W/ALARM x 2
- 5. GENERATOR FUEL FILTERS
- RACOR 75/500MAX2 W/ALARM x 2
- 6. S/S SHAFTS
- AQUATECH 22 HIGH STRENGTH DIAMETER 4” x 2
- 7. HIGH PERFORMANCE 5–BLADE PROPELLERS
- HUNG SHEN NIBRAL PROPS x 2
- 8. MAIN & INTERMEDIATE BRONZE SHAFT STRUTS WITH BACKING PLATES
- 9. SHAFT & RUDDER PACKING GLANDS WITH MAINTENANCE FREE TIDE STRONG SEALS
- TIDES MARINE RUDDER SEAL DIAMETER 3-1/2” & SHAFT SEAL DIAMETER 4”
- 10. HYNAUTIC POWER STEERING SYSTEM WITH PTO ON BOTH ENGINES
- PSC-2252-21-2 DUAL STATION W/COOLING WATER FLOW DETECTOR
- 11. SEA WATER STRAINERS FOR ENGINE, GENERATORS, AIR CON AND WATER MAKER
- 12. SEA COCKS ON ALL UNDERWATER FITTINGS
- 13. S/S EMERGENCY TILLER
- 14. S/S RUDDERS
- DIAMETER 3-1/2”
- 15. HEAVY DUTY S/S WIPERS WITH VARIABLE SPEED CONTROLS & SCREEN WASHER SYSTEM
- EXALTO 24V X 4
- 16. HYDRAULIC BOW AND STERN THRUSTERS WITH CENTRAL HYDRAULIC SYSTEM
- 17. "AT REST" STABILIZER SYSTEM
- 18. STEERING WHEELS AT P/H & F/B
- S/S 22” DIAMETER x 2
- 19. UNDERWATER EXHAUST W/ BYPASS
Iv. Engine Room & Equipment
- 1. WELL PLANNED, SPACIOUS E/R WITH REMOVABLE NIDA-CORE DECK PLATES
- 2. VAN CAPPELLEN CONSULTANCY DESIGN SOUND INSULATED MATERIALS
- 3. WATER TIGHT BULKHEAD UP TO ENTRANCE DOOR
- 4. FULL LENGTH S/S GRAB RAIL ON EACH SIDE OF ENGINE
- 5. E/R AC LED LIGHTS & DC LED DOME LIGHTS
- 6. ENGINE COMPARTMENT BLOWER & MOISTURE ELIMINATOR
- DELTA “T” BLOWERS WITH 600-P/T4 CONTROL SYSTEM, ADJUSTABLE SPEED DRIVE AND COLOR TOUCH SCREEN
- 500-219183-45/8 INTAKE FAN W/DAMPER, AXIAL. 21 IN. x 2 SETS
- 500-215363-30/8 EXHAUST FAN W/DAMPER, AXIAL. 15 IN. x 2 SETS
- 7. AUTOMATIC FIRE EXTINGUISHING SYSTEM W/AUTOMATIC ENGINES & VENTILATION SHUTDOWN
- SEA-FIRE FM-200 24V
- SEA-FIRE FIRE DETECTION & MONITORING SYSTEM THROUGHOUT THE BOAT
- 8. ENGINE ALARM SYSTEM FOR LOW OIL PRESSURE & HIGH WATER TEMPERATURE
- 9. HIGH VOLUME AC FRESH WATER PRESSURE PUMP & ONE DC PUMP FOR BACK UP
- HEADHUNTER XR-124 12-24VDC x 1
- HEADHUNTER M5-230 MACH 5 230VAC x 2
- 10. CHILLED WATER AIR CONDITIONING UNITS LOCATED IN ENGINE ROOM
- CRUISAIR CHILLED WATER AIR CONDITIONING 230V/60HZ W/SMXHT DIGITAL CONTROL AIR COMPRESSOR
- TWC72DC (72000 BTU) x 3
- AIR HANDLER
- SALOON 24000 BTU/HR x 3
- GALLEY 12000 BTU/HR x 1
- MASTER CABIN 18000 BTU/HR x 2
- MASTER BATHROOM 12000 BTU/HR x 1
- HALLWAY 6000 BTU/HR x 1
- VIP CABIN/BATHROOM 18000 BTU/HR x 1
- PORT GUEST CABIN/BATHROOM 12000 BTU/HR x 1
- STBD AFT GUEST CABIN/BATHROOM 12000 /HR x 1
- PORT AFT GUEST CABIN/BATHROOM 12000 /HR x 1
- FLY BRIDGE 24000 BTU/HR x 2
- OFFICE/LOWER HELM 24000 BTU/HR x 1
- CAPTAIN CABIN 9000 BTU/HR x 1
- CREW CABIN 6000 BTU/HR x 1
- CREW GALLEY 12000 BTU/HR x 1
- 11. ALUMINIUM & FRP FUEL TANKS W/ HEADHUNTER FUEL GAUGE
- 723 GAL ALUMINIUM FUEL TANK x 2
- 1,180 GAL FRP FUEL TANK x 1
- 1,355 GAL FRP FUEL TANK x 1
- 12. OIL CHANGE PUMP SYSTEM FOR ENGINES, GENERATORS AND CLUTCHES
- REVERSO OP-704 24V x 1
- 13. HEAVY DUTY ENGINE ROOM DOOR WITH VIEWING WINDOW
- 14. MANUAL BILGE PUMP
- HENDERSON MK5 UNIVERSAL MOUNT PUMP x 1
- 15. FUEL TRANSFER PUMP W/ MECHANICAL FLOW METER
- TUTHILL FR2410C 24V 1/4HP x 2
- TUTHILL 901-1 x 2
- 16. S/S COVER OUTSIDE ENGINE EXHAUST
- 17. FRESH-WATER HOSE FOR FILLING ENGINE AND GENERATOR AND EXPANSION TANK IN
- ENGINE ROOM
- BASIN LP-7000 x 1
- TAP SCANDVIK 10477 COMPACT MIXER WHITE x 1
- SHOWER DRAIN RULE 98 800GHP 24V x 1
- 18. WATER MAKER
- SEA RECOVERY 1400GPD(ONE) COMPLETE PREFILTER, OIL/WATER SEPARATOR, CARBON
- FILTER, SRC FWF/AW AUTOMATICALLY RINSES WITH FRESH WATER
- 19. WORK BENCH OVER THE ENGINE X 2
V. Electrical System
- 1. 110/220 VOLT ELECTRICAL SUPPLY FROM GENERATOR OR SHORE POWER
- 2. SHORE POWER INLET W/ RADIO REMOTE CONTROL IN THE TRANSOM
- GLENDINNING CABLE MASTER CM-8 100AMP 24V WITH 120’ CABLE x 2 SETS
- GLENDINNING RADIO REMOTE CONTROL 04155 (2 TRANSMITTERS) x 1 SET
- 3. INVERTERS
- MASTERVOLT MASS COMBI 24/4000-100 x 1
- 4. COLOR-CODED WIRING FOR EASY IDENTIFICATION
- 5. GENERATOR
- ONAN MARINE DIESEL GENERATORS 38KW 1 PHASE,(60HZ); 110V/220V 60HZ x 2
- INCLUDING STANDARD EQUIPMENT(CONTROL PANEL) SOUND SHIELD, WET EXHAUST MUFFLER, GAS/WATER SEPARATOR
- 6. AUTOMATIC BATTERY CHARGER
- DOLPHIN 80 AMP 24V 115-230V 50/60HZ x 2 FOR SERVICE BATTERIES
- PROTECH 12V 30AMP x 1 FOR GENERATOR BATTERIES
- 7. BATTERY SWITCH (VAPOR PROOF)
- BEP 701-MDO x 3
- 8. 225 AMP/HR GEL CELL SEALED BATTERIES FOR SERVICE/ENGINES/GENSETS
- SERVICE LIFELINE GPL-8DL 255AMP x 4
- ENGINE LIFELINE GPL-8DL 255AMP x 4
- GENSETS LIFELINE GPL-8DL 255AMP x 2
- 9. ALL BATTERIES ENCLOSED WITH FIBERGLASS BOXES AND COVERS
- 10. MAIN ELECTRIC PANEL INCLUDES AC AND DC CIRCUIT BREAKERS
- 11. 24 VOLT DC MONITORING AND MAIN CIRCUIT BREAKERS
- 12. AC VOLT DUPLEX RECEPTACLES LOCATED THROUGHOUT INCLUDING ENGINE ROOM
- 13. GFI PROTECTION FOR AC REQUIRED OUTLETS
- VIMAR 16511.16B 120V~60HZ
- 14. AUTOMATIC ISOLATION & BOOSTING TRANSFORMER
- CHARLES 93-ISOBOST 100 AMP x 2
- 15. INDIRECT LED LIGHTING UNDER VALANCE IN SALOON, STATEROOMS, PILOTHOUSE, HAND RAILS AND GALLEY
- 16. COMPLETE ANTI ELECTROLYSIS BONDING SYSTEM VIA 2” COPPER STRAP AND HULL ANODES
- 17. SHORE TELEPHONE INLET
- HUBBELL PH6594TV x 1
Vi. Plumbing System
- 1. FWD 150 GALLON HOLDING TANK WITH MACERATOR PUMP & AFT 50 GALLON TANK WITH MACERATOR
- 2. WASTE TREATMENT SYSTEM IN E/R
- HEADHUNTER TW-HMX-512 1200GPD
- 3. SUMP PUMPS FOR SHOWERS
- RULE 12 24V/2000GPH x 3
- 4. BILGE PUMPS
- RULE 16A 24V/3700GPH x 7
- 5. FLOAT SWITCH
- LOW-SUREBAIL 382251 x 6
- HIGH-SUREBAIL 382251 x 9
- 6. MARINE GRADE LINES FOR FRESH WATER SYSTEM
- 7. WATER HEATERS W/HOT WATER CIRCULATING PUMP
- WATER HEATER TORRID MV40S 120V 1500W S/S 40 GALLONS x 2
- HOT WATER CIRCULATING PUMP GRUNDFOS UP10-16B5/ATLC 115V/60HZ x 1
- 8. 634 GAL S/S WATER TANKS W/ HEADHUNTER TS-3001B ELECTRIC WATER GAUGE
- 9. PRESSURE STORAGE TANKS
- HEADHUNTER AVF-4 4 GAL x 2
- GROCO PST-1 1 GAL x 1
- 10. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF THRU-HULL FITTINGS, IN BRONZE WITH BALL VALVES
- 11. HIGH WATER BILGE ALARM SYSTEM - 7 AREAS
- 12. DOCKSIDE FRESH WATER INLET
- PAR JABSCO 44410-1001 x 1
- 13. COLOR CODED PIPING SYSTEM FOR EASY IDENTIFICATION
- 14. BRONZE INTAKE VALVES (BALL). ALL THRU-HULL FITTINGS ARE BRONZE
- 15. 2HP AC FIRE PUMP WITH ON-DECK FIRE HOSE
- 16. BILGE EXHAUST VENTILATION
- PAR 35740-0013 24V 3” FLANGEMOUNT BLOWER
Vii. Interior Equipment
- 1. HIGH QUALITY FABRIC SOFAS
- 2. INTERLOCKING VINYL CEILING PANELS THROUGHOUT
- 3. HIGH QUALITY DOOR LOCK SETS THROUGHOUT
- HAFELE-SANDRA
- 4. TGI LIGHTING SYSTEM THROUGHOUT
- TGI SP0101 (#3) / CHROME TRIM & WHITE COLOR
- 5. ITALIAN SWITCH & OUTLETS THROUGHOUT
- VIMAR / CHROME TRIM
- 6. CHOICE OF FABRICS FOR BEDDING & CURTAINS
- 7. INDIRECT LIGHTING SYSTEM THROUGHOUT, UNDER SOFAS, BEDS & CURTAIN VALANCES IMTRA LED ROPE LIGHTING 24V WARM WHITE

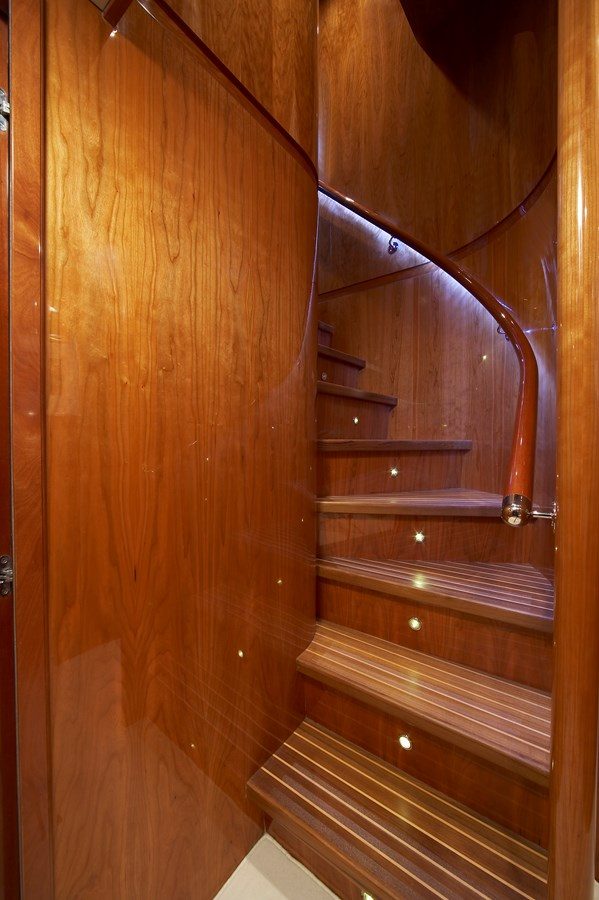

- 8. INTERIOR STAIRWAYS WITH SAFETY LIGHT SYSTEM
- SEA WORLD 10435WW LED ROPE LIGHTING 24V WARM WHITE
- 9. CEDAR LINED HANGING LOCKER CABINET W/LED LIGHT (SPK LEDCAchW24) IN EACH CABIN
- 10. HIGH QUALITY OF SOUND INSULATION IN WALLS BETWEEN CABINS
- 11. CENTRAL VACUUM SYSTEM W/ OUTLETS
- NUTONE 110V/60 HZ x 1
- 12. OPEN/CLOSE ELECTRIC CURTAIN IN SALOON & MASTER STATEROOMS
- 13. CHROME COLOR BATHROOM FIXTURE THROUGHOUT
- 14. FROSTED GLASS FOR SHOWER DOORS
- 15. PAINTED SOJI SCREEN IN ALL STATEROOMS IN FRONT OF PORTHOLES

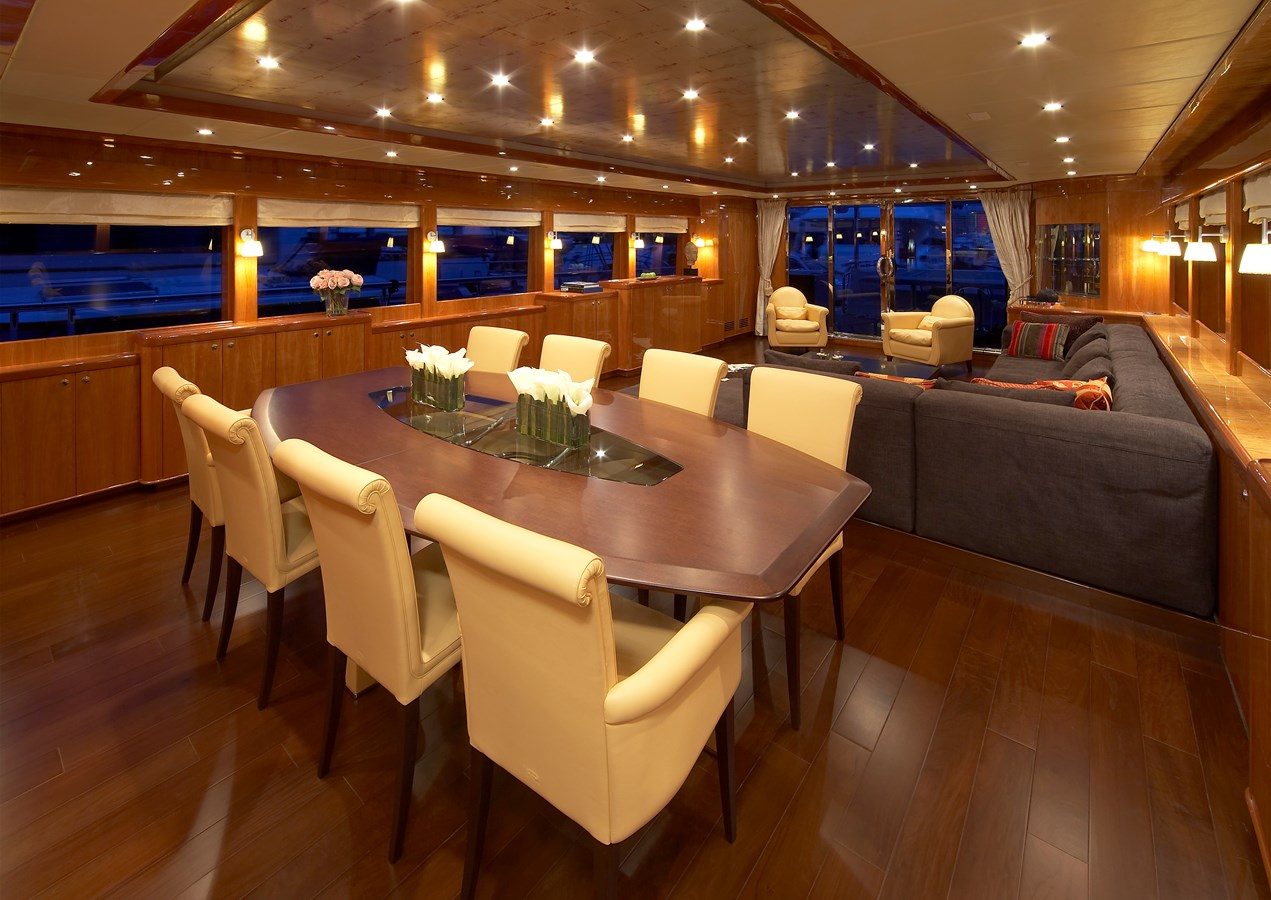

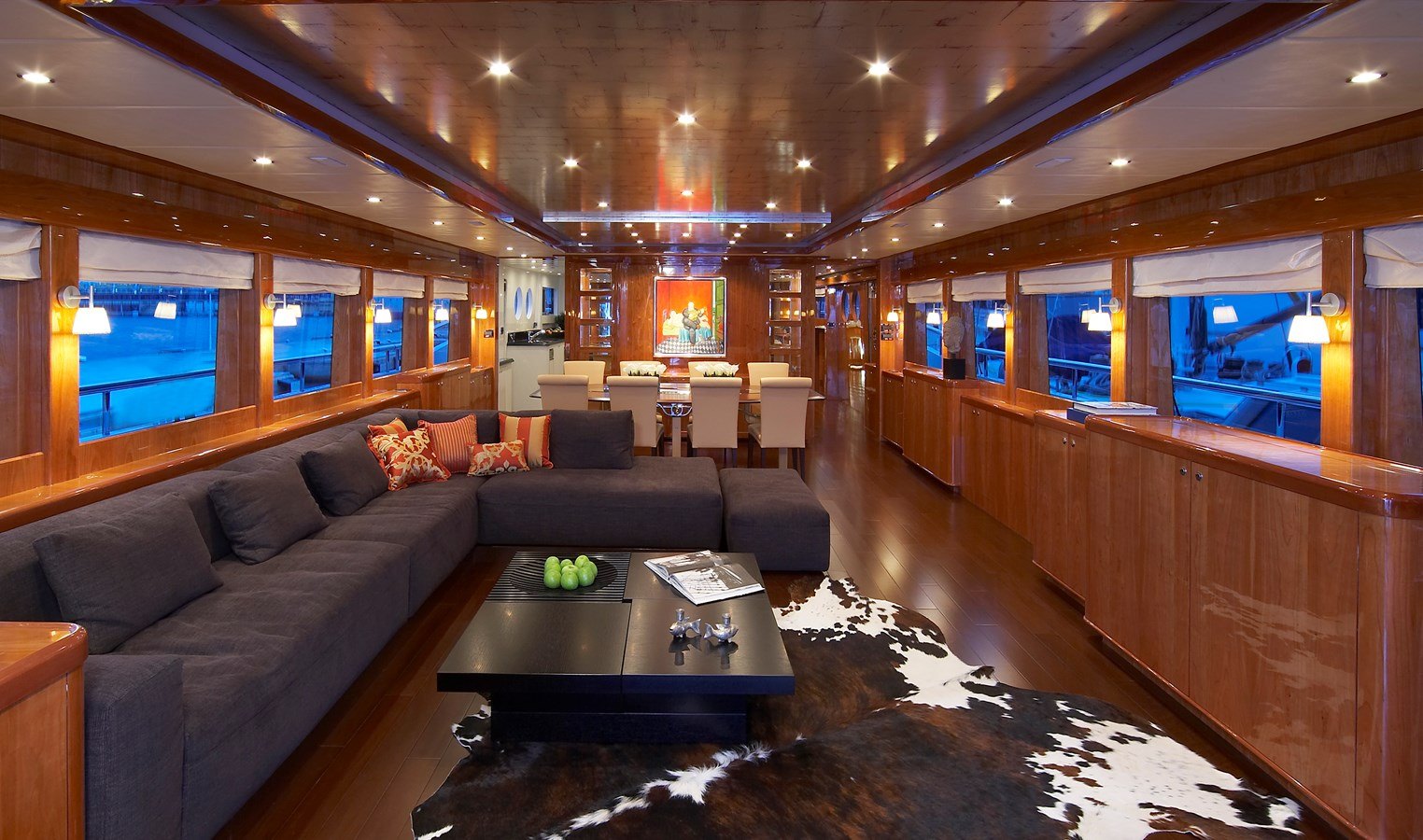

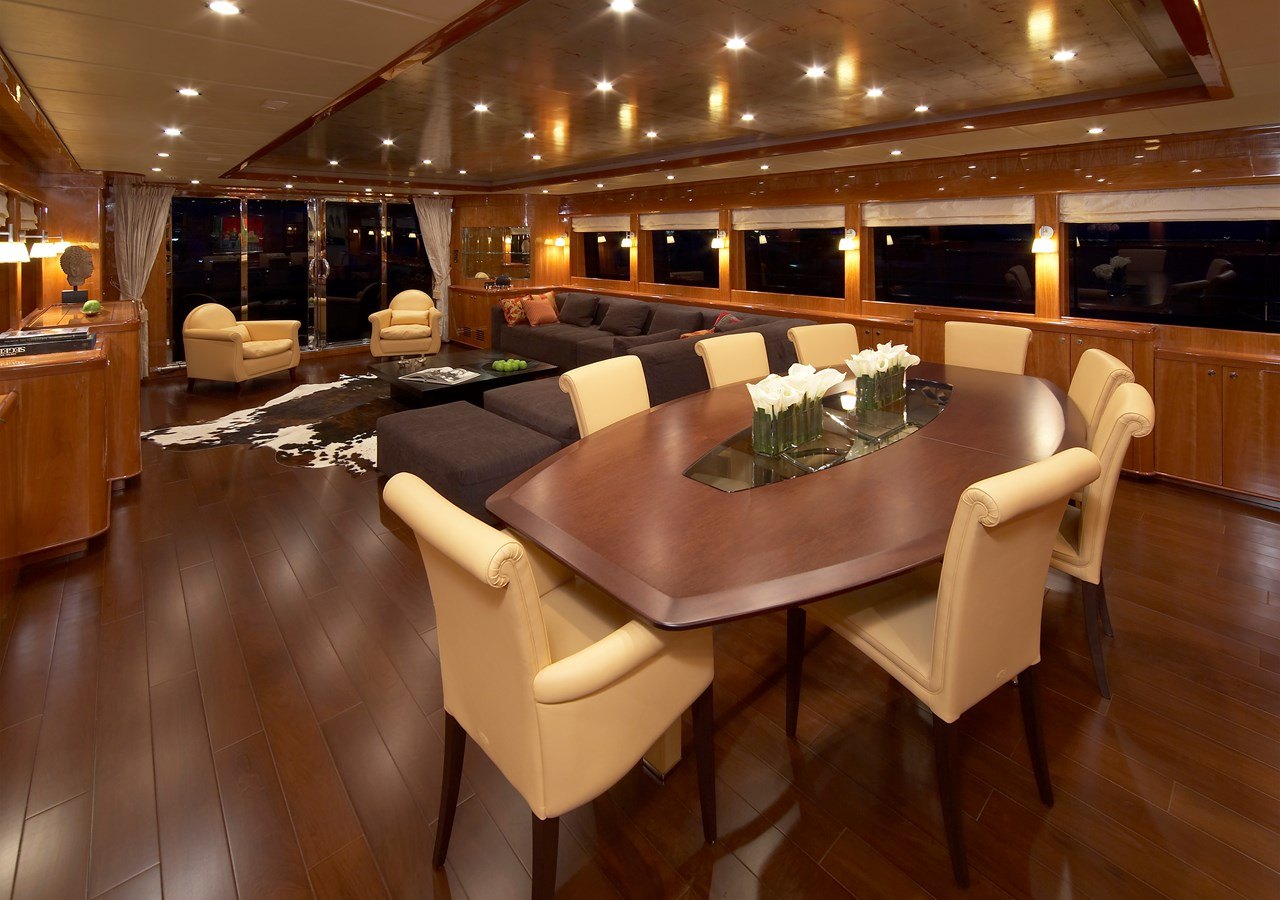

- 16. SALOON
- HIGH QUALITY CUSTOM BUILT UPHOLSTERED SOFA x 2
- INTERLOCKING VINYL CEILING PANELS THROUGHOUT
- S/S HIGH POLISH AIR DOOR
- CUSTOM DESIGN DINING TABLE
- CUSTOM DESIGN CEILING SOFFIT
- CUSTOM DESIGN TV CABINET
- HANGING CLOSET
- BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM
- SAMSUNG LCD 47” TV
- PIONEER BLU-RAY DISC PLAYER
- APPLE TV

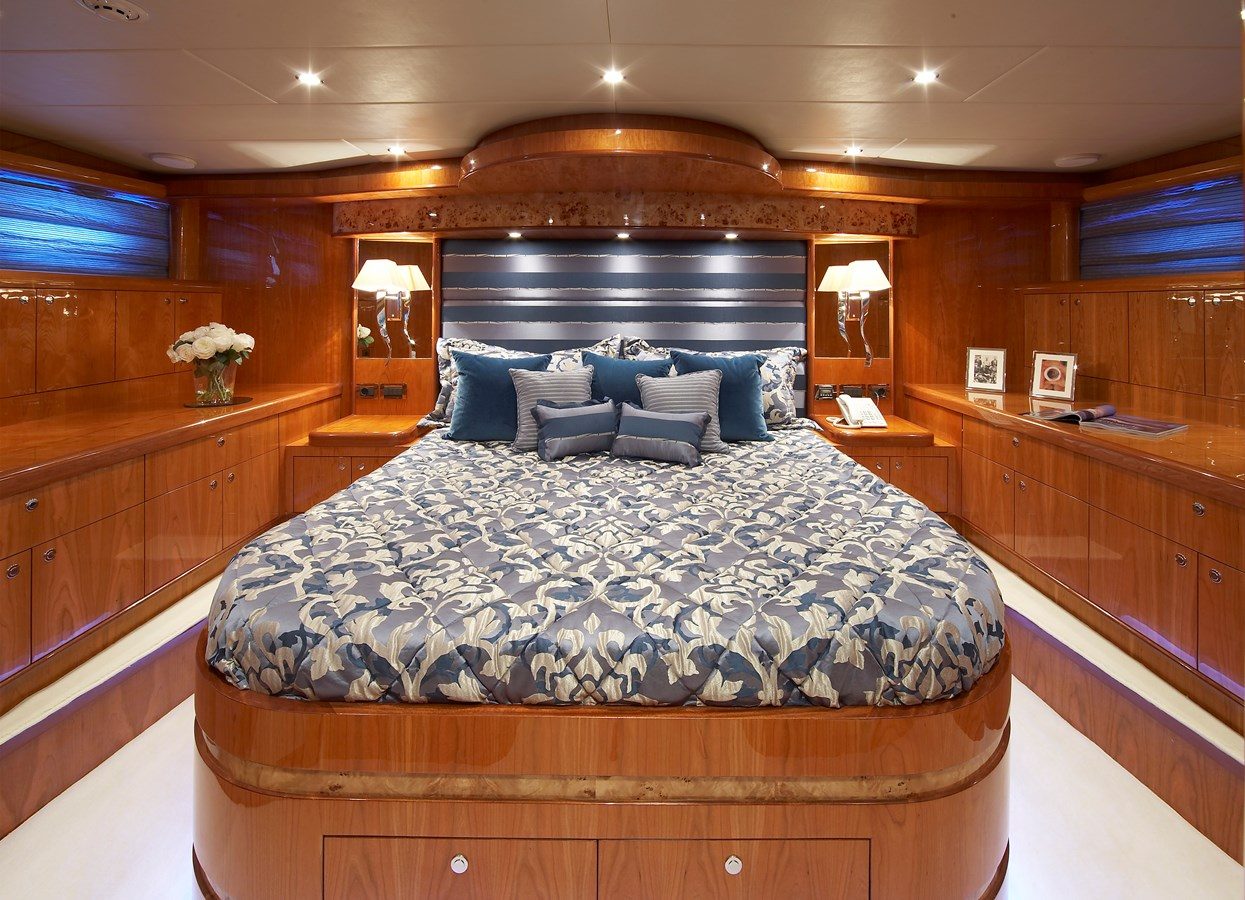

- 18. MASTER CABIN
- INTERLOCKING VINYL CEILING PANELS
- KING SIZE BED
- CUSTOM DESIGN HEADBOARD
- CUSTOM STORAGE CABINETS
- POWER CURTAINS
- VANITY LIGHT QUICK QB-COMPASS/CHROMED x 1
- SIDE SOFA x 1
- CEDAR LINED CLOSET
- REFRIGERATOR NORCOLD DE-7040 24V
- READING LIGHTS QUICK DOMINIQUE 22-35/CHROMED/SHADE LINEN/ B15D LED x 2
- SAMSUNG LCD 47” TV
- PIONEER BLU-RAY DISC PLAYER
- APPLE TV
- FUSION STEREO SYSTEM
- MS-RA205 RECEIVER / MEDIA PLAYER WITH FULL IPOD / IPHONE CONTROL
- MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
- MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- 19. FWD VIP CABIN
- INTERLOCKING VINYL CEILING PANELS
- QUEEN SIZE BED
- CUSTOM DESIGN HEADBOARD AND CEILING
- CUSTOM STORAGE CABINETS
- VANITY LIGHT QUICK QB-COMPASS/CHROMED x 1
- CEDAR LINED CLOSET
- READING LIGHTS QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2 \
- SAMSUNG LCD 32” TV
- APPLE TV
- FUSION STEREO SYSTEM
- MS-AV600G DVD / RECEIVER – WITH FUSION LINK.
- MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
- MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- 20. AFT VIP CABIN
- INTERLOCKING VINYL CEILING PANELS
- QUEEN SIZE BED
- CUSTOM DESIGN HEADBOARD AND CEILING
- CUSTOM STORAGE CABINETS
- VANITY LIGHT QUICK QB-COMPASS/CHROMED x 1
- CEDAR LINED CLOSET
- READING LIGHTS QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2
- SAMSUNG LCD 32” TV
- APPLE TV
- FUSION STEREO SYSTEM
- MS-AV600G DVD / RECEIVER – WITH FUSION LINK.
- MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
- MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- 21. PORT GUEST CABIN
- INTERLOCKING VINYL CEILING PANELS
- QUEEN SIZE BED, OUTBOARD
- CUSTOM DESIGN HEADBOARD AND CEILING
- CUSTOM STORAGE CABINETS
- CEDAR LINED CLOSET
- READING LIGHTS QUICK MAYA 30 /CHROMED/ALUMINIUM x 2
- SAMSUNG LCD 32” TV
- APPLE TV
- FUSION STEREO SYSTEM
- MS-AV600G DVD / RECEIVER – WITH FUSION LINK.
- MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
- MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- 22. STBD GUEST CABIN
- INTERLOCKING VINYL CEILING PANELS
- TWIN BEDS x 2
- CUSTOM DESIGN HEADBOARD AND CEILING
- CUSTOM STORAGE CABINETS
- CEDAR LINED CLOSET
- READING LIGHTS QUICK MAYA 30 /CHROMED/ALUMINIUM x 2
- SAMSUNG LCD 32” TV
- APPLE TV
- FUSION STEREO SYSTEM
- MS-AV600G DVD / RECEIVER – WITH FUSION LINK
- MS-CL602 6” MARINE CEILING MOUNT SPEAKERS X 4
- MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- 23. CAPTAIN’S CABIN -PORTSIDE
- TEAK & HOLLY FLOORS
- HANGING LOCKER
- DOUBLE BED
- DESK & READING LIGHTS
- SAMSUNG LCD 24” TV
- APPLE TV
- FUSION STEREO SYSTEM
- MS-AV700I DVD / RECEIVER WITH FUSION LINK
- MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
- MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- CREW QUARTERS STBD SIDE
- TWIN BEDS
- READING LIGHTS
- CREW’S GALLEY
- REFRIGERATOR U-LINE CO29BTP-20 BLK 110V/60 HZ
- COOK TOP SEAWARD SEW3247-5200 220V/60HZ
- MICROWAVE GE LASTEST MODEL
- WASHER GE LASTEST MODEL
- DRYER GE LASTEST MODEL
- 4 PERSON DINETTE
- AUXILIARY ELECTRICAL PANEL
- SAMSUNG LCD 24” TV
- APPLE TV
- FUSION STEREO SYSTEM
- MS-AV600G DVD / RECEIVER – WITH FUSION LINK.
- MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
- MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
- 24. ENTERTAINMENT SYSTEM (REFER TO ATTACHED DRAWINGS FOR EQUIPMENT DETAILS)

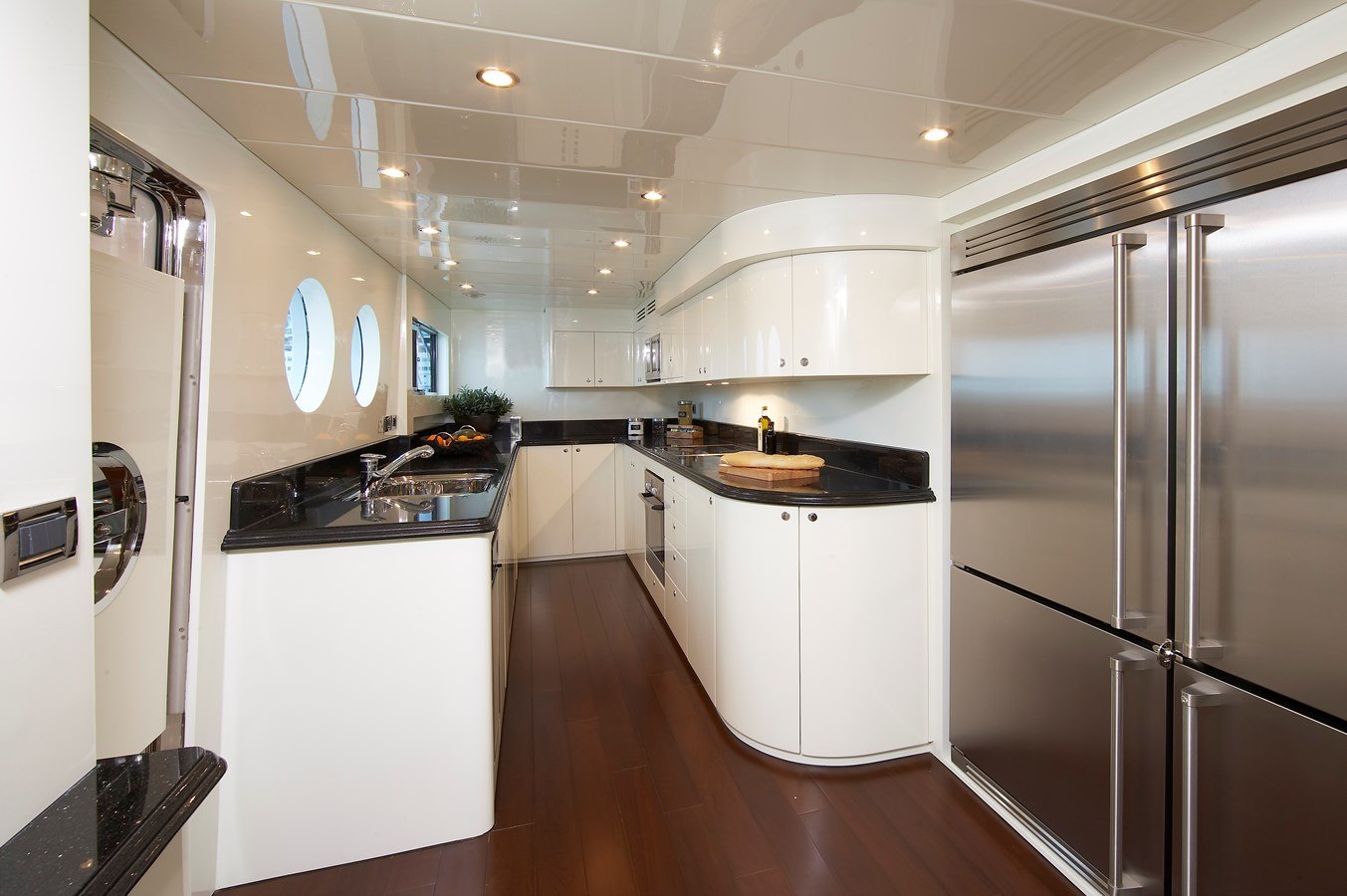

Viii. Galley
- 1. TRASH COMPACTOR
- BROAN # 15SSEXF S/S
- 2. COOKTOP
- GE LATEST MODEL
- 3. DOWNDRAFT VENTILATOR
- GE LATEST MODEL W/ LIGHT
- 4. DISHWASHER
- GE LATEST MODEL
- 5. OVEN
- GE BUILT IN LATEST MODEL
- 6. REFRIGERATOR + FREEZER
- GE LATEST MODELS
- 7. MICROWAVE
- GE LATEST MODEL

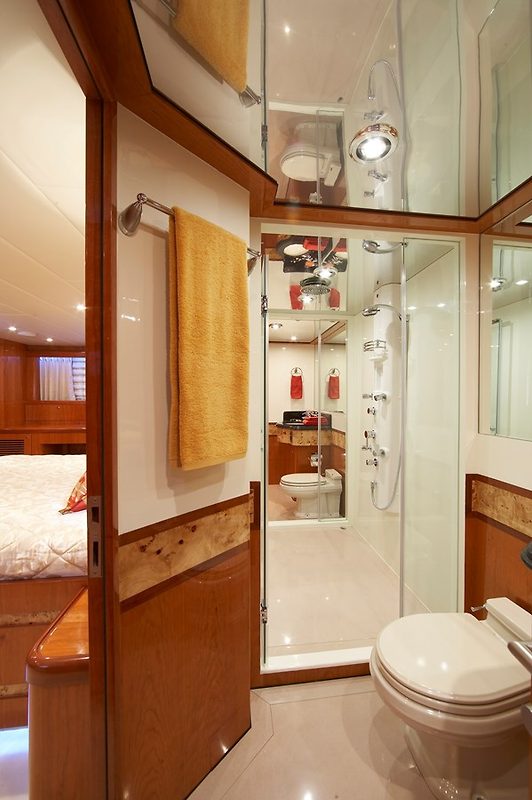

Ix. Heads
- 1. MARBLE COUNTER TOP AND LACQUER FINISH IN ALL HEADS
- 2. SEAMLESS POLYURETHANE FINISH IN ALL HEADS
- 3. NON-SLIDE MARBLE FLOORING SELECTED BY THE OWNER WITH HONEYCOMB BACKING
- 4. SEALAND VACCUM TOILETS SYSTEM IN EACH HEAD
- 5. EXHAUST FANS IN EACH HEAD/ MANROSE BSL24C/24V
- 6. MIRROR CEILING WITH WOOD BORDERS IN EACH HEAD
- 7. SINKS WITH GROHE FAUCETS
- 8. STALL SHOWER W/ HAND HELD SPRAYS

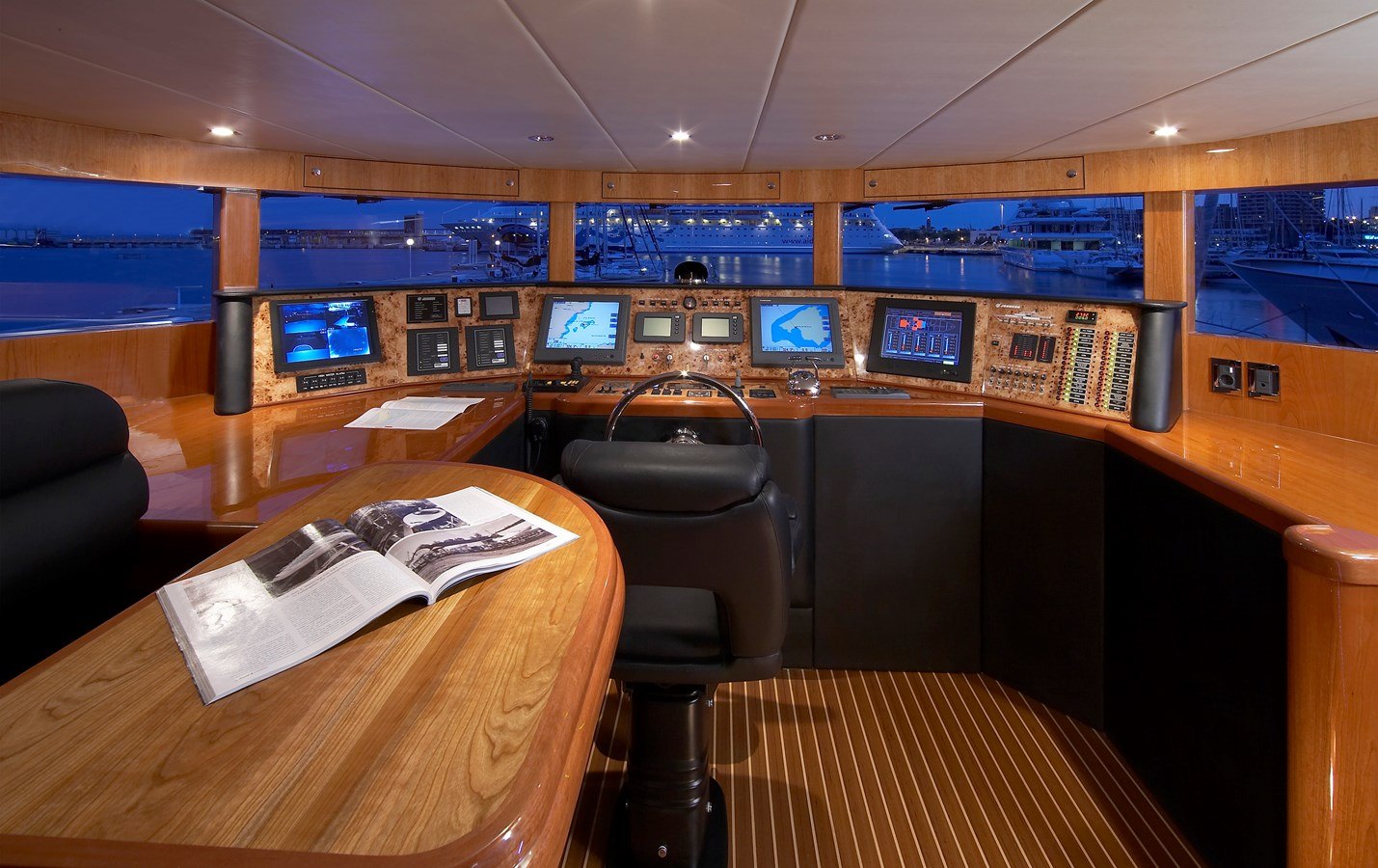

X. Lower Helm
- 1. FLOOR TEAK & HOLLY
- 2. STAIRWAY TEAK & HOLLY
- 3. STAINLESS HANDRAIL OF STAIRWAY
- 4. LEATHER SETTEE W/ WOOD TABLE
- 5. HELM CHAIR BESENZONI P217 24V HELM SEAT x 1
- 6. RUDDER INDICATOR
- VDO 382-233 24V x 1
- 7. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
- I. GARMIN
- GPSMAP® 8215 FULLY-INTERGRATED MULTI-TOUCH MFD x 2
- GMI 20 MARINE INSTRUMENT DISPLAY x 1
- GMR™ 404 XHD OPEN ARRAY RADAR AND 4KW PEDESTAL x 1
- GARMIN GSD 24 MARINE NETWORK SOUNDER 2KW x 1
- II. RAYMARINE
- RAYMARINE A125 MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
- RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
- RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
- RAYMARINE RAY218E VHF RADIO x 1
- RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
- RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR CONTROL UNIT X 1
- RAYMARINE CP100 DOWNVISION FISHFINDER x 1GARMIN VHF 200 MARINE RADIO x 1
- GARMIN AIS 600 CLASS B TRANSCEIVER x 1
- GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
- 8. INTERGRADED INSTRUMENT PANEL AT BOTH HELM STATIONS
- 9. ENGINE CONSOLE WITH ALL GAUGES
- 10. COMPASS DANFORTH 5” X 1
Xi. Remarks
- Please note, this is a new construction project. The hull and deck are complete waiting for Buyer's choice of customization. Completion time is approximately 14 months depending on other yard projects.
- Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!
