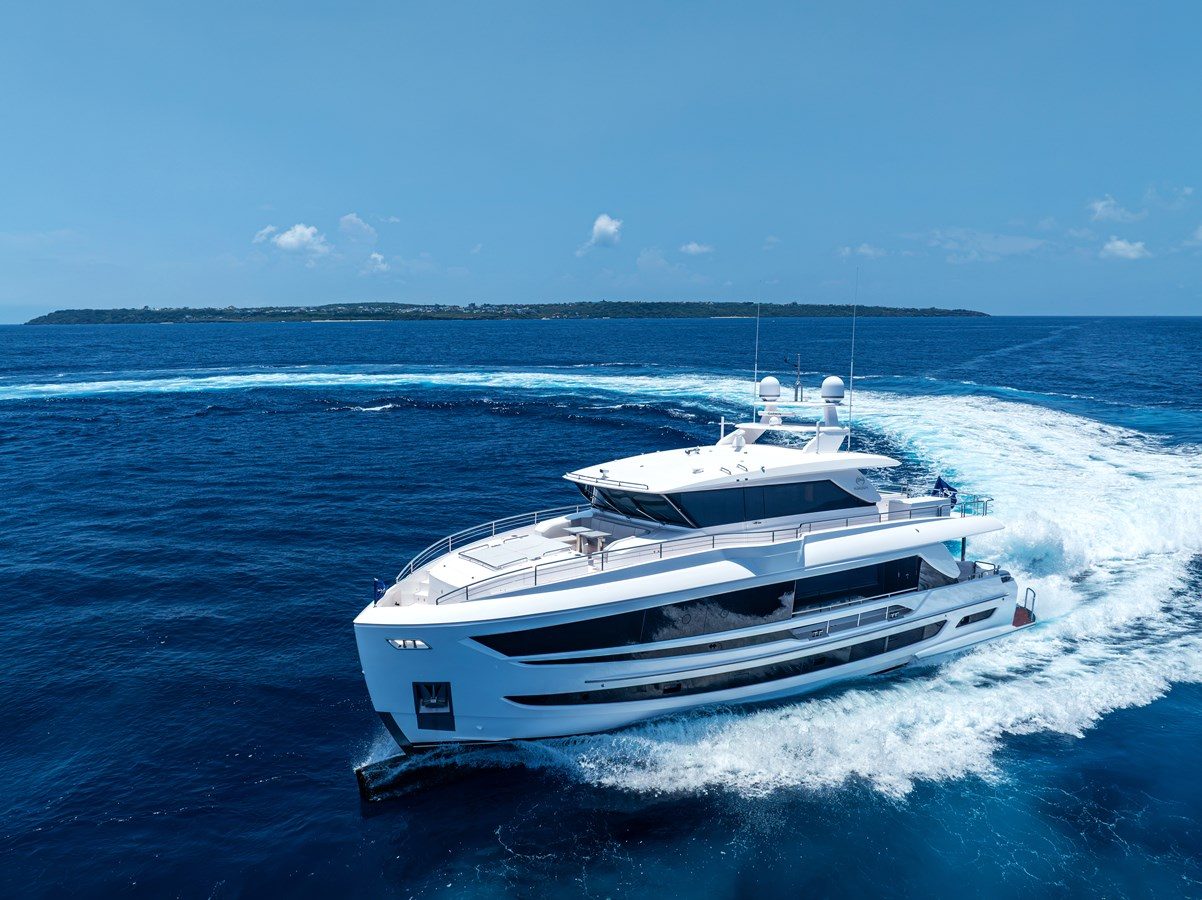

About HORIZON FD80-619
Redefining spatial expectations within the 80-foot category, the FD80 Skyline Hull 19 places the lived-onboard experience above conventional dimensional boundaries. The latest build in the acclaimed Fast Displacement series introduces an airy, unhindered…
- 24.38 mLength
- 2027Year
- 4Guest cabins8 guests
- 2 × MTUEngines3,200 hp
- 3Crew
HORIZON FD80-619
About HORIZON FD80-619
Redefining spatial expectations within the 80-foot category, the FD80 Skyline Hull 19 places the lived-onboard experience above conventional dimensional boundaries. The latest build in the acclaimed Fast Displacement series introduces an airy, unhindered atmosphere that vastly exceeds what an 80-foot LOA typically allows, fusing a serene coastal aesthetic with multi-purpose engineering and tailored craftsmanship
Layout of HORIZON FD80-619
HORIZON FD80-619, HORIZON YACHTS Horizon FD80-619 / NOW AVAILABLE – Layout
Specifications
Dimensions
- Length
- 24.38 m
Accommodation
- Guests
- 8
- Guest cabins
- 4
- Crew
- 3
- Crew cabins
- 2
Build
- Model
- Horizon FD80-619 / NOW AVAILABLE
- Year
- 2027
- Hull
- Mono Hull
- Hull material
- grp
Performance
- Engines
- 2 × MTU 10V2000
- Total power
- 2,386.2 kW · 3,200 hp
Design & history
- Naval architect
- Cor D Rover
- Exterior design
- Cor D Rover
- Interior design
- Horizon Yachts
More about HORIZON FD80-619
Quick Specs
- Beach club + hydraulic swim platform
- Four-stateroom layout, w/full-beam on-deck master suite
- High-performance S-class 5-blade propellers
- Side Power SPS93/VF1650 stabilizers
- Side Power SH550 bow thruster + SH420 stern thruster
- Steelhead Davit ES2500 (1130kg/2,500lbs)
- Spot Zero fully automatic watermaker
- Maretron monitoring system
- Skylounge with two-level custom bar
- On-deck Master Stateroom + three guest cabins below, all ensuited
- Private crew quarters aft
- Hydraulic Hi-Lo swim platform (maximum load capacity2,500 lbs.)
- Beach club w/ hydraulic door
- Large bow seating area + sun pads
- Propane BBQ + Hot tub on boat deck
- Pre-wired for wireless yacht controller (incl. storm covers)
Hull & Main Structure
- White gelcoat finish
- One-piece hull and superstructure utilizing
- SCRIMP™ technology with Horizons patented 6D infusion, incl. longitudinal and transverse stringers
- Hull, deck and superstructure built with licensed process SCRIMP™ for improved strength and less weight
- Hybrid design hull bottom with sandwich construction and solid fiberglass
- High-density foam cored hull sides, decks and superstructure
- Stringers with high-density foam coring
- Interior structural components all properly bonded to hull
- Strong collision bulkhead for extra safety
- International brand anti-fouling bottom paint with anti-osmosis treatment
- PropSpeed/PropGold metal paint for underwater appendages
- Tunnels for reduced draft
- High-Performance Piercing Bow (HPPB) with S/S protection plates
- Upper deck with bump-out design at PORT and STBD side
- (2) 10-person life rafts

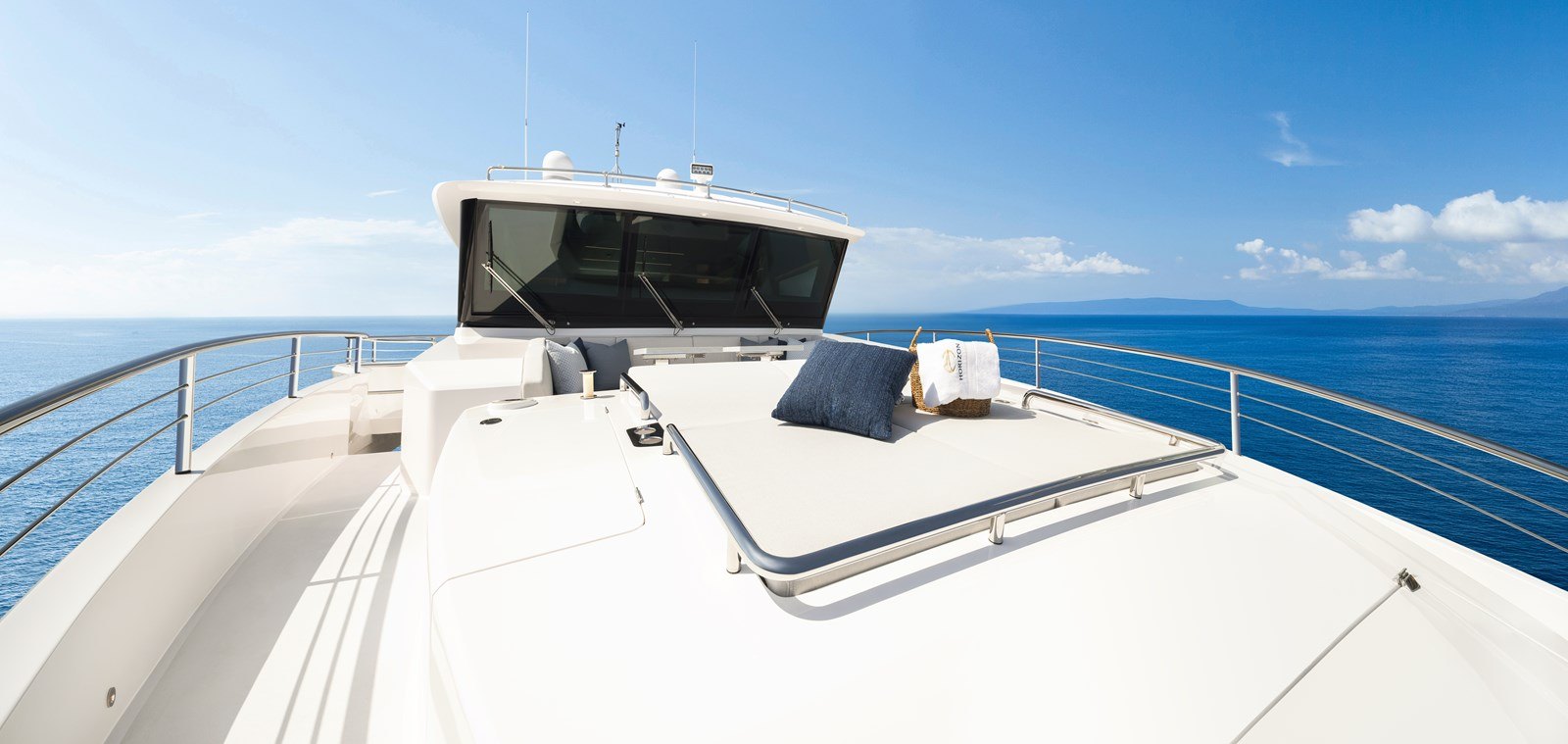

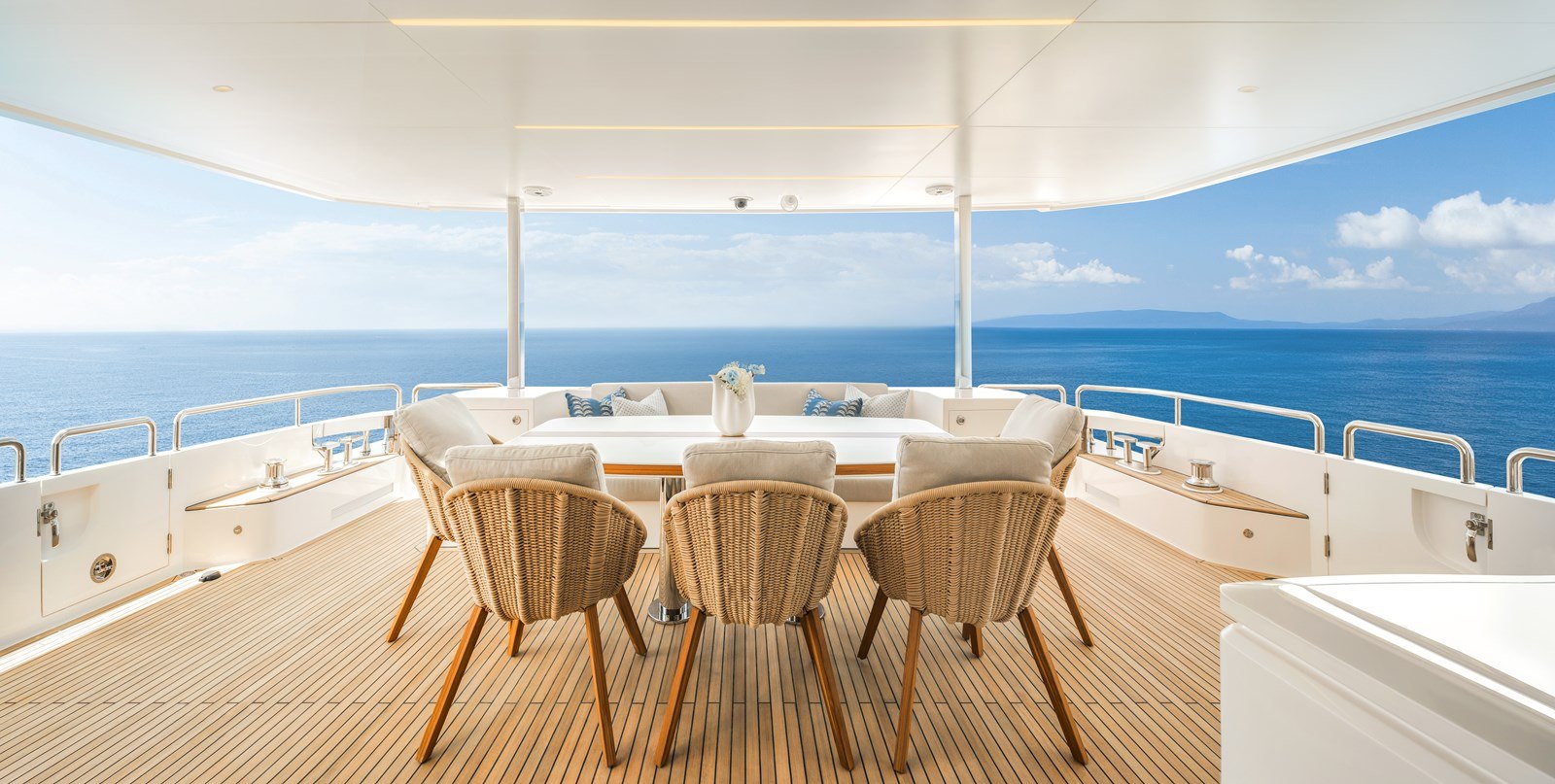

Foredeck & Aft Deck
- Teak aft deck
- (2) ACCO 300ft high tensile 1/2” anchor chains (2) 90kg S/S anchors
- (2) Maxwell VWC 3500 windlass
- (3) Maxwell VC2500 electrical rope capstan on aft deck and bow deck
- (2) Chain counters in pilothouse Freshwater & seawater anchor chain washdown system
- Frameless windows, slightly tinted tempered laminated Low-E glass for windshield
- Frameless windows, tinted tempered laminated glass for side windows

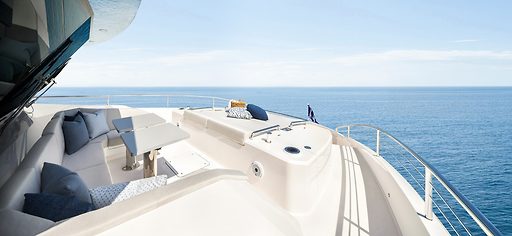

- Foredeck accessed from STBD staircase/walk around on main deck
- Foredeck built-in U-shaped seating w/ sliding tables
- Foredeck sun pad w/ drink holders
- Sunshades for bow seating, per layout
- (2) Bulwark side doors close to aft deck for boarding
- Wind/weather door on each side of the aft deck leading forward to the side decks
- MarQuipt 7-step side boarding sea stairs
- 43” LED electrical flip-down TV
Beach Club
- Teak beach club and swim platform; teak steps to boat deck and swim platform
- Hydraulic door w/ pantograph door in the middle
- Hydraulic Hi-Lo swim platform (1130kg/2,500lbs lifting capacity) with two removable corner rails
- Sofa seating with ottomans and 43" LED TV

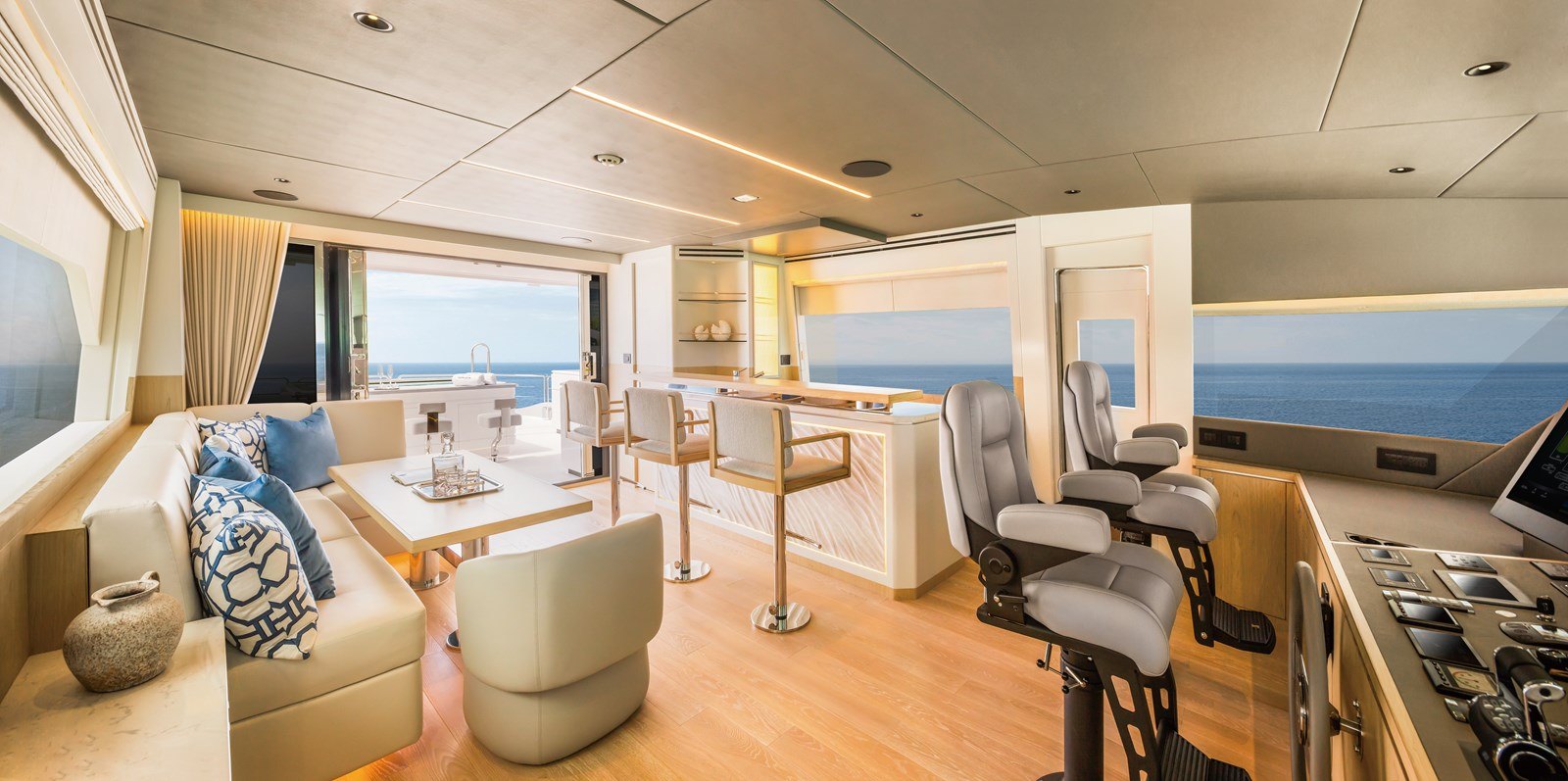

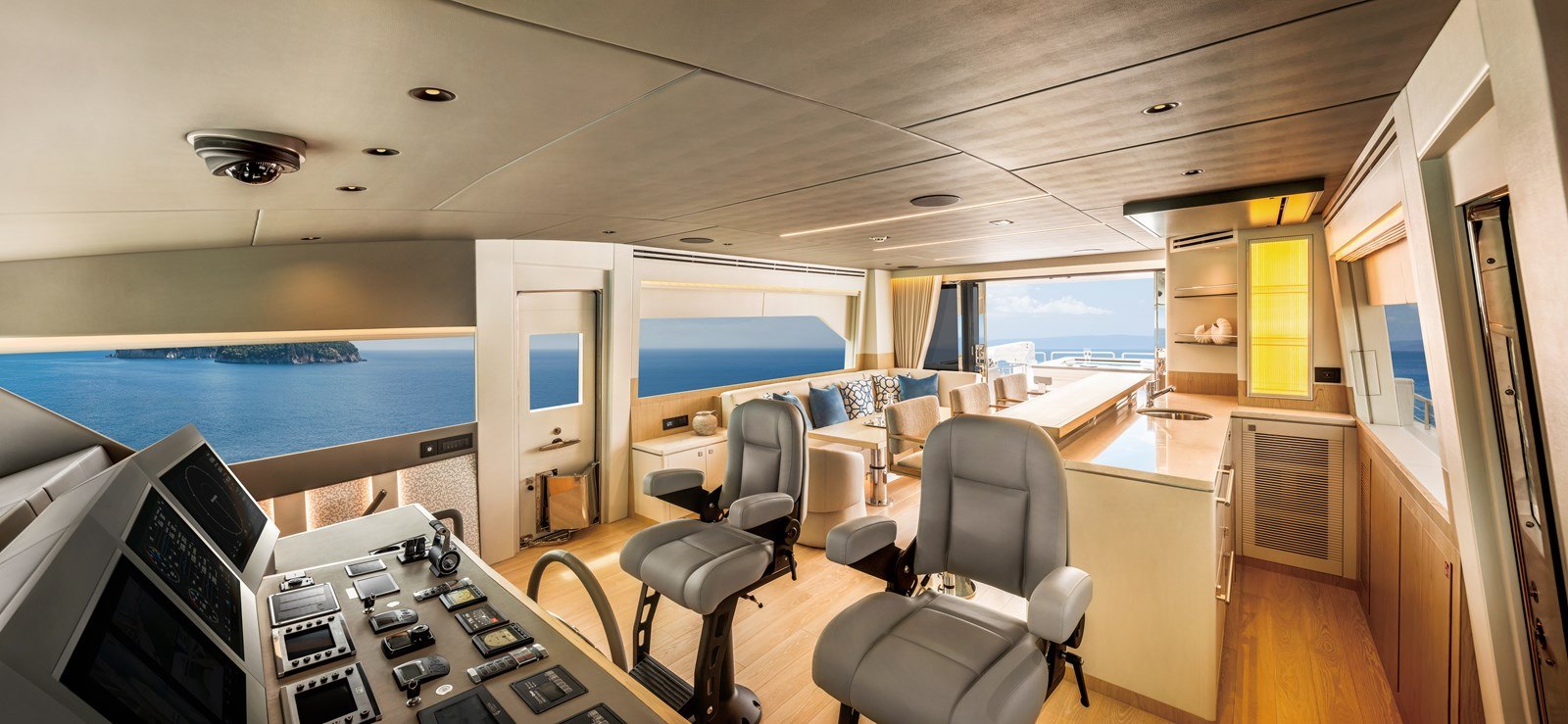

Skylounge & Upper Deck
- Enclosed Skylounge with dayhead, L-shaped settee, armchair, dayhead, and custom two-level bar (incl. 4 stools, refrigerator, ice maker, sink, glass cabinet, 43” LED electrical flip-down TV
- (2) manual helm chairs
- Custom-designed helm with full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Riviera magnetic compass, surveillance camera system, bilge pump panel & navigational lights
- Walk-around bridge design— PORT side bridge leads forward to bow deck
- Non-skid boat deck
- Hot tub w/ bar, 3 stools, and shower
- Hydraulic Steelhead davit ES2500 (1130kg/2,500lbs)
- Radar arch w/ antenna bracket
- (1) hidden Propane 24" BBQ with manual Hi-Lo & hidden sink
- Cabinets w/ refrigerator, ice maker, and storage
- Sunshade for boat deck area, per layout
Engine & Propulsion Details
- Twin MTU 10V2000 1,600hp
- Side Power SPS93/VF1650 stabilizers
- Side Power SH550 bow thruster and SH420 stern thruster
- Zipwake interceptor system
- Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder
- Engine alarm system as per engine standard
- High-performance S-class 5 blade propellers
- Bronze struts w/ backing plates
- Shaft and Rudder packing glands with Tides Marine dripless seals
- Tethered remote handheld controller w/ plug on aft deck & pilot house
- Hypro Marine power steering system
- Underwater exhaust system for engines w/ bypass mufflers
- Engine room with lightweight floor
- Heavy-duty Insulated engine room door
- S/S overhead grab rail on each side of engine
- Anti-noise treatment to exhaust system
- Delta-T engine room demisters
- Air compressor
Electrical Systems
- GFI protection for all AC outlets in exterior, heads, galley and engine room
- Electrolysis bonding system
- Cathodic protection with zinc anodes for shafts, struts, etc.
- LED lighting system throughout interior and exterior
- (6) Underwater lights
- (2) Onan Generators 29kW (60Hz) with sound shield
- Pre-wired for wireless yacht controller
- Maretron monitoring and control system
- Glendinning shore power Cablemasters (x2) 100Amp with 75' power cable each
- Shore power connection with (2) 100Amp boost polarization transformers, (2) galvanic isolators, (2) 100Amp shore power plugs and (2) 100Amp bow inlets.
- (2) LED search lights
- Pre-wired for LED boat name on stern, PORT, & STBD skylounge sides
- Sonos stereo control by Control4 system
Mechanical Systems
- 2,700 USG (10,220 ltrs) fuel tanks w/ sight & electrical gauges
- (2) Racor 500 MA fuel filters, one on each generator
- (2) Electric fuel transfer pumps
- Fuel polishing system (210GPH)
- 1,500ltrs FRP water tank
- (2) 20-gal water heaters
- High-volume AC Freshwater pressure pump and backup DC pump
- Spot Zero SeaXchange XTC II 1200 watermaker and Spot Zero ZTC II 2000 water purifier
- Charcoal filters are plumbed into the freshwater lineshore water inlet and galley
- Hot water circulation pump
- Marine Air VARCX chilled water conditioning system
- Tecma toilet system
- 100 gals holding tank & deck fitting for dockside pump-out
- Sump pump system for grey water
- Electric level indicators for holding tank
- Headhunter sanitary treatment system (TW-HMX-301LP)
- Electric Rule Bilge Pumps
- High water level bilge alarm
- Bilge exhaust ventilation fans
- Fire-resistant treatment for pipe penetrations
- Automatic fire damper system
- (4) Portable fire extinguishers
- Integrated fire alarm system in pilothouse, with CO and smoke detectors in each cabin
Interior Decor & Equipment
- Guest accommodation includes
- On-deck master stateroom, forward VIP stateroom, STBD VIP stateroom & PORT VIP stateroom, all ensuited
- Laundry room w/ washer/dryer, storage, ironing board, and sink
- Aft crew quarter w/ 2 crew cabins (one captain, one crew cabin, with one ensuite), access from STBD side Salon
- Customized interior package for interior décor & lighting
- Full set of Wedgwood (GIO) tableware for 10, incl. dish holder, pot/pan, dishes, plates, knives, forks, glasses… etc
- Extra set of bed sheets for all guest cabins, including crew

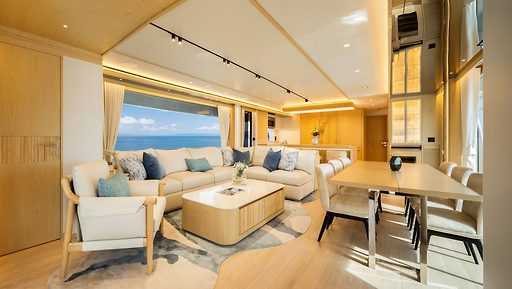

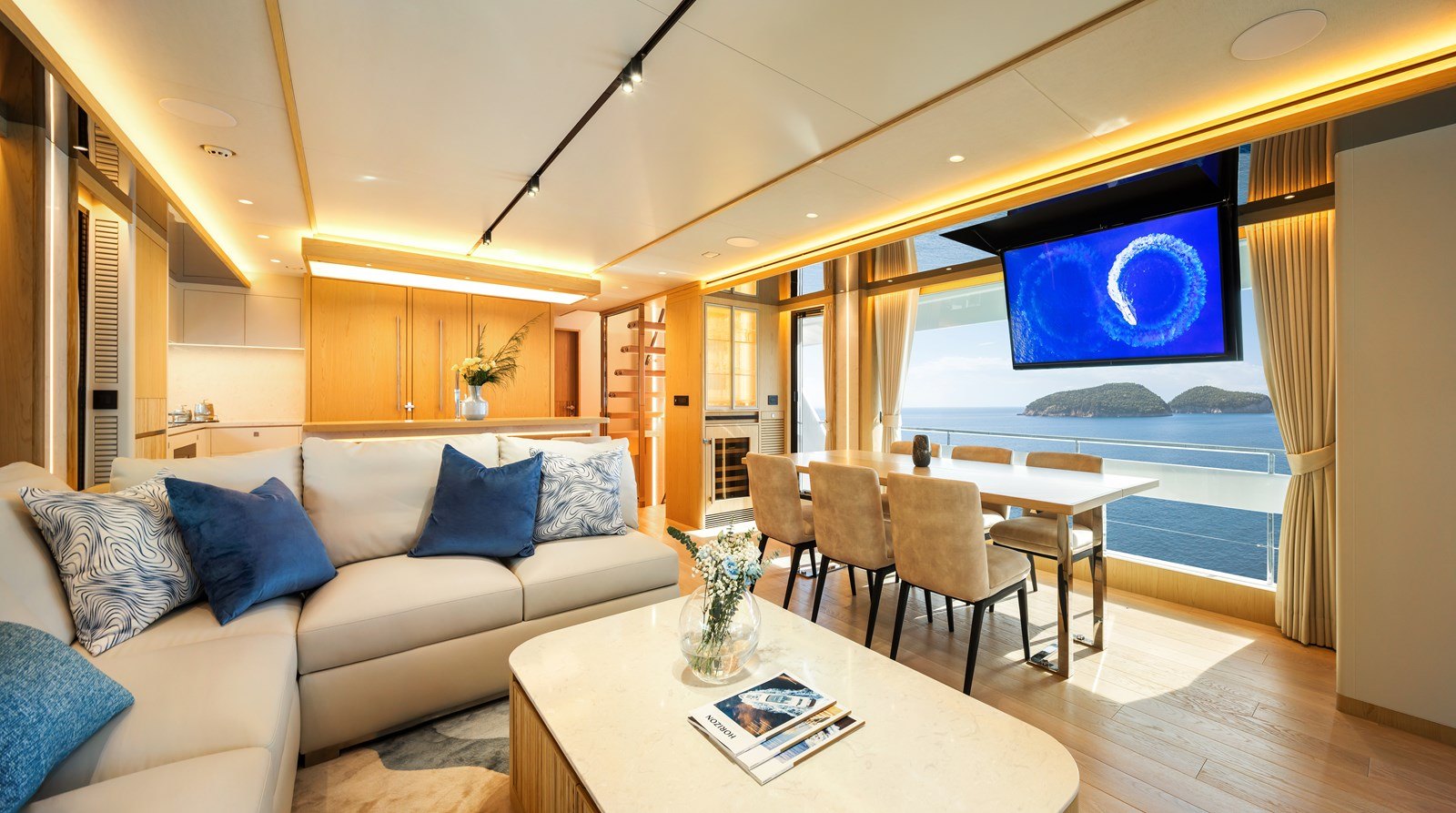

Salon
- 3-panel manual sliding salon door
- Dayhead
- L-shaped sofa w/ table, armchair, two ottomans
- Electric blinds
- Custom area rug
- PORT side buffet cabinet behind sofa
- Convertible folding dining table & chairs, per layout
- Breakfast bar design
- 55" LED fold-down TV

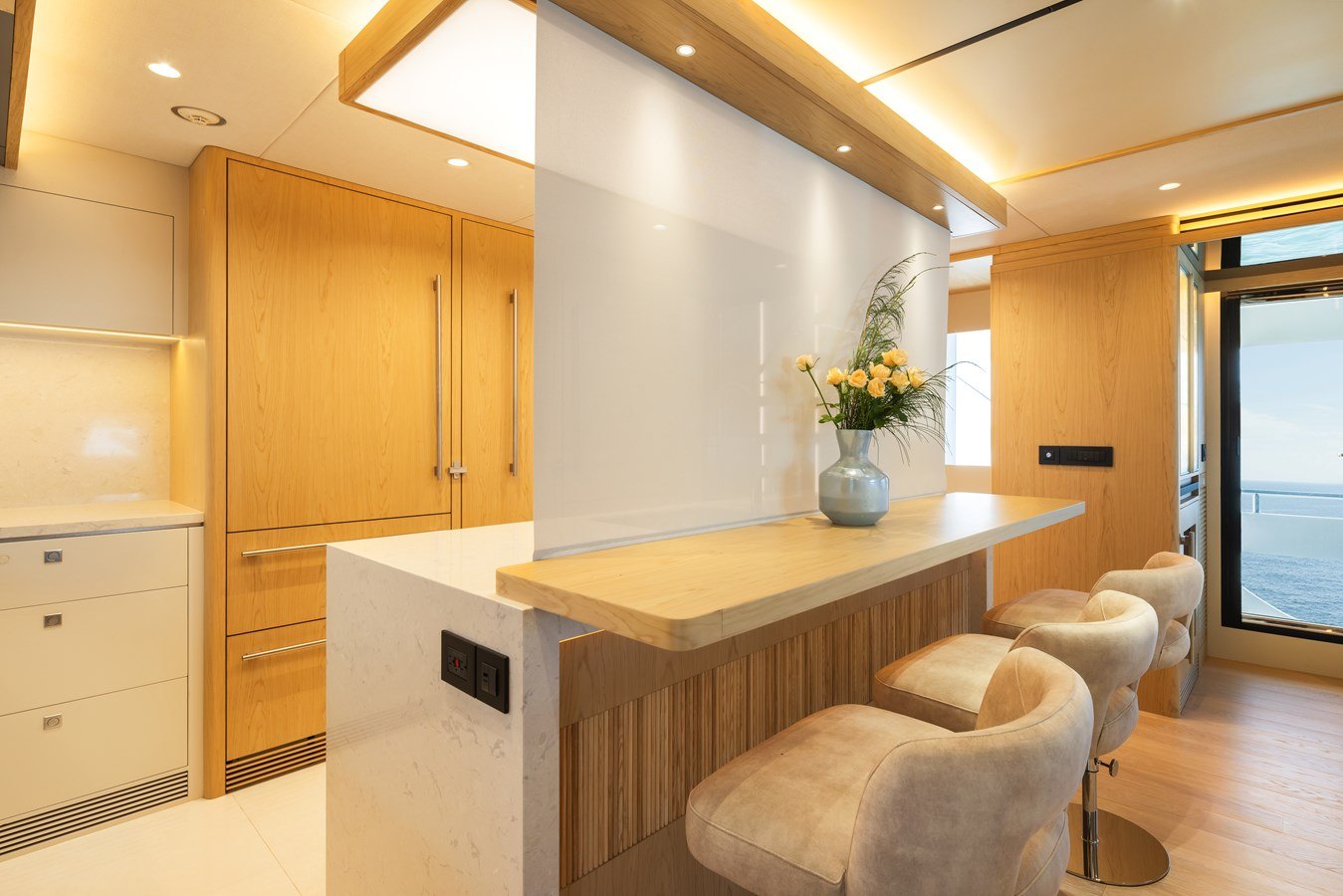

Galley
- Enclosed galley design with Hi-Lo blind
- Professional galley + extensive storage per layout
- Full height Sub-Zero refrigerator + freezer
- Miele cooktop, range hood, oven, microwave & dishwasher
- Sub-Zero wine cooler
- (1) opening porthole
Master Stateroom
- King bed w/ storage drawers under, nightstands, safe
- STBD chest of drawers; vanity/desk at PORT; hanging lockers
- Ensuite head w/sink, rain shower & toilet
- Electric shades
- (1) Opening portholes in Master head
- 50" LED TV
- Escape hatch in Master w/ ladder

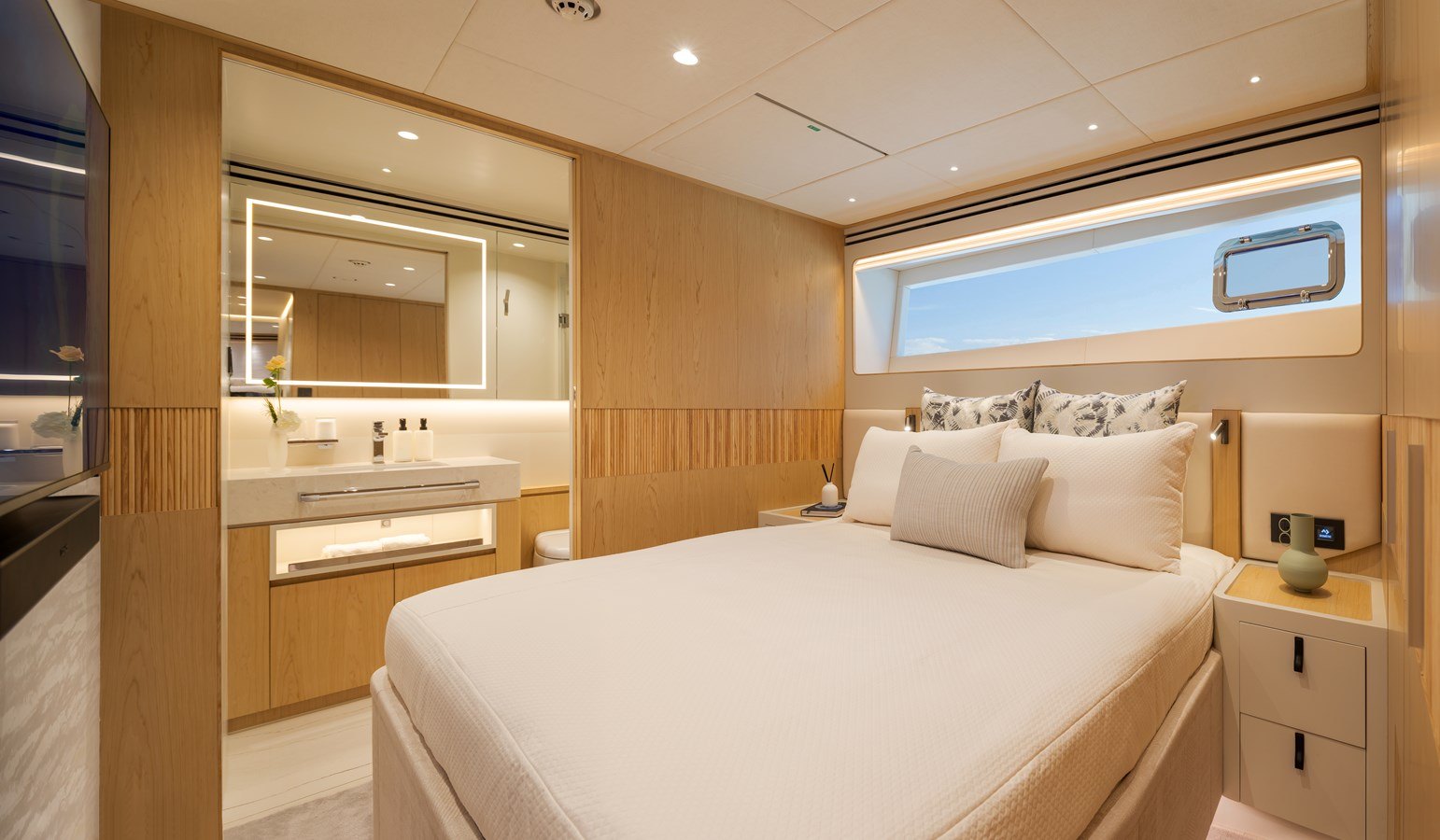

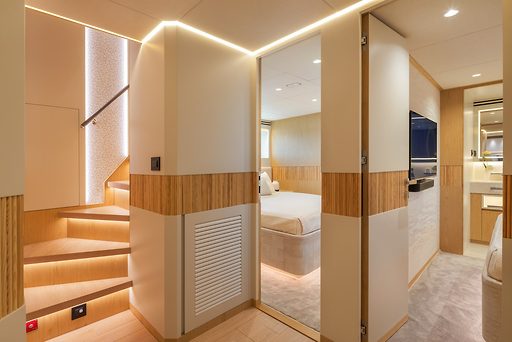

Lower Staterooms
Fwd vip stateroom
- (2) Twin beds (with sliding function), drawer under, hanging lockers, and storage
- Ensuite head w/ sink, rain shower & toilet 32" LED TV
Mirror vip staterooms
- Queen bed w/ nightstands
- Ensuite head w/ sink, rain shower & toilet 43" LED TV
- Escape hatch up to salon with ladder from PORT VIP stateroom
Crew
- PORT Captain Cabin with double bed, hanging locker, storage, and 43” LED TV
- STBD crew cabin with bunk beds, hanging locker
- Head w/ sink, shower & toilet
- Crew area with burner, Miele washer/dryer, refrigerator/freezer, convection microwave, storage
- Hi-Lo screen to enclose
Electronics & Navigation
Electronics
- SAT TV antenna with a symmetric dummy dome & prewire for SAT phone
- Reserve a cable conduit for Starlink system
- 4G/5G Cellular router system with WiFi on board
Pilothouse navigation
- Garmin navigational system incl.
- Garmin GPS w/ Satellite compass
- (1) Garmin GMR™ 1236 xHD3 Open Array Radar
- (1) Garmin Fantom 54 Solidstate Open Array Radar
- (4) Garmin GPSMAP 9222 22" multifunction displays
- MBB300C for inputting the Maretron info to GARMIN display
- Garmin Autopilot system
- Garmin Fishfinder/ Wind / Speed / Temp / Depth transducer
- (2) Garmin VHF
- Garmin AIS
- Garmin Surround View Camera system
