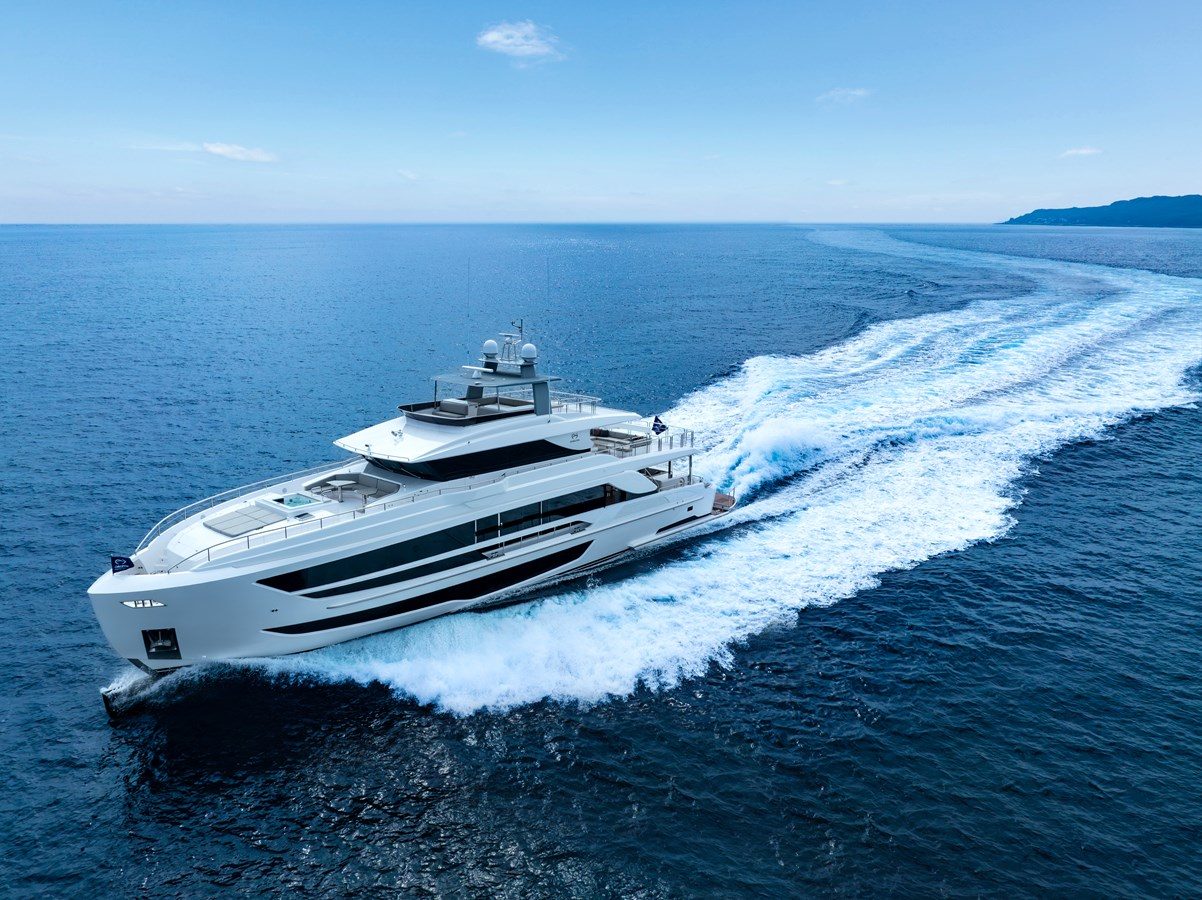

About HORIZON FD110
QUICK SPECS Superyacht styling with tri-deck design Enclosed skylounge w/ dayhead Custom pilothouse w/ sofa and chart desk On-deck Master stateroom + four guest cabins below, all ensuite Three private crew quarters forward Main salon + formal dining Spacious galley w/ privacy screen & doors Customized and luxurious interior design package Large bow seating area + sun pads and Jacuzzi Large beach club, utility storage room + hydraulic swim platform aft
- 34.13 m112′Length
- 2026Year
- 5Guest cabins
- 2 × CATEngines4,800 hp
- 7.67 m25′ 2″Beam
- 1.87 m6′ 2″Draught
Specifications
HORIZON FD110 at a glance
Dimensions
- Length
- 34.13 m112′
- Beam
- 7.67 m25′ 2″
- Draught
- 1.87 m6′ 2″
Accommodation
- Guest cabins
- 5
Build
- Model
- Horizon FD110-007 / NOW AVAILABLE
- Year
- 2026
- Hull
- Mono Hull · grp
Performance
- Engines
- 2 × CAT C32B
- Total power
- 3,579.4 kW · 4,800 hp
- Fuel capacity
- 20,819.76 l
- Water capacity
- 3,028.33 l
Design & history
- Naval architect
- Cor D Rover
Structure
- White gel coat finish
- One piece hull and superstructure utilizing SCRIMP™ technology with Horizons patented
- 6D infusion, incl. longitudinal and transverse stringers
- Hull, deck & superstructure built with licensed process SCRIMP™ for improved strength and less weight
- Hybrid design hull bottom with sandwich construction and solid fiberglass
- High-density Divinycell or equivalent foam cored hull sides, decks & superstructure
- Stringers with high-density foam coring
- Interior structural components all properly bonded to hull
- Strong collision bulkhead structure for extra safety
- International anti-fouling bottom paint w/ anti-osmosis treatment
- PropSpeed/PropGold metal paint for underwater appendages
- Tunnels for reduced draft
- High Performance Piercing Bow (HPPB) with S/S protection plates
- Upper deck with bump out design at PORT and STBD side
- Asymmetrical skylounge design for wider beam to STBD side
- BV Certificates (Stability and Structure)
- (2) 10-person life raft

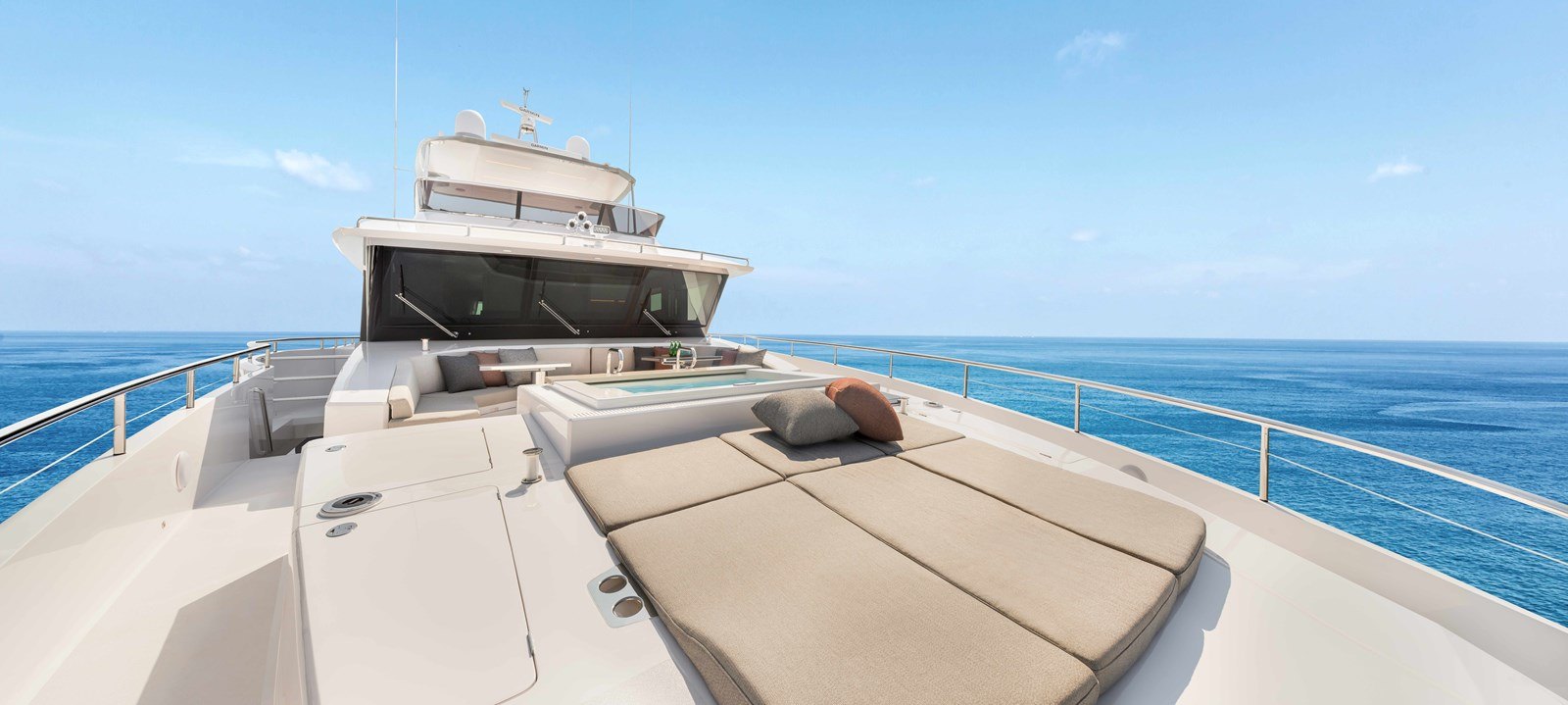

Forward & Aft Decks
- Teak aft deck
- (2) STUDLINK 12.5mm 165M anchor chains
- (2) 130kg S/S anchors
- (2) Maxwell VWC 6000 windlass with band brake
- Frameless windows, slightly tinted tempered laminated Low-E glass for windshield
- Frameless windows, tinted tempered laminated glass for side windows
- Foredeck accessed from STBD staircase/ walk around on the main deck
- Foredeck U-shaped seating w/ sliding tables
- Foredeck Jacuzzi w/ sun pad, drink holders, and storage
- Sunshades for bow seating, per layout
- Freshwater & seawater anchor chain washdown system
- (2) Maxwell VC3500 electrical rope capstan on aft deck
- (2) Chain counter in pilothouse
- (2) Bulwark side doors close to aft deck for boarding
- Wind/weather door on each side of the aft deck leading forward to the side decks
- MarQuipt 8-step carbon fiber side boarding sea stair (incl. teak planks on steps, two removable handrails)
- Hydraulic Gangway (Besenzoni PI883, 6.33M)

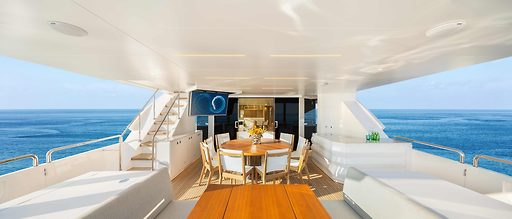

- Aft deck fixed seating w/ aft deck side entrance to beach club
- Aft deck round dining table w/ seating for 10
Skylounge & Pilothouse

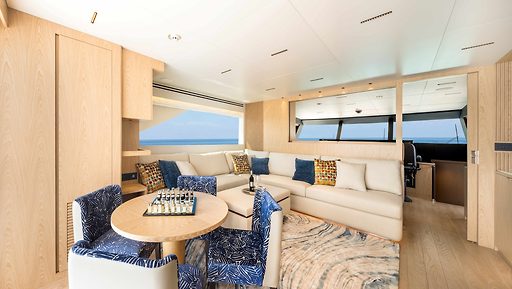

- Enclosed Skylounge design w/ L-shaped sofa w/ coffee table, dayhead, round table for 4, wet bar w/ wine cooler, Ref/freezer, and sink

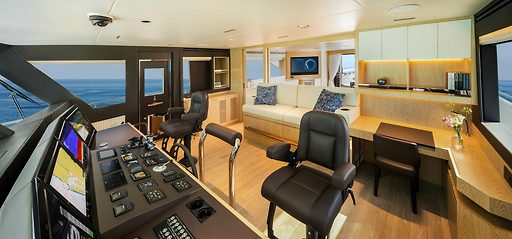

- Enclosed pilothouse forward w/ 2 helm chairs, a leaning post, sofa, and deck
- Custom designed helm w/ full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Ritchie magnetic compass,
- surveillance camera system, bilge pump panel & navigational lights
- Walk-around bridge design— PORT side bridge leads forward to bow deck
- Hi-lo glass screen and pocket door to separate skylounge and pilothouse
- Electric Roman blinds

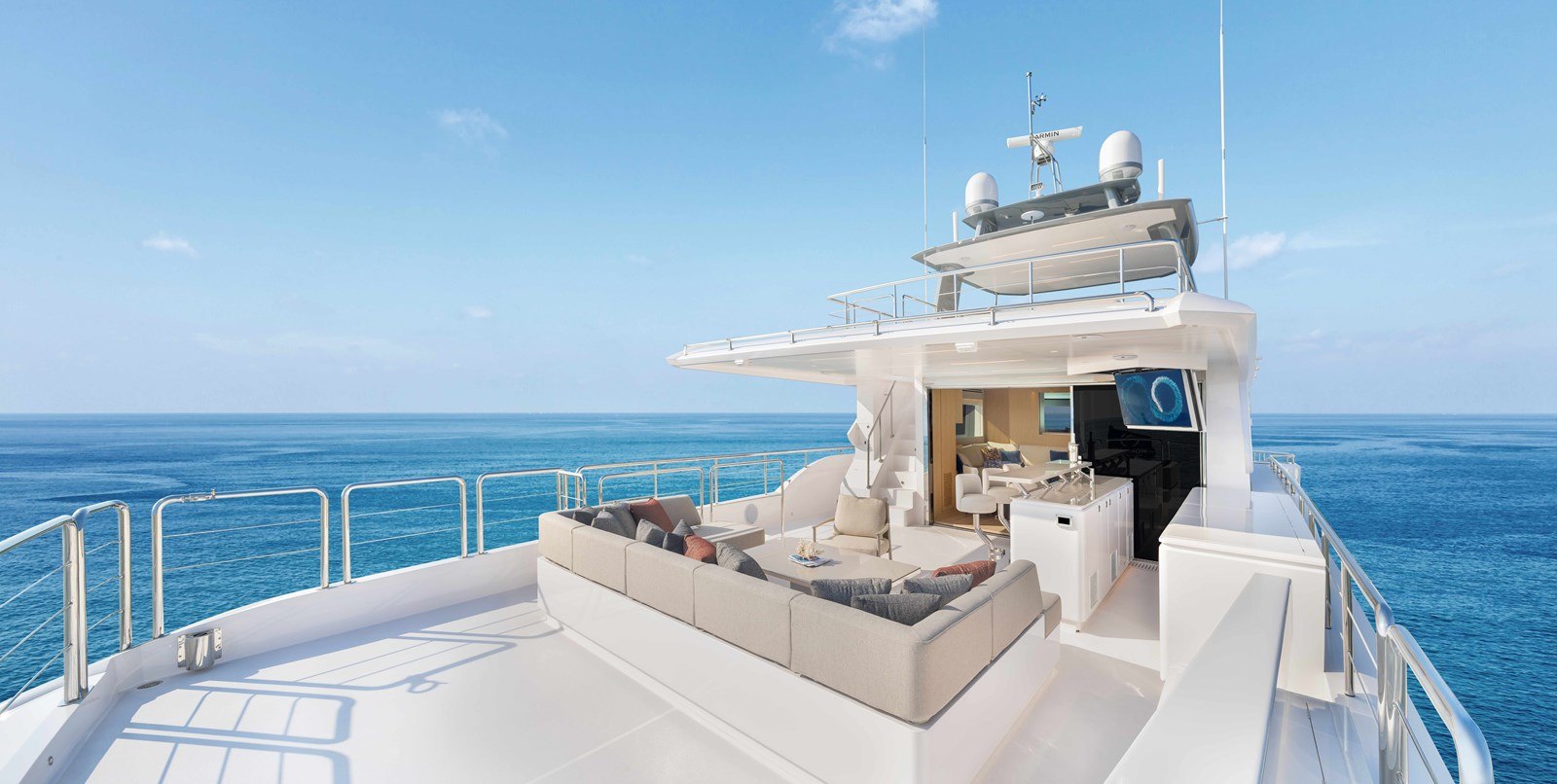

Boat Deck
- Nonskid boat deck
- Hydraulic steelhead davit CT3000 (3000lbs) with re-enforcement
- (4) Floodlights for mast & boat deck
- (2) Tokai Sanshin LED searchlights
- Oversize drains w/ strainer on each corner w/ internal overboard drains
- Wet bar w/ fridge, ice maker, & 4 barstools
- Large U-shape sofa seating w/ ottoman
- Hi-lo 43” TV on stbd side
- Hi/Lo 24” propane BBQ in FRP cabinet
- 48" FRIGID-RIGID freezer w/ FRP storage
- (2) Zodiac 10-person life rafts w/ custom made bracket
- Removable S/S rails around boat deck

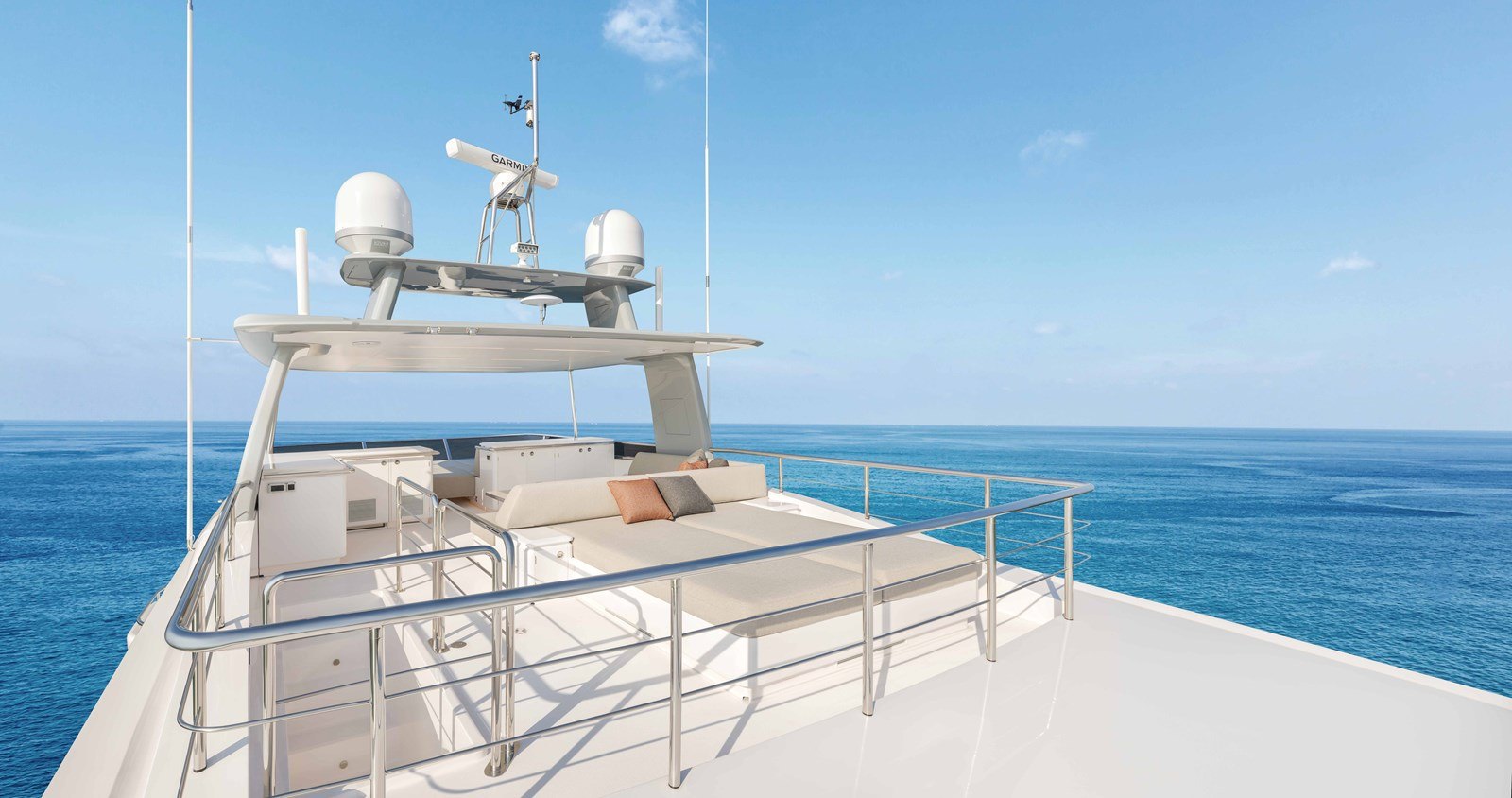

Open Flybridge (Tri-Deck)
- Non-skid deck
- Radar arch w/ antenna bracket
- Windshield w/ S/S frame & S/S rails
- Staircase from boat deck to flybridge
- Handheld remote plug-in receptacle location, per layout
- Forward extra-large sunpad
- Large L-shaped sofa w/ coffee table
- Aft sunbed w/ upright cushion backs & side tables
- Wet bar w/ sink, refrigerator, ice maker & storage

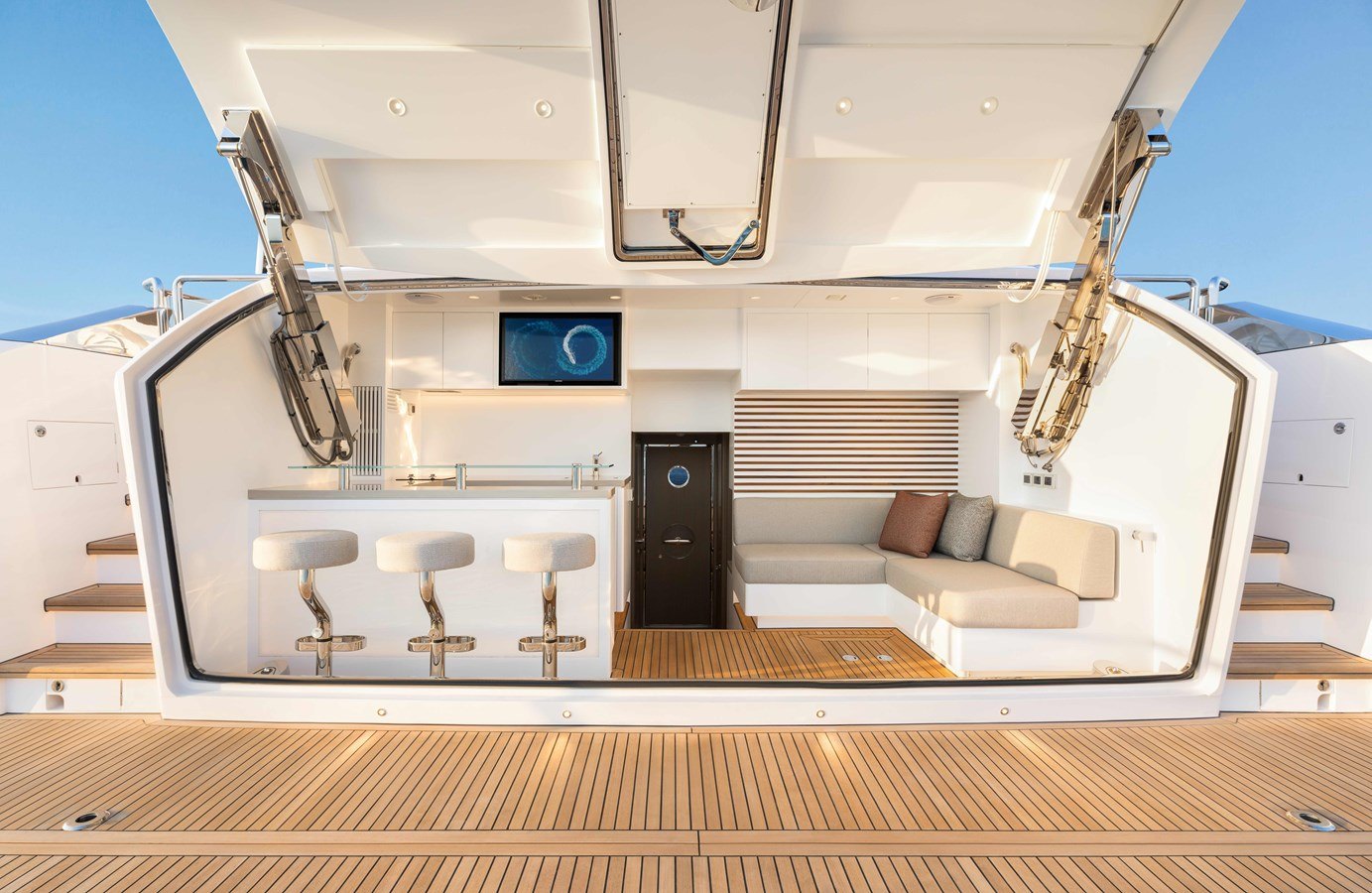

Beach Club
- Teak beach club and swim platform; teak steps to boat deck and swim platform
- Hydraulic door w/ pantograph door in the middle & rain shower on the underside of the door
- Hydraulic Hi-Lo swim platform (1,360kg/3,000lbs lifting capacity) w/ two removable corner rails
- L-shaped seating & custom bar w/ 3 stools, conventional microwave, refrigerator/freezer, burner, sink, 32” TV
- Utility room w/ dayhead, wet locker, wet storage room, diving tank storage, washer/dryer combo
Engine & Propulsion Details
- Twin CAT C32B 2,400hp
- NAIAD zero speed stabilizers (Model 525)
- NAIAD hydraulic bow and stern thrusters (16LHT/710kg & 16SHT/580kg)
- Humphree Interceptor system (HE1150*2 & HE1100*2)
- Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder
- Engine alarm system as per engine standard
- Jastram digital electric control as well as emergency manual hydraulic steering system
- High-performance S-class 5-blade propellers
- Bronze struts w/ backing plates
- Shaft and Rudder packing glands w/ Tides Marine dripless seals
- Tethered engine remote handheld controller w/ plug on tri-deck, boat deck, aft deck, and pilothouse
- Underwater exhaust system for engines w/ bypass mufflers
- Engine room clean is designed with a lightweight honeycomb floor
- Heavy-duty Insulated engine room door
- S/S overhead grab rail on each side of the engine
- Anti-noise treatment to exhaust system
- Delta-T engine room demisters
- Air compressor
Mechanical Systems
- 5,500 US gal (20,800 ltrs) fuel tanks w/ sight & electrical gauges
- (2) Racor 500 MA fuel filters, one on each generator
- (2) Electric fuel transfer pumps
- (1) Fuel polishing system (210GPH)
- 800 US gal (3,025 ltrs) freshwater tank
- (3) 40 US gal water heaters
- High-volume AC freshwater pressure pump & back up DC pump
- Spot Zero SeaXchange XTC II 1800 & Spot Zero ZTC II 2000 watermaker
- Charcoal filters are plumbed into the freshwater line shore water inlet and galley
- Hot water circulation pump
- Marine Air chilled water conditioning system w/ VFD
- Headhunter toilet system
- Headhunter sanitary treatment system (TW-HMX 6001LP)
- Dive compressor (Bauer Junior II)
- Pre-wiring for Electrosea (CL-2000-X2.0)
- Honeywell dehumidification system (Honeywell DR65A3000, 5 units)
- 200 gals holding tank & deck fitting for dockside pump-out
- 200-gal sump tank w/ pump for each shower & water drainage area
- Electric level indicators for holding tank and sump tank
- Electric Rule bilge pump
- High water level bilge alarm
- Bilge exhaust ventilation fans
- Fire insulation in engine room
- Fire resistant treatment for pipe penetrations
- Automatic fire damper system
- (8) Portable fire extinguishers
- Integrated fire alarm system in pilothouse, with heat or smoke detector in each cabin
- Auto shutdown system
- Automatic fire damper system
- (5) Portable fire extinguishers
- Integrated fire alarm in pilothouse w/ heat & smoke detectors in each cabin
- Fire Pump w/ outlets and hydrants
Electrical Systems
- GFI protection for all AC outlets in exterior, heads, galley and engine room
- Electrolysis bonding system
- Cathodic protection with zinc anodes for shafts, struts, etc.
- LED lighting system throughout interior & exterior
- (6) Underwater lights
- (2) Kohler Generators 55kW (60Hz) with sound shield
- Yacht controller (Supremo w/ speed button and joystick)
- Maretron monitoring and control system
- Magnus Air-cooled frequency convertor (model SP150 80kVA)
- Glendinning shore power Cablemasters (x2)
- 100Amp w/ 75' power cable each
- Shore power connection w/ 100Amp ISO boost transformers, which will be wired as polarization transformers (x2)
- (2) LED search light
- Pre-wired for LED boat name on Stern & PORT & STBD flybridge sides
- Sonos stereo system w/ Control4 system
Interior Décor & Equipment
- Guest accommodations include an On-Deck master, mirror VIP, STBD midship VIP & Port guest staterooms, all ensuite
- Laundry room w/ washer/dryer, linen locker, storage, ironing board, and sink
- Forward crew area w/ 3 crew ensuite cabins, crew mess w/ access to STBD side galley
- Customized interior package for interior décor & lighting
- Full set of Wedgwood (GIO) tableware for 10, incl. dish holder, pot/pan, dishes, plates, knives, forks, glasses etc
- Extra set of bed sheets for all guest cabins, including crew
Salon
- Locally made S/S electric sliding entrance door
- Dayhead
- U-shaped sofa w/ coffee table
- Custom area rug
- STBD coffee table w/ two swivel chairs
- PORT buffet cabinet behind sofa
- Custom formal dining table w/ seating for 10
- 65" TV
Galley
- Enclosed galley design w/ hi-lo privacy screen & pocket/hinged doors
- Professional galley w/ island (w/ trash compactor, microwave, instant hot, and hidden chair)
- Full-height refrigerator + freezer
- Under-counter refrigerator and freezer
- Scotsman ice maker
- Wine cooler
- Coffee maker
- (1) Opening portholes

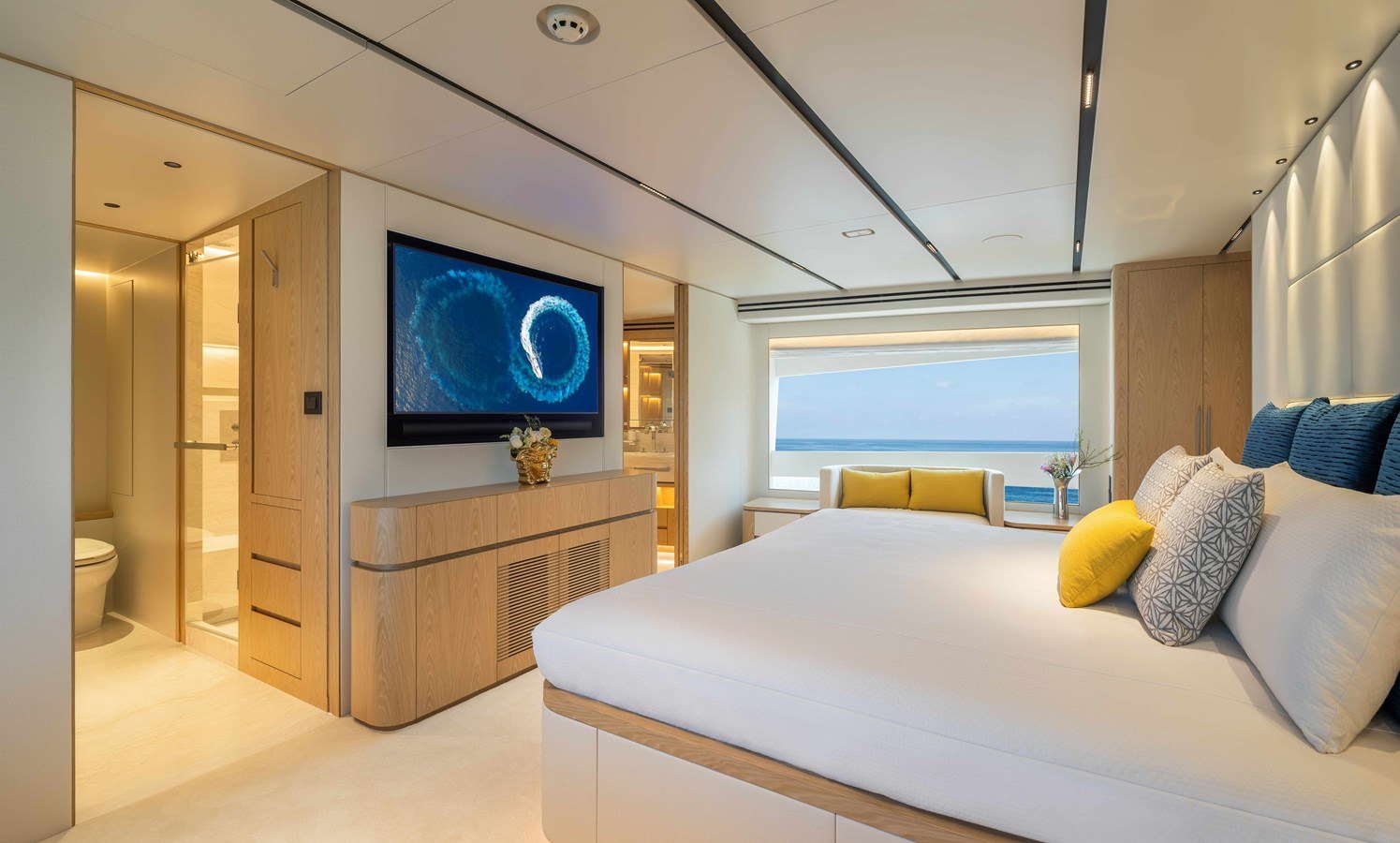

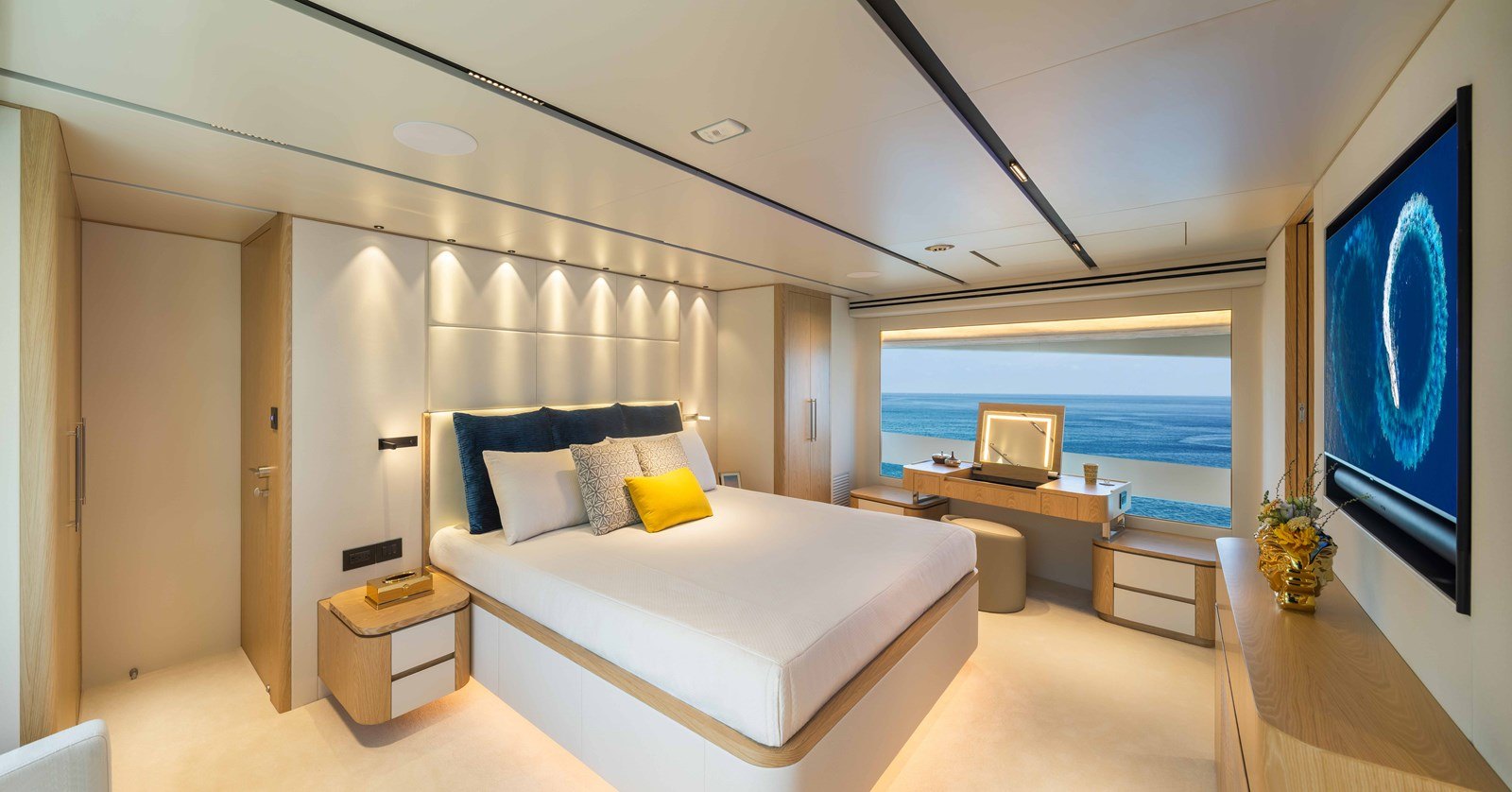

Master Stateroom
- King bed w/ drawers under, nightstands, and safe
- STBD side love seat; vanity/desk at PORT; hanging lockers on PORT & STBD
- Ensuite head w/sink, rain shower, his & hers head with sink, toilet, and storage
- Electric blinds
- (4) Opening portholes
- 55" TV
- Escape hatch in Master w/ ladder
- Home entertainment system
- Extra wireless chargers

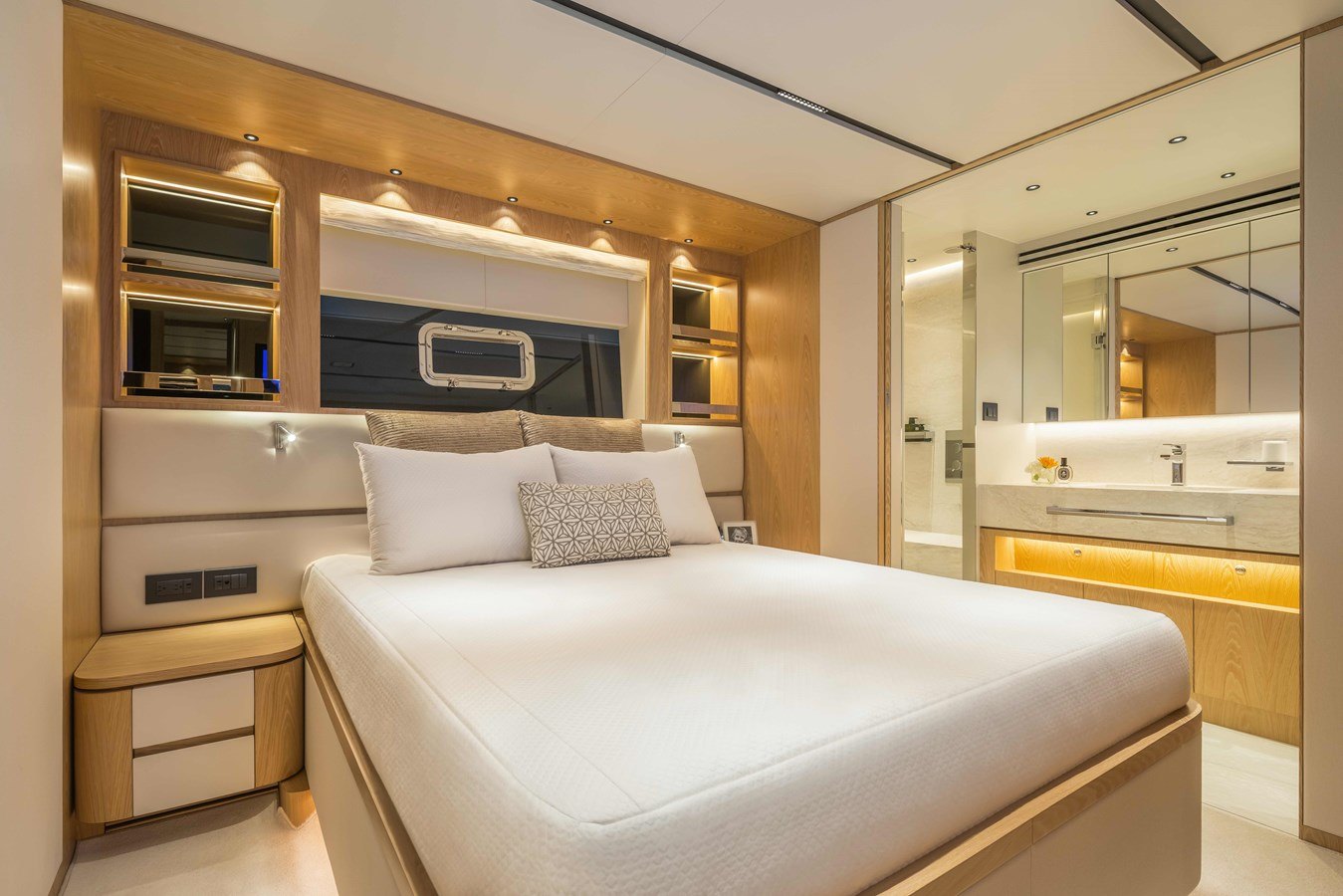

Mirror Queen Staterooms (2)
- Mirrored staterooms w/ queen bed, storage drawers, & nightstand
- Large hanging lockers
- Ensuite head w/ sink, mirror cabinets, shower w/ rain shower head & toilet
- Prewire for electric roman shades
- Escape hatch in port stateroom
- 43” LED TV
- Home entertainment system
Midship Guest Stateroom
- Queen bed, storage drawers, & nightstand
- Hanging lockers
- Ensuite head w/ sink, mirror cabinets, shower w/ rain shower head & toilet
- Prewire for electric roman shades
- 43” LED TV
- Home entertainment system
Twin Port Guest Stateroom
- Twin beds w/ one sliding bed
- Hanging locker
- Ensuite head w/ sink, mirror cabinet, rain shower head & toilet
- Prewire for electric roman shades
- 32” LED TV
- Home entertainment system
Crew Quarters Forward
- Captain’s cabin w/ (2) hanging lockers, 32” LED TV & ensuite head
- (2) crew bunk cabins w/hanging locker & ensuite head
- Crew mess w/ 32” TV, dining area, sink, convection microwave & cooktop, fridge/freezer
- Panty storage
- Washer/dryer
- Crew staircase entrance into galley
Electronics
- TV antenna on top of radar arch
- SAT TV KVH TracVision UHD7 + Dummy Dome + SAT phone pre-wire only
- 4G cellular routing system with Wi-Fi
- Control4 system
- (5) Panasonic PBX Telephones with intercom feature
- Exterior connector for shore phone and cable TV
- Surveillance camera system
- Motion detecting light at guest foyer close to staircase
- Prewire FLIR night vision
Pilothouse Navigation
- Garmin navigational system includes
- Garmin GPS w/ Satellite compass
- Garmin 48” 12kW 96nm open array and 72” 12kW 96nm open array radar system
- (4) Garmin GPSMAP 9224 24" multifunction displays
- MBB300C for inputting the Maretron info to GARMIN display
- (1) GARMIN "NEW" GRID 20 remote input device
- Garmin Fishfinder/ Wind/ Speed/Temp transducers
- SIMRAD AP70 MK2 Autopilot System
- Garmin AIS
- (2) Garmin VHF
Shipyard
Built by Horizon Yacht
Founded in 1987, Horizon Yacht is a Taiwanese shipyard renowned for its leading build techniques, high-end craftsmanship, and advanced technology.
