About ALL Ocean Yachts Overing 100' Explorer
Outstanding Explorer yacht New build: 24 months from date of contract to build. Proven hull design.
- 30.5 mLength
- 4Guest cabins8 guests
- 1 × CaterpillarEngines720 hp
- 7,000 nmRange10 kn cruise
- 7.89 mBeam
- 2.41 mDraught

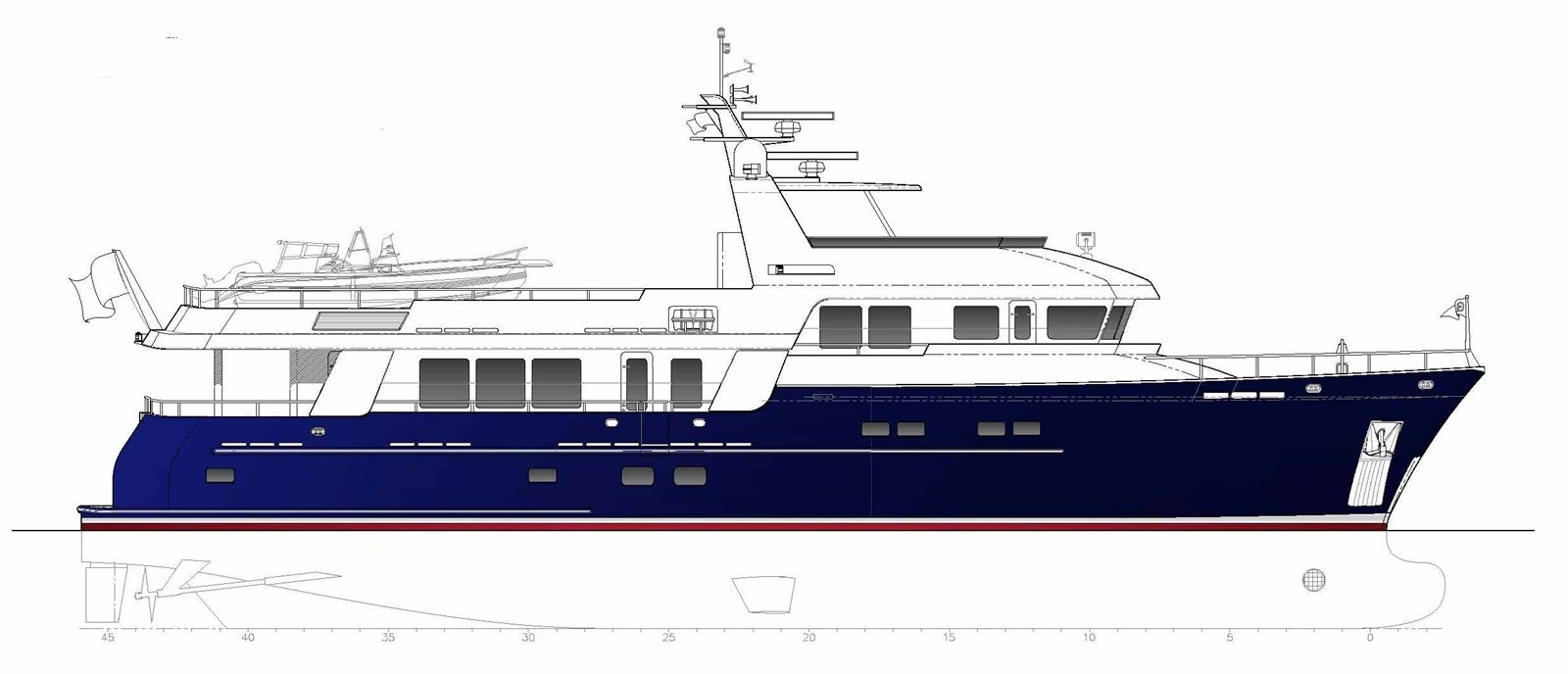

ALL Ocean Yachts Overing 100' Explorer
About ALL Ocean Yachts Overing 100' Explorer
Outstanding Explorer yacht New build: 24 months from date of contract to build. Proven hull design
Request more information about ALL Ocean Yachts Overing 100' Explorer
More pictures and the full history of this yacht on request.
EnquireLayout of ALL Ocean Yachts Overing 100' Explorer
ALL Ocean Yachts Overing 100' Explorer, ALL OCEAN YACHTS AOYO 100 – Layout
Specifications
Dimensions
- Length
- 30.5 m
- Beam
- 7.89 m
- Draught
- 2.41 m
Accommodation
- Guests
- 8
- Guest cabins
- 4
- Crew
- 5
- Crew cabins
- 3
Build
- Model
- AOYO 100
- Hull
- Mono Hull
- Hull material
- grp
- Classification
- Lloyd's Register
Performance
- Engines
- 1 × Caterpillar C18 Acert
- Total power
- 533.2 kW · 720 hp
- Max speed
- 14 kn
- Cruising speed
- 10 kn
- Range
- 7,000 nm
- Fuel capacity
- 37,854.12 l
- Water capacity
- 5,678.12 l
Design & history
- Exterior design
- Overing Yacht Design
- Interior design
- Espinosa Inc
More about ALL Ocean Yachts Overing 100' Explorer
Introduction
- The All Ocean Yachts Overing Explorer Yachts are based on the proven high efficiency full displacement hull form created by Overing Yacht Design, a recognized leader in this type of hull. The hull form allows the All Ocean Yachts' Overing line to cruise using very small amounts of fuel and increased speeds for a given RPM. This greatly reduces the overall operating cost of the vessel.
- The design was created for worldwide travel and cruising in remote areas with little or no shore support for long periods of time.
- The large volume created by the Overing design gives it the room to carry all of the equipment and supplies needed for world cruising.
- The volume also allows all of the All Ocean Yachts' Overing design line of yachts to have a very unique feature. They have a full height deck forward below the normal lower accommodations deck. This area is accessed via a door and stairs. This deck contains a nice laundry area, extra refrigerators and freezers and a lot of dry good storage.
- Forward of the storage area is a pump room with the fresh water pumps, two water makers, water heaters and water filters. Note there is a third water heater for the crew area.
- The exceptional flybridge layout not only has comfortable seating and all of the amenities you would expect but she also carries a larger then normal tender for a vessel of her size.
- When compared against other vessels in their size range the All Ocean Yachts' Overing 100' stands out as a serious cruising yacht with exceptional features that few can match.
General Specifications
- LOA 100’-0”
- Beam 25’-6”
- Draft 7’-6”
- Highly Efficient Round Bilge Bulbous Bow Hull
- Displacement 190 LT Approx.
- Fuel Tankage 10,000 gals.
- Water Tankage 1,500 gals.
- Grey Water Tankage 400 gals.
- Black Water Tankage 600 gals.
- Dirty/Lube Oil Tankage 100 gals.
- Naval Architecture & DesignOvering Yacht Designs
- Interior DesignEspinosa Inc. or Owner Choice
- Sound EngineeringSoundown Inc. or Equal
Construction
- Solid Laminate Infused Vinylester Hull
- Foam Cored Vinylester Infused Superstructure
- High Quality Awlgrip Finish
- Classed RINA/MCA LY2
- Five (5) Watertight Compartments
Engine Room & Major Equipment
- (2) Cat C18 Acert, 715HP Max Cont “C” Rating
- (2) Twin Disc MGX 5114 DC
- Twin Disc single lever controls
- Custom Water Drop Exhaust System
- (2) 55kW Northern Lights Generators w/InSep
- Racor Fuel/Water Filters
- Alpha Laval Fuel Centrifuge
- Fuel Transfer System
- Bilge System/Fire Fighting System
- Headhunter MSD
- Fire Extinguishing System
- Hydraulic Bow Thruster
- TRAC ”STAR”Hydraulic Stabilizers
- Kobelt Hydraulic Steering
- (2) Air Compressors
- (2) Freshwater pressure sets
- (2) 1,200 gal/day watermaker
- (3) Hot water heaters
- Aqua Air AC/heat system
- Atlas Transformer
- Battery Chargers
- Engine Room Blower System
- Air Cond. Eng.Rm. & Mach. Space
- All deck hardware 316L Stainless Steel
- (2) Maxwell 6000 Anchor Windlasses
- (2) Maxwell 4000 Warping Capstans
- Stainless Anchor Pocket & (2)185KG SHHP Anchors W/300 ft. 5/8” Stud Link Chain P/S
- Coast Guard approved Safety Equipment
- Hydraulic Passerelle
Master Stateroom & Bath
- Full King size bed
- Built in nightstands & dresser
- Cedar lined closets w/lights
- Built in EntertainmentCenter w/43” LCD TV
- Fixed Windows
- Built in settee
- His and Hers Custom Vanities
- Marble tops w/Lav. Bowls
- Headhunter Toilets
- Oversized stall shower
- Exhaust fan system
- Custom Mirrors
- Lighting recessed in ceiling
- AC/heat system w/digital controls
- Floor & wall coverings
Guest Staterooms & Bath
- One Queen, & One Twin cabin
- Built in nightstands & dresser
- Cedar lined closets w/lights
- Drawer space built in under beds
- Built in EntertainmentCenter w/22” LCD TV
- Opening Portlights
- Custom Vanities w/mirrors
- Marble tops w/Lav. Bowls
- Headhunter Toilet
- Shower
- Exhaust fan system
- Lighting recessed in ceiling
- AC/heat system w/digital controls
- Floor & wall coverings
Captain's Cabin
- Double bed
- Built in nightstands & dresser
- Cedar lined closets w/lights
- Drawer space built in under beds
- Built in Entertainment Center w/22” LCD TV
- Built in Desk
- Fixed Portlight
- Custom Vanities w/mirrors
- Corian tops w/Lav. Bowl
- Headhunter Toilet
- Oversized stall shower
- Exhaust fan system
- Lighting recessed in ceiling
- AC/heat system w/digital controls
- Floor & wall coverings
Crew Quarters
- One stateroom for Two crew
- Cedar lined closets w/lights
- Headhunter Toilet
Crew Galley
- Soaking Sink
- Washer & Dryer
Crew Lounge
- Built in settee
- Built in Entertainment Center w/22” LCD TV
Aft Main Deck
- Custom Built in Seating w/ tables & loose chairs supplied by Owner
- Custom Built-in Bar w/Soaking Sink, Refrig. & Ice Machine
Main Salon
- Loose Furniture supplied by Owner
- Built in Entertainment Center w/43” LCD TV
- Lighting recessed in ceiling
- AC/heat system w/digital controls
- Floor & wall coverings
Formal Dining
- Dining Table & Chairs supplied by Owner.
- Fore & Aft China Cabinets
- Lighting recessed in ceiling
- AC/heat system w/digital controls
- Floor & wall coverings
Main Lobby & Powder Room
- Coat locker
- Powder Room Vanity w/mirror
- Granite tops w/Lav. Bowl
- Head Hunter Toilet
- Exhaust fan system
- Floor & wall coverings
Galley
- Custom mica cabinets & Corian tops
- Refrig/Freezer w/ ice &water dispenser
- (2) Self cleaning ovens
- Microwave oven
- Dishwasher
- Trash Compactor
- Food Lift
- Surface range w/exhaust hood
- Double Stainless sink w/disposal
- Undercounter & overhead lighting
- Two Pantries
- AC/heat system w/digital controls
- Floor & wall coverings
Pilothouse
- Custom padded control console w/elevated helm station
- Separate navigation center
- Full instrumentation
- Recaro Helm chair
- Custom elevated settee & table
- \Five windshield wipers/washers
- Built in chart drawers
- Recessed white & red lighting & ceiling
- AC/heat system w/digital controls
- Floor & wall coverings
- Custom Safety Panel & Monitoring System
Boat Deck
- Chocks for Owner-furnished 19’ & 12’ Tender
- (1) 3000 lb. Hydraulic Crane
Flybridge
- Custom Canopy & Mast
- Custom Bar w/6 stools, Refrig/Freezer & Stainless grill
- Custom seating w/cushions & Buffet
Teak Decks
- Swim Platform, Main Deck, 01 & 02 Decks shall be covered w/Burma Teak
