About AES

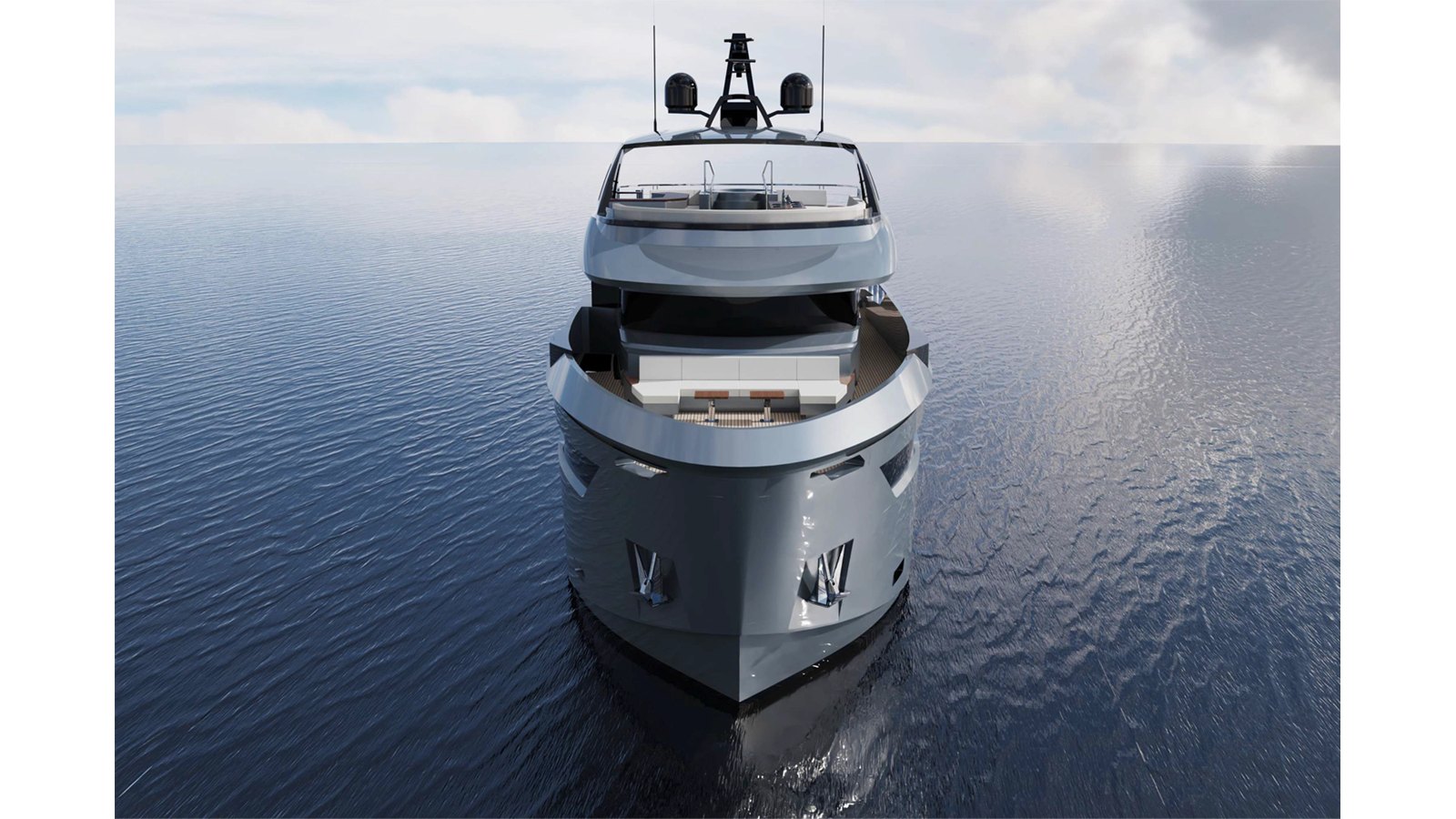

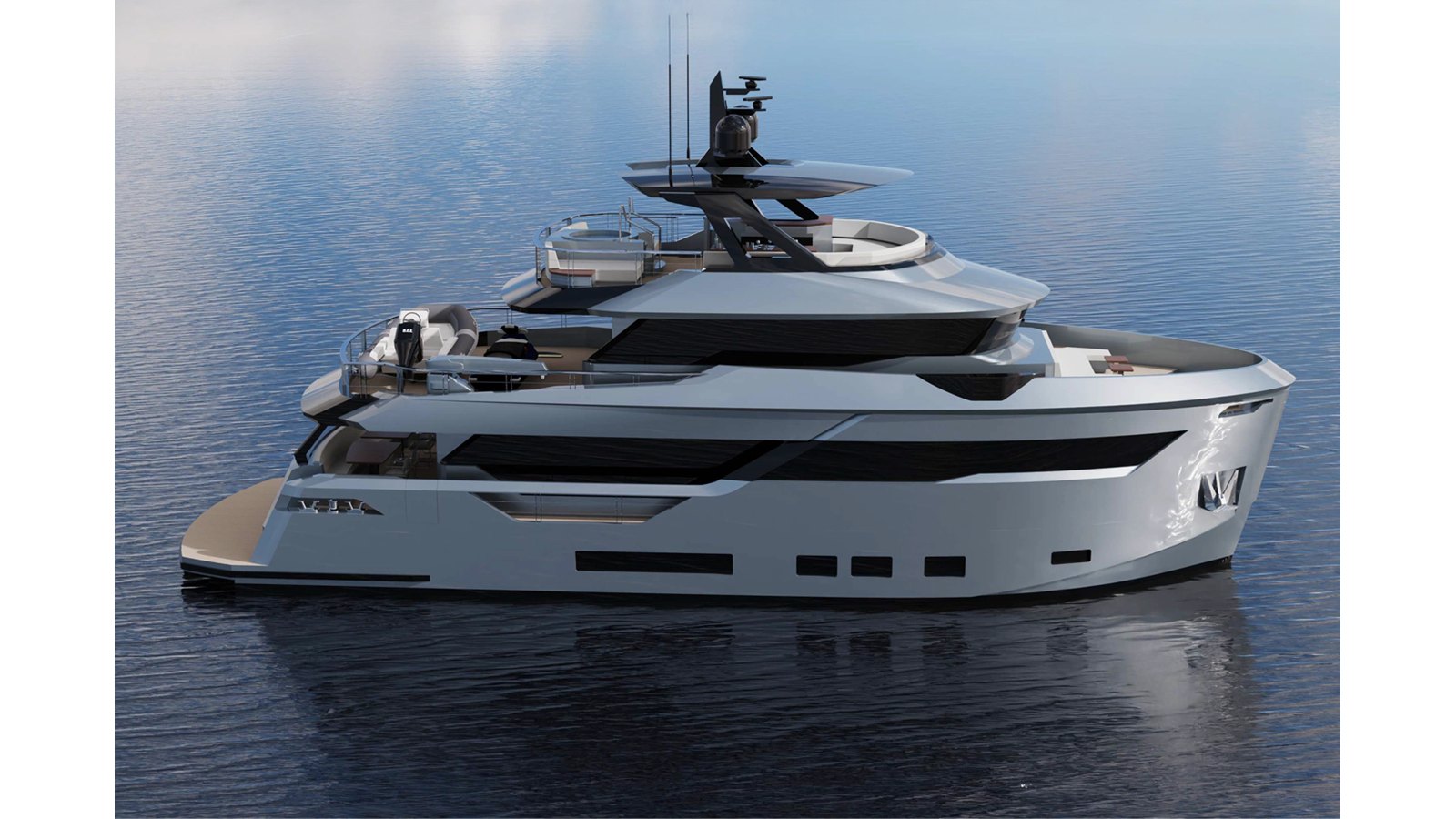

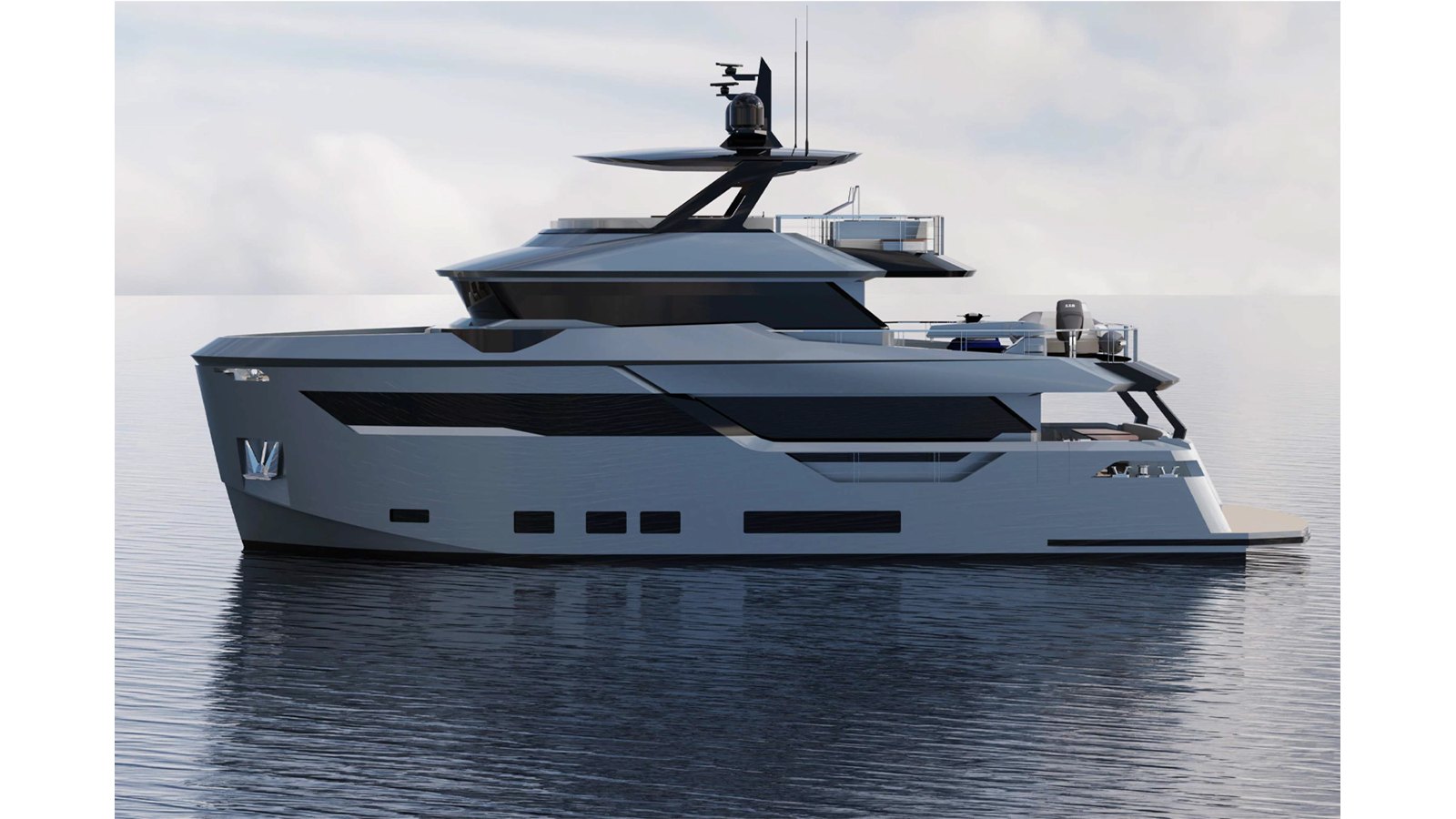

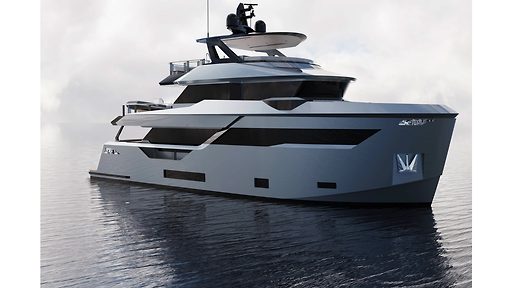

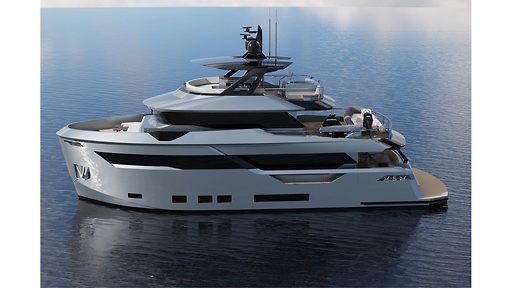

The AES 85 is a substantial pocket explorer which features a full displacement steel hull and aluminum superstructure. Twin Cummins give her a trans-Atlantic range while zero speed stabilizers assure comfort both underway and at anchor. A fully bespoke interior by Milan based Hot Lab sleeps 8 guests in 4 cabins including a full beam Master cabin on the main deck, 2x VIP cabin and 1x twin cabins on the lower deck plus accommodations for 4 crew in 2 cabins. Currently under construction by AES Yacht and nearing completion, this 26m (85'3") is designed for adventure on the high seas. She is built to RINA Unrestricted Navigation & CE Cat A for registration below 24 meters, she boasts a remarkable range of 6,000nm and is equipped with zero-speed stabilisers, ensuring smooth cruising. Excellent opportunity with a fast delivery date. Full presentation available upon request.
- 25.9 m85′Length
- 2027Year
- 4Guest cabins8 guests
- 2 × CumminsEngines910 hp
- 11 knMax speed8 kn cruise
- 8 m26′ 3″Beam
Specifications
AES at a glance
Dimensions
- Length
- 25.9 m85′
- Beam
- 8 m26′ 3″
- Draught
- 2.51 m8′ 3″
- Gross tonnage
- 235
Accommodation
- Guests
- 8 in 4 cabins
- Crew
- 4 in 2 cabins
Build
- Model
- 85
- Year
- 2027
- Hull
- Mono Hull · steel
- Superstructure
- aluminium
Performance
- Engines
- 2 × Cummins QSM 11
- Total power
- 678.6 kW · 910 hp
- Max speed
- 11 kn
- Cruising speed
- 8 kn
- Range
- 6,000 nm
- Fuel capacity
- 35,503.38 l
- Water capacity
- 3,558.29 l
Design & history
- Naval architect
- AES Yacht
- Exterior design
- AES Yacht
- Interior design
- Hot Lab
Technical Details
- Builder AES Yachts
- Year 2027
- Exterior Design AES Yacht
- Interior Design Hot Lab
- Naval Architecture & Engineering AES Yacht/Endaze Engineering
- Length Overall 26.13 m/85 ft 8 in
- Length at Waterline 22.74 m/74 ft 7 in
- Beam 7.86 m/25 ft 9 in
- Max Beam 8.00 m/26 ft 2 in
- Depth 3.75 m/12 ft 3 in
- Gross Tonnage 235 gt
- Hull Material Steel
- Superstructure Material Aluminum
- Class RINA C ✠ HULL ● MACH Y, Unrestricted and CE Cat A
- Flag Malta
- Engines (2) Cummins QSM 11 455 hp
- Max Speed 11 knots
- Cruising Speed 8 knots
- Range at Cruising Speed 6,000 nm
- Generators (2) Kohler 35 kW @1,500 rpm 50 Hz, 400V
- Fuel Tank Capacity 35,500 liters/9,379 gallons
- Fresh Water Tank Capacity 3,558 liters/940 gallons
- Sewage Tank Capacity 3,953 liters/1,044 gallons
- Staterooms 4; sleeps 8 guests
- Crew Cabins 2; sleeps 4 crew
Propulsion & Auxiliary Machinery
- ZF Gearbox
- F51 Duplex stainless steel shaft
- (4) Control stations
- Aluminum bronze propeller
- Bow Thruster (1) Sleipner SH550, hydraulic
- Stern Thruster (1) Sleipner SH550, hydraulic
- Data hydraulic steering system
- Stabilizers Sleipner, zero speed, vector fin kit 1.95 sqm
- Danfoss PTO pumps
- Water Makers 460 liters(121 gallons)/hour total, duplex, Idromar
- Idromar fresh water systems
- Air Conditioning Mediterranean Climate - Webasto
- Engine Room Inlet & Outlet Fans (2) Gianneschi
- Fuel Filtration (1) Alfa Laval
- Sewage Treatment System Hamann, HL compact 3,000 liters (792 gallons)/day
- Tecma toilet system
- Gianneschi pumps
- (1) Alfa Laval fuel separator and filters
- (1) Atlas Copco compressor
- Kahlenberg air horn
Electrical Systems
- Electrical Supplies 230/400V - 50hz
- Batteries Starter & Service Mastervolt or Victron
- Service Generator (2) Kohler 35 kW with Sound Encloser
- Shore Power (1) Glendenning Cable Master
- AV & IT Automation System KNX, ABB
Deck Equipment & Coating
- (2) Data hydraulic anchor winches (windlasses)
- (2) Data hydraulic mooring winches (capstans)
- (2) Data hydraulic anchor & anchor chain
- Tender Crane (1) Opacmare - Loading capacity 1,000 kg
- Transformer (1) Opacmare 5 steps - Lifting capacity 420 kg
- Passarelle (1) Opacmare - Length 5.040 mm
- Electrical Sliding Doors (2) Besenzoni or Makro Yachts
- (8) Underwater lights or Oceanled
- Awl Grip top coat (topsides & superstucture)
Safety Systems
- Sliding Watertight Doors Winel or equal
- Fire Fighting Fire Pro FP 1200
- Fire Detection & Alarm Tyco T2000 or Consilium
- Security (CCTV) Samsung
Navigation & Electronic Equipment
- Furuno navigation equipment
- Navigation lights
- (1) Intellian TV antennas
- Network IT system
- 4G/WiFi system
