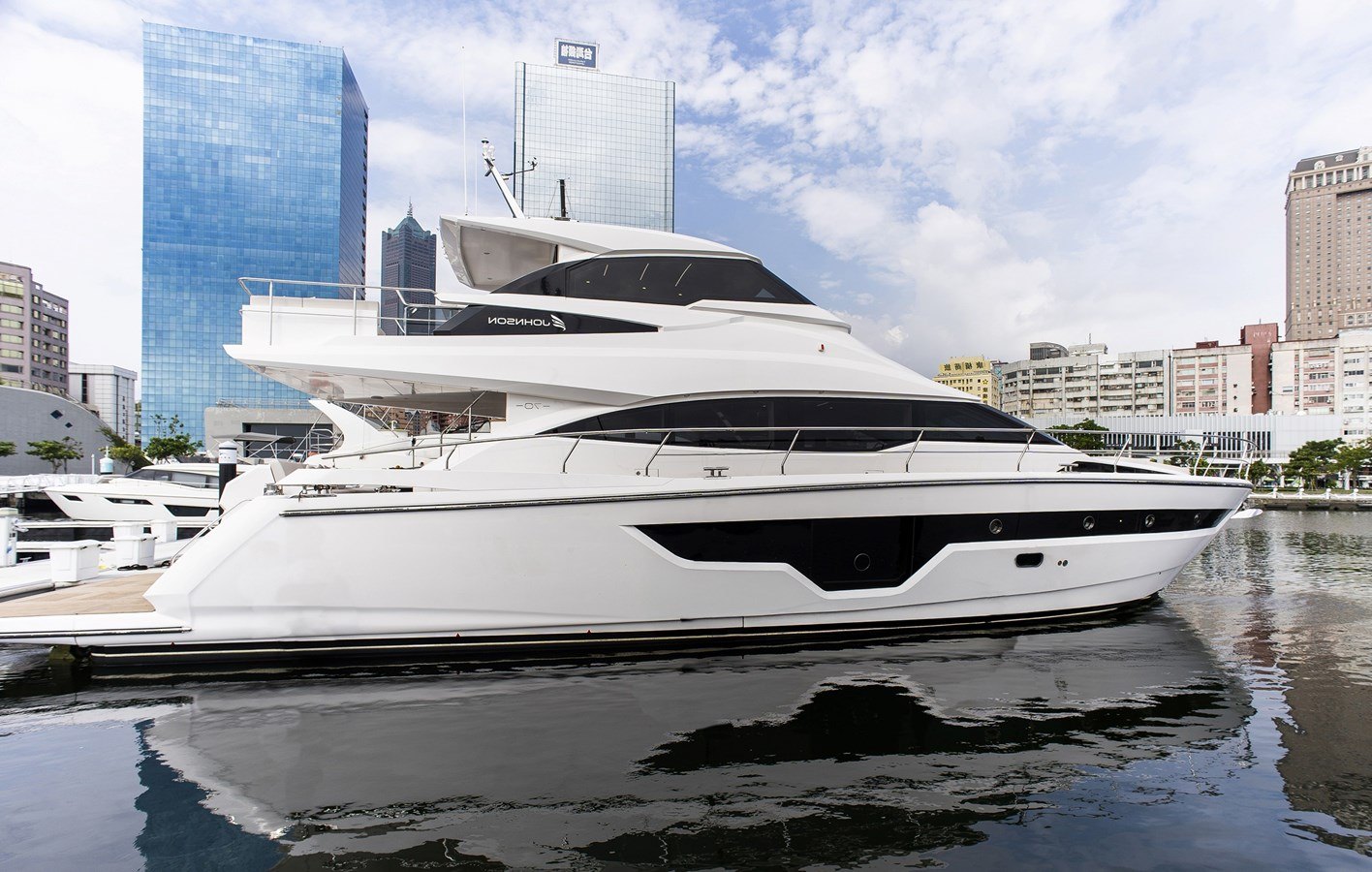

About 70' Johnson Skylounge 2026
Price is FOB Taiwan. Neither duty nor tariffs are included in the price. Brand new and lying at the shipyard in Taiwan, hull #20 (third in the 70 series) is available for immediate delivery. Virtually the same as her predecessors with only small tweaks in her equipment she was built for the USA/60 Hz market. Boasting 4 cabins plus crew aft, she is fully equipped including At Rest Stabilization, hydraulic bow and stern thrusters, watermaker etc. She can be shipped to your location immediately!
- 21.33 m70′Length
- 2025Year
- 4Guest cabins8 guests
- 2 × CaterpillarEngines2,300 hp
- 25 knMax speed21 kn cruise
- 5.58 m18′ 4″Beam
Layout
Explore every deck in detail: 70' Johnson Skylounge 2026
Specifications
70' Johnson Skylounge 2026 at a glance
Dimensions
- Length
- 21.33 m70′
- Beam
- 5.58 m18′ 4″
- Draught
- 1.65 m5′ 5″
- Gross tonnage
- 48
Accommodation
- Guests
- 8 in 4 cabins
- Crew
- 1 in one cabin
Build
- Model
- Skylounge
- Year
- 2025
- Hull
- Mono Hull · grp
Performance
- Engines
- 2 × Caterpillar C-18 Acert
- Total power
- 1,715.2 kW · 2,300 hp
- Max speed
- 25 kn
- Cruising speed
- 21 kn
- Fuel capacity
- 3,974.68 l
- Water capacity
- 927.43 l
Design & history
- Naval architect
- Dixon Yacht Design
- Interior design
- Design Unlimited, England
Hull & Main Structure
- 1. DNV Type approved fiber /resin & sandwich core material applied
- 2. Isophthalic white gelcoat finish for hull above waterline, exterior decks and furniture
- 3. Vacuum assistance resin infusion cored lamination for hull deck and superstructure to improve strength and less weight
- 4. High-density foam cored hull bottom
- 5. High-density foam cored hull sides, decks, and superstructure
- 6. Stringers with high density form coring
- 7. Interior structural components all properly bonded to hull
- 8. Anti-fouling bottom paint
- 9. Shaft tunnels for reduced draft
Exterior Deck & Equipment
- 1. 14 MM Main deck non-skid floor
- 2. Stainless integral rollers & chain stopper for anchor chain
- 3. 250 feet galvanized chain (3/8”)
- 4. Maxwell hydraulic RC12-12 windlass
- 5. Maxwell VC2500 W/D capstan at aft deck
- 6. Stainless Steel 120lb. anchor x 1
- 7. Heavy duty 316 # S/S Handrail & Stanchions
- 8. Heavy duty 316# cleats and fairleads
- 9. Medium tinted safety glass
- 10. Manual stainless steel saloon sliding door
- 11. Stainless steel rubrail with rubber insert around hull & deck joint

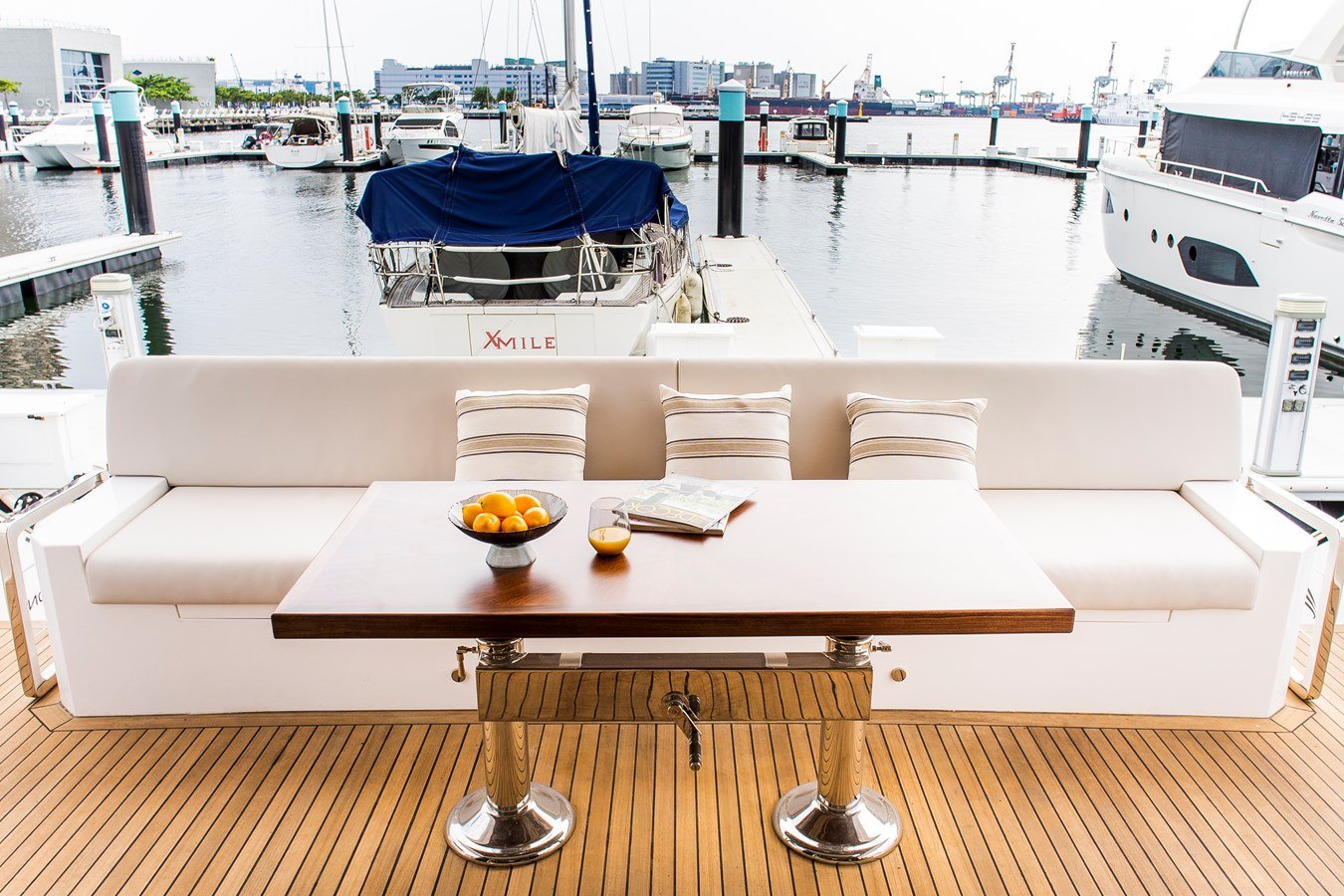

- 12. Aft deck seating built in with cushion
- 13. Aft deck table wooden table with protective cover. LED low level courtesy lights on side deck
- 14. LED low level courtesy lights on aft deck

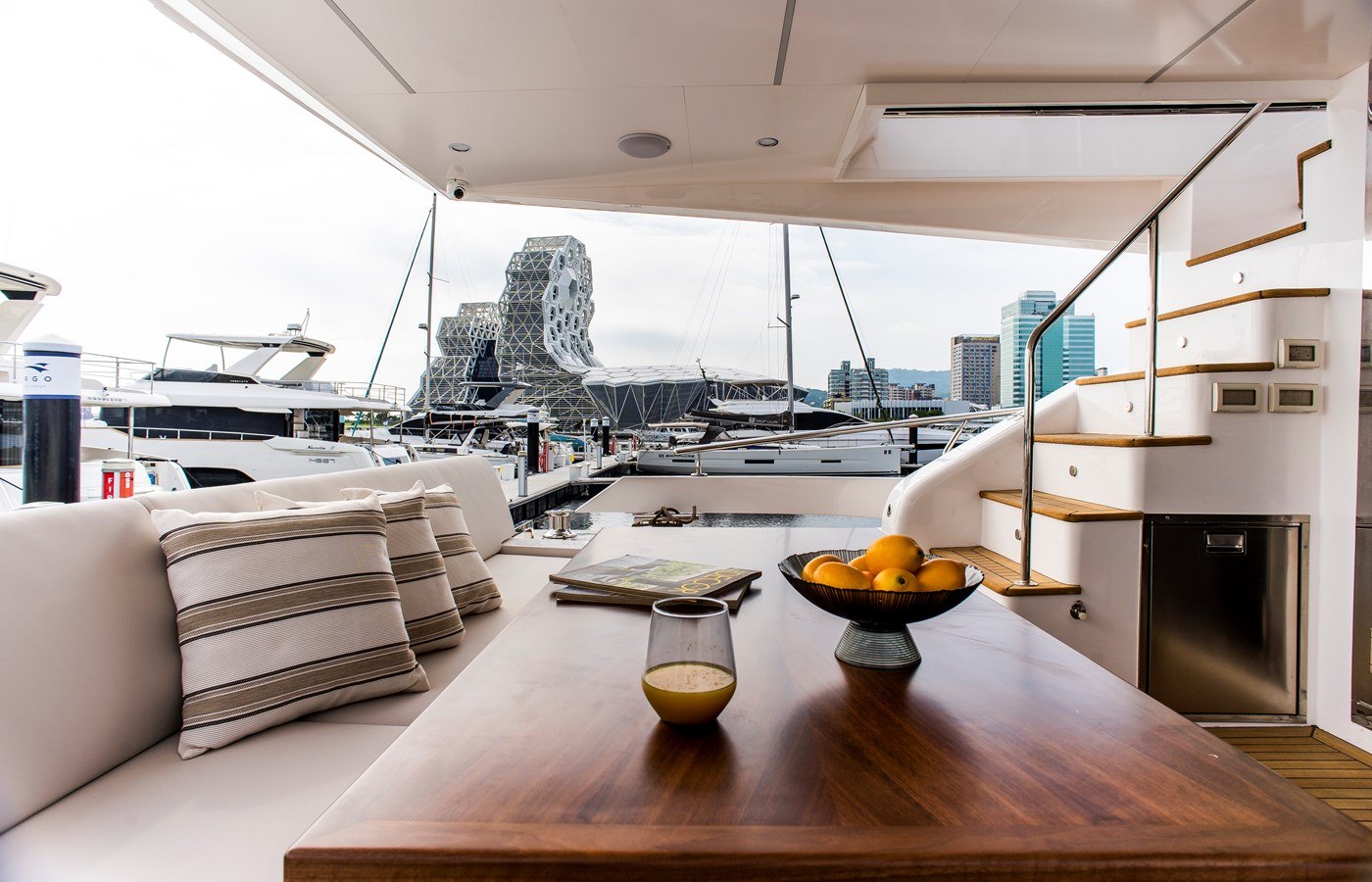

- 15. Stair to flybridge
- 16. Hot & cold transom shower
- 17. Stainless steel swimming ladder
- 18. Water fill deck fitting
- 19. Diesel fill deck fitting
- 20. Jabsco Q420J-118n-3A deck wash down pump
- 21. LED floodlights for cockpit
- 22. Aritex hydraulic swimming platform with lifting capacity of 1000 kg
Underwater Gear
- 1. 4 blade bronze propellers
- 2. Bronze p-brackets
- 3. Stainless steel Aquatech 22 HS 3” diameter shafts
- 4. 3” Tides shaft and rudder seals
- 5. Boot top stripe size 3” color black, blue or red
- 6. Full cathodic bonding system to zinc anodes
- 7. Seawater strainers for engines, genset and air conditioning
- 8. Seacocks on all underwater fittings
- 9. Underwater exhaust with bypass
- 10. Ocean LED underwater light Sport series x $
- 11. Seahawk anti-fouling bottom paint

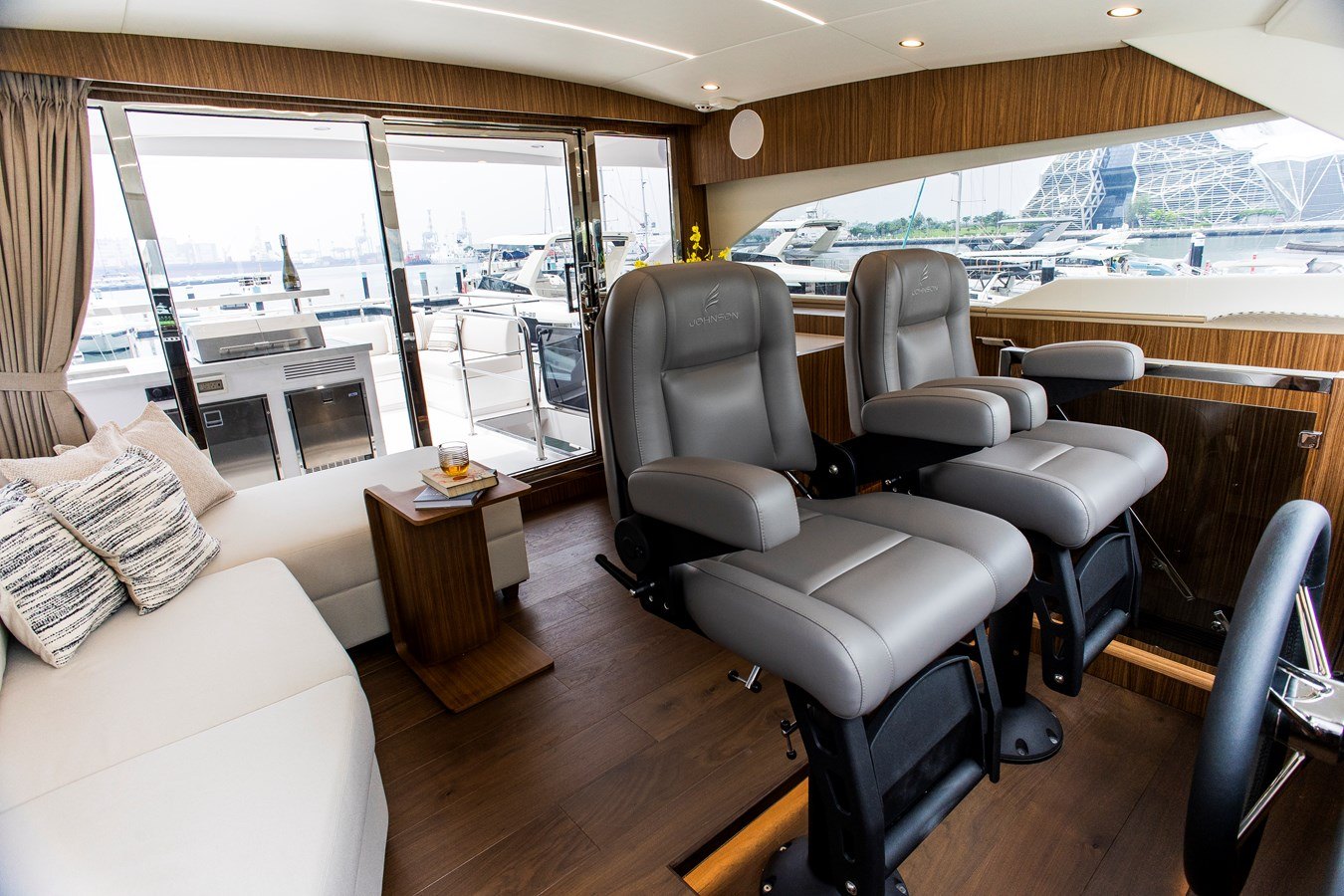

Skylounge
- 1. Floor wood floor

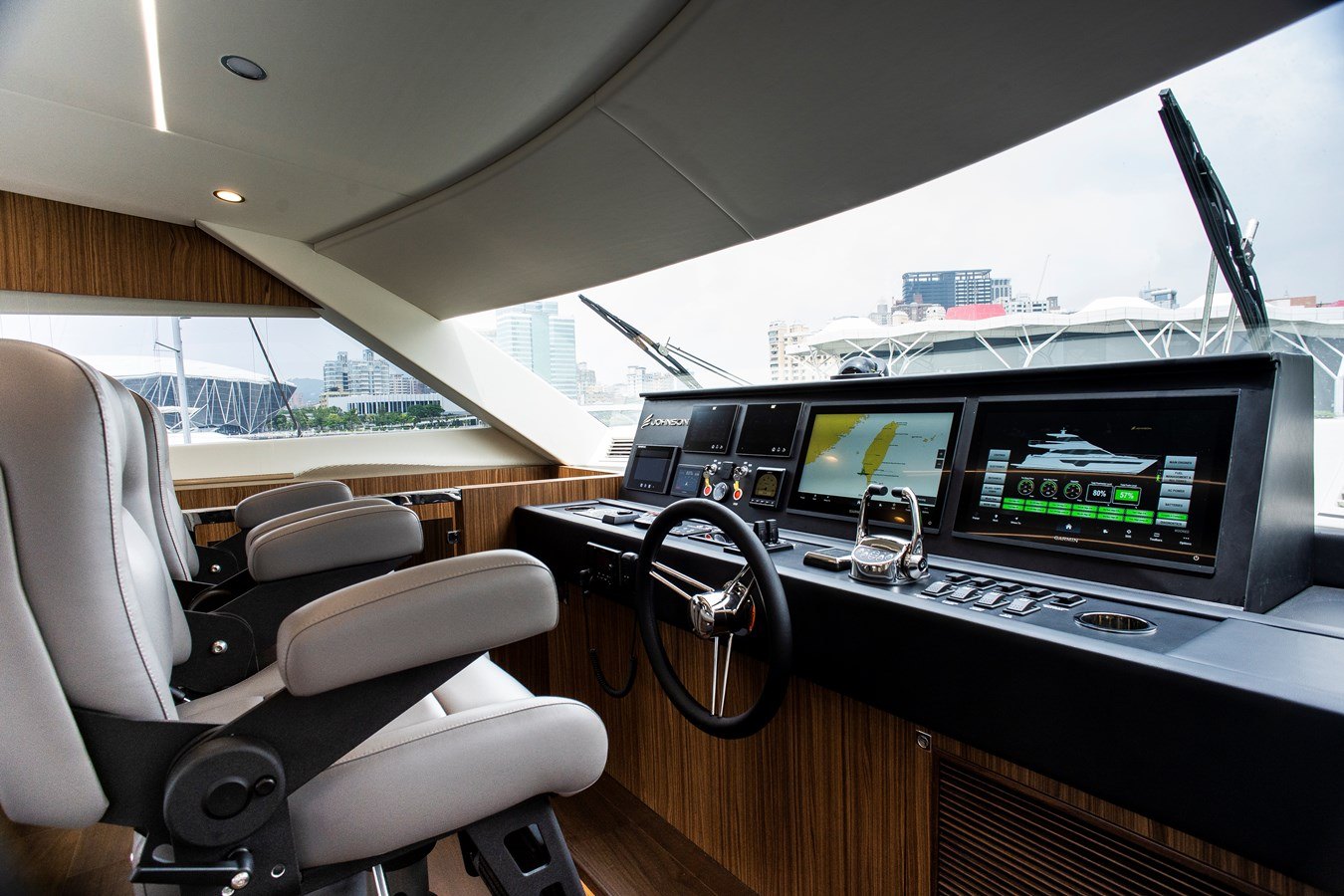

- 2. Instrument console

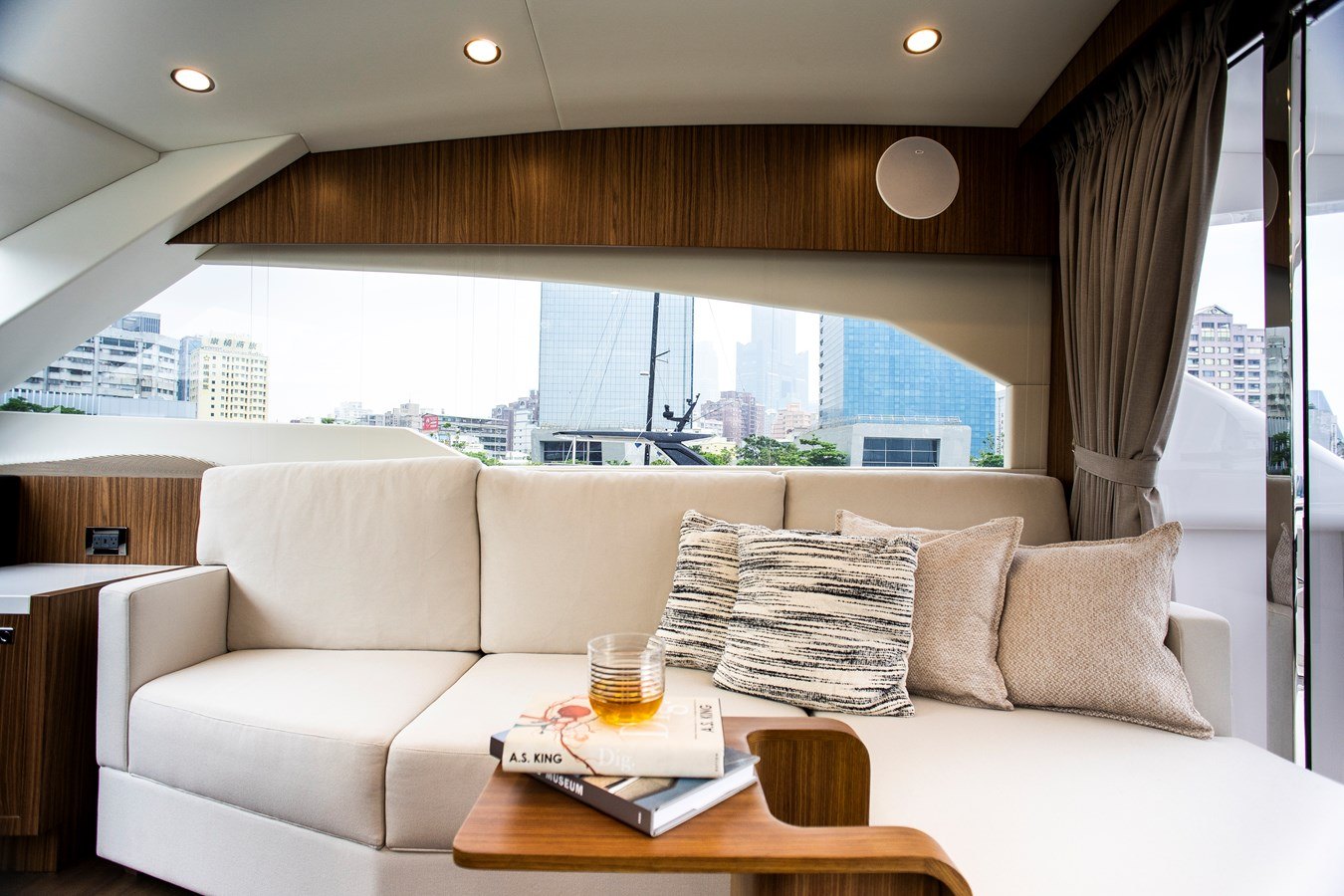

- 3. Leather sofa & coffee table
- 4. Indel Marine IM-5S21A14A00000 refrigerator/ice maker
- 5. Rudder Indicator
- 6. Magnetic compass
- 7. Stainless steel guard rails and grab rails
- 8. Low level courtesy lights 24V
- 9. ACR Search light
- 10. Buell airhorn
- 11. Stidd 500-M-X2 helm seat X 1
- 12. Stainless steel steering wheel
- 13. CCTV system with 4 cameras (engine room, saloon door, aft deck port & stbd)
- 14. One shipset LED navigation lights
- 15. Fusion stereo system

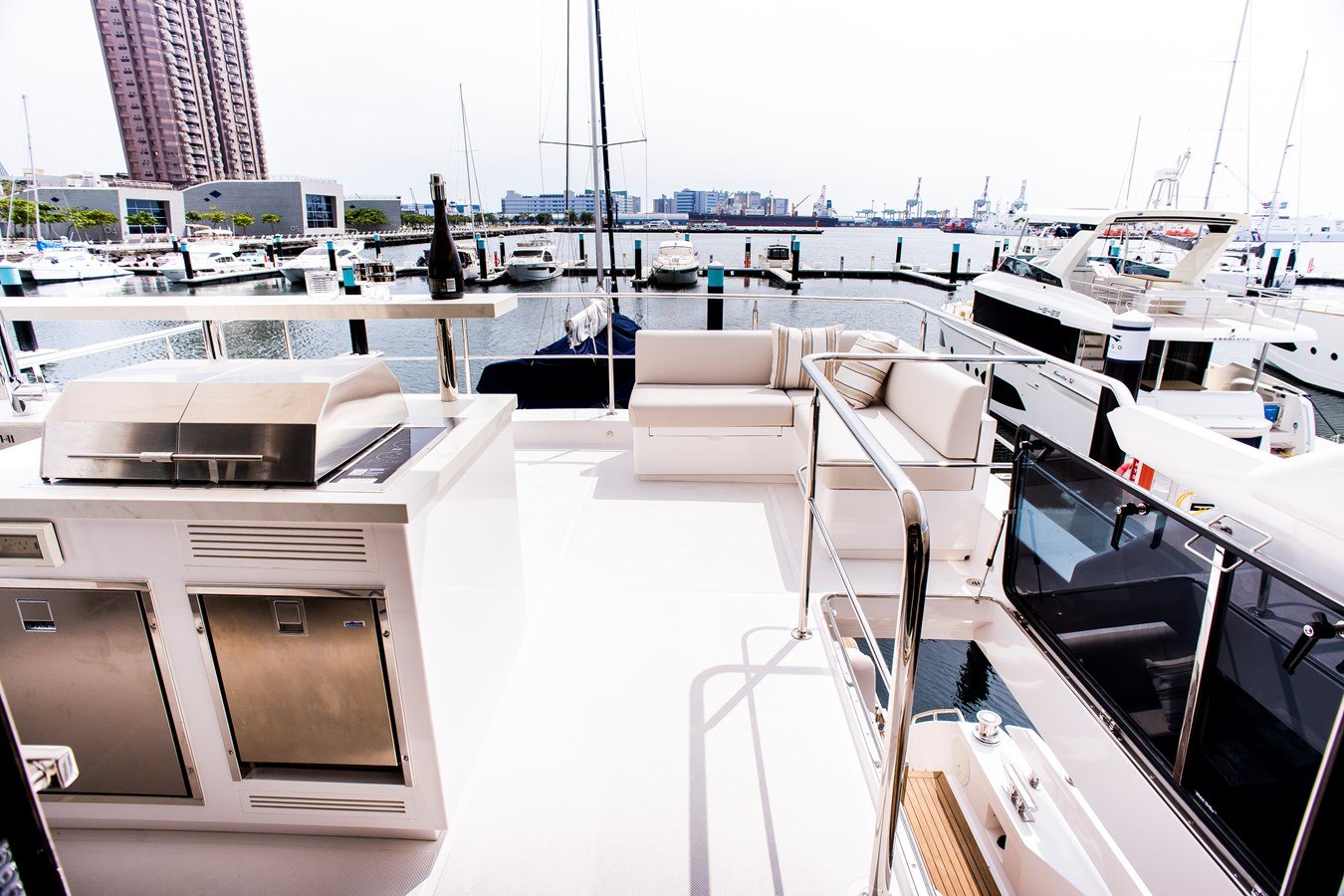

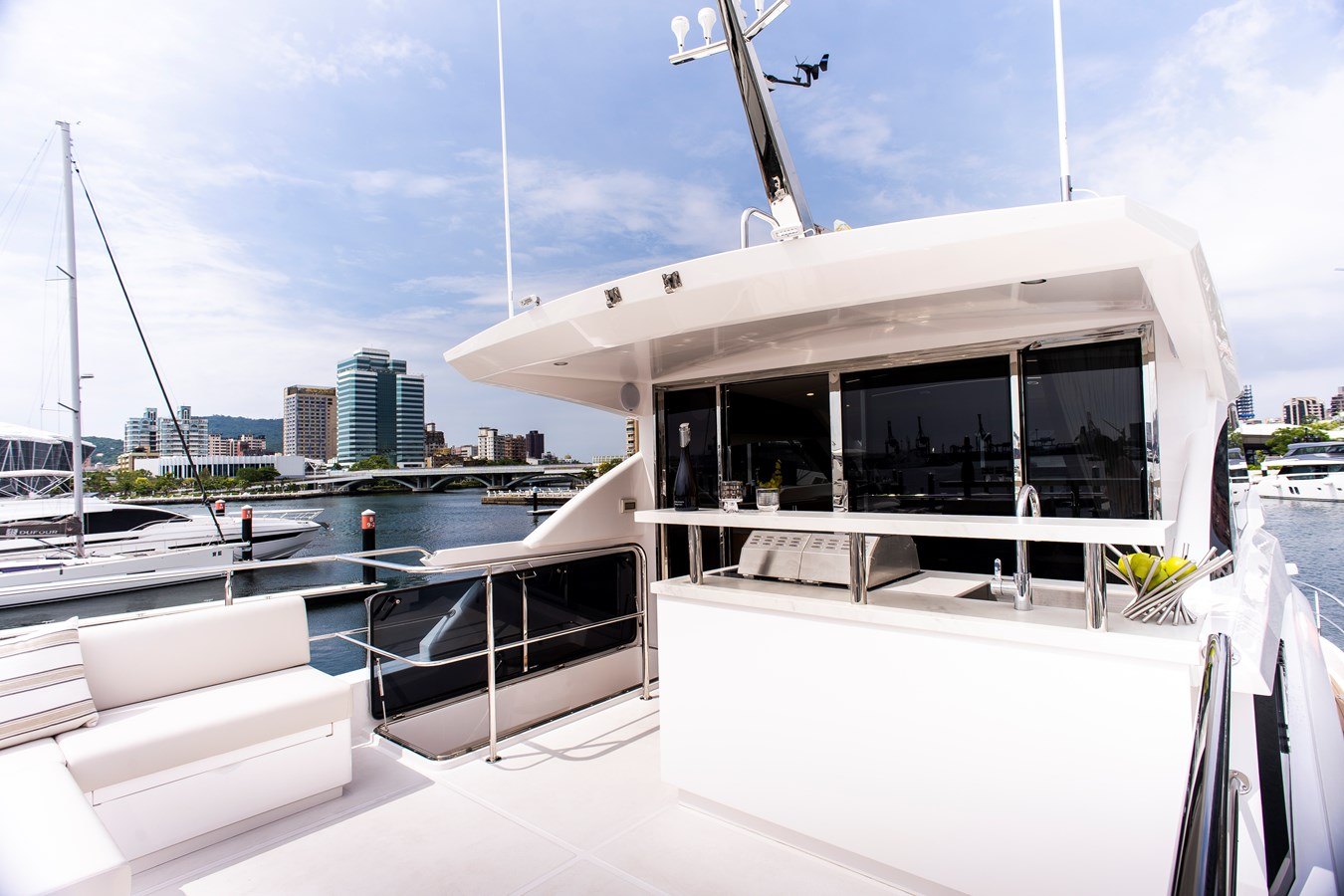

- 16. Flybridge aft BBQ stand with stone countertop, sink and refrigerator/freezer combo
Engine Room & Equipment
- 1. Engine room clean designed with lightweight honeycomb floor
- 2. Soundproofing throughout engine room
- 3. Heavy-duty insulated engine room door
- 4. Stainless steel grab rails on each side of engine
- 5. Engine room LED ceiling lights
- 6. Engine compartment ventilation blowers
- 7. Engine room demisters
- 8. Caterpillar C-18 Acert 1150 HP engine x 2
- 9. Hydraulic steering system
- 10. Engine load distributed through flexible mountings on stainless steel engine bed bonded to FRP hull girder
- 11. Engine alarm system
- 12. Air compressor
- 13. Trident hose or equivalent for engine exhaust
- 14. Sleipner SPS55B/800 Vector Fins M Stabilizers x 2
- 15. ABT -12” 30HP bow thruster
Electrical
- 1. 110V / 220V AC electrical system
- 2. DC 24V system
- 3. Color-coded wiring for easy identifications
- 4. Main electric panel includes AC & DC circuit breakers
- 5. AC volt receptacles located sockets throughout the boat
- 6. GFI protection for all AC outlets in exterior, heads, galley, and engine room
- 7. Fiberglass water / exhaust separator for generator
- 8. Electrolysis bonding system
- 9. Cathodic protection with zinc anodes for shafts, struts, etc.
- 10. Indirect lighting under valance in saloon, staterooms and galley
- 11. Dimmer system for LED ceiling lights in aft deck, and flybridge
- 12. Dimmer system for LED ceiling lights in saloon, master and VIP stateroom
- 13. Italian Vimar switches for lighting system
- AC/DC MAIN POWER SYSTEM
- 1. Onan generator 29kW (60Hz) with sound shield x 1
- 2. Battery charger for 24V
- 3. Battery charger for 12V
- 4. Alternator split charging system
- 5. 25.6V / 100ah Victron lithium ship service batteries x 4.
- 6. 255 amp/hr. gel cell sealed engines start batteries x 4
- 7. 210 amp/hr. gel cell sealed generator start batteries x 1
- 8. All batteries enclosed with proper fixtures
- 9. 2 shore power connections wired with 2 units of 50-amp automatic isolating & booster transformers
- 10. 4kW inverter x 1
Navigation System
- 1. Garmin GPS
- 2. Garmin Radar x 1
- 3. Garmin 17” multifunction displays x 2
- 4. Garmin Autopilot System.
- 5. Garmin AIS.
- 6. Garmin VHF radio
Mechanical & Plumbing System
- FUEL OIL SYSTEM
- 1. Fuel tanks with sight and electric gauges and capacity as specified in Principal Dimension above.
- 2. Racor dual fuel filter / water separator for each engine
- 3. Racor fuel filter / water separator for generator
- 4. Oil changing pump for engine, generator and clutches
- FRESH WATER SYSTEM
- 1. Stainless steel water tank with electric gauge and capacity as specified in Principal Dimension above
- 2. Marco UPI4/E-DX electronic dual pump system
- 3. Marine grade lines for freshwater system
- 4. Torrid TormvS-20/240V 60HZ/50HZ 20 gallons water heater x 2
- 5. Hot water circulation pump
- 6. Dockside freshwater inlet
- 7. Water maker 700 GPD
- SANITARY SYSTEM
- 1. Holding tank with macerator pump
- 2. Holding tank level indicator
- 3. Y-valve for holding tank with deck fitting for dockside pump out
- 4. Planus toilet system
- 5. Sump pumps for shower water
- BILGE WATER SYSTEM
- 1. DC 24V Rule 3700 bilge pumps x 6
- 2. Jabsco 29270-0000 Manual bilge pump in engine room
- 3. Highwater level bilge alarm system x 6
- 4. Bilge exhaust ventilation fans
- AIR CONDITIONING SYSTEM
- 1. Cruisair chilled water air conditioning system with 48000 BTU Compressor x 2
- 2. Air handlers throughout boat
Fire Safety System
- 1. Fire insulation in engine room
- 2. Auto shutdown system
- 3. Automatic/manual Sea-Fire fire extinguisher system
- 4. Intergraded fire alarm system in helm station, with smoke detector in each cabin
Interior Design & Equipment (Per Layout)
- INTERIOR DECORATION
- 1. Standard layouts Master stateroom plus 3 guests cabins and 1 crew cabin
- 2. Standard collection of wood for interior
- 3. Standard collection of carpet except in wood floor areas
- 4. Standard collection of interlocking vinyl ceiling panels throughout
- 5. Standard collection of wood or carpet floor for skylounge version only
- 6. Choice of marble/granite/wood floors in galley from standard collection
- 7. Choice of granite/glass/quartz stone for galley
- 8. countertop and backsplash from standard collection
- 9. Standard choice of fabrics for bedspreads, decorative pillows and sheet set (flat sheet, fitted sheet, pillow cases) one set per berth
- 10. King size bed in master stateroom
- 11. Upholstered headboard for master stateroom, VIP stateroom, and guest cabins
- 12. Wood or upholstered bed frames in all cabins
- 13. Hanging lockers in all staterooms
- 14. Quick KAI XP-LP 6W LED ceiling lightings
- 15. Indirect lighting system under bed and valances
- 16. 24V Reading lights in each cabin
- 17. Choice of marble/granite/mosaic/glass/quartz stone for countertop and backsplash in all heads from shipyard collection
- 18. Choice of marble/granite/wood floor in all heads from shipyard collection
- 19. Glass/Dishes/Plate holders if sample provided
- 20. Grohe faucets, towel bars, towel rings, cup/brush/soap holders, toilet roll holders all heads
- 21. Toto or equivalent basins
- 22. Lacquer finish above basin countertop
- 23. Wood finish below basin countertop
- 24. Exhaust blower for each head
- 25. Standard choice of mosaic finish for all shower wall except for crew which is to be finish in lacquer
- 26. Mirror and mirror ceiling for all head
- APPLIANCES
- 1. GE. under counter refrigerator x 1
- 2. GE under counter freezer x 1
- 3. GE dishwasher x 1
- 4. GE microwave with extractor fan x 1
- 5. GE electric induction cook top
- 6. Stainless steel sink per layout
Stereo System
- 1. TV antenna on top of radar arch
- 2. Wi-fi booster system with wireless routers onboard
- 3. Flybridge Fusion marine Stereo x 1 and speakers x 2
- 4. Saloon 55” LCD TV with home stereo entertainment system
- 5. Master Stateroom 43” LCD TV with home stereo entertainment system
